Jordan Hobbsa,
Calum J. Gibb
b and
Richard J. Mandle
*ab
aSchool of Physics and Astronomy, University of Leeds, Leeds, LS2 9JT, UK
bSchool of Chemistry, University of Leeds, Leeds, LS2 9JT, UK. E-mail: r.mandle@leeds.ac.uk
First published on 27th May 2025
So-called polar liquid crystals possess spontaneous long-range mutual orientation of their electric dipole moments, conferring bulk polarity to fluid phases of matter. The combination of polarity and fluidity leads to complex phase behaviour, and rich new physics, yet the limited understanding around how specific molecular features generate long-range polar ordering in a fluid is a hindrance to the development of new materials. In this work, we introduce a computational framework that probes the bimolecular potential energy landscape of candidate molecules, enabling us to dissect the role of directional intermolecular interactions in establishing polar order. In closely related families of materials we find conflicting preferences for (anti)parallel ordering which can be accounted for by specific interactions between molecules. Thus, our results allow us to argue that the presence (or absence) of polar order is a product of specific molecular features and strong directional intermolecular interactions rather than being simply a product of dipole–dipole forces. The design principles established can be leveraged to developing new polar liquid crystalline materials.
![]() | ||
Fig. 1 Depictions of apolar (A) and polar (B) nematic phases; the arrows represent molecular electric dipole moments and are coloured according to their orientation. (C) Molecular similarity of polar liquid crystals visualised with a plot of uniform manifold approximation and projection (UMAP) – molecules are represented as a 1024-bit Morgan fingerprint17 with a radius of 2, 20 nearest neighbours, a minimum distance of 0.5, and the Rogers-Tanimoto similarity metric to project the high-dimensional fingerprint to two dimensions. Datapoints are coloured according to the polar phases exhibited; where multiple phases are present, the datapoint has split colouring. DIO-like molecules are at the lower left, and RM734-like molecules at the upper right. The plot encodes data for ∼500 polar liquid crystals, with data taken from ref. 9,16 and 18–44. |
Since this initial discovery, the imposing of polar order atop liquid crystal with differing positional order has been shown to yield orthogonal (SmAF)9,10 and tilted (SmCP) phases.11–13 More complex phase types are also shown to exist, including spontaneously helical nematic (HCNF in14 or NTBF in15 and smectic (SmCPH)).16 It is reasonable to expect, where not forbidden by symmetry, polar variants of classical liquid crystals will be discovered. For example, higher ordered orthogonal (SmBP, SmEP) or tilted (SmIP, SmFP) smectics, smectics with modulation (e.g. SmÃP, SmP, and so on), where the subscript P denotes polar order being preferred to “F” for ferroelectric as the viscosity of such hypothetical states may render the measurement of polarization reversal ambiguous.
While typified by archetypal materials such as RM73445,46 and DIO, the NF phase is fairly widespread and found in an ever growing number of materials.42,47 Despite this, there is no unified view of how polar order arises. The effect is that while a few materials are discovered ad hoc, most are progressions or evolutions from some initial configuration rather than designed from first principles. Indeed, the vast majority of polar liquid crystals materials can be described as descendants of these archetypal structures (Fig. 1c).
The molecules that show polar liquid crystal phases typically have large electric dipole moments, and it has been suggested that dipole–dipole interactions are important in the genesis of polar order. However, small changes in molecular structure, even those which preserve or even enhance the electrical polarity of the molecule, can lead to the loss of polar ordering.11,47 In our view, dipole–dipole interactions are likely important, but an argument could be made that their importance is currently overstated. More recently it has been demonstrated that strong dipole–dipole interactions can lead to anti-parallel ordering48,49 and twisted structures even with degenerate anchoring.50–52
Linking emergent polar order to specific patterns of intermolecular interactions, similar to the Madhusudhana charge interaction53 but grounded in atomistic detail, is not only more logical from a molecular viewpoint, but has the potential to impact other adjacent fields with polar order (for example, polymers, MOFs and such).
Atomistic MD simulations have given valuable insight into the molecular basis of polar order in liquid crystal phases.54 However, the reliance on empirical force fields neglects electronic effects such as polarization, charge transfer, and intermolecular induction effects. Recently, we developed an analysis workflow for examining the 3D bimolecular potential energy surface (bPES) for an interacting pair of molecules,47 this being particularly suited to the study of polar liquid crystals. Herein, we show that the presence and absence of the NF phase in closely related materials (RM734 vs. RM734-CN; Fig. 2) can be accounted for by solely considering lateral intermolecular interactions. We extend this analysis workflow DIO,22 and the closely related materials CIO43 and DIO(−F).42
First, the geometry of a single molecule was optimised at the B97-D3/cc-pVTZ level of DFT.57,58 A series of rigid bimolecular calculations were set up by translating a second copy of this molecular geometry over the x/y/z axes – here, we restrict our study to the limiting cases of parallel and antiparallel orientation of the two molecules. The initial displacement grid has an initial spatial extent of x = ±35 Å; y = ±20 Å; z = ±8 Å, with a resolution of 1 Å.
We impose geometric constraints on the intermolecular separation by enforcing a minimum and maximum atom-atom distance criterion. Specifically, configurations are only considered valid if the shortest interatomic distance between any atom in molecule 1 and any atom in molecule 2 is no less than 3.0 Å, ensuring physically reasonable non-covalent interactions. Conversely, to exclude unbound or weakly interacting states, we impose an upper bound of 5.0 Å on the longest interatomic separation between the two molecules. These criteria ensure that the sampled configurations remain within a physically relevant interaction range while preventing artificial close contacts or excessively weak long-range interactions. For each unique geometry we perform a single point energy calculation at the B97-D3/cc-pVTZ level of DFT with counterpoise correction, with the complexation energy and displacement vectors used to construct the 3D bimolecular potential energy surface.
We identify the global minimum on the bPES, along with a further 9 discrete local minima. Minima are only considered discrete if they are 3 Å from another identified local minima and are not related via symmetry. Each identified minima then undergoes unconstrained geometry optimisation at the same level of DFT as used previously. To account for optimisations of two (or more) configurations converging to the same geometry, we calculate the RMSD between each set of optimised minima geometries for each molecule and discard those that fall below a threshold of 0.2 Å. Visual inspection of remaining geometries is used to classify specific pairing types (e.g. slipped parallel, twisted antiparallel and so on). A schematic of this workflow is given in Fig. 3.
We first consider the well-known materials RM734 and RM734-CN. Whereas RM734 has a terminal nitro group and exhibits the NF phase, in RM734-CN the nitro group is swapped for a cyano group which leads to the absence of the NF phase. Given that the two materials have comparable electric dipole moments (11.4 D versus 11.3 D, for RM734 and RM734-CN respectively, at the B97-D3/cc-pVTZ level of DFT) the magnitude of electric dipole should not be taken exclusively as indicative of spontaneous polar ordering.
The rigid bimolecular potential energy surfaces for the two materials are not especially diagnostic upon visual examination; both the parallel and antiparallel configurations feature many local minima (Fig. 4a). However, following geometry optimisation of each minimum, we find significant differences between RM734 and RM734CN. For RM734, the parallel form is the global minimum, with multiple low energy parallel configurations whereas for RM734CN the antiparallel form is the global minimum (Fig. 4b). Broadly speaking, any parallel configuration of RM734 is slightly lower in energy than the equivalent configuration in RM734CN (Fig. 4c–e), but the difference in complexation energy is modest (∼1–2 kcal mol−1). The global energy minima for RM734 is the twisted-parallel form (Fig. 4c), featuring a weak electrostatic interaction between staggered nitro groups on adjacent molecules (O2Nδ+⋯Oδ+NO) which is not feasible for the nitrile terminated material in this geometry. In the parallel form (Fig. 4d), the same interaction is present for the nitro-terminated material, while for the nitrile terminated RM734-CN there is an analogous but weaker interaction (CNδ−⋯Cδ+
N), which reflects in the reduced complexation energy. In the case of the slipped parallel form (Fig. 4e), the geometry of the nitro group leads to a favourable interaction with the proximal carboxylate ester on the adjacent molecule (O
Cδ−⋯Oδ−NO) which is not geometrically possible for the nitrile terminated material. Thus, the preference for parallel (polar) pairing modes results from the subtle balance of geometry with non-covalent interactions.
The behaviour of antiparallel configurations is somewhat more nuanced. On the one hand, some forms (such as the slipped antiparallel pair in Fig. 5a) are close in terms of geometry and complexation energy. However, the nitrile terminated material adopts certain antiparallel configurations (such as the global energy minimum twisted antiparallel form, Fig. 5d) which are not found for the nitro terminated material. The reason for this can be understood in terms of charge distribution (Fig. 5e and f); both nitro- and cyano- groups are highly polar with localised charges, however the geometry of the nitro group – with large, localised charges on the two oxygen atoms –prevents the twisted antiparallel configuration due to electrostatic repulsion from the oxygen atom of the terminal methoxy unit. Thus, we are left with the counterintuitive conclusion that polar order in RM734, and absence of polar order in RM734-CN, results from a small increase in complexation energy for the parallel form and a significant decrease for the antiparallel form.

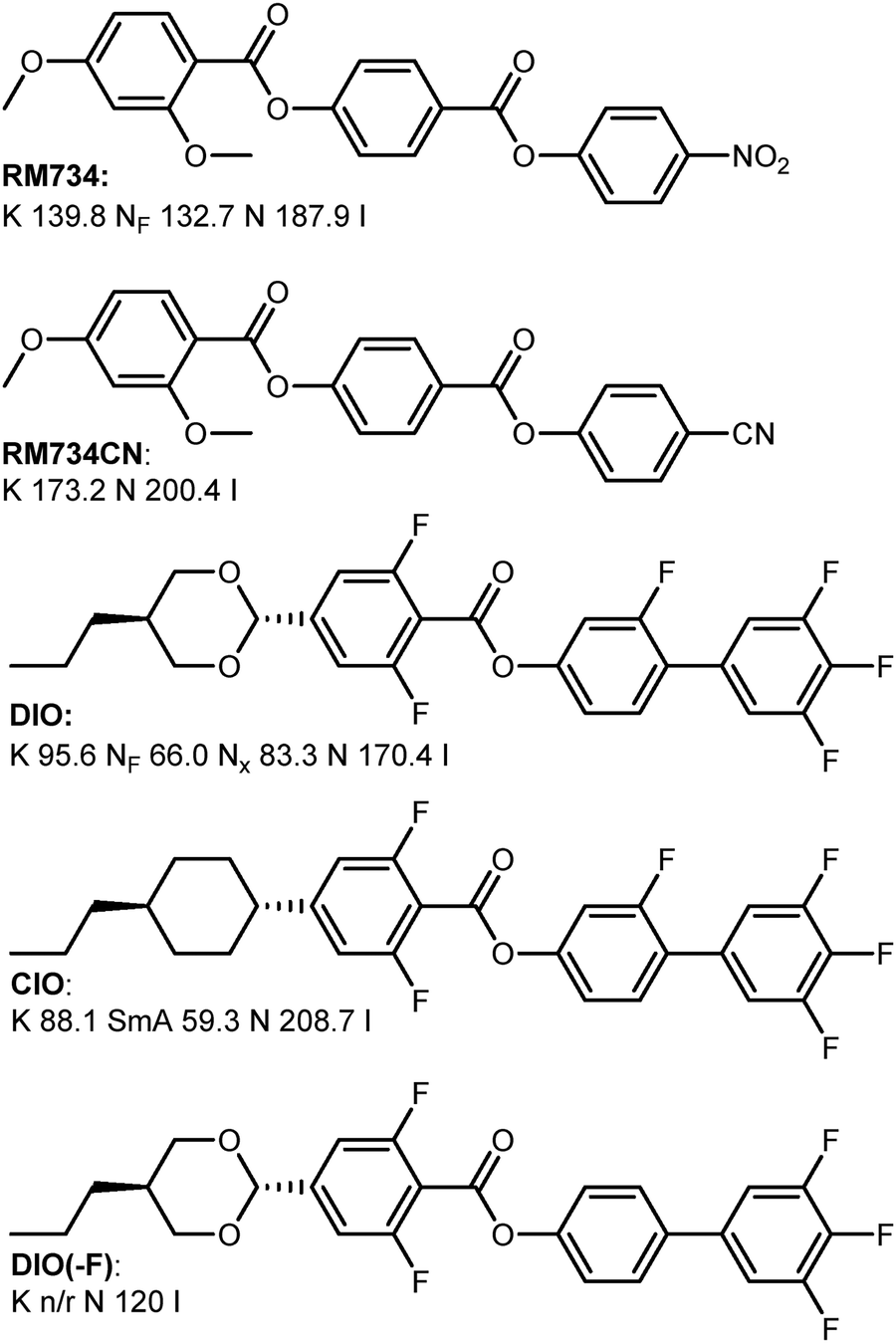

We now consider DIO and two derivatives; CIO43 and DIO(−F).42 Replacement of the trans 1,3-dioxane unit of DIO with a trans cyclohexyl unit affords CIO, which exhibits only apolar liquid crystal phases. Similarly, DIO(−F) – analogous to DIO but with a single fluorine atom removed – displays only apolar liquid crystalline order. As with the previous examples, the overall polarity of these materials is comparable, with calculated dipole moments at the DFT:B97-D3/cc-pVTZ level of 8.5 D (DIO), 7.0 D (CIO) and 8.1 D (DIO(−F)).
In the parallel configuration, all three materials adopt parallel (Fig. 6c–e, top) and slipped parallel (Fig. 6c–e, bottom) configurations. For both configurations, the complexation energy of DIO is larger than CIO or DIO(−F). In the first case, this reflects the contribution of the dioxane group (DIO, versus cyclohexane in CIO); with the dioxane group interacting with either another dioxane (parallel) or the adjacent meta difluorobenzene (slipped parallel). This interaction is via electrostatics, with the partial negative charges of the oxygen “side” of the dioxane ring being proximal to the partial positive charge of an adjacent dioxane or benzene ring. It should also be noted that dioxane has a smaller steric footprint than cyclohexane, which may also be a relevant factor. We speculate that the incapability of other saturated ring systems to deliver polar liquid crystal phase (e.g. 1,3,2-dioxaborinanes, cubanes)43 is due to similarly reduced interaction strength (and potentially steric factors also) versus the parent dioxane. Based on this, we would expect the tetrahydropyran homologue of DIO to have a somewhat lower onset temperature for polar order. The analogous 2,6,7-trioxabicyclo[2.2.2]octyl material is also likely to be lower owing to its larger steric footprint and unfavourable geometry. The 1,3-dioxane ring, while prone to degradation (hydrolysis, isomerisation, thermolysis),43 does regrettably appear to be a privileged scaffold with respect to polar liquid crystals.
Comparing DIO with DIO(−F), the reduction in complexation energy reflects the impact of fluorination pattern on π–π interactions, the strength and geometry of which reflects the anisotropy of the electrostatic potential (ESP) and the quadrupole moment of the system. It is well known that benzene has a negative quadrupole moment perpendicular to the ring plane owing to delocalised electrons, while hexafluorobenzene has a positive quadrupole as the fluorine atoms pull electron density away from the ring π-cloud. This effect also manifests in the ESP, with benzene having a negative ESP above/below the ring due to the density of π-electrons, and hexafluorobenzene having positive ESP above/below the ring. Thus, the heterocomplex of benzene and hexafluorobenzene can stack face-to-face due to complementary ESP. In our previous work,16 we demonstrated that the ESP should be spatially uniform in 3D. We can use the example of a black and white checkboard pattern to illustrate this in a simplistic fashion, where black and white are alternate charge polarities. When the checkboard pattern gets disturbed (i.e. a white square is turned black) a region of repulsion is induced reducing the prevalence of lateral interactions. Induce enough of these repulsive regions and the anti-parallel promoting dipole–dipole interactions becomes dominant once again.
Here, the fluorination pattern in DIO leads to a more anisotropic ESP within the rings than for DIO(−F), favouring face-to-face stacking through complementary ESP between adjacent molecules. The ESP anisotropy is increased by incorporating an additional fluorine atom (DIO (+F); Fig. 7); this is expected to further enhance the packing preferences, and manifests experimentally as an increased T(NF). The effect of fluorination pattern can also be seen to impact on the quadrupole tensor, with the QYY and QZZ components changing sign as the degree of fluorination increases. This in itself is not proscriptive for determining the preference for parallel/antiparallel packing; geometry and repulsion between localised charges (e.g. on fluorine) must also be considered.
![]() | ||
Fig. 7 Molecular structures and transition temperatures (°C) of DIO, DIO (−F), and DIO (+F).42 Right, calculated ESP potential mapped onto the electron density at the 0.04 isosurface calculated for the indicated portion of each molecule. Bottom, traceless quadrupole tensor components for each material, with the molecular long axis oriented along X. All calculations were performed at the DFT:B97D3/cc-pVTZ level. |
We next consider the case of antiparallel geometries. All three materials exhibit the same types of pairing modes, with the twisted antiparallel pair (Fig. 8, bottom) being the global energy minimum antiparallel form. DIO, and its derivatives considered here, show smaller differences in terms of the complexation energy of antiparallel pairs than seen for RM734 and its nitrile terminated homologue. For DIO, the antiparallel form is the global energy minimum (Fig. 8a) albeit by only 0.1 kcal mol−1, despite the fact polar order is known to prevail (as the material exhibits polar LC phases). For CIO and DIO(−F) the antiparallel form is far lower in energy than the parallel form. This highlights again that quite subtle differences in intermolecular interactions are responsible for the preference for parallel or antiparallel organization, which manifests in the presence (or absence) of polar liquid crystal phases.
Finally, we conclude our analysis by considering the bPES of two different molecules, RM734 and DIO. Chen et al. showed that, experimentally, these display ideal mixing, despite the differences in their chemical structure,59 and we have since suggested this may be a more general phenomenon.43 Here, we find that the parallel configurations have larger complexation energies than the antiparallel form. For the mixed RM734/DIO system we find that the parallel form exhibits comparable intermolecular interactions to those seen for single component systems. In addition to π–π interactions and π–NO2 interactions (Fig. 9b), we find interactions between the nitro group and ester groups (Fig. 9c) and between ester groups (Fig. 9d and e). The ideal mixing of these materials reflects the fact the complementary nature of their intermolecular interactions. Framing the incidence of polar order in this way allows us to explain the rapid suppression of the NF phase in mixtures systems where this complementarity is lacking, for example 5CB and DIO/RM734.60
While substituent effects (such as NO2 vs. CN) manifest as rationalizable trends within a given family of materials (shown here for RM734 and RM734-CN), these effects are not necessarily transferable between different molecular scaffolds. Consider that replacement of the terminal fluorine atom in DIO with CN, or NO2 increases the onset temperature of polar order.38 The lack of emergence of a cohesive structure–property relationship reflects the fact that this relation has chemical specificity; the influence of a given substructure or functionality within a molecule must be understood within the broader molecular context. While structure property relationships have immense value as projection of complex, high-dimensional chemical information into low dimensional heuristics (e.g. design rules), a general relationship underpinning emergent polar order appears a distant prospect given based on current data. Our bimolecular potential energy surface workflow offers a physically grounded means to study how molecular structure governs interaction modes, and ultimately polar order.
