Issue 20, 2012

Quantum confinement effect of CdSe induced by nanoscale solvothermal reaction

Abstract

We report a novel method, nanoscale solvothermal reaction (NSR), to induce the quantum confinement effect of CdSe on nanostructured TiO2 by solvothermal route. The time-dependent growth of CdSe is observed in solution at room temperature, which is found to be accomplished instantly by heat-treatment in the presence of solvent at 1 atm. However, no crystal growth occurs upon heat-treatment in the absence of solvent. The nanoscale solvothermal growth of CdSe quantum dot is realized on the nanocrystalline oxide surface, where Cd(NO3)2·4H2O and Na2SeSO3 solutions are sequentially spun on nanostructured TiO2, followed by heat-treatment at temperatures ranging from 100 °C to 250 °C. Size of CdSe increases from 4.4 nm to 5.3 nm, 8.7 nm and 14.8 nm, which results in decrease in optical band gap from 2.19 eV to, 1.95 eV, 1.74 eV and 1.75 eV with increasing the NSR temperature from 100 °C to 150 °C, 200 °C and 250 °C, respectively, which is indicative of the quantum confinement effect. Thermodynamic studies reveal that increase in the size of CdSe is related to increase in enthalpy, for instance, from 3.77 J mg−1 for 100 °C to 8.66 J mg−1 for 200 °C. Quantum confinement effect is further confirmed from the CdSe-sensitized solar cell, where onset wavelength in external quantum efficiency spectra is progressively shifted from 600 nm to 800 nm as the NSR temperature increases, which leads to a significant improvement of power conversion efficiency by a factor of more than four. A high photocurrent density of 13.7 mA cm−2 is obtained based on CdSe quantum dot grown by NSR at 200 °C.

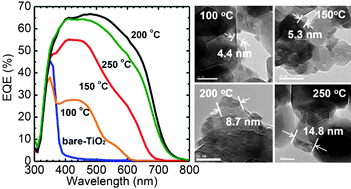

Graphical abstract: Quantum confinement effect of CdSe induced by nanoscale solvothermal reaction

Article information

Article type
Paper
Submitted
11 Jul 2012
Accepted
28 Aug 2012
First published
29 Aug 2012

Nanoscale, 2012,4, 6642-6648

Quantum confinement effect of CdSe induced by nanoscale solvothermal reaction

J. Lee, J. Im and N. Park, Nanoscale, 2012, 4, 6642 DOI: 10.1039/C2NR31807E

To request permission to reproduce material from this article, please go to the Copyright Clearance Center request page.

If you are an author contributing to an RSC publication, you do not need to request permission provided correct acknowledgement is given.

If you are the author of this article, you do not need to request permission to reproduce figures and diagrams provided correct acknowledgement is given. If you want to reproduce the whole article in a third-party publication (excluding your thesis/dissertation for which permission is not required) please go to the Copyright Clearance Center request page.

Read more about how to correctly acknowledge RSC content.

Social activity

Spotlight

Advertisements
