Revealing anisotropic strain in exfoliated graphene by polarized Raman spectroscopy

Abstract

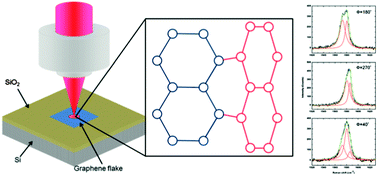

We report on a polarized Raman study on mechanically cleaved single-layer graphene films. Under a specific orientation of scattering measurement, the width and position of the G peak change with the incident polarization direction, while the integrated intensity of that is unaltered. This phenomenon is explained by a proposed mode in which the peak is contributed by a mixture of un-, compressive-, and tensile-strained G sub-modes. The compression and tension are both uniaxial and approximately perpendicular to each other. They are undesigned and located in either separated or overlapped sub-areas within the probed local region. Compared to the unstrained wavenumber of 1580 cm⁻¹, compression induces a blue shift while tension causes a red one. The sub-modes correlated with the light polarization through different relationships split the G peak into three sub-ones. We develop a method to quantitatively analyze the positions, widths, intensities, and polarization dependences of sub-peaks. This analysis quantitatively reveals local strain, which changes with the detected area of a graphene film. The method presented here can be extended to detect the strain distribution in the film and thus is a promising technology for graphene characterization.
