Terminal effects on gelation by low molecular weight chiral gelators

Abstract

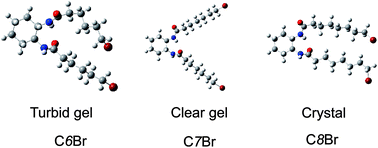

Gel formation by low molecular mass gelators was investigated. The gelator was trans(RR)- or trans(SS)-N,N′-n-bromoalkanoyl-1,2-diaminocyclohexane (denoted as RR-CnBr or SS-CnBr, respectively; n = the number of carbon atoms in an alkanoyl group). When n was varied from 5 to 12, the gelators formed transparent or opaque or turbid gels in benzene except for n = 8. Focusing on the end effects, the gelation behavior of CnBr was compared with that of non-brominated counterparts (denoted as RR- or SS-Cn). From the vibrational circular dichroism (VCD) spectra of enantiomeric gelator/benzene-d₆ gels, the signs of the coupled peaks around 1640 cm⁻¹, which were assigned to the symmetric and asymmetric CO stretching vibrations from the higher to lower wavenumber, respectively, were opposite between SS-CnBr and SS-Cn (or between RR-CnBr and RR-Cn). On the other hand, the signs of the coupled peaks around 1550 cm⁻¹ assigned to the NH stretching vibrations remained unaffected. The observed reversal of the signs in the CO couplet was rationalized in terms of the different modes of stacking in fibrils. In the case of Cn, for example, the molecules were stacked through anti-parallel double intermolecular hydrogen bonds using two pairs of >NH and >CO groups, while, in the case of CnBr, a single intermolecular hydrogen bond was formed with the remaining pair of >NH and >CO groups forming an intramolecular hydrogen bond. Single crystal X-ray analyses were performed for SS-C6Br and SS-C8Br. The results demonstrated that the length of the bromoalkanoyl chains drastically affected the packing modes in crystalline states.
