Large area CMOS bio-pixel array for compact high sensitive multiplex biosensing

Abstract

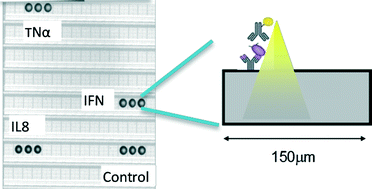

A novel CMOS bio-pixel array which integrates assay substrate and assay readout is demonstrated for multiplex and multireplicate detection of a triplicate of cytokines with single digit pg ml⁻¹ sensitivities. Uniquely designed large area bio-pixels enable individual assays to be dedicated to and addressed by single pixels. A capability to simultaneously measure a large number of targets is provided by the 128 available pixels. Chemiluminescent assays are carried out directly on the pixel surface which also detects the emitted chemiluminescent photons, facilitating a highly compact sensor and reader format. The high sensitivity of the bio-pixel array is enabled by the high refractive index of silicon based pixels. This in turn generates a strong supercritical angle luminescence response significantly increasing the efficiency of the photon collection over conventional farfield modalities.
