Nitrogen-doped carbon nanosheets for high-performance liquid as well as solid state supercapacitor cells

Abstract

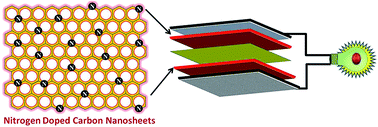

In this article N-doped carbon nanosheets (NCNS), formed by carbonizing polyaniline nanosheets (PNS), are reported. PNS were pyrolyzed at different temperatures (400–600 °C) to get different doping levels of nitrogen in the carbon sheets. The PNS carbonized at 400 °C (NCNS 400) exhibited high electrochemical performance due to a high inter-planar distance of 0.45 nm and high percentage (15 wt%) of N-based functionalities. NCNS 400 shows consistently high charge storage capacity in solid (PVA/H₂SO₄) and aqueous (1 M H₂SO₄) electrolytes. The NCNS 400 supercapacitor cell showed high energy density in 1 M H₂SO₄ (21.6 W h kg⁻¹ at a power density of 293.91 W kg⁻¹) and PVA/H₂SO₄ (9.8 W h kg⁻¹ at 288 W kg⁻¹). Further, the low relaxation time constant (τ_o) with low iR-drop and high capacitance retention (99.3%: H₂SO₄ and 99.8; PVA/H₂SO₄) is attributed to the improved structural properties upon nitrogen doping in the carbon sheets.
