Cadmium(ii) carboxyphosphonates based on mixed ligands: syntheses, crystal structures and recognition properties toward amino acids

Abstract

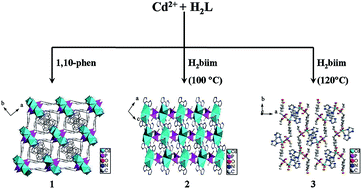

Three novel cadmium(II) carboxyphosphonates with three-dimensional (3D) frameworks and supramolecular structures, namely, Cd₃[(L)₂(1,10-phen)_1.5]·H₂O (1), Cd[(L′)(H₂biim)] (2), and Cd[(L′)(H₂biim)(H₂O)]·H₂O (3) (L = OOC–C₆H₄–CH₂PO₃, L′ = OOC–C₆H₄–CH₂PO₂(OC₂H₅), 1,10-phen = 1,10-phenanthroline, H₂biim = 2,2′-biimidazole), were synthesized under hydrothermal conditions and were structurally characterized. For compound 1, the Cd(1)O₆, Cd(2)O₄N₂, Cd(3)O₂N₂, Cd(4)O₄ and CPO₃ polyhedra were interconnected in a one-dimensional (1D) chain along the b-axis via corner- and edge-sharing. The adjacent chains were connected with each other by sharing the L³⁻ anions, giving rise to a 3D framework structure. Compound 2 adopted a 3D supramolecular structure. The interconnection of two Cd(1)O₄N₂ polyhedra and two CPO₃ tetrahedra via corner-sharing formed a structure unit, with such units further connected in the bc-plane by sharing the L′²⁻ anions to exhibit a 2D layer, and then the neighboring layers were further assembled into a 3D supramolecular structure by π–π stacking interactions. In compound 3, the Cd(1)O₄N₂ and CPO₃ polyhedra were interconnected to form a unit, and then the interconnection of multi-units were assembled into two kinds of 1D chains, whereby chains and other chains are further connected by π–π stacking interactions to present a 3D supramolecular structure. The luminescence properties of compounds 1–3 were investigated. Meanwhile, the excellent abilities of compounds 2 and 3 for the selective recognition of tryptophan (Trp) were demonstrated.
