Ultrafine Co2P nanorods wrapped by graphene enable a long cycle life performance for a hybrid potassium-ion capacitor

Abstract

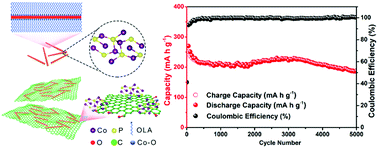

Given their high theoretical capacities, metal phosphides are anticipated to be excellent charge-storage materials for high-efficiency potassium-ion batteries. However, one of the major problems is the shuttling of heavy and large K⁺ ions between electrodes, which triggers rapid capacity fading. Here, we demonstrate that sub-4 nm Co₂P nanorods attached to reduced graphene oxide (Co₂P@rGO) can operate at a lifespan exceeding thousands of cycles. By taking advantage of the high electronic conductivity and flexibility of reduced graphene oxide (rGO), the composite electrode delivers a high capacity (374 mA h g⁻¹ at 20 mA g⁻¹) and excellent C-rate capability (141 mA h g⁻¹ at 2 A g⁻¹), superior to its commercial counterpart. Impressively, the electrode maintains 54% of the capacity over 5000 cycles, and there is almost no capacity fading after the initial 200 cycles. In addition, a hybrid potassium-ion capacitor, assembled from a Co₂P@rGO anode and activated carbon cathode, affords a high energy/power density (87 W h kg⁻¹ and 4260 W kg⁻¹) in a potential window of 1.0–4.0 V, as well as a long lifespan of over 1000 cycles. These extremes demonstrate the high-performance of the Co₂P@rGO anode materials and an optimal synthesis strategy to boost K⁺ storage performance.
