In situ identification of TATP and DADP particles collected with transparent tape by Raman spectroscopy and imaging

Abstract

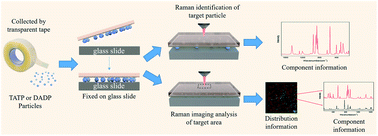

Triacetone triperoxide (TATP) and its byproduct diacetone diperoxide (DADP) are commonly used home-made high explosives in bombing cases and terrorist attacks. However, these two peroxide explosives are unstable and prone to thermal decomposition, leading to challenges in sample collection and preparation in bombing cases. Therefore, there is an urgent need to develop an in situ identification method for TATP and DADP. Compared to the solvent-based swabbing methods commonly used for trace explosive collection, the tape lifting method can collect explosive particles and other potential evidence without damaging fingerprints or DNA. This study aims to develop a tape lifting method to collect trace explosive particles in bombing cases and an in situ method to identify TATP and DADP particles on the sticky side of transparent tape directly using laser confocal Raman spectroscopy. One type of fingerprint tape and two types of office tape were used to collect peroxide explosive particles followed by particle fixation on glass slides. Laser confocal Raman spectroscopy was applied to directly identify target particles, without peeling the attached tape off the glass slide. A solid-state laser emitting at 473 nm was suitable for Raman and imaging analysis of TATP and DADP. To mimic the real situation, the synthetic TATP and DADP were passed through a 100-mesh sieve, respectively. Fifty μg of each explosive powder was weighed, mixed and spread on a wooden table with dust in an area of 10 × 10 cm². Subsequently, the samples were collected with the fingerprint tape. A targeted area of the tape with suspicious particles was imaged for analysis. Based on the difference between the characteristic Raman bands of TATP and DADP, the band ranges of 530–550 cm⁻¹ and 750–770 cm⁻¹ were selected, respectively, for obtaining the distribution information. The combination of Raman technology and the tape lifting method shows great potential for in situ identification of forensic samples by providing chemical and spatial information.
