Electrochemical properties of anthraquinone-containing polymer nanocomposite by nano-level molecular ordering

Abstract

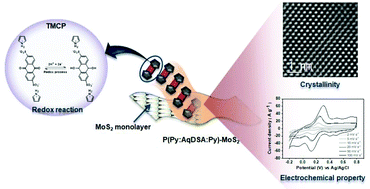

We introduce anthraquinone, one of the fascinating redox-active organic materials in energy storage systems, to the preparation of a novel polymer nanocomposite. The sub-nanometer-level ordered polymer, P(Py : AqDSA : Py), on MoS₂ from TMCPs, synthesized using anthraquinone as a linker between two pyrroles, was prepared. The chemical composition, structure, and morphology of the composite were observed through TEM and SEM-EDX. The FT-IR, Raman, and XPS spectra showed the chemical structure of the composite. The crystal structure of the composite was analyzed through HVEM and XRD. It formed a face-centered cubic (FCC) structure with a 1.28 nm d spacing toward the [100] direction. The anthraquinone-containing polymer nanocomposite, which has a unique crystal structure and complementary electrical properties, is expected to be applied to more diverse electric and energy fields as a next-generation energy material.
