Switching of alternative electrochemical charging mechanism inside single-walled carbon nanotubes: a quartz crystal microbalance study

Abstract

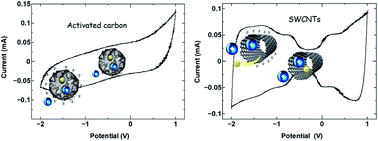

We probed electrochemical ion storage in single-walled carbon nanotubes (SWCNTs) of different diameters in two different organic electrolytes using electrochemical quartz crystal microbalance (EQCM) tracking. The measurements showed that charge storage probed by cyclic voltammetry did not deteriorate when steric effects seemed to hinder the accessibility of counter-ions into SWCNTs, and instead proceeded predominantly by co-ion desorption, as was shown by the decrease in the electrode mass probed by EQCM. The dominant mechanism correlated with the SWCNT diameter/ion size ratio; counter-ion adsorption dominated in the whole potential range when the diameter of SWCNTs was comparable to the size of the largest ion, whereas for larger diameters the charge increase coincided with a decrease in the electrode mass, indicating the dominance of co-ion desorption. The dominance of co-ion desorption was not observed in activated carbon, nor was it previously reported for other carbon materials, and is likely switched on because the carrier density of SWCNT increases with applied potential, and maintains the electrode capacity by co-ion desorption to overcome the steric hindrances to counter-ion adsorption.
