High performance of CH3NH3PbCl3 perovskite single crystal photodetector with a large active area using asymmetrical Schottky interdigital contacts

Abstract

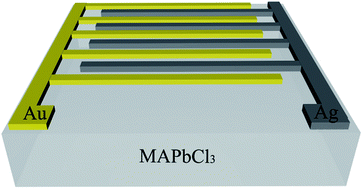

Due to the limited electrode structure types of current CH₃NH₃PbCl₃ perovskite single crystal photodetectors, these devices either have good performance but small active area or have large active area but poor performance, which greatly limits their applications. To realize a high performance of a CH₃NH₃PbCl₃ perovskite single crystal photodetector with a large active area, a CH₃NH₃PbCl₃ single crystal photodetector with asymmetrical Schottky interdigital contacts originating from planar interdigital Au–Ag electrodes was fabricated in this work. The device not only had a large active area (around 8 mm²) but also showed excellent photoelectric performance due to its built-in electric field. The responsivity of the device can reach 5.8 mA W⁻¹ at 0 V and 0.24 A W⁻¹ at 30 V reverse voltage. The response time of the device can reach 317 μs (rise)/6.82 ms (decay) at 0 V and 100 μs (rise)/2 ms (decay) at 30 V reverse voltage. The above results demonstrate that this study will provide an effective method for realizing high performance of a CH₃NH₃PbCl₃ perovskite single crystal photodetector with a large active area.
