Photoelectrochemical performance of a spin coated TiO2 protected BiVO4-Cu2O thin film tandem cell for unassisted solar water splitting

Abstract

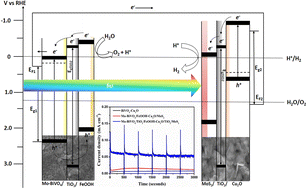

A tandem cell consisting of a Mo-BiVO₄/TiO₂/FeOOH photoanode–Cu₂O/TiO₂/MoS₂ photocathode was prepared for unassisted solar water splitting. The protective TiO₂ layer was prepared by a cost-effective spin coating technique. The individual Mo-BiVO₄/TiO₂/FeOOH photoanode and the Cu₂O/TiO₂/MoS₂ photocathode yielded a current density of ∼0.81 mA cm⁻² at 1.23 V vs. RHE and ∼−1.88 mA cm⁻² at 0 V vs. RHE, respectively under 100 mW cm⁻² xenon lamp illumination. From the individual photoelectrochemical analysis, we identify the operating points of the tandem cell as 0.66 V vs. RHE and 0.124 mA cm⁻². The positive current density from the operating points proves the possibility of non-zero operation of the tandem cell. Finally, a two-electrode Mo-BiVO₄/TiO₂/FeOOH-Cu₂O/TiO₂/MoS₂ tandem cell was constructed and analysed for unassisted operation. The obtained unassisted current density of the tandem cell was ∼65.3 μA cm⁻² with better stability compared to the bare BiVO₄-Cu₂O tandem cell. The results prove that the spin coated TiO₂ protective layer can be a viable approach to protect the photoelectrodes from photocorrosion with better stability and enhanced photoelectrochemical (PEC) performance.
