Enhanced sorption in an indium-acetylenedicarboxylate metal–organic framework with unexpected chains of cis-μ-OH-connected {InO6} octahedra

Abstract

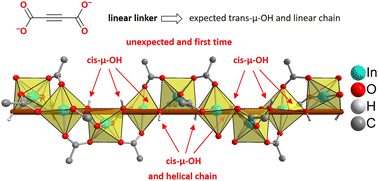

Single crystals of the new metal–organic framework (MOF) In-adc (HHUD-4) were obtained through the reaction of linear acetylenedicarboxylic acid (H₂adc) with In(NO₃)₃·xH₂O as a racemic conglomerate in the chiral tetragonal space groups P4₃22 and P4₁22. Fundamentally different from other MOFs with linear linkers and trans-μ-OH-connected infinite {MO₆} secondary building units as in the MIL-53-type, the linear adc²⁻ linker leads to the formation of cis-μ-OH connected {InO₆} polyhedra, which have otherwise only been found before for V-shaped ligands, as in CAU-10-H. A far-reaching implication of this finding is the possibility that trans-μ-OH/straight MIL-53-type MOFs will have polymorphs of CAU-10-H cis-μ-OH/helical topology and vice versa. HHUD-4 is a microporous MOF with a BET surface area of up to 940 m² g⁻¹ and a micropore volume of up to 0.39 cm³ g⁻¹. Additionally, HHUD-4 features good adsorption uptakes of 3.77 mmol g⁻¹ for CO₂ and 1.25 mmol g⁻¹ for CH₄ at 273 K and 1 bar, respectively, and a high isosteric heat of adsorption of 11.4 kJ mol⁻¹ for H₂ with a maximum uptake of 6.36 mmol g⁻¹ at 77 K and 1 bar. Vapor sorption experiments for water and volatile organic compounds (VOCs) such as benzene, cyclohexane and n-hexane yielded uptake values of 135, 269, 116 and 205 mg g⁻¹, respectively, at 293 K. While HHUD-4 showed unremarkable results for water uptake and low stability for water, it exhibited good stability with steep VOC uptake steps at low relative pressures and a high selectivity of 17 for benzene/cyclohexane mixtures.
