Tunable growth of a single high-density ZIF nanoshell on a gold nanoparticle isolated in an optical trap

Abstract

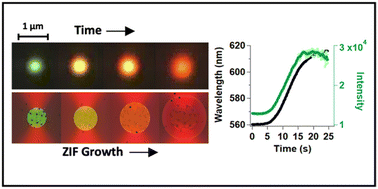

Here, we demonstrate an all-optical method using an optical tweezer to controllably grow high quality zeolitic imidazolate framework (ZIF) nanoshells on the surface of gold nanoparticles (AuNPs) and monitor the growth via darkfield spectroscopy. Our single particle approach allows us to localize an individual NP within a microscope slide chamber containing ZIF precursors at the focus of an optical microscope and initiate growth through localized heating without affecting the bulk system. Darkfield spectroscopy is used to characterize changes to the localized surface plasmon resonance (LSPR) of the AuNP resulting from refractive index changes as the ZIF crystal grows on the surface. We show that the procedure can be generalized to grow various types of ZIF crystals, such as ZIF-8, ZIF-11, and a previously undocumented ZIF variety. Utilizing both computational models and experimental methods, we identify the thickness of ZIF layers to be self-limiting to ∼50 nm or less, depending on the trapping laser power. Critically, the refractive index of the shells here was found to be above 1.6, indicating the formation of high-density crystals, previously accessible only through slow atomic layer deposition and not through a bulk heating process. The single particle method developed here opens the door for bottom-up controllable growth of custom nanostructures with tunable optical properties.
