Solution-processed Sb2Se3 photocathodes under Se-rich conditions and their photoelectrochemical properties

Abstract

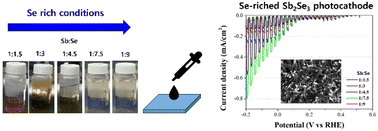

In this study, selenium (Se)-rich antimony selenide (Sb₂Se₃) films were fabricated by applying a solution process with the solvents ethylenediamine and 2-mercaptoethanol to optimize the photoelectrochemical (PEC) performance of the Sb₂Se₃ photocathode. Various antimony (Sb)–Se precursor solutions with different molar ratios of Sb and Se (Sb : Se = 1 : 1.5, 1 : 3, 1 : 4.5, 1 : 7.5, and 1 : 9) were prepared to attain Se-rich fabrication conditions. As a result, the Se-rich Sb₂Se₃ films fabricated using the Sb–Se precursor solution with a molar ratio of Sb : Se = 1 : 7.5 exhibited an improved PEC performance, compared to the stoichiometric Sb₂Se₃ film. The charge transport was improved by the abundant Se element and thin selenium oxide (Se₂O₃) layer in the Se-rich Sb₂Se₃ film, resulting in a decrease in Se vacancies and substitutional defects. Moreover, the light utilization in the long wavelength region above 800 nm was enhanced by the light-trapping effect because of the nanowire structure in the Se-rich Sb₂Se₃ film. Hence, the optimal Se-rich Sb₂Se₃ photocathodes showed an improved photocurrent density of −0.24 mA cm⁻² at the hydrogen evolution reaction potential that was three times higher than that of the stoichiometric Sb₂Se₃ photocathodes (−0.08 mA cm⁻²).
