A tough and piezoelectric poly(acrylamide/N,N-dimethylacrylamide) hydrogel-based flexible wearable sensor

Abstract

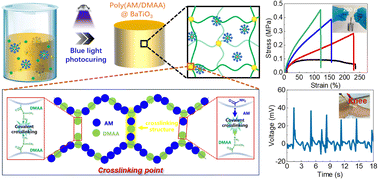

A flexible, tough, highly transparent and piezoelectric polyacrylamide hydrogel was fabricated induced by blue light photocuring, with camphorquinone/diphenyliodonium hexafluorophosphate (CQ/DPI) as the blue light initiator, acrylamide (AM) and N,N-dimethylacrylamide (DMAA) as monomers, polyethylene glycol diacrylate (PEGDA) as the crosslinker, lecithin as the dispersant, and BaTiO₃ as the piezoelectric material. Various performance tests were carried out on the hydrogel, and the results showed that lecithin enhances the dispersion of BaTiO₃ within the system and improves the tensile properties (>100% strain) of the hydrogel, and the addition of PEGDA not only improves the photopolymerization performance of the hydrogel, but also significantly improves its fracture strength (∼0.3 MPa). In addition, BaTiO₃ enables the resultant hydrogels to show excellent conductivity (>1.5) and stable response to strain. The assembled hydrogel sensor shows a sensitive response to human joint activities, which is expected to be applied in self-powered sensors and energy collection.
