Demonstration of a novel majority logic in a memristive crossbar array for in-memory parallel computing

Abstract

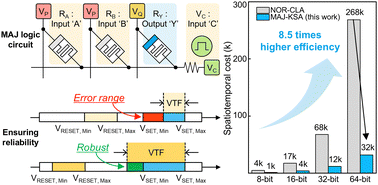

A memristive crossbar array can execute Boolean logic operations directly within the memory, which is highly noteworthy as it addresses the data bottleneck issue in traditional von Neumann computing. Although its potential has been widely demonstrated, achieving practical levels of operational reliability and computational efficiency remains a challenge. Here, we introduce a three-input majority logic gate supported by near-memory operations, serving as a universal gate and achieving both robust reliability and high efficiency in versatile logic operations. We fabricated a highly reliable HfO_x-based memristive array, incorporating a series resistor to increase the reset voltage of the memristor, thereby increasing the operational voltage margin of the gate operation. This ensured reliable operation of the majority gate, resulting in successful experimental proof of combined 1-bit full adder and subtractor operations performed in 5 steps using 7 cells. Additionally, we propose that an N-bit parallel prefix adder (PPA) operation is possible in O(log₂ N) steps, by taking advantage of the parallel operation capability of the majority gate. This achieves 8.5× higher spatiotemporal efficiency than the previously reported NOR-based logic system in 64-bit adder operation. Moreover, as N increases, the spatiotemporal efficiency further improves, which significantly enhances the applicability of memristive logic-in-memory.
