Design of a high-performance infrared birefringent crystal Ba₄HgP₂Se₁₀via a low-dimensional motif intercalation strategy

Abstract

The development of birefringent materials, especially infrared (IR) birefringent crystals, has been limited by conflicting microstructural requirements, such as broad transmission range, wide band gap, and large birefringence. In this work, we propose a “low-dimensional motif intercalation” strategy for designing high-performance birefringent materials. Utilizing the layered selenophosphorus Ba₃P₂Se₈ as a prototype compound, a novel IR birefringent crystal Ba₄HgP₂Se₁₀ with enhanced birefringence was successfully synthesized by the intercalation of the linear [HgSe₂]²⁻ moieties, while the outstanding optical properties such as wide band gap and long IR cutoff were maintained. Notably, the Ba₄HgP₂Se₁₀ crystal exhibits the largest band gap among known selenophosphorus compounds, accompanied by a wide IR transmittance range and substantial birefringence. Theoretical calculations reveal that the outstanding optical properties of Ba₄HgP₂Se₁₀ arise from the synergistic interaction between Ba²⁺ cations, [HgSe₂]²⁻ anions, and the layered selenophosphorus framework.

---

Introduction

Birefringent crystals, which can modulate the polarization states of light, play an important role in laser technology and optoelectronics including polarizers, isolators, and phase retarders.^1–7 Current commercial birefringent crystals can meet the application demands in the short-wave ultraviolet (UV), visible, and near-infrared (IR) regions. However, birefringent crystals suitable for the IR region remain scarce. In recent years, the rapid advancement of IR laser technology has heightened the demand for IR birefringent crystals.⁸ Generally, a qualified IR birefringent crystal must not only exhibit high birefringence but also have a large band gap and a wide IR transmission range.^8–10 Unfortunately, these properties impose conflicting requirements on the microstructure, making it challenging to design them simultaneously in a single crystal.

Traditional birefringent crystals are primarily composed of halides and oxides. Among them, oxide crystals have long been the focus of research due to their excellent birefringence and large band gaps. Many outstanding oxide birefringent crystals, such as YVO₄,¹¹ LiNbO₃,¹² CaCO₃,¹³ TiO₂,¹⁴ and α-BaB₂O₄,¹⁵ have been developed over the years. However, the absorption vibrations of metal–oxygen bonds in these oxide crystals severely limit their IR transmission range, not suitable for IR wavelength range applications. In contrast, the halide crystal MgF₂ not only has a large band gap but also exhibits high transparency from the UV to IR region. Unfortunately, its practical application is significantly restricted by its weak birefringence (0.012@1064 nm).¹⁶ Therefore, there is a pressing need to develop birefringent crystals for IR applications. Sulfides, phosphides, and selenides have long been studied as classical candidates for IR optoelectronic materials. Among these, selenides typically exhibit a wider IR transmission range than phosphides and sulphides, as the heavier atomic mass of selenium can effectively reduce lattice vibrational phonon energy.¹⁷ In recent years, several excellent selenide IR crystals have been developed, such as BaGa₄Se₇,¹⁸ PbGa₄Se₇,¹⁹ BaGa₂GeSe₆,²⁰ NaAsSe₂,²¹ BaHgGeSe₄,²² and PbGa₂GeSe₆.²³ However, due to the selenium's relatively weak electronegativity, the most reported selenide crystals have a smaller band gap with a low laser damage threshold, making them susceptible to photorefractive damage. Therefore, the exploration of an effective strategy to balance the three key properties—wide transmission range, high birefringence, and large band gap—is critical for the design of high-performance IR birefringent crystals.

According to the functional motif theory, the macroscopic optical properties of crystals are closely related to the microscopic optical properties of the constituted functional motifs and their arrangements.²⁴ In general, low-dimensional functional motifs, such as two-dimensional (2D) planar groups and one-dimensional (1D) linear units, typically exhibit high polarizability anisotropy, which promotes the formation of large birefringence.²⁵ Additionally, heavy elements can effectively lower the phonon energy of lattice vibrations, thereby extending the IR transmission range. Functional motifs with a strong covalent character typically exhibit a large HOMO–LUMO gap, which contributes to broadening the band gap.^26–31 A crystal that incorporates all these characteristics can achieve a balance between IR transmission, birefringence, and band gap. In principle, these features can be simultaneously realized by integrating functional motifs into a suitable and easily modifiable structural framework.

In this work, we propose a “low-dimensional motif intercalation” strategy, which involves constructing a multifunctional 2D layered framework suitable for the IR region and introducing low-dimensional functional motifs between its layers. This is mainly based on the following three considerations: (i) the balance between the band gap and the IR cutoff can be achieved by selecting appropriate building blocks for the layered framework; (ii) the weaker binding energy between adjacent layers provides significant flexibility for introducing additional functional units with high polarizability anisotropy, offering a unique opportunity to enhance birefringence; and (iii) the layered framework itself exhibits relatively high anisotropy, which also contributes to the birefringence. To implement this strategy, we focused on selenophosphorus for the selection of the layered framework construction templates. On the one hand, the heavier atomic mass of selenium contributes to a broader IR transmission range in crystals. On the other hand, the similarity in electronegativity between phosphorus and selenium enables the formation of relatively strong covalent bonds, contributing to the expansion of the band gap. Furthermore, considering that the introduction of alkaline earth metal elements can effectively reduce the dispersion of the compounds, the Ba²⁺ ion was selected as a counter ion to further increase the atomic mass. Based on these considerations, a selenophosphorus compound Ba₃P₂Se₈ with a layered structure was screened as a prototype compound, as expected, which can achieve a balance between a large band gap and a long IR cutoff (Fig. S1†). To further enhance its birefringence (theoretical calculations show that its birefringence is 0.095@1064 nm), guided by the above design strategy, the linear [HgSe₂]²⁻ unit was further introduced into the interlayer, while hoping that its heavier mass can further extend the IR transmission range. Accordingly, a novel birefringent crystal Ba₄HgP₂Se₁₀ was successfully synthesized. Notably, the synergy between the selenophosphorus layered framework and [HgSe₂]²⁻ units resulted in a broad IR transmission range, a large birefringence (0.152@1064 nm), and a wide band gap (2.45 eV), achieving an optimal balance among the three key performance parameters. In particular, the band gap of Ba₄HgP₂Se₁₀ was the widest observed among selenophosphides to date. Herein, we report its synthesis, crystal structure, optical properties, and theoretical calculations.

Experimental section

Reagents

P (Alfa Aesar, 99.9%), Se (Alfa Aesar, 99.99%), HgSe (Alfa Aesar, 99.99%), and BaSe (Alfa Aesar, 99.7%).

Synthesis

Powder samples of Ba₄HgP₂Se₁₀ were synthesized using a high-temperature solid-phase method. The reaction mixture, consisting of 1 mmol HgSe, 4 mmol BaSe, 2 mmol P, and 5 mmol Se, was ground and sealed in a quartz tube, and then heated to 600 °C. After 10 hours, the mixture was cooled to room temperature, resulting in the formation of pure-phase Ba₄HgP₂Se₁₀ powder. Single crystal samples of Ba₄HgP₂Se₁₀ were obtained by a similar method. A mixture of 1 mmol HgSe, 4 mmol BaSe, 1.5 mmol P, and 6 mmol Se was prepared, ground, and sealed in a quartz tube. The tube was then heated to 900 °C to induce melting. After 3 days, the mixture was slowly cooled to room temperature at a rate of 4 °C h⁻¹, resulting in the formation of Ba₄HgP₂Se₁₀ crystals.

Power X-ray diffraction (PXRD)

The PXRD data of Ba₄HgP₂Se₁₀ were recorded on a Bruker D8 powder X-ray diffractometer with Cu Kα radiation (λ = 1.5418 Å) in the 2θ range from 10 to 70°.

Energy-dispersive X-ray spectroscopy analysis

Microprobe elemental analyses were conducted on a field emission scanning electron microscope (FESEM, SU-8010) with an energy-dispersive X-ray spectroscope (EDS).

Single-crystal X-ray diffraction

Single-crystal X-ray diffraction data were collected using a Rigaku XtaLAB Synergy diffractometer, equipped with graphite-monochromated Mo-Kα radiation (λ = 0.71073 Å). The crystal structure of Ba₄HgP₂Se₁₀ was solved using ShelXT and refined using ShelXL, both within the OLEX2 software package.³² Crystallographic data and structure refinements for Ba₄HgP₂Se₁₀ are provided in Table S1.† Atomic coordinates, equivalent isotropic displacement parameters, and selected bond lengths and angles, as well as anisotropic displacement parameters, are presented in Tables S2–S4.†

Thermal analysis

The thermal properties of Ba₄HgP₂Se₁₀ samples were investigated using a Labsys TG-DTA1600 simultaneous thermal analyzer under vacuum at a heating/cooling rate of 20 °C min⁻¹.

UV-Vis diffuse reflectance spectroscopy

The diffuse reflectance spectrum of Ba₄HgP₂Se₁₀ was recorded on a Cary 7000 UV-vis-NIR spectrophotometer. Polytetrafluoroethylene (PTFE) was used as a 100% reflectance standard.

Infrared spectroscopy

Infrared (IR) spectra were recorded using a Bruker VERTEX 70 Fourier IR spectrometer in the range of 400–3000 cm⁻¹. Polycrystalline samples and KBr were ground and pressed into transparent pellets for the measurement.

Theoretical calculations

The band structures of Ba₄HgP₂Se₁₀ and Ba₃P₂Se₈ were calculated using the CASTEP package based on density functional theory (DFT).³³ The exchange-correlation energy was treated with the generalized gradient approximation (GGA) using the Perdew–Burke–Ernzerhof (PBE) functional.³⁴ The following orbital electrons were considered as valence electrons: Ba 5s² 5p⁶ 6s²; Hg 5d¹⁰ 6s²; P, 3s² 3p³; and Se 4s² 4p⁴. The energy cutoffs for Ba₄HgP₂Se₁₀ and Ba₃P₂Se₈ were set to 400 eV and 350 eV, respectively. The Monkhorst–Pack grid sizes for Ba₄HgP₂Se₁₀ and Ba₃P₂Se₈ were 2 × 1 × 1 and 1 × 2 × 1, respectively.³⁵ The polarizability anisotropy values of the [HgSe₂] and [PSe₄] units were calculated using the B3LYP/def2-TZVP method.

Results and discussion

Yellow colored Ba₄HgP₂Se₁₀ crystals were prepared using a high-temperature method. The obtained crystals can remain stable in air for several months. The powder XRD pattern aligns closely with the spectrum derived from the crystal structure, confirming that the as-synthesized samples are of pure phase (Fig. S2†). EDS confirmed that the crystals were composed of Ba, Hg, P, and Se elements (Fig. S3†). Thermal analysis indicates that the Ba₄HgP₂Se₁₀ crystals are stable up to 531 °C, demonstrating excellent thermal stability (Fig. S4†).

Ba₃P₂Se₈ crystallizes in the centrosymmetric space group P2₁/a of the monoclinic crystal system. The structure features two distinct environments for P atoms (P1 and P2) and two environments for Ba ions (Ba1 and Ba2). Both P1 and P2 atoms coordinate with four Se atoms to form [PSe₄] tetrahedra, with P–Se bond lengths ranging from 2.208 to 2.220 Å. Two [PSe₄] tetrahedra extend along the a- and b-axes through the connection of Ba1 ions, forming two nearly opposite polar layers (Fig. 1a and b). These polar layers are interconnected via Ba1 ions to create a double-layer framework (Fig. 1a). This framework is further stabilized along the c-axis by Ba2 cations, ultimately resulting in the three-dimensional (3D) crystal structure of Ba₃P₂Se₈ (Fig. 1b).

Fig. 1 (a) The double-layer of Ba₃P₂Se₈. (b) 3D crystal structure of Ba₃P₂Se₈ in the bc plane. (c) The three-layer of Ba₄HgP₂Se₁₀. (d) 3D crystal structure of Ba₄HgP₂Se₁₀ in the bc plane.

Ba₄HgP₂Se₁₀ crystallizes in the centrosymmetric space group P1̄ of the triclinic crystal system. In the structure, there are nine crystallographically independent atoms with one Hg atom, two Ba atoms (Ba1 and Ba2), five Se atoms, and one P atom. Each P atom is coordinated to four Se atoms, forming a [PSe₄] tetrahedron with P–Se bond lengths ranging from 2.208 to 2.220 Å. Each Hg atom, in turn, is bonded to two Se atoms, forming a linear [HgSe₂] unit with an Hg–Se bond length of 2.440 Å. Due to the symmetry restrictions of the space group P1̄, the [PSe₄] tetrahedra adopt two opposite orientations within the structure (Fig. 1c and d). Similarly to its parent compound Ba₃P₂Se₈, the two [PSe₄] tetrahedra in Ba₄HgP₂Se₁₀ extend along the a- and b-axes through the connection of Ba1 ions, thereby forming two oppositely oriented polar layers (Fig. 1c and d). The introduction of the [HgSe₂] units leads to the isolation of the two oppositely oriented [PSe₄] units, effectively inserting a non-polar layer composed of [HgSe₂] units and Ba1 ions between the two polar layers of Ba₃P₂Se₈. These three layers are interconnected via Ba1 ions, forming a non-polar three-layer structural framework (Fig. 1c and d). This framework is further extended along the c-axis by Ba2 ions, resulting in the formation of the 3D crystal structure of Ba₄HgP₂Se₁₀ (Fig. 1d).

As shown in Fig. 2a, the diffuse reflectance spectrum reveals a band gap of 2.45 eV for Ba₄HgP₂Se₁₀, corresponding to a cutoff wavelength of 506 nm. To the best of our knowledge, this is the widest band gap observed among selenophosphorus compounds, significantly greater than those of others including K₂P₂Se₆ (2.08 eV),³⁶ Rb₂P₂Se₆ (2.32 eV),³⁶ KZrPSe₆ (2.2 eV),³⁷ RbZrPSe₆ (2.2 eV),³⁷ CsZrPSe₆ (2.3 eV),³⁷ KPSe₆ (2.16 eV),^38,39 RbPSe₆ (2.18 eV),^38,39 K₀.₆Cs₀.₄PSe₆ (2.1 eV),⁴⁰ β-CsPSe₆ (1.9 eV),⁴⁰ KNb₂PSe₁₀ (1.19 eV),⁴¹ RbNb₂PSe₁₀ (1.16 eV),⁴¹ CsNb₂PSe₁₀ (1.07 eV),⁴¹ Cs₅BiP₄Se₁₂ (1.85 eV),⁴² Cs₅P₅Se₁₂ (2.17 eV),⁴³ K₄GeP₄Se₁₂ (2.0 eV),⁴⁴ Rb₄GeP₄Se₁₂ (2.0 eV),⁴⁴ and Cs₄GeP₄Se₁₂ (2.0 eV).⁴⁴ To further understand the origin of this wide band gap, we calculated the band gap and PDOS curves of Ba₄HgP₂Se₁₀ and compared them with those of its parent compound, Ba₃P₂Se₈. As shown in Fig. S5,† Ba₄HgP₂Se₁₀ exhibits a higher calculated band gap compared to Ba₃P₂Se₈. Interestingly, the PDOS analysis shows that the top of the valence band and the bottom of the conduction band in both compounds are mainly composed of Se-p, P-s, P-p and Ba-d states, indicating that the band gap in both compounds is governed by the [PSe₄] unit and the ionic interactions between [PSe₄] units and Ba²⁺ ions (Fig. S6†). To further elucidate the microscopic mechanism underlying this band gap difference, we analyzed the electron density maps of the two compounds. As shown in Fig. S7,† the introduction of [HgSe₂] units in Ba₄HgP₂Se₁₀ effectively isolates the adjacent [PSe₄] tetrahedra, resulting in no overlap of the electron clouds between neighboring layers. It is likely that this structural difference inhibits electronic interactions between the adjacent [PSe₄] units, thus contributing to the widening of the band gap.

Fig. 2 (a) Measured optical band gap of Ba₄HgP₂Se₁₀. (b) IR transmittance spectrum of Ba₄HgP₂Se₁₀.

To characterize the transmission range of Ba₄HgP₂Se₁₀, IR spectra were measured. As shown in Fig. 2b, the IR cut-off edge of Ba₄HgP₂Se₁₀ is approximately 21.5 μm. Notably, this IR cut-off edge exceeds those of many well-known birefringent crystals, such as MgF₂ (7.04 μm),¹⁶ CaCO₃ (2.3 μm),¹³ YVO₄ (5 μm),¹¹ TiO₂ (4.5 μm),¹⁴ LiNbO₃ (5 μm),¹² and α-BaB₂O₄ (3.5 μm).¹⁵ It also outperforms several previously reported phosphide and sulfide crystals, including CdSiP₂ (9 μm),⁴⁵ ZnGeP₂ (12.5 μm),⁴⁶ MgSiP₂ (10.3 μm),^47,48 AgGaS₂ (13 μm),⁴⁹ and AgGaSe₂ (16 μm).⁴⁹ More importantly, such a long IR cut-off combined with a large band gap allows Ba₄HgP₂Se₁₀ to exhibit a wide transmission range superior to those of all commercial birefringent crystals to date (Fig. 4). Since the IR transmission range of materials is closely related to the phonon energy of lattice vibrations, we speculate that the exceptional IR transmission range of Ba₄HgP₂Se₁₀ is due to the relatively high atomic masses of Ba, Hg, P, and Se. These heavier atoms likely lower the phonon energy of lattice vibrations, thereby broadening the IR transmission range.

To characterize the birefringence of Ba₄HgP₂Se₁₀, refractive index dispersion curves were calculated. As shown in Fig. 3a, the refractive indices of Ba₄HgP₂Se₁₀ are n[100] = 2.68, n[010] = 2.77, and n[001] = 2.62 at a wavelength of 1064 nm, respectively, indicating that the birefringence of Ba₄HgP₂Se₁₀ at 1064 nm is 0.152 (Fig. 3b), significantly higher than that of its parent compound Ba₃P₂Se₈ (0.093 at 1064 nm). Notably, the experimental refractive indices of Ba₄HgP₂Se₁₀ will be obtained using the devices by cutting from the bulk crystal in the future. To elucidate the mechanism behind the enhancement of birefringence, the electron density maps of both compounds were calculated. As shown in Fig. S7,† although the electron density around the [PSe₄] unit is nearly isotropic, the laminar framework of Ba₃P₂Se₈ leads to significant interlayer voids that reduce the electron density along the c-axis. This results in a marked difference in the electron density between the c-direction and the in-plane direction, which may be the primary origin of birefringence in Ba₃P₂Se₈. In contrast, the interlayer gap in Ba₄HgP₂Se₁₀ is further expanded due to the incorporation of the [HgSe₂] unit, which further decreases the electron density in the c-direction. This further enhances the electron density contrast between the c-direction and within the layer, contributing to an enhanced birefringence mechanism. Additionally, apart from the contribution from the layered framework, the electron cloud around the [HgSe₂] unit in Ba₄HgP₂Se₁₀ exhibits significant anisotropy. Gaussian calculations indicate that its polarizability anisotropy is as high as 117.5, which is substantially greater than the anisotropy value of 9.0 of the [PSe₄] unit, suggesting that the [HgSe₂] unit also plays a significant role in enhancing birefringence. Furthermore, since all the [HgSe₂] units in the structure are arranged in parallel and their projection along the b-axis is significantly larger than those in other directions (Fig. 3c), the electron density along the b-axis is substantially higher compared to the a- and c-axes (Fig. 3d and e). This may lead to a significantly stronger response in the b direction than those in the a and c directions when interacting with the incident light, causing the wave velocity in the b direction to decrease more significantly than those in the a and c directions, and thus the refractive index along the b direction is significantly higher than those along the a and c directions, which could be another main reason for the large birefringence of Ba₄HgP₂Se₁₀ and is consistent with the calculated refractive index dispersion curves (n_b > n_a > n_c) (Fig. S8†). That is, the co-operation of the laminar framework and the linear [HgSe₂] unit creates the large birefringence of Ba₄HgP₂Se₁₀. Notably, the birefringence of Ba₄HgP₂Se₁₀ exceeds those of many commercially available birefringent crystals, such as α-BBO (Δn = 0.116 at 1064 nm),¹⁵ LiNbO₃ (Δn = 0.089 at 1064 nm),¹² and MgF₂ (Δn = 0.012 at 1064 nm)¹⁶ (Fig. 4). Moreover, it also possesses a large band gap and a wide IR transmission range. These results indicate that Ba₄HgP₂Se₁₀ should be a promising IR birefringent crystal.

Fig. 3 (a) Triaxial ellipsoid of three refractive indices along the crystallographic axes of Ba₄HgP₂Se₁₀ at λ = 1064 nm. (b) Calculated birefringence of Ba₄HgP₂Se₁₀ and Ba₃P₂Se₈. (c) The arrangement of [HgSe₂] units in Ba₄HgP₂Se₁₀. (d) Calculated electron density in the bc plane for Ba₄HgP₂Se₁₀. (e) Calculated electron density in the ac plane for Ba₄HgP₂Se₁₀.

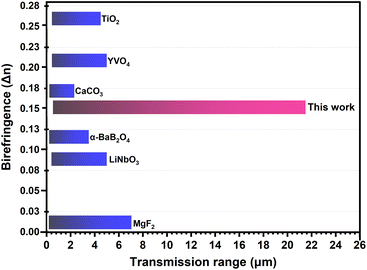

Fig. 4 Performance comparison chart of Ba₄HgP₂Se₁₀ with commercial birefringent crystals.

Conclusions

In summary, a “low-dimensional motif intercalation” strategy was employed for the successful synthesis of Ba₄HgP₂Se₁₀ by introducing linear [HgSe₂] units into the layered selenophosphide Ba₃P₂Se₈. A promising novel IR birefringent crystal, Ba₄HgP₂Se₁₀, was successfully synthesized. Ba₄HgP₂Se₁₀ achieves a balance between a wide IR transmission range, large birefringence, and a wide band gap, making it a potential IR birefringent crystal. The bulk crystal growth of Ba₄HgP₂Se₁₀ will be performed to accurately determine the refractive indices. This work provides a new synthesis strategy for designing novel IR birefringent crystalline materials.
