Hierarchically porous carbon supports enable efficient syngas production in electrified reactive capture

Abstract

Direct-air capture (DAC) of CO₂ often uses alkali hydroxides (e.g. KOH) as sorbent, and relies on an energy-intensive thermal CaCO₃/Ca(OH)₂ step to release CO₂ and regenerate the alkali hydroxide. Reactive capture instead uses alkali carbonate post-capture liquid as feedstock, seeking to convert the captured CO₂ to value-added products while regenerating the capture liquid. Here we investigate the origins of low prior performance in electrochemical reactive capture systems, finding that the catalyst becomes starved of CO₂ even at moderate current densities leading to a rapid decline in faradaic efficiency (FE). We then study how the catalyst support can be redesigned to tackle this problem, and construct hierarchical carbon supports featuring interconnected mesopores and micropores, our purpose to increase the interaction between in situ generated CO₂, i-CO₂ – the limiting reagent – and the catalyst. We find that the attachment chemistry of the catalyst to the support is critical: only when we disperse and tether the molecular catalyst do we prevent catalyst aggregation and deactivation under bias. We report as a result carbonate electrolysis at 200 mA cm⁻² at 2.9 V with FE of 47 ± 1% for CO, this corresponding to an energy efficiency (EE) to 2 : 1 syngas of 50% at 200 mA cm⁻² when H₂ is added using a water electrolyzer. This represents a 1.5× improvement in EE at this current density relative to the most efficient prior carbonate electrolysis reports. The CO FE remains above 40% at current densities as high as 500 mA cm⁻², and all systems studied herein achieve < 1% CO₂ in the outlet stream. The cradle-to-gate carbon intensity is lowered to −1.49 tonCO₂ per tonsyngas as a result of the increase in EE, and a CO₂-free tailgas stream is provided that minimizes separation costs.

---

Broader context

On the path to sustainable fuels – hydrocarbons having a lower carbon intensity than legacy fossil hydrocarbons – one flow of interest is direct-air capture (DAC) of CO₂ followed either by solid oxide electrolysis cell (SOEC), or by reverse water–gas shift (RWGS), to syngas, readily further processed to long-chain hydrocarbons. Unfortunately, the high energy intensity of each step – both of CO₂ capture-and-release, and of CO₂ upgrade – leads to an energy cost of 55–65 GJ per tonsyngas. Here we pursue reactive capture, which uses alkali carbonate post-direct-air-capture liquid as feedstock, converting the captured CO₂ to value-added products while regenerating the capture liquid. Prior reactive capture to syngas has been limited to 32% efficiency at 200 mA cm⁻² – the result of the catalyst becoming CO₂-starved. We develop hierarchical carbon supports, and this increases interaction between in situ generated CO₂, i-CO₂ – the limiting reagent – and the catalyst, heterogenized cobalt phthalocyanine. We report as a result carbonate electrolysis at 200 mA cm⁻² having energy efficiency to 2 : 1 syngas of 50%. Life cycle assessment shows that – when energy is supplied using electricity having the carbon intensity of wind –CO₂ emissions are reduced from today's coal-syngas of 2.3 t CO₂e per t syngas to a negative emission of –1.5 t CO₂e per t syngas, each cradle-to-gate. The minimum selling price (MSP) of syngas produced via the reactive capture is estimated at US$770 per t, below that for DAC-SOEC (US$1270 per t) and DAC-RWGS (US$1020 per t).

Main

CO₂(g) capture from the atmosphere, followed by electrochemical conversion, provides an avenue to diminish the carbon-intensity of fuels and chemicals.^1,2 Because CO₂(g) is a weak acid and dilute in the atmosphere, strong aqueous alkali hydroxide solutions, such as KOH, are often used in direct air capture (DAC);³ however, the release from the captured state of a stream of concentrated CO₂, thus regenerating hydroxide from alkaline carbonates, requires additional energy-intensive steps, these typically totaling 8–10 GJ per tonCO₂ (Fig. 1a, Route 1 and Fig. 1b).³ When – in the context of carbon capture and utilization (CCU) – carbon monoxide (CO) is then produced from the captured CO₂, the DAC process contributes 13–16 GJ per tonCO (GJ per tonCO₂ * 44 g mol⁻¹ CO₂/28 g mol⁻¹ CO). This is considerable when referenced to the ∼10 GJ per ton lower heating value (LHV) of CO.⁴

Fig. 1 Comparison between sequential and integrated processes for DAC and CO₂ upgrade. (a) Sequential process of direct air capture followed by CO₂ electrolysis (Route 1) vs. an integrated process of reactive CO₂ capture (Route 2). (b) Gibbs free energy comparison between Route 1 and 2. (c) A carbonate electrolyzer fed using 1.5 M K₂CO₃ as catholyte. Carbonate passes through the hydrophilic carbon paper, the catalyst layer, and the hydrophilic interposer layer (thickness: 135 μm) via convection and diffusion. CO₃²⁻ reacts with H⁺ from the BPM to generate i-CO₂. The i-CO₂ passes back from the membrane interface and goes through the interposer layer to the catalyst layer for electroreduction to CO. (d) The transport of i-CO₂ to CoPc molecules dispersed on planar (P), nanoporous (NP), and hierarchically-porous (HP) carbon supports.

In reactive capture systems, CO₂ capture and upgrade are instead combined into a single system (Fig. 1a, Route 2 and Fig. 1b).^5–11 Reactive capture can be driven electrochemically to synthesize syngas,^12,13 CO,^14,15 and ethylene.^11,16 For the kinetics and capital efficiency of the contactor to enable practical DAC, one may interact the pH ∼ 14 capture liquid with CO₂ until it reaches the pH ∼ 12, that of carbonate; however, further reaction down to KHCO₃ (pH 8.5) places too high a demand on contactor fan electricity since capture kinetics decelerate under bicarbonate conditions (Fig. S1 and Note S1, ESI†).¹⁷

Thus, in order to enable direct use of post-capture liquid, the electroreduction of carbonate post-capture liquid is seeing increased attention, and bipolar membrane (BPM) electrolyzers (Fig. S2 and Note S2, ESI†) have been limited by the overall syngas energy efficiencies (EE) of 39% at 100 mA cm⁻² in light of a CO faradaic efficiency (FE) of 28% and a best prior cell voltage (V_cell) of 3.5 V at 100 mA cm⁻².¹² This performance further declines at higher current densities, the syngas EE reaching 32% at 200 mA cm⁻².¹²

Mechanistic origins of low CO FE in prior carbonate-to-syngas systems

Carbonate-to-syngas systems rely on the in situ generation of CO₂ (i-CO₂), this is achieved by reacting carbonate with H₃O⁺ from water dissociation in the BPM junction, the proton H⁺ then driven out of the cation-exchange layer (CEL).^12,18,19 Unfortunately, reactive capture presents conflicting requirements: low pH at the CEL favors the release of i-CO₂; but a high local pH increases the desired CO₂ reduction process relative to HER.^12,13,16

The conflict becomes even more acute at higher current densities: prior reactive capture systems have rapidly lost FE above 100 mA cm⁻². Focusing on the supply and utilization of i-CO₂, the i-CO₂ generation rate from the BPM at 100 mA cm⁻² is ∼0.7 mL min⁻¹ cm⁻² (Note S3, ESI†), yet this is lower than the mass-transport limit of ∼5 mL min⁻¹ cm⁻² required to supply CO₂ at the rate needed in gas-fed CO₂ electrolyzers.^20,21 Thus, the catalyst becomes starved of CO₂ under high current density conditions.¹² Quantitatively (Fig. S3–S5, ESI†), at 100–600 mA cm⁻², the maximum i-CO₂ supply rate shows a volcano trend, and is insufficient to meet i-CO₂ demand for CO₂-to-CO conversion.

The design of porous carbon supports for i-CO₂ transport to catalyst sites

We sought strategies to resolve this conflict in requirements, and considered how engineering of the porosity of the catalyst support can offer a degree of freedom for this purpose. A planar support (Fig. 1d, left) offers little opportunity to enhance the availability of active catalytic sites to interact with inbound i-CO₂. Nanoporous carbon (Fig. 1d, middle), with a typical pore diameter of <2 nm, increases surface area, but the tight pores may inhibit diffusion of i-CO₂.

In contrast, hierarchical carbon supports – having a first, larger, pore radius (mesopore radius ∼2–50 nm, Fig. 1d, right), and a second length scale (micropore <2 nm diameter) – may potentially offer the combination of enhanced catalyst surface area, accompanied by better transport of i-CO₂. We term the control and candidate supports planar (P), nanoporous (NP), and hierarchically porous (HP: an admixture of mesopores further interpenetrated by micropores).

Brunauer–Emmett–Teller (BET) analysis showed specific surface areas of 300 (P), 920 (NP), and 1960 (HP) m² g⁻¹ supports (Fig. S6, ESI†). BET also enables estimation of effective pore sizes and their distributions (Fig. S6b, ESI†), and is consistent, in the case of HP, with prominent porosity components at both the mesopore and the micropore length scales. HP (after optimizing the meso-to-micro ratio) exhibits an 11× higher volumetric density of mesopores than does P. The meso-to-micro pore volume ratio in HP is 2× that of NP (Fig. S7, ESI†). Scanning transmission electron microscopy (STEM) analysis (Fig. S8, ESI†) shows (more qualitatively) the same trend as seen in the Fourier domain via BET.

We then examined reactive capture performance in BPM-based electrolyzers (Fig. S9, ESI†) using each support. Unfortunately, and to our surprise, the HP support exhibited a peak FE_CO of 34% at 200 mA cm⁻². Its performance declined further with increasing current density, dropping to <30% at current densities >300 mA cm⁻² (Fig. 2a).

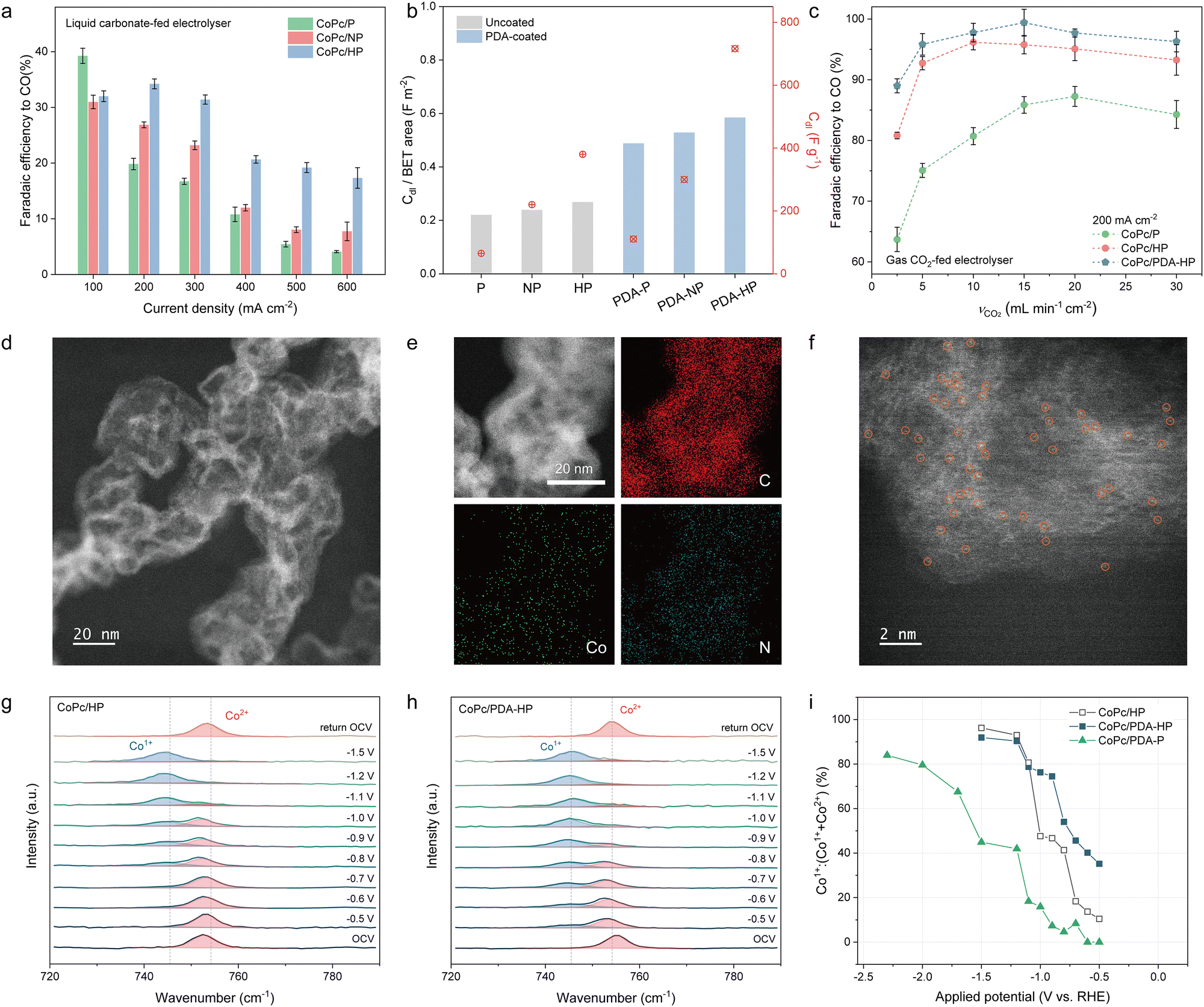

Fig. 2 Investigation of i-CO₂ transport and molecular catalyst dispersion for uncoated vs. PDA-coated porous carbon supports. (a) Faradaic efficiency to CO for liquid carbonate-fed electrolyzer using CoPc catalyst loaded on different carbon supports. We used the optimum catalyst loading of 2 mg cm⁻² (CoPc + carbon). The catalyst contains 40 wt% carbon by mass. (b) C_dl/BET ratio on uncoated and PDA-coated carbon. (c) Faradaic efficiency to CO for gas-CO₂-fed electrolyzer as a function of CO₂ flow rate at 200 mA cm⁻². 1.5 M K₂CO₃ was used as catholyte and anolyte. The optimal meso-to-micro ratio of HP was used for electrochemical testing in Figure (a)–(c). (d) Low-magnification STEM image, (e) HAADF-STEM-EDS mapping, and (f) Atomic-resolution HAADF-STEM images of CoPc/PDA-HP. The individual bright dots marked by orange circles are associated with the Co centres of CoPc molecules. (g) and (h) In situ Raman spectra of CoPc/HP and CoPc/PDA-HP catalysts in 1.5 M K₂CO₃. The in situ analysis was performed in a flow cell with three compartments. CoPc/PDA-HP was coated on the carbon paper substrate as the cathode, and Pt/C as the anode. (i) Co¹⁺:(Co¹⁺ + Co²⁺) ratio as a function of applied potential for CoPc catalysts loaded on a variety of carbon supports: HP, PDA-HP, and PDA-P.

Electrochemical impedance spectroscopy (EIS) allows us to estimate total capacitance (C_dl), related to electrochemically active surface area accessible to the reaction (Fig. S10 and Note S4, ESI†).^22,23 By normalizing C_dl to the BET surface area, we estimate the fraction of active sites participating in the electrochemical reaction, referred to as active site utilization. We observed that each class of carbon support had a low C_dl/BET value in the 0.2–0.3 range (Fig. 2b). Thus more than half of CoPc molecules are inactive.

We posited that this inactivity could be the result of CoPc being poorly-dispersed on support. CoPc molecules have strong π-stacking interactions and are known to form micron-sized aggregates.^24,25 These are expected to reduce catalyst conductivity, hinder reactant access to the catalytic centers, and thus diminish turnover frequency.^26,27

Chemical strategies to disperse CoPc inside hierarchical porous supports

We sought surface treatments that would better disperse and immobilize CoPc on each carbon support. Polydopamine (PDA) coatings have previously been found to enable the deposition of adherent and uniform layers on a variety of substrates.²⁸ We deposited PDA using self polymerization (Methods) and found using elemental analysis a nitrogen content of ∼2% by weight (Table S2, ESI†), with TEM, XPS, EDX, and FTIR indicating PDA coating on each class of carbon support (Fig. S11–S15, ESI†). The pore size and distribution did not exhibit significant change following PDA coating (Fig. S16, ESI†).

When we employed PDA-coating, the C_dl/BET values increased for each choice of carbon support compared to the uncoated case, with HP exhibiting a 3× increase (Fig. 2b). HRTEM and SEM-EDS (Fig. 2d–f and Fig. S17 and S18, ESI†) suggest that PDA-coated carbon (i.e., CoPc/PDA-HP) led to a more spatially-uniform dispersion of CoPc. Without PDA, CoPc aggregates form (Fig. S17 and S18, ESI†). An accompanying study (Fig. S19, ESI†) of optical absorption spectra vs. concentration²⁵ shows that PDA militates against aggregate formation.

The transition in the oxidation state of the active site, under the action of reductive bias, from inactive Co²⁺Pc to active Co¹⁺Pc,^29,30 reports on whether CoPc has been successfully dispersed and electrically connected to the conductive support. From in situ Raman (Fig. 2g–i and Fig. S20 and S21, ESI†) we found that PDA coated HP led to an earlier onset potential for, and to a more complete transition form, inactive to active states (Fig. 2i). PDA-coated HP shows a significantly higher Co¹⁺ ratio (35%) at –0.5 V_RHE, along with a faster and more complete Co²⁺Pc-to-Co¹⁺Pc transformation, compared to the reference carbon supports. At –1.2 V_RHE, over 90% of Co is in the Co¹⁺Pc state for PDA-HP. The axial coordination³¹ of PDA to the cobalt center, the aromatic π–π stacking interactions between the polymer and the Pc, along with the hydrophilic nature of PDA, which aids in CoPc stabilization, have all been shown to enhance the dispersion of CoPc molecules.

The impact of porous supports on reactant transport

To study the transport of CO₂, we first sought a test of whether CO₂ is capable of reaching the catalytic sites inside each catalyst. Turning away for the moment from the carbonate system, we studied CO₂-gas-fed systems (Note S5 (ESI†) and Fig. 2c) and measured, in a flow cell, FE_CO at low CO₂ gas feed rate (v_CO2) and low partial pressure (P_CO2). The HP support with PDA, when functionalized using CoPc, maintained high FE (>80%) even when the v_CO2 was slowed to 2.5 mL min⁻¹ cm⁻² (Fig. 2c) and P_CO2 was reduced to 20% (Fig. S22 and S23, ESI†). In anion exchange membrane (AEM)-based MEA electrolyzers with gas CO₂ feed, the single pass conversion (SPC) was 48% (close to the 50% upper bound for the case of neutral CO₂-to-CO³²) and the stoichiometric CO₂ consumption ratio (λ_stoic) was 1.3 (Fig. S24 and S25 and Table S3, ESI†) in the case of the optimized HP PDA-treated support. In sum, the optimized support enables CO₂ diffusion and adsorption on the electrode surface even when CO₂ supply is severely curtailed, a finding in accord with adsorption isotherm analysis (Fig. S26 and Note S6, ESI†).

We then used EIS (Fig. S27, ESI†) to study mass transfer in porous structures, focusing on the interaction time of ions/reactants inside the pores.^22,23 This we accomplished by measuring both capacitance and relaxation time constant (τ_o). The capacitance increases 10× moving from CoPc/PDA-P to CoPc/PDA-HP, while τ_o increases by a factor of 3×. The HP porous carbon support thus appears to enrich reactants within its pores, prolonging reactant retention and facilitating transport deep within pores.

Efficient i-CO₂ supply in the carbonate system also relies on the effective transport of CO₃²⁻ anions from the bulk electrolyte to the CEL/electrolyte interface. Again using EIS and cyclic voltammetry (CV) (Fig. S28 and S32 and Note S7, ESI†), we saw evidence of increased binding affinity and interaction between PDA-carbon and carbonate.

Simply increasing the BET surface area by raising the micropore ratio in NP is not effective in achieving the needed reactant transport (Fig. S33–S36 and Note S8, ESI†); instead, we found that an optimized proportion of mesopores in HP is crucial. These mesopores serve as reservoirs and channels, reducing the required length of tortuous diffusion pathways, and ensuring thereby access to active sites within the micropores.^33,34 Control experiments (Fig. S37–S39, ESI†) exclude catalyst layer thickness and hydrophilicity as principal factors in transport behavior.

Electronic tuning effect between catalyst and support

We further examined, using X-ray absorption near edge structure (XANES) (Fig. 3a), how PDA influenced the electronic interaction between the Co center and the PDA on the support. XANES shows an upshift of the white line to higher binding energy and an increase in intensity on CoPc/PDA-HP compared to the unsupported CoPc molecules (Fig. 3a and Fig. S40, ESI†). This indicates charge transfer between Co and PDA, and the partial oxidation of Co centers. CV shows a positive shift of the Co²⁺/Co¹⁺ redox wave after coating with PDA, consistent with the presence of more-electron deficient CoPc (Fig. 3b and Fig. S41–S44, ESI†). These results are in agreement with conclusions from XPS on Co 2p (Fig. S14, ESI†).

Fig. 3 Electronic tuning effect between catalyst and support. (a) XANES spectra in the Co K-edge spectrum, with vs. without PDA. (b) CV analysis in Ar-saturated 1.5 M K₂CO₃ solution. CV was performed on RDE electrode with different CoPc-based catalysts coated on the surface at a scan rate of 500 mV s⁻¹. Similar positive shifts of Co redox positions were observed on PDA-P (+20 mV) and PDA-NP (+30 mV) compared to their counterparts loaded on pristine supports. (c) Molecular diagram of CoPc, with Co center coordinated with four N. (d) Molecular diagram of PDA. In (c) and (d), different colors represent different atoms: blue, Co; red, O; silver, N; pink, H; grey, C. N-PDA and O-PDA denote the N and O terminations from PDA, respectively. (e) Difference of charge density between CoPc and PDA considering two different loaded sites with an isosurface value of 0.001 e Bohr⁻³. Cyan, losing electrons; yellow, gaining electrons. From Bader charge analysis, the Co site possesses more positive charge on CoPc/N-PDA (+1.04 |e|) and CoPc/O-PDA (+1.07 |e|) compared to pristine CoPc (+1.01 |e|). (f) Free energy diagrams for CO₂ reduction to CO. The adsorption energies of CO₂* on CoPc/N-PDA and CoPc/O-PDA were 0.19 eV and 0.04 eV, lower than the 0.42 eV on pristine CoPc. The formation energies of COOH* from CO₂* were 0.58 eV and 0.59 eV for CoPc/N-PDA and CoPc/O-PDA, respectively, both less than the 0.67 eV for pristine CoPc.

In accompanying density functional theory (DFT) studies, calculated electron-density-difference plots (Fig. 3c–e) show that CoPc loses electrons (blue), while PDA gains electrons (yellow), in the N- and O-terminations of PDA (N-PDA and O-PDA). Also from DFT, the adsorption energies of CO₂* and the formation energies of COOH* on CoPc/N-PDA and CoPc/O-PDA are lower than those for the case of pristine CoPc (Fig. 3f and Fig. S45–S47, ESI†). The combined experimental and computational results suggest that the modified electronic structure of CoPc facilitates the binding and activation of CO₂, resulting in a lower energy barrier for its conversion into CO.

Reactive capture system performance and its optimization for energy efficiency

We then returned to reactive capture systems and their optimization, focusing now on the HP polydopamine-coated carbon support. We varied the CoPc to PDA-HP ratio (Fig. S48, ESI†), meso-to-micro ratio (Fig. S49 and S50, ESI†), catalyst layer thickness (Fig. S31, ESI†), and interposer pore size (Fig. S51–S54 and Note S9, ESI†), and in this way obtained an FE_CO of 47% at 100 and 200 mA cm⁻² (Fig. 4a, left). The FE on CoPc/PDA-HP remained above 37% at current densities as high as 600 mA cm⁻². This contrasts with lower-porosity and with uncoated supports which – at 600 mA cm⁻² – decline to FE < 30% (Fig. 2a and Fig. 4a, right).

Fig. 4 Electrochemical generation of syngas from carbonate liquid as a function of catalyst. (a) Comparison of faradaic efficiency to CO as a function of carbon-based support: (left) PDA coating on different porous supports and (right) with and without PDA coating on HP. Electrolysis was carried out in the current density range of 100–600 mA cm⁻². (b) Cell voltage (left Y-axis) and energy efficiency (right Y-axis) for carbonate electrolysis (1.5 M K₂CO₃) at different cell configurations. The energy efficiency is calculated using experimental data for a system that employed the optimized BPM and a NiFeO_x anode. (c) Cell voltage (left Y-axis) and faradaic efficiency to CO (right Y-axis) for 40 hours of electrolysis at 200 mA cm⁻² using the CoPc/PDA-HP catalyst and homemade SnO₂-BPM. The interposer layer was replaced after 15 hours and 30 hours. (d) Comparison of energy consumption for the generation of 1 ton syngas for different processes. In order, top to bottom, these are: carbonate electrolysis reported in this work; carbonate best prior performance; direct air capture (DAC) coupled with bicarbonate electrolysis; DAC coupled with reverse water gas shift (RWGS); and DAC coupled with a solid oxide electrolysis cell (SOEC).

We also evaluated whether the carbonate electrolyzer could regenerate the solution all the way to basic conditions, i.e. to the pH needed such that it can be returned to the contactor for the next capture cycle – all this while still efficiently converting carbonate to CO. Through the analysis in Note S10 (ESI†), we estimate that ∼ each electron utilized for carbon-to-CO conversion generates one OH⁻. Our results indicate that after 24 hours of electrolysis at 100 mA, the pH of the regenerated post-capture liquid reached 13.2, corresponding to an OH⁻ regeneration efficiency of ∼ 35%, a figure in accord with the time-averaged FE_CO. A total of 0.7 g of CO₂ had thus been extracted and converted into CO from the post-capture liquid. This result indicates the system's ability to circulate the capture liquid and enable repeated cycles of CO₂ capture and conversion. Regenerating a higher pH capture liquid (KOH + K₂CO₃) requires a greater selectivity of i-CO₂ to CO, particularly under conditions where K₂CO₃ is gradually consumed.

We then sought to optimize the carbonate electrolyzer for energy efficiency (EE). To study the distribution of voltages, we constructed an analytic BPM electrolyzer that would allow us to monitor, operando, the voltage difference across each electrode/membrane element (Fig. S56, ESI†).^35,36 At 200 mA cm⁻², the voltage across the BPM accounted for 1.8 V, fully 42% of V_cell. We then replaced the BPM with one incorporating a nanoparticle P25-TiO₂ WD catalyst (Fig. S57 and S58, ESI†),³⁷ after which, at 200 mA cm⁻², V_BPM decreased to 1 V. We also coated the Ni foam anode with Ni(Fe)O_x catalyst, reducing the anode overvoltage by ∼200 mV.

Thus, in energy efficiency to 2 : 1 syngas, the improved support and system achieved 50% at 200 mA cm⁻² (Fig. 4b), compared to 32% at the same current density in the highest-performing previously-reported BPM-based electrified carbonate reactive capture systems (details in Table S4, ESI†). In estimating a projected syngas EE, we assumed that an efficient water electrolyzer (EE to H₂ = 65%) will be employed in parallel to provide the H₂ missing to make up the 2 : 1 H₂ : CO syngas.¹⁰ Of the overall improvement in EE, 1.3× comes from reduced V_cell, and 1.2× from increased FE_CO at the 200 mA cm⁻² current density, corresponding to the 1.3 × 1.2 = 1.56× improvement in EE from 32% to 50%.

To query operating stability, we ran the system at 200 mA cm⁻² for 40 hours of electrolysis (Fig. 4c). We observed that the systems maintained a cell voltage (V_cell) within the range of 2.8 to 3.3 V. The FE_CO gradually declined from >40% to ∼32–35% during each 15-hour interval, primarily due to the gradual increase in electrolyte pH and the dissolution of the interposer under electrolysis conditions. The FE_CO >40% can be recovered by periodically replacing the interposer. The mixed cellulose ester (MCE) in the interposer is a weak link: in future it will need to be made using a more long-lived material, presumably with similar hydrophobicity and porosity, to extend operating lifetime.

The CoPc/PDA-HP catalyst itself remained stable: Co K-edge X-ray absorption spectra after operation indicate that CoPc was unchanged (Fig. S59, ESI†). In contrast, without a PDA layer, and when loading CoPc in a non-porous support (CoPc/P), the CoPc molecules aggregated rapidly and became inactive (FE_CO < 10% within 20 hours) (Fig. S60, ESI†). SEM-EDS and inductively coupled plasma mass spectrometry (ICP-MS) show that CoPc/PDA-HP exhibited significantly lower aggregation and leaching rates compared to CoPc/P, 4 ppb h⁻¹versus 9 ppb h⁻¹ (Fig. S60c and d, ESI†).

Carbon utilization is defined as:

where n_CO2⁰ is the number of moles of CO₂ can be generated from the BPM-based electrolyzer; n_CO2(g) is the number of moles of gas CO₂ detected at the outlet of catholyte. We observed carbon utilization of >99% across the current density range 100–500 mA cm⁻² (Fig. S62, ESI†). This carbon utilization is the highest reported to date when one considers both reactive capture and gas-fed CO₂ electroreduction systems (Table S5, ESI†). The present reactive capture system thus produces substantially pure syngas without the need for extensive CO₂ separation and recirculation.

We then used a membrane contactor (Fig. S63–S66 and Note S11, ESI†) with a 3 M KOH capture medium to perform direct air capture of laboratory air to produce the liquid for carbonate electrolysis. When DAC had been run for a duration such that the pH of the capture liquid had declined to ∼12.7, we used this post-capture solution for electrolysis, and achieved on CoPc/PDA-HP a 40% FE_CO across 100–300 mA cm⁻².

We compare estimated full system energy requirements (Fig. 4d, Note S12, Fig. S68, and Table S6, ESI†) for: (i) sequential DAC capture-and-release followed by gas-fed electrochemical CO₂ upgrade, such as solid oxide electrolyzer cell (SOEC); (ii) sequential DAC capture-and-release followed by reverse water–gas shift (RWGS) using H₂ from an efficient water electrolyzer; (iii) the integrated reactive capture approach studied herein, again with missing H₂ filled in using the same water electrolyzer. The improved reactive capture system provides 44 GJ per tonsyngas, compared to 61 GJ for the most efficient prior electrified reactive capture systems, and compared to 65 GJ for DAC + RWGS and 55 GJ for DAC + SOEC. An advantage from the reactive capture system derives from the avoidance of the CO₂ regeneration step in sequential approaches.

Life cycle assessment and techno-economic analysis

A life-cycle assessment (LCA) was conducted to evaluate the prospective environmental impacts of the reactive capture system (Fig. 5a and Note S13, Fig. S69 and S70 and Tables S7 and S8, ESI†). In both coelectrolysis and reactive capture approaches, the greenhouse gas (GHG) emissions are dominated by the carbon footprint of electric energy. Using the U.S. grid, the reactive capture process emits 0.6 t CO₂e per t syngas less than the DAC-SOEC process and is comparable to the DAC-RWGS process. As the carbon intensity (CI) of electricity declines over the coming half-decade to 280 g CO₂e per kW h, the reactive capture method begins to outperform syngas production methods such as natural gas reforming (NG-syngas: 1.26 t CO₂e per t syngas) and coal gasification (coal-syngas: 2.32 t CO₂e per t syngas).³⁸ According to the International Energy Agency (IEA), these grid carbon intensity targets could be reached in the U.S. before 2030.³⁹ Eventually, when wind-generated electricity is used (Fig. 5a), the reactive capture process achieves a global warming potential (GWP) of –1.49 t CO₂e per t syngas, 0.78 t CO₂e per t syngas lower than the DAC-SOEC and DAC-RWGS processes.

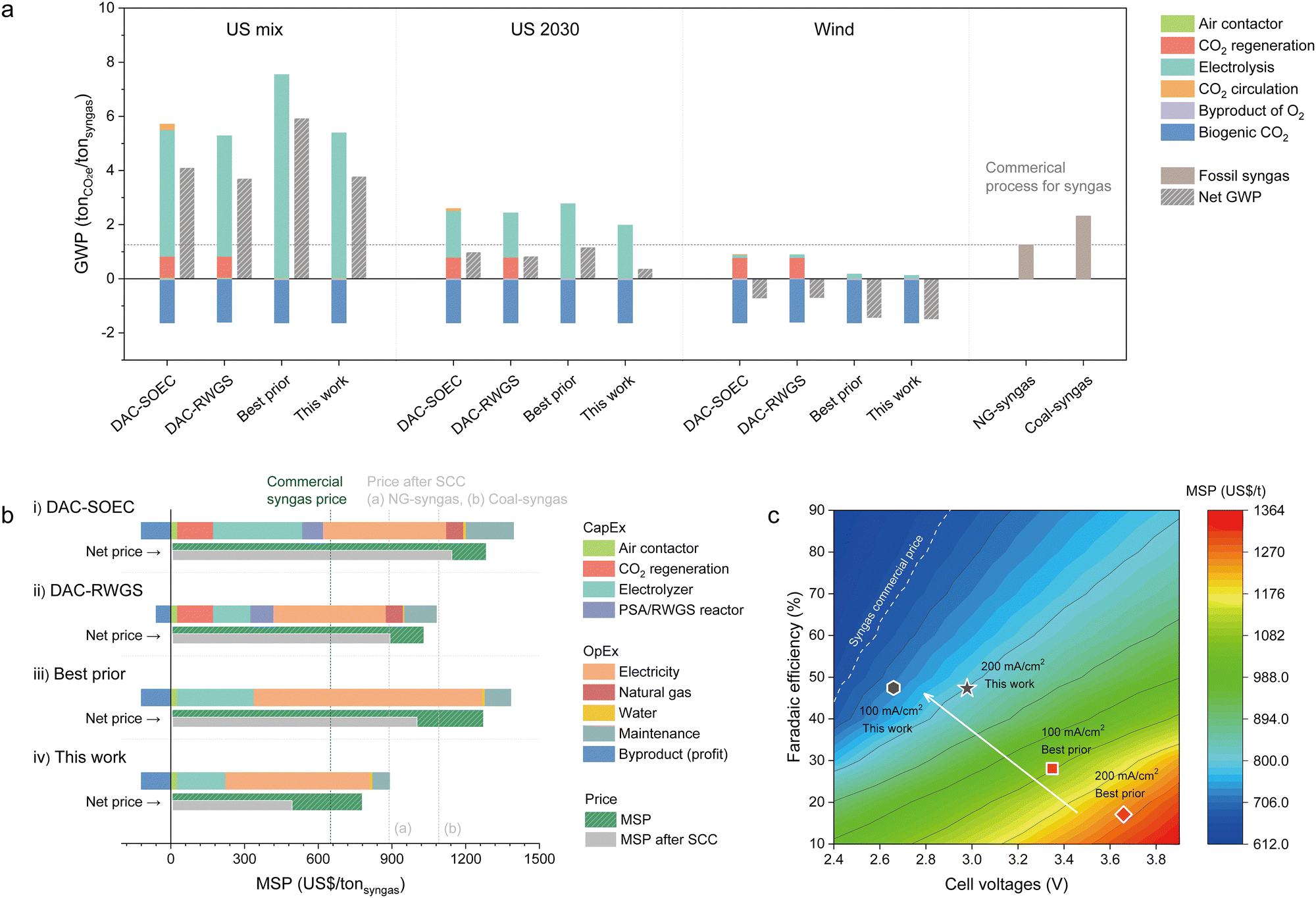

Fig. 5 Environmental and economic analysis. (a) Cradle-to-gate GWP values of different syngas production routes using three different electricity sources: US mix, US 2030, and wind energy. US 2030 electricity CI (160 g kW⁻¹ h⁻¹) is obtained from IEA report.³⁹ Each color in the legend indicates the GHG emission in various stages or carbon credits due to biogenic CO₂ and byproduct of oxygen. The gray bar is the net GWP value. (b) Breakdown of the MSP of syngas production routes. The green bar is the MSP, and the gray bar is the MSP after considering the social cost of carbon. (c) Effects of Faraday efficiency and cell voltage on the MSP. The white line is the commercial syngas price obtained from previous study.⁴⁰ In this figure, we included and compared the performance metrics, FE and V_cell, from our work with the best prior results.

A techno-economic analysis (TEA) was also performed (Note S14 and Fig. S71 and Tables S9–S11, ESI†). The minimum selling price (MSP) of syngas produced via the reactive capture is estimated at US$770 per t, below that for DAC-SOEC (US$1270 per t) and DAC-RWGS (US$1020 per t), and just slightly (by a margin of ∼US$120 per t) higher than commercial syngas (Fig. 5b). The reactive capture system avoids the need for a CO₂ regeneration unit, CO₂ circulation system, and RWGS reactor (these latter requiring ∼800 °C operation). Incorporating the social cost of carbon into TEA results brings parity earlier: a social cost of carbon of US$190 per t CO₂,⁴¹ decreases the net/effective cost of reactive capture-syngas to US$490 per t (Fig. 5b grey bar), lower than the fossil-syngas of US$900 per t–US$1100 per t (Fig. 5b dash line). These costs employed based on LCA results achieved when electricity comes from wind energy.

Conclusions

In this work, we used alkali carbonate post-direct-air-capture liquid as feedstock, converting the captured CO₂ to pure syngas while regenerating the capture liquid. We developed hierarchical carbon supports, their pores coated internally first with PDA and then with catalyst, that improve reactant mass transport and that molecularly disperse the heterogenized molecular catalyst, also tuning the electronic environment of the Co center. By improving the determinants of syngas production in reactive capture (Fig. 5c), FE_CO and V_cell, we achieved an EE to 2 : 1 syngas of 50% at 200 mA cm⁻². The higher CO₂ utilization efficiency and lower energy consumption surpass those of previous reactive capture and gas-CO₂ electrolysis systems (Tables S4 and S5, ESI†). In future work, developing robust interposer materials or transitioning to an interposer-free design, will be essential to further enhance system stability. To improve OH⁻ regeneration efficiency, it is also critical to increase the selectivity for i-CO₂-to-CO conversion, particularly under conditions of gradual K₂CO₃ depletion. Additionally, continued advancements in catalyst design and system integration are essential to reduce energy consumption and progress toward a fully closed carbon cycle for air-to-product conversion—that is, producing carbon products from air-derived capture liquids while efficiently regenerating the capture media.
