Long-range order in two-dimensional systems with fluctuating active stresses

Abstract

In two-dimensional tissues, such as developing germ layers, pair-wise forces (or active stresses) arise from the contractile activity of the cytoskeleton, with dissipation provided by the three-dimensional surroundings. We show analytically how these pair-wise stochastic forces, unlike the particle-wise independent fluctuating forces usually considered in active matter systems, produce conserved centre-of-mass dynamics and so are able to damp large-wavelength displacement fluctuations in elastic systems. A consequence of this is the stabilisation of long-range translational order in two dimensions, in clear violation of the celebrated Mermin–Wagner theorem, and the emergence of hyperuniformity with a structure factor S(q) ∼ q² in the q → 0 limit. We then introduce two numerical cell tissue models which feature these pair-wise active forces. First a vertex model, in which the cell tissue is represented by a tiling of polygons where the edges represent cell junctions and with activity provided by stochastic junctional contractions. Second an active disk model, derived from active Brownian particles, but with pairs of equal and opposite stochastic forces between particles. We study the melting transition of these models and find a first-order phase transition between an ordered and a disordered phase in the disk model with active stresses. We confirm our analytical prediction of long-range order in both numerical models and show that hyperuniformity survives in the disordered phase, thus constituting a hidden order in our model tissue. Owing to the generality of this mechanism, we expect our results to be testable in living organisms, and to also apply to artificial systems with the same symmetry.

---

1 Introduction

Biological tissues are a paradigmatic active or living material, characterised by the competition between crowding effects and active driving. In in vitro epithelial cell layers, the focus of most models, activity arises primarily from cells crawling over the underlying solid substrate.^1,2 This setup has motivated a number of minimal microscopic models of tissues, such as self-propelled particles^3–6 and self-propelled Voronoi models.^7–9 In these, the “self-propelled” qualifier indicates that a time-persistent and space-independent force acts on each degree of freedom (e.g. particle or Voronoi centre). However, in many developmental contexts such as avian^10–12 and drosophila¹³ early development, the driving activity arises from cytoskeletal contractility,^14–16 and the cells are surrounded by fluid that provides dissipation, but against which the tissue cannot exert active forces. These models therefore are not suitable here, and instead the active interactions within cell sheets need to be modelled as stochastic forces which act on pairs of degrees of freedom in an opposite manner, thus respecting action-reaction. Since the sum of these driving forces cancel, the dynamics they produce conserves the centre of mass, and should be regarded in continuum elastic formulation as deriving from the divergence of an active stress . We may then write for these overdamped systemswhere u(r,t) describes the elastic deformation from position r, ζ is a friction coefficient, and D̲^el is a dynamical matrix¹⁷ describing elasticity (see Fig. 1(a)). More generally, one can envisage a full dissipation matrix that includes additional cell–cell terms, a point we will return to below.

Fig. 1 (a) Sketch of a two-dimensional continuous system with fluctuating active stress described by (1). (b) Vertex model with stochastic junction tension (jtVM). (c) Active Brownian particles with pair-wise propulsion forces (pABP).

Recent studies within a field theoretical¹⁸ and a granular context¹⁹ have linked stochastic active stresses and the emergence of crystalline phases with long-range translational order and hyperuniform density fluctuations – fluctuations which vanish on large length scales. In the active matter context, long-range translational order and hyperuniformity have also been uncovered in systems with anti-alignment,²⁰ chiral or non-reciprocal interactions,^21–23 oscillatory driving forces,²⁴ pulsating contractions,²⁵ in systems of driven-dissipative hard spheres,²⁶ as well as in active turbulence²⁷ – see a recent review.²⁸ However, a broader understanding together with a minimal model of these processes is lacking, and the link to the biological context has only very recently been made.²⁵

It should be noted that within a continuum active fluid paradigm, eqn (1) with pair forces would belong to the well-understood class of dry or mixed dry-wet active nematics or active gels which have long been proposed as tissue models.^29,30 The difference here is the active solid starting point with purely fluctuating activity, very unlike the typical active nematic state with moving defects. Moreover, we take microscopic order into account, allowing us to access translational and hexatic order parameters – see however^31,32 for an intrinsically hexatic active fluid approach.

In this paper we first derive the active elastic theory of long-range correlations at linear order. We then show in two models of dense biological tissues how pair-wise fluctuating active forces stabilise long-range translational order. In addition, we show numerically that hyperuniformity is displayed both in the low-noise ordered solid and the large-noise disordered liquid. We contrast these results with simulations of analogous models with particle-wise fluctuating active forces where translational order is at most quasi-long-range with algebraically decreasing correlations³³ and diverging structural fluctuations in the infinite size limit. The paper is organised as follows. In Section 2 we derive analytically the structural fluctuations of models described by (1). In Section 3 we introduce our models and perform the numerical study of their structural characteristics, including their melting transition. In Section 4 we gather our findings and discuss their future applications.

2 Long-range translational order and hyperuniformity

At thermal equilibrium, the Mermin–Wagner theorem indicates that there can be no spontaneous breaking of a continuous symmetry in dimensions d = 1, 2 at finite temperature.³⁴ A consequence of this is that thermally induced long-range displacement fluctuations grow with system size in theses low dimensions, and long-range translational order is unachievable in the thermodynamic limit.^35,36 Moving flocks however (almost certainly³⁷) display true long-range polar orientational order,³⁸ the first indication that activity allows for exceptions of this law.

Structural fluctuations can be quantified through the counting of the number N(R) of particles in a volume R^d as a function of R. For typical disordered systems such as liquids, the variance Var(N;R) = 〈N(R)²〉 − 〈N(R)〉² grows as R^d, while Var(N;R) ∼ R^d−1 in periodic crystals.³⁹ Many active systems, in particular those which display flocking behaviours, were reported to display giant number fluctuations, in the sense that Var(N;R) grows faster than R^d.^40–45 More recently, long-range translational order in two-dimensional active systems has been a subject of interest. Galliano et al. have shown how such order arises in a nonequilibrium particle model driven by pair-wise random displacements.⁴⁶ Maire and Plati have derived this property in underdamped granular systems driven by a momentum-conserving noise,¹⁹ using an approach similar to the one detailed below. In both cases, long-range translational order is associated with hyperuniformity. This designates the anomalous vanishing of density fluctuations on large length scales,⁴⁷ associated with a variance Var(N;R) which decreases slower than R^d, and is known to occur in systems with absorbing state transitions.^48–50

In this section we derive, for a two-dimensional continuous elastic medium, the fluctuations of the displacement field at linear order. In a second part we show how these relate, in a discrete system, to the translational order correlation function and the scaling of the structure factor over large wavelengths.

2.1 Two-dimensional continuous medium

We introduce the Fourier transform in space and time of the displacement fieldand write (1) in Fourier space aswhere is the Fourier transform of the noise term

We assume (i) that the Fourier transform of the dynamical matrix can be decomposed as follows⁵

where q̂ = q/|q|, Ũ_‖(q,ω) = (Ũ(q,ω)·q̂)q̂ and Ũ_⊥(q,ω) = Ũ(q,t) − Ũ_‖(q,ω) are respectively the longitudinal and transverse displacements in Fourier space, and B and μ are respectively the bulk and shear moduli.

We assume (ii) that the fluctuations of the active stress (4) follow^18,19,51

〈λ(r,t)·λ(r′,t′)〉 = −σ²a²e^{−|t−t′|/τ}∇²δ(r − r′), (6)

where σ is an energy scale, a a coarse-graining length scale, and τ a persistence time. This assumption stems from the idea that the stress is uncorrelated in space but autocorrelated in time. We highlight here that, from the point of view of numerical particle-based models, the divergence of the stress in (4) should be interpreted as the discrete divergence of a noise vector field defined over the ensemble of pairs of particles.⁵¹ Assuming that these noise vectors are uncorrelated between pairs leads to (6) with ∇² interpreted as a discrete Laplacian. We provide an exact derivation for a triangular lattice in the ESI† (Section B). We write (6) in Fourier space as

We use (3), (5), and (7), to compute the equal-time displacement fluctuations in Fourier space (see ESI,† Section A, for a full derivation) and obtain

where we have used the longitudinal and transversal correlation length scales and . We compare this result to the case of a space-uncorrelated fluctuating force field with correlations 〈λ(r,t)·λ(r′,t′)〉 = f²a²e^{−|t−t′|/τ}δ(r − r′), for which the spectrum reads⁵

Spectrum (8a) importantly differs from (8b) by the absence of the factor 1/|q|² which diverges on large length scales |q| → 0. This difference arises solely from the spectrum of stochastic forces (7) whose fluctuations vanish in the limit |q| → 0.

We define the variance of displacement for a square two-dimensional system of linear size L as

where we introduced a lower-wavevector cuttof q_min = 2π/L due to finite system sizes L and upper-wavevector cutoff q_max = 2π/a due to coarse-graining over length scale a. The difference in q-scaling we have stressed between spectra (8) leads to the following respective variances scaling in the thermodynamic limitwhere the σ and f subscript refer to the fluctuating stress and force cases respectively. In the latter case of a fluctuating force field, this variance diverges for infinite systems.^19,52,53

2.2 Two-dimensional regular lattice

We just showed how two-dimensional systems with fluctuating active stresses have finite displacement fluctuations in the thermodynamic limit L → ∞. This motivates us to investigate structural fluctuations in discrete ordered systems. We then consider a system of N particles with displacements u_i = r_i − r⁰_i from their equilibrium lattice points r⁰_i. We highlight that the displacement spectra (8) follow the transformation from continuous to discrete Fourier space 〈ũ(q,t)·ũ(q′,t)*〉 → a⁴〈ũ_q(t)·ũ_q′(t)*〉, with the coarse-graining length , through the substitution rule δ(q − q′) → (Δq)⁻²δ_q,q′ with Δq = 2π/L the wavevector spacing.⁵

We introduce the local hexatic orientational order parameter ψ_6,i and the local translational order parameter ψ_q0,i in order to quantify structural order,^33,54–56

ψ_q0,i = e^{iq₀·(r_i−r₀)}, (12)

where is the ensemble of nearest neighbours of particle i and z_i the coordination number of particle i, i.e. the number of particles in , r₀ is the position of one of the particles, and q₀ is a reciprocal vector of the lattice. We infer the latter from the position of the maximum of the structure factor (16)S(q₀) = max_q S(q).⁵⁷

The translation by −r₀ in (12) is chosen so that ψ_q0,i = 1 everywhere in a perfect crystal lattice (see Fig. 3). This works since for any vector v linking two lattice points, q₀·v = 0 modulo 2π. As this simply corresponds to choosing a particular origin, it does not affect the correlations (14), only the argument of (12).

We quantify the global order parameter with the following ensemble averages (x = 6, q₀)

and the following spatial correlation functions

The latter function, considering translational order, is related to the scalings (10) (see ESI,† Section C) as follows

These scalings show that, in the case a stochastic stress field, true long-range translational order is possible, as opposed to the quasi-long-range order in the case of a stochastic force field.

Finally, we define the structure factor⁵⁸

which characterises density fluctuations. Under the assumptions of normally distributed displacements (e.g. satisfied for normally distributed stochastic forces and harmonic interactions) and isotropy, the structure factor can be reduced in the large system size and large wavelength limit to (see ESI,† Section D, for a derivation)

This result relies on a Taylor expansion of the exponentials in (16), in the large-system-size and small-wavevector limits, and is consistent with previous derivations.⁵⁹ Therefore, given the displacement spectra (8), we infer the following scalings for the structure factor (16)

indicating that, in the case of a stochastic stress field, the system is “maximally hyperuniform” similarly to other systems with conserved centre-of-mass dynamics.^18,47–49

In summary, we have presented three emerging properties for two-dimensional systems in the thermodynamic limit: finite displacement fluctuations with respect to the lattice positions (10a), long-range translational order (15a), and hyperuniformity (18a). We stress that these properties derive from considering a space-uncorrelated stochastic stress field rather than a force field: they rely on the driving fluctuations (here the active stress field) decaying on large wavelengths while competing against a dissipation mechanism acting independently on all individuals in the system. It is thus noteworthy that these properties would disappear if we included a white noise term in (1) (see ESI,† Section B.2) – such a term would be expected to counterbalance the white drag if the system were to follow the second fluctuation–dissipation theorem.^60–62 We finally highlight that these properties are not affected if we include an additional viscosity-like cell–cell dissipation term (see ESI,† Section B.2), i.e. a full dissipation matrix . This adds realism to cell models as it counterbalances the fluctuating stresses, and we can show that this modification as expected only affects the small-wavelength fluctuations.

3 Tissue models with pair-wise stochastic forces

Our predictions were derived for harmonic systems with particles arranged in regular lattices, and so are potentially susceptible to renormalisation group flow to different exponents from nonlinear terms.^18,50 In order to test the robustness of these predictions outside of the linear and ordered regime, as well as the applicability of these results, we introduce two numerical models suited for the description of dense cell tissues (see Fig. 1) and study their structural fluctuations.

3.1 Model definitions

In Section 3.1.1, we introduce a model based on a polygonal tiling of the two-dimensional space, where each tile represents a single cell. This kind of model has been widely used to represent confluent cell sheets^2,63,64 and allows to represent complex interactions, between cells and between cells and their substrate, as well as constraints on cell shapes. We highlight here two general classes of these models: Voronoi models^7–9,65 where the tiling of cells is determined through a Voronoi tesselation from cell centres, and vertex models (VM)^66–68 where cell corners (or vertices) are the degrees of freedom. The model we first introduce belongs to this second class.

In Section 3.1.2, we introduce a model based on interacting disks. Despite such models lacking the possibility to represent accurate cell shapes and deformations, they have been applied with great success to understand mesoscale correlations in active tissues.⁵ Moreover, the simplicity of these models allow for the numerical simulation of the large systems needed to characterise large-wavelength fluctuations.

For both models studied here, we introduce the following overdamped equation of motion of their degrees of freedom (respectively cell vertices and disk centres), which is the discrete analogue of (1),

ζṙ_μ = −∂_rμU^int + λ^act_μ, (19)

where the degrees of freedom are indexed by μ, ζ is a friction coefficient, U^int is an interaction potential, and the λ^act_μ are the active driving forces.

3.1.1 Junctional tension vertex model (jtVM). Vertex models are defined as meshes of vertices μ, at positions r_μ, linked by edges which enclose faces which describe the cells i (see Fig. 1(b)). By extension we will denote i the centroid of cell i, whose position iswhere r_μ = (x_μ,y_μ), vertices μ are ordered in an anticlockwise direction relative to the cell centre i, and where A_i is the area of cell i; we denote its perimeter by P_i. We stress that the centroid corresponds to the centre of mass of the cell, i.e. the arithmetic mean of all the points on its surface, and should be distinguished from the mean of its corners’ positions.

We introduce the following vertex model interaction potential⁶⁵

with k a spring constant, A₀ the target area and P₀ the target perimeter.

We consider active forces which are pair-wise or particle-wise, respectively (see Fig. 1(b) for a visual representation)

λ^act_μ = fu(θ_μ), (22b)

where f is the stochastic force amplitude, u(θ_μ) = (cos θ_μ,sin θ_μ), ν ∧ μ designates the vertices ν linked by an edge to vertex μ, T_μν is the tension of edge μν, [small script l]_μν = r_ν − r_μ and . These forces evolve stochastically: tensions T_μν follow an Ornstein–Uhlenbeck process^69–72 and angles θ_μ diffuse similarly to self-propelled Voronoi models,^8,9where τ is the persistence time, and η_μν and η_μ are Gaussian white noises with zero means and variances 〈η_μν(0)η_αβ(t)〉 = δ_μαδ_νβδ(t) and 〈η_μ(0)η_ν(t)〉 = δ_μνδ(t).

We perform simulations of N cells with periodic boundary conditions. We define the unit length , energy kA₀ = 1, and time ζ/k = 1. Simulations are started from a regular hexagonal packing which satisfies cell areas A_i = A₀. This implies that the area of the system is L² = NA₀. We enforce the shape index such that in absence of forcing the regular hexagonal packing of cells is both rigid and force-free. We use τ = 5 for all data presented.

This model is integrated using the MIT-licensed library cells.⁷³

3.1.2 Pair active Brownian particles (pABP). We consider N disk particles with diameters D and positions r_μ which interact via a harmonic pair-wise potentialwhere Θ is the Heaviside function. For this model the cell centres are the disk centres with positions r_i = r_μ.

We consider active forces which are pair-wise or particle-wise, respectively (see Fig. 1(c) for a visual representation)

λ^act_μ = fu(θ_μ), (25b)

where f is the stochastic force amplitude and with the kernel function β(r) = (1 − r/D′)Θ(D′ − r) where D′ = 1.5D > D to avoid singularities at the point of contact. These forces evolve stochastically: angles θ_μ diffuse as in active Brownian particles^3,4,74where τ is the persistence time, and η_μ is a Gaussian white noise with zero mean and variance 〈η_μ(0)η_ν(t)〉 = δ_μνδ(t). We stress that the particle-wise force model corresponds exactly to active Brownian particles (ABPs).

We perform simulations of N cells with periodic boundary conditions. We define the unit length D/2 = 1, energy k(D/2)² = 1, and time ζ/k = 1. Except where noted, simulations are started from a regular hexagonal packing with packing fraction ϕ = Nπ(D/2)²/L² = 1, corresponding to a thoroughly solid state. We use τ = 25 for all data presented.

This model is integrated using the GPL-licensed library SAMoS.⁷⁵

3.2 Location and properties of the melting transition

We expect a disordered liquid phase at large stochastic force amplitude f, and an ordered solid phase at small f. While at equilibrium, it is expected that structural and dynamical characteristics coincide and so determine the phase of the system, we cannot exclude that out of equilibrium, structure and dynamics may indicate different phases (see e.g. the flowing crystals of ref. 76). We thus consider two structural characteristics, the global hexatic and translational order parameters Ψ₆ and Ψ_q0(13), and a dynamical characteristics, the mean square displacement (MSD)⁷⁷with the position of the centre of mass at time t, to determine the phase of our models as a function of the force amplitudes.

For both jtVM and pABP models there is, as the force amplitude is increased, a sharp simultaneous decrease in both translational and hexatic order (Fig. 2(a) and (b)). We thus observe a structurally ordered phase, in the jtVM model for f ≲ 0.03, and in the pABP model for f < 0.11. For the pABP model, dynamics is slow near the transition, and we have confirmed that configurations at f = 0.115 and f = 0.117 are disordered in steady-state by using long simulations of both ordered and disordered initial configurations.

Fig. 2 (a) and (b) Global structural order parameters (13) – hexatic order parameter Ψ₆ (blue open symbols) and translational order parameter Ψ_q0 (orange full symbols) – in steady state as functions of the stochastic force amplitude f. (c) and (d) Mean squared displacements as functions of time MSD(t) (27) in steady state for different stochastic force amplitudes f. Dashed lines are linear functions of time as guides to the eye. (a) and (c) Junctional tension vertex model (jtVM) with N = 108 cells and persistence time τ = 5. (b) and (d) Pair active Brownian particles (pABP) with N = 16 384 particles and persistence time τ = 25. Identical markers between (a) and (c) and between (b) and (d) correspond to identical data sets.

In Fig. 3, we plot configurations of the pABP model corresponding to the solid (a, b), the liquid (e, f), and a configuration at an intermediate value of f (c, d). The intermediate force amplitudes f = 0.112 and to a small extent f = 0.11 show phase coexistence at steady state after liquid bubbles slowly nucleate in the ordered solid (see ESI,† Videos S1 and S2).

Fig. 3 Order and disorder for pair active Brownian particles (pABP). Visualisation of the argument of the local hexatic order parameter arg(ψ_6,i) (11) (left column, (a), (c) and (e)), and the argument of the local translational order parameter arg(ψ_q0,i) (12) (right column, (b), (d) and (f)). (g) Shows different hexagonal packing orientations with the colour corresponding to the argument of the hexatic order parameter. Colours associated to the argument of the translational order parameter illustrate deviations from the regular lattice corresponding to ψ_q0: an ordered lattice should display arg(ψ_q0,i) = 0 everywhere. We used N = 16 384 particles and persistence time τ = 25. Stochastic force amplitude is (a) and (b) f = 0.1, (c) and (d) f = 0.112, (e) and (f) f = 0.15.

This structural ordering partially coincides with a dynamical transition from a diffusing liquid state at large f, where correlations decay over times t ≳ τ, to an arrested solid state at small f as evidenced by the plateau in MSD (Fig. 2(c) and (d)). For the pABP model, we observe a narrow range f = 0.11–0.112 of very slow liquid dynamics while the system stays long range ordered while bubbles of disordered phase nucleate in the system. In the ESI† (Section E), we also show how the self-intermediate scattering function F_s(t) relaxes, and finally, we also provide the dynamical characteristics of the ABP model, for comparison.

The abrupt structural relaxation together with the equally abrupt transition in the MSD and the coexisting phase is indicative of a first-order melting transition in the pABP system. We now turn to our observations for the structural fluctuations.

3.3 Structural fluctuations

Deep in the solid phase, we expect our derivations for harmonic lattices to hold. We first compute the displacement variance 〈u²〉 for both models in the solid phase, with particle-wise and pair-wise stochastic forces, as a function of system size (Fig. 4(a) and (b)). These confirm our predictions (10). For systems with pair-wise stochastic forces, 〈u²〉 converges to a finite value at large N. In contrast, for systems with particle-wise stochastic forces, 〈u²〉 diverges as . We fit 〈u²〉(N) to a constant 〈u²〉^σ_∞ for models with pair-wise stochastic forces, and to for models with particles-wise stochastic forces. We extract C^f ≈ 4.83 × 10⁻³ and 〈u²〉^σ_∞ ≈ 7.00 × 10⁻³ in the vertex model with self-propelled vertices and junction tensions respectively (Fig. 4(a)), and C^f ≈ 2.41 × 10⁻² and 〈u²〉^σ_∞ ≈ 3.10 × 10⁻³ for active and pair active Brownian particles respectively (Fig. 4(b)). It is noteworthy that 〈u²〉 can be derived from the displacement spectra (8) (see ESI,† Section C).

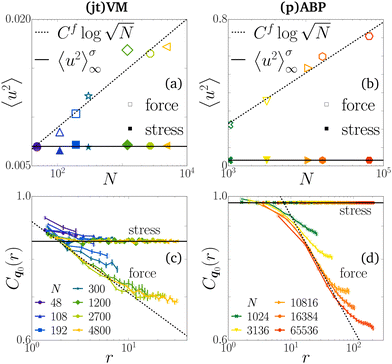

Fig. 4 (a) and (b) Displacement fluctuations 〈u²〉 (10) computed in steady state and plotted for (a) the vertex model with particle-based self-propulsion and junctional tension (jtVM), and (b) particle and pair active Brownian particles (pABP) as a function of the number of particles N. Full symbols represent models with pair-wise stochastic forces, which we fit to a constant 〈u²〉^σ_∞ (solid lines). In contrast, for models with particle-wise stochastic forces (plotted in open symbols), we fit to (dashed lines). These plots are logarithmic on the x-axis and linear on the y-axis. (c) and (d) Translational order correlations C_q0(14) for the same data as in (a) and (b) with pair-wise models (full symbols) and particle-wise models (open symbols), together with our predictions for the large-distance scalings of the correlations (15): a constant (stress, solid lines) for pair-wise and an algebraic decay (force, dashed lines) for particle-wise stochastic forces. These plots are logarithmic on both axes. We used persistence time τ = 5 and force amplitude f = 0.02 for both vertex models (a) and (c) and persistence time τ = 25 and force amplitudes f = 0.1 and f = 0.05 for the pair-wise and particle-wise particle models respectively (b) and (d). Identical colours and markers between plots correspond to identical data sets.

Next, we compute the translational order correlation function C_q0 in the solid phase (Fig. 4(c) and (d)). We confirm that the solid phase of the models with pair-wise stochastic forces exhibits long-range translational order, with a large-distance correlation value deriving from the (finite) displacement variance. We observe, in the case of particle-wise stochastic forces, that correlations decay algebraically, consistently with quasi-long-range translational order.³³ Our linear response predictions (15) fit this data if we use the values of C^f and 〈u²〉^σ_∞ determined from the system-size dependence of displacement fluctuations (Fig. 4(a) and (b)), as well as the measured reciprocal lattice vector squared norms |q₀|² ≈ 45.6 for the vertex model and |q₀|² ≈ 14.6 for the particle model. Therefore, we confirm that the exponent of this decay is directly related to the factor with which the displacement variance diverges (15b). We report the following exponents for the algebraic decay of the correlations C_q0 ∼ r^−η in the case of systems with stochastic forces: for disk ABPs and η^VM ≈ 0.110 for the self-propelled vertex model. Both exponents are below their expected upper limit of within the KTHNY theory, consistently with previous studies on self-propelled particles⁷⁸ and unlike active particles with small amounts of polar alignment.³³

In Fig. 5 we compute the order correlation functions through the melting transition, using the largest system size N we have available. As shown in Fig. 5(a) and (b), the orientational order correlation function C₆(r) in both ABP and pABP models shows long-range correlations in the solid phase and short-ranged correlations in the liquid phase. We observe indications of a power-law decay near the melting transition, and notably we find a significant drop between f = 0.11 and f = 0.112 for the pABP model, both liquids in the coexistence region. As shown in Fig. 5(c) and (d), the translational order correlation C_q0 has the same transition points, though in the solid phase the pABP has long range order while the ABP is power law (note the extended y range compared to Fig. 4(d)). We stress that regions with short-range structural order are rich in defects, as evidenced by coordination numbers z_i ≠ 6, while regions with long-range structural order are exempt of these same defects (see ESI,† Section F), in accordance with the established understanding of the melting of two-dimensional solids.⁷⁹ For the pABP model, we confirm thus that the diffusing liquid state corresponds to a molten state with short-range structural correlations, while the arrested solid state displays long-range structural order. At our current numerical resolution, in the pABP model, we do not see evidence of a hexatic phase^8,78,80 with finite hexatic order and vanishing translational order, with the potential candidates f = 0.11–0.112 showing solid–liquid coexistence instead.

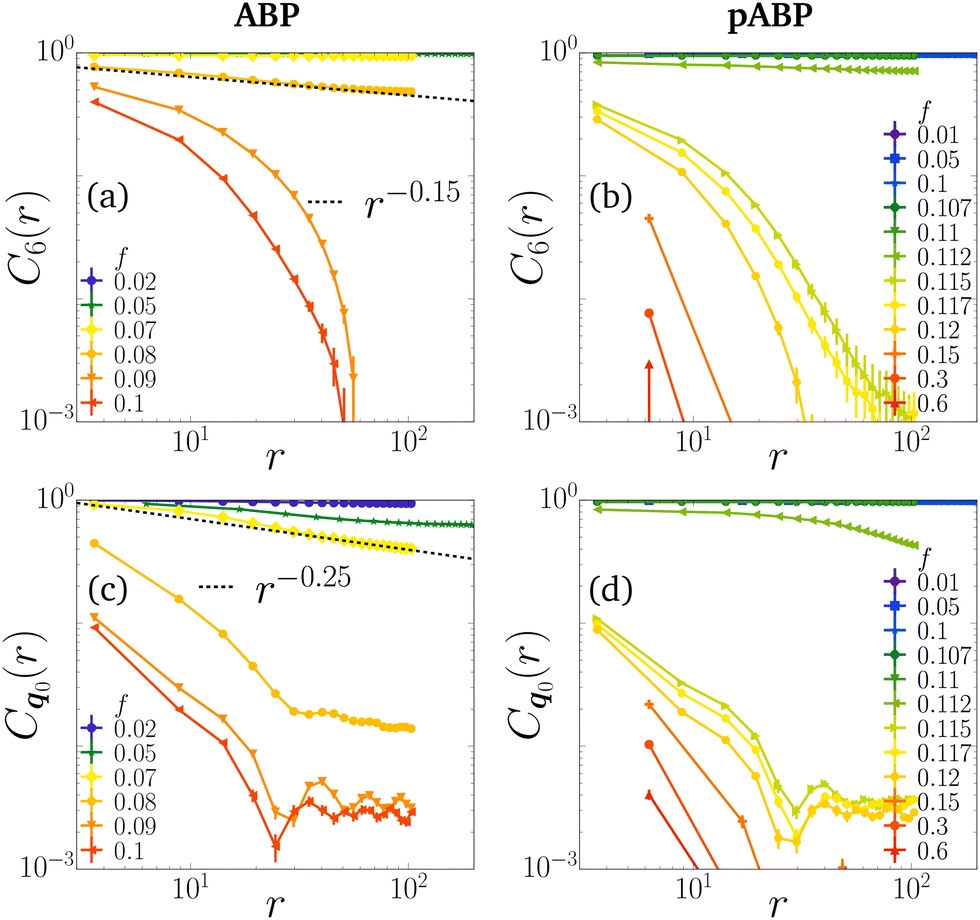

Fig. 5 (a) and (b) Orientational order correlation functions C₆(r), and (c) and (d) translational order correlations C_q0(r) as functions of space for different stochastic force amplitudes f for particle-wise (ABP, left) and pair-wise active forcing (pABP, right). We used N = 16 384 or 65 536 where available, and persistence time τ = 25. Dashed lines are algebraic functions of distance as guides to the eye.

Finally, we compute the radially-averaged structure factor S(q) to test our predictions of hyperuniformity (16). We present results exclusively for the (p)ABP models because the large systems sizes needed to observe the large-wavelength decay of structural fluctuations are not yet attainable with our current vertex model algorithm. In Fig. 6, we plot the structure factor for particle-wise (a) and pair-wise (b) stochastic forces. In the former case, we observe that S(q) converges to a finite constant as q → 0, which is the expected behaviour for self-propelled particles systems at moderate activities away from spontaneous phase separation.^81,82 In the latter case, we do observe the expected scaling S(q) ∼ q² as q → 0 away from the order-to-disorder transition, which confirms that these systems are indeed hyperuniform. Most interestingly, we observe that this scaling applies not only in the solid phase at f ≤ 0.1, where our derivation is expected to hold, but also in the liquid phase at f ≥ 0.15. Therefore, despite this phase showing orientational and translational disorder on small length scales only (Fig. 3(e) and (f)), this measurement confirms that there is a “hidden order” on large length scales,³⁹ which has also recently been observed in phase separating droplets.⁸³ We also see that the scaling S(q) ∼ f² of the continuum prediction works well in the deeply solid region. In both regions, we observe an apparent ∼q^α scaling with α > 2 for some values of f. However, as we showed, large-wavelength relaxations are heavily suppressed for fluctuating active stresses, and relaxation to the true steady state of S(q) may occur only on an inordinately long time scale. Meanwhile, near the transition region where order and disorder coexist, on both sides, the system displays more complex, but not hyperuniform scaling of S(q).

Fig. 6 Scaled structure factor S(q)/f²(16) defined as cylindrical average of S(q) over wavevectors q = (2πm/L_x,2πn/L_y) which satisfy |q| ∈ [q − δq/2,q + δq/2] with δq = 10⁻² and divided by the square of the stochastic force amplitude f². We plot the structure factor for different stochastic force amplitudes f in (a) for the particle model with particle-wise stochastic force (ABP), and in (b) for the particle model with pair-wise stochastic forces (pABP). We used N = 16 384 or 65 536 particles, and persistence τ = 25.

4 Discussion and conclusion

In this paper we first demonstrated how, within linear elasticity theory, two-dimensional active solids featuring fluctuating active stresses display finite displacement fluctuations 〈u²〉 in the thermodynamic limit N → ∞ (10), long-range translational order (15), and vanishing large-wavelength density fluctuations, i.e. hyperuniformity (18).

These properties derive from, on the one hand, the absence of particle-wise white noise counterbalancing the instantaneous particle-wise friction, thus violating the second fluctuation–dissipation theorem,^60–62 and on the other hand, the fluctuations of the driving force vanishing for large wavelengths (7).

Microscopically, these fluctuating active stresses take the form of pair-wise stochastic forces, forces which respect action-reaction rather than the more usual particle-wise active driving. We introduced two numerical models which incorporate these pair-wise stochastic forces: a vertex model with fluctuating junction tension (jtVM) and a particle-based model with pair-wise additive stochastic forces respecting action-reaction (pABP). We showed that all of our predictions held in both models. These models are built from widespread active matter models used to describe the physics of dense cell tissues, therefore we expect these results to shed light on both out-of-equilibrium ordering transitions as well as on structural fluctuations of living systems.

Since an ordered symmetry-broken phase is possible within our model, it is questionable if the two-step melting scenario of two-dimensional solid from the KTHNY theory applies here. This has been the subject of recent interest in the active matter community with several experimental systems being designed to address these questions.^76,84,85 To the best of our current numerical efforts, we have not been able to identify a hexatic phase which would feature short-range translational order and quasi-long-range orientational order. Moreover we observe phase-separated configurations close to the transition (Fig. 3(c) and (d)) which indicate a first-order transition between a disordered liquid and an ordered solid as in three-dimensional equilibrium systems.

Our numerical results also show that disordered liquid states, outside the scope of linear elasticity theory, display hyperuniformity as well.^21,25,26 Previously it was shown that force-balanced configurations (ground states of the potential energy) of Voronoi models of biological tissues have suppressed density fluctuations and are thus hyperuniform.^86–88 In contrast, our pathway is more general as it is based on the symmetry of the active fluctuations and does not depend on the specific interaction potential. This outlines a larger class of active systems which encompasses non-motile active matter models, e.g. featuring pulsating contractions²⁵ or state-dependent interaction potentials.⁸⁹ Therefore we expect our results to be widely applicable.

We note that there is evidence of hyperuniform organisation in biological systems, e.g. cell nuclei in brain tumours⁹⁰ or suspensions of algae.⁹¹ Further studies may explore if the mechanism we have described is exploited in cell tissues in order to suppress density fluctuations.

Conflicts of interest

There are no conflicts to declare.

Data availability

All relevant data supporting the findings of this study are included in the manuscript and its ESI† and were generated using the free software libraries cells⁷³ and SAMoS.⁷⁵

Acknowledgements

We wholeheartedly thank Henry Alston, Konstantinos Andreadis, Calvin Bakker, Arthur Hernandez, Sander Kammeraat, Juliane Klamser, Qun-Li Lei, Marko Popović, Jan Rozman, and Rastko Sknepnek for insightful discussions. We acknowledge fruitful discussions at the workshop “Computational Advances in Active Matter” held in December 2023 at the Lorentz Center in Leiden which we thank. SH would like to acknowledge the 2024 Active Solids KITP program, and this research was supported in part by grant NSF PHY-2309135 to the Kavli Institute for Theoretical Physics (KITP). This work was performed using the computational resources from Instituut-Lorentz and from the Academic Leiden Interdisciplinary Cluster Environment (ALICE) provided by Universiteit Leiden.
