Deposition of metal–organic frameworks within a porous protein crystal superstructure

Jacob B. DeRoob, Rojina Shrestha d, Alec Jonesb, Deepa Rajendrana, Jonathan E. Thaia, Robert R. Tuttlea, Christopher D. Snowabc and Melissa M. Reynolds*abc
aDepartment of Chemistry, Colorado State University, 301 W. Pitkin, Chemistry Research Building, Fort Collins, Colorado, 80521, USA. E-mail: Melissa.Reynolds@colostate.edu
bSchool of Biomedical Engineering, Colorado State University, USA
cDepartment of Chemical & Biological Engineering, Colorado State University, USA
dCell and Molecular Biology, Colorado State University, USA

Received 24th February 2025 , Accepted 2nd June 2025

First published on 16th July 2025


Abstract

Metal–organic frameworks (MOFs) exhibit promising catalytic properties for applications in environmental cleansing, drug delivery, and chemical warfare agent detoxification. However, their broad adoption is hindered by poor structural stability in biologically relevant (aqueous) conditions. Protein crystals, by contrast, offer exceptional environmental resilience, particularly in aqueous and intracellular environments. In this study, we developed a hybrid material combining two example MOFs (UiO-67 and CuBTC) with a porous protein crystal with an exceptionally large pore diameter (13 nm). These hybrid materials were characterized via single-crystal X-ray diffraction, scanning electron microscopy, transmission electron microscopy, and inductively coupled plasma atomic emission spectroscopy confirmed the successful embedding of MOFs within the protein crystal matrix. With the foundation of these hybrid materials made, expansion of this platform of materials will enable options for tackling challenging problems.


Introduction

Metal–organic frameworks (MOFs) have shown promise in a range of applications, including: petroleum-based separation,1 additives for medical devices,2,3 destruction of chemical warfare agents,4,5 gas scavengers for environmental cleansing,6,7 biosensing,8,9 and drug delivery.10 Although successful in some applications, the broader use of MOFs has been limited by their structural stability under use conditions, particularly in biologically relevant environments such as water, blood, PBS, and intracellular environments. On the other hand, protein crystals have remarkable stability in these environments. Thus, we set out to lay the foundation and create a material that combines both MOFs and protein crystals, leveraging the stability of both materials to create a robust protein conjugated extended framework that can serve as a platform for multiple applications, including but not limited to chemical warfare deactivation, drug delivery, and spatially efficient cascading catalytic and enzymatic pathways.

One of our motivating use cases for synthesizing new hybrid materials that embed MOF nanocrystals within a biocompatible scaffold material is the long-term potential application of eliminating chemical threats. Chemical threats (CTs) include G-class and V-class nerve agents which are especially dangerous due to their lack of color and high volatility, meaning that victims are not aware of exposure until symptoms start developing.11–13 Exposure to these chemicals can result in skin blistering, eye and respiratory tract irritation, and asphyxiation.14 The therapeutic window ranges from minutes to hours depending on exposure time and species. Interestingly, from an inactivation strategy, all these chemical compounds have an organophosphate bond, and degradation can be achieved via hydrolysis or oxidation. Of these, hydrolysis is preferred because the reaction produces safer byproducts.15 We highlight three families of materials that can hydrolyze nerve agents: organophosphate bond cleaving enzymes such as phosphotriesterase,16 sorbent materials like metal oxides17 or zeolites,18 and MOFs.19 In the event of an emergency, rapid response with enzymes can be quite challenging with shelf life and biocompatibility. Most sorbent materials and some MOFs suffer from a similar problem: poor structure stability, low sorption capacity, few active sites, and deactivation of the active sites.20 Even in highly porous MOFs, the majority of catalysis may occur at the surface of the crystal.21 There is a clear need for an engineered class of materials to offer long-term stability, easy administration (proactive or reactive), high catalytic capability, and readily accessible active sites.

We also highlight not only the destructive catalytic capabilities of MOFs, but their formative capabilities as well. Previous work has shown that MOFs are capable of regenerating physiologically relevant levels of nitric oxide (NO).2,22,23 When these MOFs are deposited on the surface of blood-contacting materials (plastic extracorporeal membrane oxygenation tubing, stents, heart valves, etc.), NO is regenerated from S-nitrosoglutathione; NO plays a critical role in preventing the aggregation of activated platelets. Activated platelet aggregation is a key step in thrombosis, causing the blood to coagulate. Typically, this is prevented by the administration of heparin; however, the systematic delivery of heparin reduces the ability of blood to clot, and suppresses both the immune and inflammatory systems.

Inspired by previous work combining MOFs with other biomacromolecules and other complex living systems,24 where a MOF of interest is grown around non-MOF structures, we sought to create a novel hybrid MOF material with the potential for improved operational parameters relative to pure MOF. Specifically, we sought proof of concept hybrid materials wherein MOF domains, (i.e. nanocrystals or nanorods) are deposited inside the 13-nm diameter nanopores delimited by “CJ crystals”.25 CJ crystals are composed entirely of protein building blocks, specifically “CJ,” an engineered protein variant of a putative isoprenoid binding protein (GenBank cj0420) from Campylobacter jejuni. After crystal growth, the porous lattice can be stabilized via chemical crosslinking, commonly with dialdehydes (particularly glyoxal or glutaraldehyde) or carbodiimides. While protein crystals can be catalytic (e.g. enzymatic crystals), the palette of canonical amino acids can limit the scope of available interactions. Indeed, many enzymes rely on coordinated metals and other prosthetic groups to achieve their intended reaction. We therefore sought to literally and figuratively combine the favorable catalytic properties of MOFs with the environmental stability and biocompatibility of another material could open the door to large-scale deployment via textile weaving or bioconjugation,26 or even emergency bodily administration.27–29 MOF encapsulation within protein crystals may provide a route to reduce immune response or other biocompatibility issue but could perhaps still preserve or amplify the catalytic activity of the guest MOF domains. While we hope the application of these materials to nerve agent hydrolysis will be realized in the future, the focus of the present contribution is instead to demonstrate the feasibility of the synthesis of a new class of material, specifically MOFs embedded into highly porous protein crystals (PPCs).

Here, we introduce a hybrid material MOF@PPC; a MOF grown in and around a porous protein crystal. While most protein crystals have significant solvent content and retain solvent channels sufficient for the internal transport of small molecules, here the term “porous” refers to crystals with pores large enough to host many MOF unit cells (e.g. >10 nm diameter30). Porous protein crystals (Fig. 1A) are a highly ordered arrangement of protein monomers that self-assemble into porous, low-density materials. One such case of a PPC is the CJ protein crystal. This protein readily forms crystals of varying, controllable size (commonly between ∼300 nm and 0.6 mm in diameter, depending on the precipitant and protein concentration), and possesses 13 nm diameter pores perpendicular to their hexagonal faces (Fig. 1B, E and F). After formation CJ crystals can be crosslinked, becoming extremely tough and capable of withstanding diverse environments and stresses, such as in pure water, high salt conditions, the presence of cells,27 and ingestion by mosquitoes.29 CJ crystals have also been explored for guest molecule installation and delivery.29 CJ monomers first form a domain-swapped dimer and then proceed to assemble into a P622 lattice reminiscent of a honeycomb. The protein components delimit a tightly spaced hexagonal array of nanopores, one 13 nm pore repeating every 18 nm31 (Fig. 1E and F). We hypothesize that nanoscale MOF domains deposited inside CJ crystals may feature a large accessible surface area, and thus improved transport to MOF active sites and improved catalytic performance over freestanding monolithic MOF microcrystals.22,32 Prior, it was unclear if the solution conditions needed for MOF growth (typically harsh organic solvents and high temperatures) would be compatible with host protein crystals. Because of the remarkable stability of crosslinked CJ crystals, we proceeded to test their capability to withstand the harsh organic solvents required to grow both CuBTC and UiO-67. We hypothesized that the CJ crystal's high porosity and large solvent channels would permit the nucleation and growth of MOF nanocrystals that span multiple unit cells.


image file: d5tb00425j-f1.tif
Fig. 1 Structures of the materials of interest. (A) CJ protein crystals tend to adopt a hexagonal prism habit. (B) The CJ crystal nanostructure is in the P622 space group and features a 13 nm diameter pore. (C) A single unit cell of the metal organic framework UiO-67 with space group Fm[3 with combining macron]m. The primary pore of UiO-67 runs through the unit cell, perpendicular to the page. (D) 4 unit cells of CuBTC, arranged in a 2 × 2 pattern, with space group Fm[3 with combining macron]m. The pore of CuBTC runs through the union of 4 CuBTC unit cells. (E) TEM of a stained microtome slice of a CJ crystal interior, highlighting the periodicity of the pores. (F) AFM of the CJ protein crystal's surface, highlighting the porosity of the material.

The MOF CuBTC (aka HKUST-1, MOF-199) is a well characterized MOF for which there are robust synthetic procedures known.33,34 CuBTC is composed of copper(II) centers and benzene-1,3,5-tricarboxylate linker molecules (aka trimesic acid) and readily grows on many surfaces,2 making it a top candidate for proof of concept studies. CuBTC has been applied in carbon dioxide gas storage,7 catalytic breakdown of 2-CEES/HD,5 and more. CuBTC is a MOF whose unique building unit is composed of two copper atoms, held together by four BTC molecules in a pinwheel shape. The CuBTC unit cell has a side length of approximately 2.6 nm, therefore it would be theoretically possible to fit 5 copies of the unit cell in the pore of the CJ crystal linearly across the diameter (Fig. 1D). The catalytic capabilities of CuBTC to degrade G-class nerve agents are less favorable, especially when compared to UiO-67.19 UiO-67 is a newer MOF than CuBTC and has found applications in gas storage,35 chemical warfare agent detoxification,4 bioimaging,36,37 and more. Its structure is composed of ZrO clusters and biphenyl-4,4′-dicarboxylic acid linkers.

To the best of our knowledge, this is the first report of the creation of a MOF@PPC semi-biological material. While the catalytic deactivation of CTs is a long-term application, this paper reports only the preparation, characterization and stability of the CuBTC@CJ and UiO-67@CJ.

Results

CuBTC grows mostly in the pores of the protein

After exposure to CuBTC growth conditions, host CJ crystals underwent a color transformation from a pale yellow to brilliant blue (Fig. 2A and B). As assessed in physical manipulation of such crystals under a stereozoom microscope, the blue color appeared to be uniform throughout the crystal interior. We also observed green crystals after CuBTC@CJ formation (Fig. S1, ESI). To ensure that the CuBTC MOF had indeed grown in and around the CuBTC@CJ crystals, single crystal X-ray diffraction (scXRD) and scanning electron microscope (SEM) data were collected. SEM images of the surface show sparse, individual CuBTC crystals deposited into surface imperfections of the protein crystal (Fig. 3A and C). scXRD data show full and intact Debye–Scherrer rings (Fig. S2, ESI) that can be converted to a pXRD “fingerprint” (Fig. 4A and C). This implies that the X-ray beam (∼8 μm diameter for ALS beamline 4.2.2), while passing through the host CJ crystal, was also passing through MOF domains in all orientations. Notably, the XRD intensity did vary with goniometer angle (angle between crystal face and X-ray source), consistent with the variable pathlength of the host crystal (Fig. S3, ESI). This scXRD data is consistent with a significant portion of the CuBTC having grown within the pores of the CJ crystal. In contrast, a large single CuBTC crystal would generate a single set of Bragg reflections. For comparison, we pressed a pure CuBTC powder into a 10 μm crystal loop (Fig. S4A, ESI), where individual CuBTC crystals clung to the loop. We obtained a diffraction pattern that is intermediate between the single lattice Bragg peaks and the powder diffraction Debye–Scherrer rings (Fig. S4B, ESI). Notably, the presence of CuBTC nanocrystals within the interior of the CJ crystal does not preclude the formation of CuBTC nano- and microcrystals adhered to the CJ crystal surface. Indeed, SEM imaging clearly reveals surface associated CuBTC microcrystals (Fig. 3A).
image file: d5tb00425j-f2.tif
Fig. 2 The various colors of CJ crystals after being loaded with different MOFs. (A) An empty CJ crystal. (B) An empty CJ crystal that has recently been crosslinked with glyoxal. (C) A crosslinked CJ crystal with CuBTC grown in and around the crystal. (D) A crosslinked CJ crystal with UiO-67 grown in and around the crystal.

image file: d5tb00425j-f3.tif
Fig. 3 SEM images of CuBTC@CJ and UiO-67@CJ. (A) SEM of the surface of a CuBTC@CJ crystal at 3000× magnification. Individual micro CuBTC crystals are observable with their expected octahedral habit. (B) SEM of the surface of a UiO-67@CJ crystal at 3000× magnification. Instead of the expected octahedral morphology of UiO-67, a “blanket” is observed. (C) The surface of a CuBTC@CJ crystal at 300× magnification. (D) The surface of a UiO-67@CJ crystal at 300× magnification.

image file: d5tb00425j-f4.tif

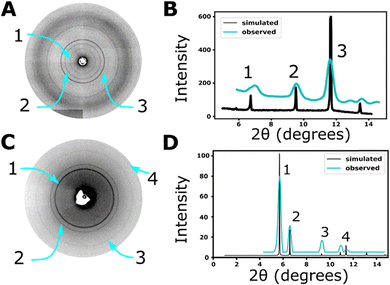

Fig. 4 Single crystal X-ray diffraction (collected on the ALS 4.2.2 beamline) patterns and Debye–Scherrer rings of (A) CuBTC@CJ and (C) UiO-67@CJ, respectively. Extracted powder X-ray diffraction patterns from the scXRD, overlayed with the simulated PXRD patterns of (B) CuBTC and (D) UiO-67, respectively.
