Carbon dot–phthalocyanine hybrids: synergistic effects that boost their multifaceted applications

Abstract

Since their discovery, carbon dots (CDs) have been extensively studied for their potential in diverse applications owing to their unique properties such as high biocompatibility, excellent water solubility, low toxicity, minimal photobleaching, and exceptional chemical versatility. These characteristics position CDs as promising candidates for overcoming the limitations of various molecular compounds. This review provides a comprehensive analysis of the synergistic effects arising from the integration of CDs and phthalocyanines (Pcs) to form hybrids with distinct photophysical and photochemical properties. This study explores recent advances in the development of Pc@CD hybrids, focusing on their synthesis, conjugation strategies, and synergistic effects that impact their performance in several areas, including optical sensing, electrocatalysis, photodynamic processes and photocatalysis. Emphasis is given to chemical methods that enable efficient conjugation and the role of the generation of reactive oxygen species in driving these applications. Additionally, the discussion also addresses key challenges, highlighting innovative solutions and proposing future research directions to fully harness the potential of Pc@CD hybrids in diverse scientific and technological breakthroughs.

---

1. Introduction

1.1. Carbon dots’ structure and properties

Carbon dots (CDs) are considered a new emerging class of zero-dimensional (0D) carbon-based luminescent nanomaterials. Although CDs have just recently gained popularity, it is postulated that they should be one of the oldest and most abundant nanoparticles on the Earth, resulting from natural phenomena such as combustion.^1,2 Their denomination arises from the fact that they are mainly composed of carbon in different types of hybridization states. Typically, CDs present a broad photoluminescence (PL) profile where the emission is extremely dependent on the excitation wavelength. The optical properties of the CDs are usually controlled by intrinsic structural features including the size and morphology, functional groups, and heteroatom doping. CDs are defined by a size below 10 nm with a quasi-spherical morphology, which are composed of an sp²/sp³ carbon core that can be easily doped with heteroatoms like boron, nitrogen, and/or sulfur.³ Their surface usually presents abundant functional groups such as carboxyl, hydroxyl, amine, and/or polymer chains, depending on the raw material and synthesis method applied for their fabrication.⁴ Although important pieces of the puzzle about the chemical structure of CDs have been uncovered, some critical knowledge remains unknown, owing to the complexity of the reaction pathways involved in their manufacture.⁵ Consequently, the molecular origin and other key factors that control CDs’ photophysical properties are still, in most cases, an enigma that has been slowly revealed.⁶ So far, it is well known that some properties of CDs can be mainly attributed to their core, such as toxicity, while other properties such as dispersibility and optical properties can be mainly ascribed to their surface functional groups.⁷¹H and ¹³C nuclear magnetic resonance (NMR) has been recently explored as an essential tool for the identification of the functional groups of CDs, thanks to its accuracy in disclosing molecular species.⁸ The impact of CDs on scientific research has been mostly associated with their extraordinary optical properties, including tuneable photoluminescence,⁹ excitation wavelength-dependent emission,¹⁰ and multiphoton excitation.^11–13

The intense research on light-emitting CDs was sparked in 2006 with the discovery of room-temperature light emission.¹⁴ The pioneer CDs presented emissions mostly located in the blue- or green-light region; however, researchers recently developed new synthetic strategies to shift their emission to red- and near-infrared regions (therapeutic window) to improve their relevance for biomedical applications.^15–18 Nowadays, CDs can present a broad range of emission bands covering almost the full spectrum, including UV-Vis and infrared regions.^19–21

The extensive versatility of chemical modifications in CDs renders them highly desirable for overcoming diverse technological challenges. Several strategies have been employed, including heteroatom²² or metal²³ surface passivation,²⁴ edge group modification,²⁵ or organic functionalization.⁶ Compared to heteroatom doping, surface functionalization, based on well-established organic reactions, is more controllable. Various approaches have been explored for the chemical modification of CDs including surface chemistry interactions (e.g., hydrophobic, electrostatic, and π–π interactions) or through the establishment of strong molecular bonds (e.g., covalent bonding and coordination). The chemical surface modification of CDs can contribute to tuning solvents’ dispersibility, induce desired biological targeting, regulate catalytic performance, improve the photoluminescence (PL) emission, and regulate the band gaps of CDs. These extraordinary features of CDs allowed their fast proliferation for the development of advanced novel materials that found relevant applications in several fields, including biomedicine, sensing, (photo)catalysis, electronics, energy, and environmental remediation. In addition, CDs present lower toxicity, minor production costs, and excellent biocompatibility when compared with some traditional semiconductor inorganic quantum dots containing cadmium or lead.^26–29

The extensive diversity of methodologies explored thus far, coupled with the wide array of available carbon-based raw materials, has led to an exponential growth in the preparation of various types of CDs. The categorization of CDs is closely linked to the extent of carbonization and graphitization within their carbon core. Therefore, the synthetic parameters of CDs can be customized to achieve specific properties (Fig. 1A).

Fig. 1 (A) Key synthetic experimental parameters that influence the chemical, structural and optical properties of CDs. Typical structure of CDs showing the graphitic core and surface functional groups, with an indication of the bottom-up and top-down synthesis. Indication of the main parameters used for CDs’ current classification: crystallinity, morphology, and quantum confinement effects (QCEs). (B) Free-base phthalocyanine (M = 2H) and metallophthalocyanine (M = metal ion) structures prepared from the most common precursors. The nomenclature of a phthalocyanine macrocycle is described according to the IUPAC; the letters β and α indicate the peripheral and non-peripheral positions, respectively. (C) Left side: overview of the different molecular interactions of CDs with Pcs, divided into covalent and noncovalent interactions. Right side: overview of different applications of CDs linked to Pcs.

Effective control of the experimental parameters is critical for controlling the structure, morphology, and final properties of CDs. The first step in the design of CDs is to properly define the starting materials that can originate from organic or inorganic precursors. Organic precursors, such as citric acid, glucose, or amino acids, tend to produce amorphous or quasi-graphitic CDs, whereas inorganic precursors might result in more graphitic CDs. The temperature at which synthesis occurs can significantly affect the degree of carbonization and graphitization. Higher temperatures often lead to more ordered graphitic structures, whereas lower temperatures induce the formation of amorphous carbon structures. The reaction duration is also an important parameter, with longer reaction times favouring more extensive carbonization and graphitization, resulting in CDs with a higher degree of crystallinity. The type of atmosphere (air, nitrogen, or argon) can also affect the carbonization process, where inert atmospheres such as nitrogen or argon can promote graphitization by minimizing oxidation. The concentration of the precursors, the pH of the reaction solution, and the choice of solvent can influence the reaction kinetics, and consequently, the structure of the CDs. The carbonization process can also be affected by the solvent type. The introduction of dopants or surface functional groups during the synthetic process can further modify the properties of CDs. Post-synthesis treatments, such as annealing or surface passivation, can be applied to modify the properties of CDs after synthesis. The diverse range of CDs reported in recent years has sparked vigorous debates regarding their classification and nomenclature. Consequently, the absence of well-defined parameters for standardization has resulted in similar CDs being referred to by different designations. As a result of this imprecise terminology, distinguishing between different types of CDs in the literature has become a considerable challenge. To address this classification challenge, we will adopt the categorization proposed by Prato et al.,⁵ which is based on three fundamental criteria: morphology, quantum confinement effects (QCEs), and crystallinity (Fig. 1A). According to this classification, CDs can be divided into four primary subtypes. Graphene quantum dots (GQDs) feature a graphitic planar structure modified with chemical functional groups either at the edges or within interlayer defects. These functional groups are responsible for their intriguing quantum confinement effects and edge effects. GQDs typically have a higher ratio of sp² carbon atoms, resembling a few layers of graphene in their core, with the surface covered by sp³ carbon atoms. Their QCEs are linked to the size of the emissive π domains. The carbon quantum dots (CQDs) exhibit a spherical core–shell morphology, with a crystalline lattice containing a high density of sp² hybridized carbon atoms in the core and a shell intercalated typically with oxygen and nitrogen functional groups. These structural features result in quantum confinement effects within the emissive π domains. Carbon nanodots (CNDs) are quasi-spherical nanoparticles characterized by a carbonized core structure and surface functional groups. Carbonized polymer dots (CPDs), typically possessing quasi-spherical morphologies, have hybrid structures comprised of sp², sp³, or both sp² and sp³ hybridized carbon atoms in their core. The surfaces are densely covered with polymer chains, and their photoluminescence properties are primarily attributed to the crosslink-enhanced emission effect. Two major approaches can be found in the literature regarding the preparation of CDs: bottom-up and top-down approaches (Fig. 1A).^5,30–33

The bottom-up approach typically explores molecular organic precursors, carbohydrates, and polymers as raw materials for the preparation of CDs. Most of the precursors, after being subjected to hydrothermal treatment, microwave (MW)-assisted synthesis, or pyrolysis, undergo partial dehydration and dehydrogenation before forming the CDs’ backbone structure.^34–37 Bottom-up methods are typically used to afford CPDs but have also been extensively used to prepare GQDs and CQDs. Usually, the preparation of CDs using this approach requires harsh reaction conditions, such as high temperature and pressure. In addition, it was reported that the addition of other chemical agents to the reaction medium, such as acids, can favor the formation of CDs.³⁸ The hydrothermal synthesis of CDs using organic precursors in a Teflon-lined autoclave has been one of the most explored bottom-up strategies owing to the simplicity of the experimental protocol. The basic premise of CD formation consists of the reaction between the carbon precursors to form small graphitic structures upon heating. As mentioned above, the size and degree of carbonization of CDs can be effectively controlled by optimizing different reaction parameters, such as solvents, temperature, and reaction time.³⁹ The most explored precursor for the synthesis of CDs is citric acid (CA), which, in conjugation with different nitrogen-containing precursors, allows obtaining CDs with different optical features in a controlled manner.^40–42

The top-down approach is characterized by the extensive fragmentation of carbon-based materials, whether they are in macro-, micro-, or nano-form, into tiny nanosized particles. This strategy typically employs carbon allotropes as raw materials, including graphite, carbon black, carbon fibers, carbon nanotubes (CNTs), carbon nanohorns (CNHs), fullerenes, and various graphene-based materials. The primary objective is to convert the large sp² carbon domains within these materials into smaller sp² domains, ultimately forming GQDs.¹³ Consequently, following this conversion process, the inherent zero bandgap of the graphene structure transforms into a nonzero bandgap due to quantum confinement. This transformation was accompanied by an increase in edge defects, which played a crucial role in the properties of the resulting GQDs. The controlled process of fragmenting graphene can be achieved through several methods, including arc discharge, ball milling, laser ablation, chemical oxidation, and electrochemical etching.⁴³ In particular, the chemical oxidation of carbon nanostructures using MW or hydrothermal treatment has garnered significant attention for the preparation of GQDs. Among these methods, graphene oxide (GO) derivatives have emerged as a popular choice as precursor materials for the top-down synthesis of GQDs.^44–46 The high oxidation state of GO nanosheets and their derivatives, characterized by randomly dispersed small sp² domains within an sp³ matrix, facilitates efficient chemical nanocutting. This process ultimately results in the formation of oxygen-doped GQD fragments with tunable optical properties.

The chemical structure of CDs plays a crucial role in mediating their functionalization, whether through covalent or non-covalent approaches. As mentioned above, CDs possess various functional groups on their surface, such as amino, hydroxyl, and carboxyl, which improve their water stability and provide ideal sites for functionalization with ions, molecules, biomolecules, and polymers. Among these, amine and carboxyl groups are most commonly used for covalent conjugation with PCs through amide bond formation. The concentration of these functional groups on the CD surface typically determines the success and yield of the reaction. CDs can also undergo additional chemical modifications to increase the density of these functional groups. A common approach involves converting hydroxyl (–OH) groups to carboxyl (–COOH) groups, which is easily implemented through the reaction with chloroacetic acid under basic conditions.⁴⁶ Non-covalent conjugation of CDs with PCs is another widely explored approach for the synthesis of novel hybrid materials. The surface functional groups can facilitate electrostatic interactions with positively or negatively charged PCs, depending on the pH of the reaction medium. Another approach relies on π–π stacking or establishing hydrophobic interactions. In contrast to covalent conjugation, where a higher density of surface functional groups is beneficial, non-covalent conjugation is more effective when CDs have lower surface functionalization and larger aromatic domains.³² Although the aromatic structure of CDs is highly dependent on the synthesis method, various reduction post-treatments have been explored to enhance their graphitic domains, thereby improving their conjugation efficiency with PCs.

However, it is important to note that the chemical structure of PCs can be tuned with complementary functionalization to enhance their covalent or non-covalent interactions with CDs.

1.2. Phthalocyanines’ structural features and synthetic approaches

Pcs are a class of macrocycles of synthetic origin that are structurally similar to analogous porphyrin derivatives, but with a core composed of four isoindole units linked through aza-bridges (Fig. 1B). The term “phthalocyanine” (Pc) was suggested by Linstead in 1933 to describe these blue-green pigments and resulted from the combination of the prefix phthalo, highlighting their synthetic origin from phthalic anhydride and derivatives, and cyanine due to their dominating blue color. However, the first reference to these blue-green derivatives appeared in 1907, when Tcherniac et al. noticed the formation of a small amount of a blue compound after heating o-cyanobenzamide.⁴⁷ In 1927, Von der Weid et al. of the University de Fribourg described the formation of a highly stable blue material during the chemical reaction of 1,2-dibromobenzene with copper cyanide in pyridine reflux.^48–50 However, the compound was not correctly identified (molecular formula C₂₆H₁₈N₆Cu),⁴⁸ and only six years later (1933), Linstead reported the correct structure as the free-base phthalocyanine H₂Pc and its Cu(II) complex CuPc (Fig. 1B). In the same period, Scottish Dyes Ltd also detected a highly stable and insoluble blue impurity during their attempts to produce phthalimide from phthalic anhydride and ammonia, which was patented due to its economic interest, and was posteriorly identified, namely by X-ray crystallography, as the Fe(II) complex of phthalocyanine.^51–56 With this progress, synthetic routes were reported^57–60 and, in 1935, Cu(II) phthalocyanine was synthesized at an industrial scale and used as a blue pigment in the paint industry. Linstead's investigations were encouraging, but in the case of other scientific areas, the insolubility of these pigments limited their use. In the 60s, the synthesis of highly soluble Pc derivatives allowed the diversification of the applications of these chromophores to other fields.^61–63 In the synthesis of this type of macrocycle, a great variety of precursors can be used, such as o-cyanobenzamide, phthalic acid, phthalic anhydride, phthalimide, diiminoisoindoline, and phthalonitrile (Fig. 1B).^61,64 Among the most common precursors are phthalonitriles, which, depending on the reaction conditions (e.g., reaction time, temperature, solvent, type of atmosphere, base, and catalyst selected),⁶⁵ are initially transformed into diiminoisoindoline derivatives via reaction with ammonia. This is followed by cyclotetramerization, which usually occurs in alcoholic solutions at high temperatures. It is noteworthy that the reaction is favoured by the use of a catalytic amount of organic base, such as 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU) or 1,5-diazabicyclo[4.3.0]non-5-ene (DBN) in pentanol.^66–68 However, reactions with other precursors, such as phthalimide, phthalic acid, and phthalic anhydride, require urea as a nitrogen donor. To prepare free-base Pcs, lithium or magnesium is commonly used as a template, followed by demetallation of the obtained Pc complexes under dilute acidic conditions. On the other hand, the synthesis of metallophthalocyanines (MPc, M = metal ion) can involve two different approaches: (i) the metal is inserted directly into the macrocycle during the tetramerization process using a phthalonitrile and an adequate metal salt⁶⁹ and (ii) the metal is introduced in the previously prepared free-base H₂Pc using an adequate metal salt carrier.⁷⁰ In the first approach, access to the metal complexes of Pcs requires the heating of the phthalonitrile derivative with the adequate metallic salt in a solvent with a high boiling point, such as dimethylaminoethanol (DMAE), N,N′-dimethylformamide (DMF) or 1-chloronaphthalene.⁶⁶ However, some procedures can be carried out at lower temperatures by using a basic catalyst namely DBU in pentan-1-ol⁶⁶ or even at room temperature by using lithium in DMAE.⁷¹ These conditions are also relevant for converting H₂Pcs adequately substituted at peripheral positions into different MPcs (M = Zn²⁺, Mg²⁺, In³⁺, Ga³⁺, Ge³⁺, and Si⁴⁺, among others). Most Pcs’ applications are related to the delocalization of 18 π-electrons, leading to relevant physico-chemical and photophysical/photochemical features. In general, their electronic spectra present a broad band at around 300–400 nm called the Soret band (S-band) and an intense Q-band in the range of 600–750 nm. Moreover, the excitation of Pcs at a specific wavelength reveals fluorescence emission between 600 and 800 nm. It is well established that the required features of a Pc for a special target application can be modulated through structural alterations at the peripheral α- and/or β-positions, leading to new systems with distinct characteristics, such as (photo)stability, water solubility, electron transfer abilities, suitable singlet oxygen (¹O₂) quantum yields (Φ_Δ), and fluorescence quantum yields (Φ_F). This is responsible for the unequivocal success of Pcs in several scientific areas, namely: (i) biomimetic models of photosynthetic primary processes;⁷² (ii) catalysts^73,74 or photocatalysts;^73,75 (iii) sensors;^70,76 (iv) photosensitizers (PSs) for antimicrobial photodynamic therapy (aPDT) under different contexts;^77–80 (v) PSs for photodynamic therapy (PDT) of malignant diseases,^81–83 (vi) G-quadruplex aptamer binding,^84–86 and (vii) markers in photomedicine.⁸⁷ More recently, the possibility of combining Pcs with different carbon-based nanostructures (e.g., CNTs, GO, or CDs)^88–90 to develop new conjugates with improved features for different applications has been an important focus of several research projects.

In this review, we will delve into a comprehensive discussion of various synthetic strategies employed to conjugate CDs with phthalocyanine (Pc) dyes through covalent and non-covalent interactions to obtain high-performance hybrids. The combination of these two entities has demonstrated remarkable synergistic effects and improved water solubility and biocompatibility with promising outcomes in their applications as nanoprobes for sensing, electrocatalysts, and phototherapeutic agents.^91–95

2. Functionalization of carbon dots with phthalocyanines

CDs feature various functional groups on their surface, including amino, hydroxyl, and carboxyl units, which enhance their water stability and provide ideal anchoring sites for further functionalization. The chemical versatility of CDs enables them to establish a wide range of interactions with various types of ionic, molecular, and macromolecular entities via covalent and non-covalent interactions.³² Interactions through covalent bonds require the presence of complementary functionalities in the Pcs and CDs. Since CDs can contain abundant carboxyl or amino groups on their surface, coupling mediated by amide bonds must be performed with Pcs bearing amino and carboxyl functionalities, respectively. In general, the esterification approach involves the carboxyl groups of the CDs and hydroxyl groups present on the Pcs, whereas the sulfonylations require CDs functionalized with amino groups and Pcs with sulfonyl chloride functionalities. Most reported covalent strategies are based on amidation and esterification reactions (Fig. 1C). In the development of assemblies of Pc@CDs based on non-covalent bonds, their formation can occur via electrostatic, complexation, or π–π interactions (Fig. 1C). These interactions are mainly governed by the inverse surface charges between Pcs and CDs or by the strong quenching promoted by the aromatic nature of Pcs and CDs.

In this review, we delve into a comprehensive discussion of the various strategies employed to covalently and non-covalently conjugate CDs with Pc dyes. The combination of these two entities has demonstrated remarkable synergistic effects, including alterations in fluorescence quantum yield values (φ_f), generation of oxidative species, and improved water solubility and biocompatibility. In recent years, these intriguing Pc@CD nanoconjugates have primarily been applied as nanoprobes for biosensing, electrocatalysts, and antibacterial and phototherapeutic agents.^91,93,96,97 The current section is organized according to the type of interaction involving both components in the hybrid, non-covalent or covalent, which is preceded by a brief reference concerning their impact on the final features of Pc@CDs. In each section, and when possible, the studies are organized based on their application or potential envisaged. Next, we present a detailed discussion of the properties and applications of Pc@CD conjugates based on their non-covalent or covalent nature. Importantly, the inconsistent nomenclature used for CDs in the literature poses a significant challenge in distinguishing between the different types of CDs. To avoid potential misunderstandings, we will use the generic term “CDs” to refer to this class of carbon-based nanomaterials.

2.1. Non-covalent functionalization: electrostatic and/or π–π interaction

2.1.1. Fundamental insights into Pc@CDs’ features. The luminescence properties of CDs are extremely dependent on the type of chemical or physical interaction occurring at their surfaces and edges with other molecules that can enhance or quench fluorescence. Since CDs can act as energy donors and electron donors, fluorescence quenching can occur via Förster resonance energy transfer (FRET) or by a photo-induced electron transfer (PET) process.^93,98,99 Achadu et al. reported, in 2015, a study that can be considered an important basis for further advancements involving Pc@CDs.¹⁰⁰ Based on the electron-donating characteristics of CDs and the behavior of MPcs to act either as electron donors or acceptors, the authors were prompted to evaluate, for the first time, the fluorescence performance of the ZnPc1@CDs and ZnPc2@CDs conjugates (Fig. 2A) obtained by the adsorption of ZnPc1 and ZnPc2 onto CD surfaces through electrostatic and π–π interactions, respectively. The CDs were prepared by the oxidation of GO in concentrated H₂SO₄ and HNO₃ under top-down hydrothermal conditions. Zinc(II) phthalocyanines bearing four pyridyloxy substituents (ZnPc1a) and four carboxyphenoxy substituents (ZnPc2) were obtained by cyclotetramerization of the adequate phthalonitriles (4-(4-pyridyloxy)phthalonitrile (Pht1) and 4-(p-carboxyphenyloxy)phthalonitrile (Pht2), respectively) in pentan-1-ol in the presence of zinc(II) acetate in 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU) or DMF.^101,102 Both phthalonitriles (Pht1 and Pht2) were obtained through a nucleophilic ipso-nitro substitution reaction involving commercially available 4-nitrophthalonitrile and 4-hydroxypyridine or 4-hydroxybenzoic acid, respectively, in the presence of K₂CO₃. Access to the cationic phthalocyanine ZnPc1 required an extra step in the quaternization of the pyridyl units of ZnPc1a using methyl iodide.

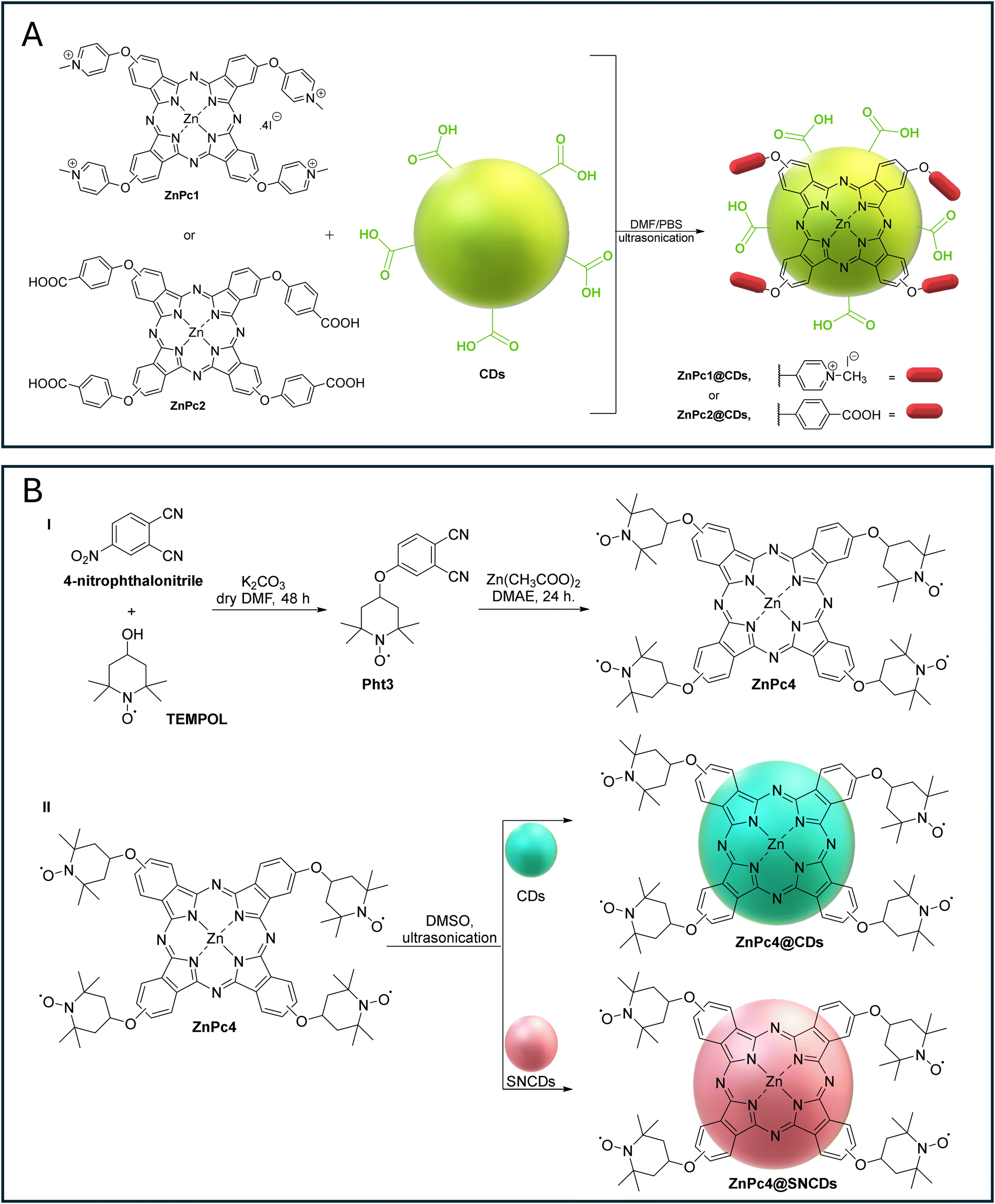

Fig. 2 (A) ZnPc1@CDs and ZnPc2@CDs obtained via ionic and π–π stacking interactions with CDs.¹⁰⁰ (B) (I) Synthesis of ZnPc4 and hybrids (II) ZnPc4@CDs and ZnPc4@SNCDs. (III) Graphical representation of selective screening of different biomolecules and metal ions and their effects on the fluorescence response of 0.5 mg mL⁻¹ of the ZnPc4@CD and ZnPc4@SNCD nanoprobes in DMSO.

The ZnPc1@CDs were obtained by the addition of CDs in phosphate-buffered saline (PBS) solution at pH = 9 to the cationic ZnPc1 in a DMF/PBS solution, followed by ultrasonication; the alkaline conditions were selected to favor electrostatic interactions between the negatively charged CDs and the positively charged ZnPc1 (Fig. 2A). The hybrid ZnPc2@CDs were obtained under similar conditions, but at pH = 7, to minimize electrostatic repulsion and favor π–π interactions. The extensive evaluation of the photophysical properties of the resulting hybrid materials allowed us to conclude that the fluorescence quenching of the CDs in the hybrids when compared with that of CDs alone (Φ_F = 0.22 versus ca. 0.18 for ZnPc1,2@CDs) is due to FRET; this conclusion was also supported by an improvement in the emission of the nearby ZnPc acceptors after excitation at 340 nm where the CDs absorb. The low FRET efficiency obtained for both hybrids (ZnPc1 = 0.18 and ZnPc2 = 0.14) was justified by the low spectral overlap between the emission of the donors (CDs) and the absorption of the acceptors (ZnPc derivatives). In the same work, the authors found that the covalent attachment of Zn(II) tetraaminophthalocyanine (ZnTAPc = ZnPc3) to the CDs resulted in a reduction in the fluorescence (Φ_F = 0.12), although the FRET efficiency was higher (Φ_F = 0.45). This behavior was attributed to the closeness of both components and their stronger interactions. Since other mechanisms such as electron transfer or exciton annihilation could also lead to fluorescence quenching, further experimental investigations, such as time-resolved fluorescence spectroscopy or a detailed energy level analysis, would help clarify other contributions to the fluorescence quenching of the CDs in the presence of ZnPcs.

2.1.2. Sensing applications. The possibility of using conjugates based on Pcs and CDs as nanoprobes for different analytes has attracted considerable attention from the scientific community. In this context, the noncovalent assembly of ZnPc4 bearing (2,2,6,6 tetramethylpiperidin-1-yl)oxyl (TEMPOL) units with pristine CDs and CDs co-doped with S and N (SNCDs) was explored to assess their potential as fluorescence nanoprobes for the recognition of ascorbic acid (AA) (Fig. 2B).¹⁰³ The selection of TEMPOL was motivated by the high selectivity and specificity of AA for paramagnetic TEMPO derivatives, leading to their conversion into diamagnetic hydroxylamine counterparts. ZnPc4 was obtained through cyclotetramerization of Pht3 bearing the radical scavenger TEMPOL unit in DMAE and anhydrous Zn(CH₃COO)₂;¹⁰⁴ the Pht3 was prepared from the condensation of commercially available 4-nitrophthalonitrile with TEMPOL under basic conditions to favor the required nucleophilic ipso-nitro substitution reaction. In this work, the authors selected the hydrothermal treatment of citric acid with NaOH at 160 °C to obtain pristine CDs, while the SNCDs were obtained under the same conditions but NaOH was substituted by thiourea.¹⁰⁵ The non-covalent conjugation via π–π stacking interactions of CDs and SNCDs to ZnPc4 after ultrasonication in dimethyl sulfoxide (DMSO) was confirmed using Fourier transform infrared (FTIR) spectroscopy, Raman spectroscopy, and ultraviolet-visible (UV-Vis) spectroscopy.¹⁰³

Photophysical studies revealed that the Φ_F and lifetime (τ_f) of CDs decreased significantly upon conjugation with ZnPc4 (Table 1) due to Förster resonance energy transfer (FRET). The higher FRET efficiency observed for ZnPc4@SNCDs (0.92) compared to ZnPc4@CDs (0.66) was attributed to a better spectral overlap (J). The donor–acceptor distances (8.1 and 9.2 nm) confirmed effective energy transfer within the 1–10 nm range. Titration assays with ascorbic acid (AA) restored the fluorescence of CDs and SNCDs (“turned ON”), suggesting that AA acted as a spacer or radical scavenger (Fig. 2B). The absence of an enhanced permeation retention (EPR) signal in the paramagnetic nanoassembly further supported this last mechanism. The nanoprobes exhibited high selectivity for AA, with detection limits of 0.2 nM (ZnPc4@SNCDs) and 0.8 nM (ZnPc4@CDs), and excellent specificity against biomolecules and metal ions (e.g., citric acid, glucose, dopamine, folic acid, Fe³⁺, or Cl⁻) (Fig. 2B). Their application in real sample quantification yielded near-quantitative recoveries, while the spectra of free CDs and SNCDs remained unchanged in the presence of AA.

Table 1 Summarized properties of Pc@CD conjugates for sensing applications

CDs type	Chemical conjugation	Phthalocyanine	Φ f CDs	Φ f Pc	Φ f hybrid	Application	Ref.
a DMSO. b PBS. c DMSO : PBS mixture. d H2O.
SNCDs	Non-covalent (π–π stacking)	2,9(10),16(17),23(24)-Tetrakis[(4-methylpiperidin-1-yl)oxyl]phthalocyaninato zinc(II) (ZnPc4)	SNCDs (0.81)^a	*	ZnPc4@SNCDs (0.15)^a	Ascorbic acid detection	103
CDs			CDs (0.22)^a	*	ZnPc4@CDs (0.09)^a
CDs	Non-covalent (π–π stacking)	2,9(10),16(17),23(24)-Tetrakis(1-pyrrolidine-2,5-dione)phthalocyaninato zinc(II) (ZnPc5)	CDs (0.31)^b	ZnPc5 (0.2)^a	ZnPc5@CDs (0.10)^b	Biothiol detection (cysteine, homocysteine, or glutathione)	106
PEI-CDs			PEI-CDs (0.88)^c		*
M-CDs			MCDs (0.06)^b	*	*
PEI-CDs	Non-covalent (π–π stacking)	2,9(10),16(17),23(24)-Tetrakis(2-pyridiniumsulphanyl)phthalocyaninato zinc(II) tetraiodide (ZnPc6)	PEI-CDs (0.68)^b	*	ZnPc6-Au@Ag@PEI-CDs (0.10)^b	Biothiol and Hg^2+ detection	107
PEI-CDs-Au@Ag			PEI-CDs-Au@Ag (0.25)^b
NCDs	Non-covalent (electrostatic interactions)	2,9(10),16(17),23(24)-Tetrakis(4-pyridiniumsulphanyl)phthalocyaninato zinc(II) tetraiodide (ZnPc 12)	NCDs (0.10)^d	ZnPc12 (0.18)^a	*	ds-DNA detection	108
		2,3,9,10,16,17,23,24-Octakis(4-pyridiniumsulphanyl)phthalocyaninato zinc(II) octaiodide (ZnPc 13)		ZnPc13 (0.21)^a
CDs	Non-covalent (π–π stacking)	2,9(10),16(17),23(24)-Tetrakis(2,6-di-tert-butyl-4-methylphenoxy)phthalocyaninato zinc(II) (CoPc8)	CDs (0.31)^a	*	*	Cyanide ion detection	109

---

The ability of maleimide units to react specifically with thiols via Michael addition¹¹⁰ prompted Achadu et al. to develop ZnPc5@CDs nanoassemblies (Fig. 3A) to evaluate their potential as nanoprobes of biothiols (e.g., cysteine, homocysteine, or glutathione);¹⁰⁶ these derivatives, which are involved in several biological processes, are increasingly recognized as potential biomarkers for certain diseases. The required ZnPc5 was synthesized by reacting Zn(II) tetraaminophthalocyanine (ZnPc3) with maleic anhydride (Fig. 3A). Pristine CDs were obtained by oxidizing GO in H₂SO₄ and HNO₃. The fluorescence quenching observed in the ZnPc5@CDs nanoassemblies was attributed to maleimide attachment. For comparison, maleimide carbon dots (M@CDs) were prepared by reacting polyethyleneimine-grafted CDs (PEI-CDs) with 4-maleimidobenzoic acid, resulting in a “turn-OFF” state. However, the photoluminescence (PL) intensity of both nanoassemblies was gradually restored upon addition of cysteine, homocysteine, or glutathione but was not affected by the presence of several α-amino acids and proteins. M@CDs showed higher sensitivity than ZnPc5@CDs due to the direct covalent attachment of maleimide units. No significant fluorescence increase occurred with non-immobilized ZnPc5 upon adding cysteine, highlighting the key role of CDs in the “turn ON” behavior. However, to complement these studies, a comparison with ZnPc3-based nanoassemblies could provide a more realistic idea of the role of maleimide in these hybrids.

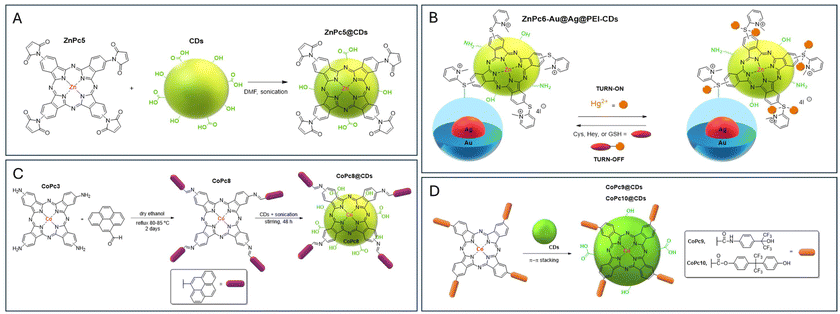

Fig. 3 (A) Representation of the ZnPc5@CD nanoassemblies.¹⁰⁶ (B) Proposed mechanistic actuation of the “off–on–off” nanoprobe ZnPc6-Au@Ag@PEI-CDs for the detection of Hg²⁺ and biothiols in aqueous solutions.¹⁰⁷ (C) Synthetic route for pyrene-derivatized CoPc8 and CoPc8@CD hybrids.¹¹¹ (D) Structures of CoPc9 and CoPc10 used for the preparation of CoPc9,10@CD hybrids.^112,113

In the same period, Nyokong et al. developed a dual fluorescence nanoprobe, ZnPc6-Au@Ag@PEI-CDs (Fig. 3B), for detecting Hg²⁺ and biothiols in aqueous solutions.¹⁰⁷ The sensing platform was assembled by electrostatically combining cationic ZnPc6 bearing four thiopyridinium units with a nano-alloy Au@Ag, followed by embedding the conjugate in PEI-CDs obtained from a hydrothermal treatment of GO with hyperbranched polyethyleneimine. The nanoprobe's fluorescence emission was restored in the presence of Hg²⁺ and “turned OFF” upon the addition of biothiols due to their ability to form strong Hg–S bonds (Fig. 3B). These “off–on–off” nanoprobes were stable and selective, with high resistance to interference from other amino acids (glycine, lysine, histidine, tryptophan, or DL-lactic acid) and metal ions (e.g., Fe²⁺, Co²⁺, Mn²⁺, Cd²⁺, Cu²⁺, Ni²⁺, Pb²⁺, Mg²⁺, Ag⁺, and Zn²⁺). Their effectiveness was confirmed in real samples spiked with test analytes.

A similar concept was considered in the design of “turn-ON” nanoprobes for detecting Hg²⁺, obtained through the conjugation of CDs with ZnPc6, the corresponding Al(III) complex AlPc6, ZnPc7 with eight thiopyridinium moieties, and neutral ZnPc6a.¹⁰⁷ The fluorescence of the CDs, derived from GO via a hydrothermal method, was initially quenched upon coordination with the Pcs. However, in the presence of Hg²⁺, the fluorescence was restored due to Hg²⁺'s strong affinity for mercapto bridges on the Pcs, which disrupted the π–π stacking interaction between the CDs and Pcs. These nanoprobes exhibited high selectivity for Hg²⁺ over other metal ions, with the best limit of detection (LOD) achieved by octacationic ZnPc7 (0.12 nM), followed by tetracationic ZnPc6 (LOD = 0.52 nM) and AlPc6 (LOD = 0.60 nM). The performance was less effective for neutral ZnPc6a, confirming the relevance of electrostatic interactions in the development of these nanoassemblies.

Achadu et al. described synthetic access to the functional hybrid CoPc8@CDs (Fig. 3C) and demonstrated its use as a selective “turn ON” nanoprobe for CN⁻.¹¹¹ The CDs were synthesized by a top-down hydrothermal process, and the Schiff complex CoPc8 was obtained by coupling tetraamino cobalt(II) phthalocyanine CoPc3 with 1-pyrene-1-carboxyaldehyde. The nanoassemblies obtained upon its conjugation with the CDs showed a typical “turn-OFF” behaviour.

The sensing studies showed that in the presence of the anion cyanide, the CDs’ emission was restored and increased linearly with the concentration of CN⁻ (ranging between 1 nM and 50 nM) with a LOD of 0.5 nM. The probe's selectivity for CN⁻ was confirmed through fluorescence recovery assessments in water samples containing various anions (e.g., F⁻, Cl⁻, Br⁻, I⁻, H₂PO₄⁻, HSO₄⁻, NO₃⁻, ClO₄⁻, SCN⁻, AcO⁻, HSO₃⁻, SO₄²⁻, and CO₃²⁻). The inefficacy of the analogous ZnPc8 complex in anion detection supports the hypothesis that axial coordination between the Co metal ion in the Pc inner core and CN⁻ is responsible for disrupting the initial donor–acceptor “turn-OFF” behavior. Considering this fact, to evaluate the real role of the pyrene units in Pc, it would be interesting to compare the sensing results obtained with the nanoassemblies obtained from tetraamino cobalt(II) phthalocyanine CoPc3 or even with non-substituted CoPc. The efficiency of this probe in evaluating trace levels of CN⁻ ions in a real context was confirmed using tap water spiked with known concentrations of CN⁻ between 0.5 and 50 nM with percentage recoveries higher than 97%.

The efficiency of Pc@CD hybrids for gas detection, namely at room temperature, is also attracting some attention. In 2021, Jiang et al. developed nanoassemblies from CDs and CoPc dyes containing hexafluoroisopropanol (HFIP, CoPc9) and hexafluorobisphenol A (6FBPA, CoPc10) substituents (Fig. 3D) and explored their efficiency as sensors towards the chemical warfare agent simulant dimethyl methylphosphonate (DMMP).¹¹² The CoPc9,10@CD hybrids showed strong hydrogen bonds between the two functional units (HFIP and 6FBPA) and the DMMP molecule, leading to an exceptional response behaviour to the analyte. Moreover, it has been reported that the CDs improved the electrical conductivity of the hybrids by π–π interactions with CoPcs and can be considered promising raw materials for use in sarin gas sensors.

In 2021, Zhi Yang et al. developed hybrid materials for NO₂ gas sensing based on the anchorage of CDs onto the surface of MPc11 (where Pc is 2,9,16,23-tetracarboxylicphthalocyanine and M = Co, Ni, Cu, or Zn) nanofibers via π–π stacking interactions to form a charge transfer conjugate.¹¹³ The addition of CDs greatly increased the conductivity of the Pc fibers, leading to a faster response of the hybrid materials up to 14.5 nA. The sensing mechanism is based on the typical p-type semiconductor behaviour of MPc11@CDs, which have a strong affinity for the electron acceptor molecule NO₂. Consequently, after the reaction with the complex, the electrons are trapped by NO₂, producing NO₂⁻ ions and holes on the nanofiber surface, significantly changing the conductivity of the sensors. The gas-sensitive response (I–V curves) of the CoPc@CD hybrid material to 50 ppm NO₂ gas was nearly 16 times higher compared with the individual components. Moreover, the reproducibility, selectivity, and stability of the hybrids are significantly enhanced. The response value was achieved within 100 s, and the recovery curve reached the baseline 125 s after laser exposure.

In the context of biosensing applications, Santiago et al. reported in 2022 that the ZnPc12@NCD and ZnPc13@NCD nanoprobes (Fig. 4A) can induce an “off–on” fluorescence behaviour on nitrogen doped carbon dots (NCDs) after interacting with double-stranded DNA (ds-DNA). These nanoprobes were obtained from positively charged ZnPc12 and ZnPc13 and NCDs prepared by the hydrothermal treatment of GO in the presence of NH₄OH and H₂O₂.¹⁰⁸ The ZnPcs were synthesized using the conventional tetramerization of suitable phthalonitriles bearing one or two thiopyridyl units in DMAE and in the presence of Zn(OAc)₂, followed by quaternization of the pyridine units with CH₃I. Supramolecular Pc@NCD hybrids were prepared in water using solutions of NCDs and Pcs in a molar ratio of 1 : 5. This conjugation promoted quenching of the emission of NCDs, but in the presence of ds-DNA, their photoluminescence was restored. This behaviour was justified by the preferential interaction between the positively charged Pcs and the negatively charged dsDNA, with the consequent restoration of the NCDs’ photoluminescence. The limits of detection obtained for ds-DNA with ZnPc13 and ZnPc12 were 66 nM bp and 1.1 mM bp (bp = molar concentration of pairs), respectively. The concentration difference used for each Pc dye is most likely associated with their solubility, depending on the number of peripheral substituents (four versus eight). Both nanosensors exhibit good selectivity for ds-DNA when tested against biothiols and inorganic anions as potential interferents (Fig. 4B).

Fig. 4 (A) Structures of ZnPc12,13 used in the formation of ZnPc12,13@NCD nanohybrids. (B) Selectivity of the nanosensors (ZnPc12@NCDs and ZnPc13@NCDs with a 1 : 5 ratio of Pc : NCDs and [NCDs] = 2 μM) towards ds-DNA, showing photoluminescence enhancement in the presence of an excess (100 μM) of various relevant analytes. Reproduced under terms of the CC BY 4.0 license.¹⁰⁸ Copyright 2022, MDPI.

2.1.3. Photosensitizing applications. Molecules, commonly known as PSs, that generate reactive oxygen species (ROS) upon excitation with visible light are particularly relevant in various applications, including PDT, aPDT, and photocatalysis. Pc-based compounds, in particular, are recognized as promising candidates owing to their high efficiency in generating ROS, namely ¹O₂ species.

Despite these advantageous properties, the low solubility of Pcs in aqueous media and their lack of specificity pose significant challenges for their biological applications. To overcome these limitations, researchers have investigated the conjugation of Pcs with carbon-based nanomaterials. Among these, CDs have emerged as an appealing choice because of their high biocompatibility, water solubility, and efficient cellular internalization.^114,115 The following sections discuss various approaches reported in the literature for synthesizing Pc-based CDs and assessing their performance in terms of emission quantum yield and ROS generation. Such insights are crucial for advancing solutions involving PSs, particularly Pcs. These applications include tumour cell eradication, microorganism inactivation and photocatalysis, underscoring the diverse potential of Pc@CDs in photosensitizing processes.

2.1.3.1. Cancer therapy. To identify efficient Pc@CD hybrids for phototherapeutic applications, Matshitse et al. evaluated how the physicochemical features of the obtained nanoassemblies through electrostatic and/or π–π interactions were affected by the Pc charge. This systematic study was performed using unsubstituted ZnPc, ZnPc1 bearing N-methylpyridyloxy units, and tetrasulfonated ZnPc14 as prototypes, respectively, of neutral, positively, and negatively charged derivatives to construct the corresponding CD nanoassemblies (Fig. 5A).¹¹⁶ CDs with a size near 2.2 nm were obtained through the chemical oxidation of GO using KMnO₄ and H₂SO₄ as oxidative agents.¹¹⁷ The successful conjugation was confirmed by different characterization techniques, and it was concluded that the largest loading was observed for ZnPc1@CDs (14 Pc molecules per CD versus 4 for ZnPc and 3 for ZnPc14). These results were attributed to the establishment of both π–π and electrostatic interactions between the negatively charged CDs and the positively charged ZnPc1.

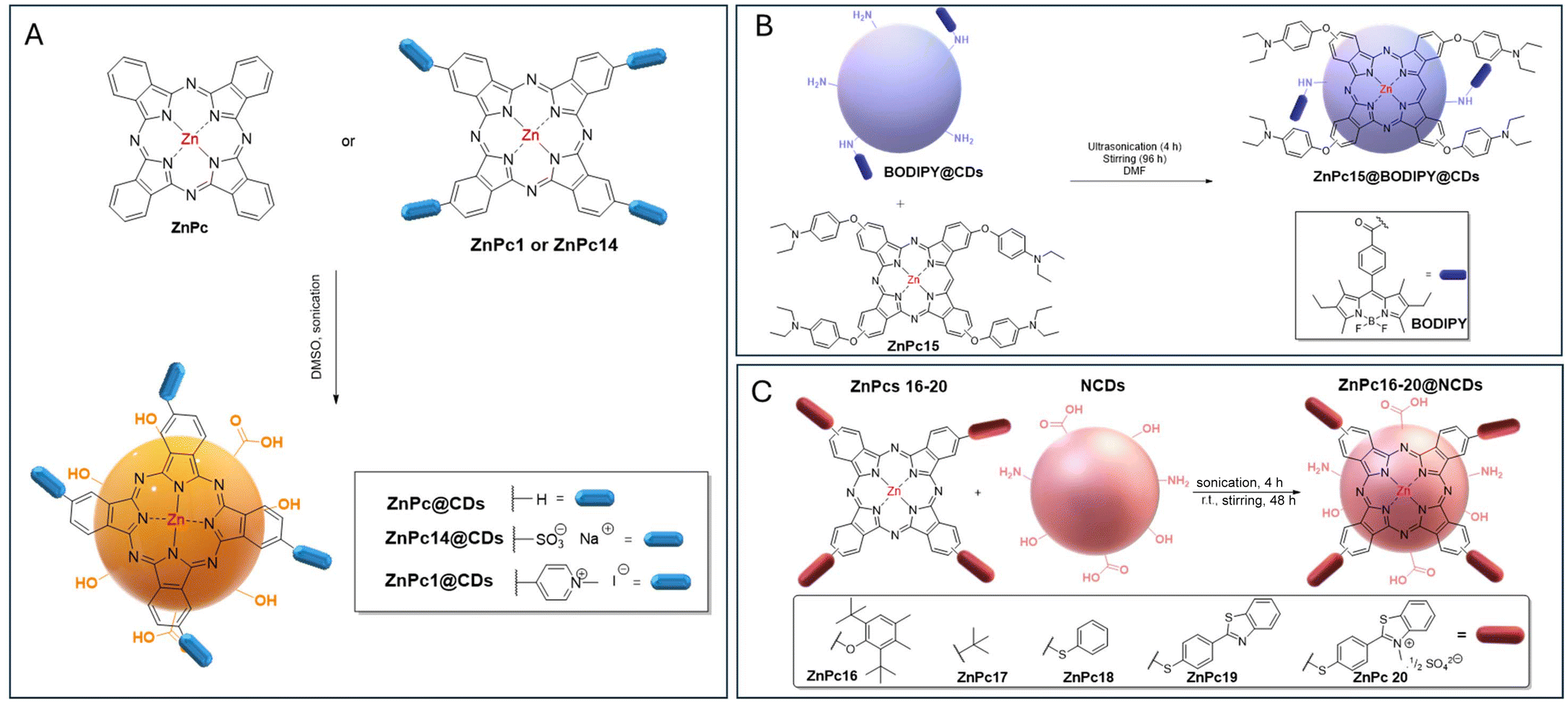

Fig. 5 (A) The structures of neutral, negatively charged, and positively charged Pc dyes used to evaluate the impact of charge type on the physicochemical features of ZnPc@CDs.¹¹⁶ (B) Formation of ZnPc15@BODIPY@NCD conjugates via covalent conjugation of NCDs with BODIPY and subsequent π–π interactions with ZnPc15.¹¹⁸ (C) Structures of ZnPc16–20 for the preparation of ZnPc16–20@NCDsvia π–π interactions.¹¹⁹

The results showed that the Φ_F of CDs in DMSO decreased from 11% to 2% upon conjugation to ZnPc1 and ZnPc and to ∼8% for ZnPc14. This quenching was accompanied by a decrease in τ_f. The lower quenching observed for ZnPc14@CDs was attributed to its lower loading, which reduces aggregation. FRET efficiency analysis indicated a strong energy transfer for ZnPc@CDs (0.81) and ZnPc1@CDs (0.80), while ZnPc14@CDs had a lower efficiency (0.28) due to electrostatic repulsion increasing the donor–acceptor distance (Table 2). ZnPc1@CDs showed the highest FRET efficiency due to the attractive interactions between oppositely charged surfaces. Despite increased triplet quantum yields (Φ_T) upon conjugation, this increase was not reflected in the Φ_Δ values of the hybrids that remained lower than that of ZnPc alone (Φ_Δ = 0.67) or similar to those of free ZnPc1 (Φ_Δ = 0.41) and ZnPc14 (Φ_Δ = 0.32). This fact was attributed to a screening effect that prevented efficient energy transfer to the ground state of molecular oxygen. Additionally, the presence of water further quenched ¹O₂, contributing to their lower Φ_Δ values, when measured in this solvent.¹¹⁰

Table 2 Summary of the properties of non-covalently bonded Pc@CD conjugates for cancer therapy and bioimaging

CDs type	Chemical conjugation	Phthalocyanine	Φ CD	Φ Pc	Φ hybrid	Application	Ref.
a Φ f in DMSO. b Φ T in DMSO. c Φ Δ in DMSO. d Φ f in H2O. e Φ Δ in H2O. f Φ Δ in DMSO using ultrasound at 35 kHz and light exposure at 7.05 × 10^15 photons s^−1 cm^−2.
CDs	Non-covalent (π–π stacking)	Zinc(II) phthalocyanine (ZnPc)	CDs (0.11)^a	*	ZnPc@CDs (0.021)^a	Determination of ΦΔ values	119
		2,9(10),16(17),23(24)-Tetrakis[4-(N-methylpyridyloxy)]phthalocyaninato zinc(II) (ZnPc1)		*	ZnPc1@CDs (0.022)^a
		2,9(10),16(17),23(24)-Tetrakis(4-sulfonatophenyl)phthalocyaninato zinc(II) (ZnPc14)		*	ZnPc14@CDs (0.079)^a
NCDs	Non-covalent (π–π stacking)	2,9(10),16(17),23(24)-Tetrakis(2,6-di-tert-butyl-4-methylphenoxy)phthalocyaninato zinc(II) (ZnPc16)	NCDs (0.17)^a	ZnPc16 (0.16)^a	ZnPc16@NCDs (0.09)^a	PDT against MCF7 breast cancer cells	119
				ZnPc16 (0.78)^b	ZnPc16@NCDs (0.77)^b
				ZnPc16 (0.50)^c	ZnPc16@NCDs (0.30)^c
NCDs	Non-covalent (π–π stacking)	2,9(10),16(17),23(24)-Tetrakis(tert-butyl)phthalocyaninato zinc(II) (ZnPc17)	NCDs (0.17)^a	ZnPc17 (0.18)^a	ZnPc17@NCDs (0.17)^a	PDT against MCF7 breast cancer cells	119
				ZnPc17 (0.77)^b	ZnPc17@NCDs (0.83)^b
				ZnPc17 (0.49)^c	ZnPc17@NCDs (0.40)^c
NCDs	Non-covalent (π–π stacking)	2,9(10),16(17),23(24)-Tetrakis(phenylsulphanyl)phthalocyaninato zinc(II) (ZnPc18)	NCDs (0.17)^a	ZnPc18 (0.14)^a	ZnPc18@NCDs (0.01)^a	PDT against MCF7 breast cancer cells	119
				ZnPc18 (0.65)^b	ZnPc18@NCDs (0.67)^b
				ZnPc18 (0.50)^c	ZnPc18@NCDs (0.45)^c
NCDs	Non-covalent (π–π stacking)	2,9(10),16(17),23(24)-Tetrakis[(thiophenyl)benzo[d]thiazole]phthalocyaninato zinc(II) (ZnPc19)	NCDs (0.17)^a	ZnPc19 (0.18)^a	ZnPc19@NCDs (0.11)^a	PDT against MCF7 breast cancer cells	119
				ZnPc19 (0.67)^b	ZnPc19@NCDs (0.70)^b
				ZnPc19 (0.54)^c	ZnPc19@NCDs (0.50)^c
NCDs	Non-covalent (π–π stacking)	2,9(10),16(17),23(24)-Tetrakis[(thiophenyl)benzo[d]thiazolium]phthalocyaninato zinc(II) sulfate (ZnPc20)	NCDs (0.17)^a	ZnPc20 (0.10)^a	ZnPc20@NCDs (0.09)^a	PDT against MCF7 breast cancer cells	119
				ZnPc20 (0.75)^b	ZnPc20@NCDs (0.77)^b
				ZnPc20 (0.35)^c	ZnPc20@NCDs (0.30)^c
NCDs-biotin	Non-covalent (π–π stacking)	2,9(10),16(17),23(24)-Tetrakis[2,5-dimethyl-4-(methylmorpholino)-phenoxy]phthalocyaninato zinc(II) (ZnPc21)	NCDs-biotin (0.24)^a	ZnPc21 (0.20)^a	ZnPc21@NCDs-biotin (0.16)^a	PDT against MCF7 breast cancer cells	120
				ZnPc21 (0.68)^b	ZnPc21@NCDs-biotin (0.72)^b
			NCDs-biotin (0.25)^d	ZnPc21 (0.67)^c	ZnPc21@NCDsbiotin (0.47)^c
NCDs	Non-covalent (π–π stacking)	2,9(10),16(17),23(24)-Tetrakis[2,5-dimethyl-4-(methylmorpholin-4-ium)phenoxy]phthalocyaninato zinc(II) disulfate (ZnPc22)	NCDs (0.17)^a	ZnPc22 (0.20)^a	ZnPc22@NCDs (0.15)^a	PDT against MCF7 breast cancer cells	120
				ZnPc22 (0.69)^b	ZnPc22@NCDs (0.74)^b
				ZnPc22 (0.53)^c	ZnPc22@NCDs (0.58)^c
			NCDs (0.20)^d	ZnPc22 (0.14)^d	ZnPc22@NCDs (0.10)^d
				ZnPc22 (0.11)^e	ZnPc22@NCDs (0.08)^e
NCDs-biotin	Non-covalent (π–π stacking)	2,9(10),16(17),23(24)-Tetrakis[2,5-dimethyl-4-(methylmorpholin-4-ium)-phenoxy]phthalocyaninato zinc(II) disulfate (ZnPc22)	NCDs-biotin (0.24)^a	ZnPc22 (0.20)^a	ZnPc22@NCDs-biotin (0.14)^a	PDT against MCF7 breast cancer cells	120
				ZnPc22 (0.69)^b
				ZnPc22 (0.53)^c
			NCDs-biotin (0.25)^d	ZnPc22 (0.14)^d
				ZnPc22 (0.11)^e
NCDs	Non-covalent (π–π stacking)	2,9(10),16(17),23(24)-Tetrakis(N-methyl-morpholin-4-ium)phthalocyaninato zinc(II) disulfate (ZnPc23)	NCDs (0.70)^a	ZnPc23 (0.16)^a	ZnPc23@NCDs (0.14)^a	PSDT against MCF-7 breast cancer cells	121
SNCDs	Non-covalent (electrostatic interactions)		SNCDs (0.80)^a	ZnPc23 (0.16)^a	ZnPc23@SNCDs (0.14)^a
GQDs@cysteine	Non-covalent (electrostatic interactions	4-Tetra-(2-bromo-4-methylphenol)phthalocyaninato indium(III) chloride	GQDs@cysteine (0.41)^a	InPcBr	InPcBr@ GQDs@cysteine	Determination of ΦΔ values using sono-photochemical methodologies	122
				(0.02)^a	(0.81)^c
				(0.75)^c	(1.31)^f
				(0.96)^f
GQDs@ cysteine	Non-covalent (electrostatic interactions)	Tetrakis(2-bromo-4-methylphenoxy)phthalocyaninato zinc(II)	GQDs@cysteine (0.41)^a	ZnPcBr	ZnPcBr@ GQDs@cysteine	Evaluation of the photochemical properties using sono-photodynamic procedures	123
				(0.20)^a	(0.68)^c
				(0.63)^c	(0.95)^f
				(0.94)^f	ZnPcCl@ GQDs@cysteine
		Tetrakis(2-chloro-4-methylphenoxy)phthalocyaninato zinc(II)		ZnPcCl	(0.57)^c
				[0.24)^a
				(0.55)^c	(0.93)^f
				(0.91)^f
GQDs@ cysteine	Non-covalent (electrostatic interactions)	4-Tetrakis(2-chloro-4-methylphenoxy)phthalocyaninato indium(III) chloride	GQDs@cysteine (0.41)^a	InPcCl	InPcCl@GQDs@cysteine	Assessment of singlet oxygen yield, ΦΔ, using ultrasound and light	124
				(0.02)^a
				(0.65)^c	(0.79)^c
				(0.94)^f	(1.17)^f

---

To evaluate how the size of CDs could affect the ability of Pcs to generate ¹O₂, Matshitse et al. considered the development and photophysical/photochemical characterization of assemblies based on cationic ZnPc1 and CDs of different sizes denoted as CD₂ (2.6 nm), CD₆ (3.3 nm), and CD₁₀ (5.1 nm).¹²⁵ These CDs were prepared via the chemical cutting of GO using KMnO₄ and H₂SO₄ as oxidative agents and varying the reaction time from 2 to 6 h.¹¹⁷ The results showed that the atomic concentrations of oxygen decreased with increasing sizes of CDs leading to a blue shift in their spectra and can justify the lower Pc loading found for this assembly (3 versus 10 for ZnPc1@CDs₁₀ and ZnPc1@CDs₂ and 5 for ZnPc1@CD₆). Compared with the initial ZnPc1 (Φ_Δ = 0.03), the presence of CDs improved the Φ_Δ values in water, with the best performance observed for ZnPc1@CD₆ (Φ_Δ = 0.27), followed by ZnPc1@CD₂ (Φ_Δ = 0.17) and ZnPc1@CD₁₀ (Φ_Δ = 0.11). The low performance of ZnPc1@CD₂ with the highest number of Pcs was attributed to the aggregation effects. This study showed that the structural features of CDs, namely, size, the amount of oxygen, and the presence of Pc, can have an important impact on their phototherapeutic or photocatalytic applications.

In 2018, Nyokong et al. reported the synthesis of supramolecular hybrids constituted of ZnPc15 bearing diethylaminophenoxy substituents embedded in nitrogen CDs covalently linked through an amide bond to carboxylic acid borondipyrromethane (BODIPY@NCDs) (Fig. 5B).¹¹⁸ The photophysical characterization of the ZnPc15@BODIPY@NCDs hybrids showed a slight decrease in both the Φ_F and τ_F values when compared with the CDs alone (0.23 and 2.84 ns versus 0.27 and 3.41 ns). The decrease in Φ_F values could be due to the FRET behaviour. Regarding ¹O₂ production, ZnPc15@BODIPY@NCDs (Φ_Δ = 0.70) displayed an improved ¹O₂ generation ability compared to ZnPc15 (Φ_Δ = 0.50) in DMSO.

In 2019, Nene et al. evaluated for the first time the phototherapeutic efficiency of conjugates obtained from a series of ZnPcs (ZnPc16–20) with CDs in human breast cancer MCF-7 cell lines (Fig. 5C).¹¹⁹ The nitrogen-doped CDs used in the synthesis of ZnPc16–20@NCDs assemblies were obtained from GO and ammonia. The results showed that the photophysical/photochemical features of ZnPcs were affected upon conjugation with CDs by π–π interactions, showing a decrease in the Φ_F value of the Pcs, which was accompanied by an increase in the Φ_T value. All conjugates were able to generate ¹O₂ species, although with slightly less efficiency than the non-conjugated ZnPc, probably because the CDs’ screening effect limits the facile energy transfer from the triplet state to dioxygen. The ZnPc@NCDs conjugates demonstrated PDT activity in the human breast cancer MCF-7 cell line upon irradiation, with the best results obtained for the ZnPc19@NCDs and ZnPc20@NCDs conjugates when compared with the corresponding non-immobilized ZnPc. At the highest conjugate concentration (100 μg mL⁻¹), cytotoxicity was approximately 50%.

Soon after, the authors reported the development and photodynamic efficiency towards MCF-7 cell lines of the novel hybrid materials ZnPc21,22@NCDs and ZnPc21,22@biotin-NCDs containing neutral and cationic morpholine-substituted Pcs ZnPc21 and ZnPc22 and NCDs without or with tumour-targeting biomolecules such as biotin (Fig. 6).¹²⁰ Access to neutral ZnPc21 and cationic ZnPc22 required the synthesis of the precursor 4-(2,5-dimethyl-4-(morpholinomethyl)phenoxy)phthalonitrile (Pht4) by the reaction of 2,5-dimethyl-4-(morpholinomethyl)-phenol hydrochloride monohydrate with commercially available 4-nitrophthalonitrile followed by their tetramerization in the presence of Zn(OAc)₂, affording ZnPc21. The cationic ZnPc22 was obtained by quaternization of the morpholino units in the presence of dimethylsulfate (DMS) or DMF (Fig. 6A). NCDs functionalized with biotin were prepared by reacting NCDs with biotin in the presence of the carboxyl-activating reagents N,N’-dicyclohexylcarbodiimide (DCC) and 4-dimethylaminopyridine (DMAP) in DMF.¹²⁰ The synthesis of the nanoplatforms required sonication followed by stirring (Fig. 6B).

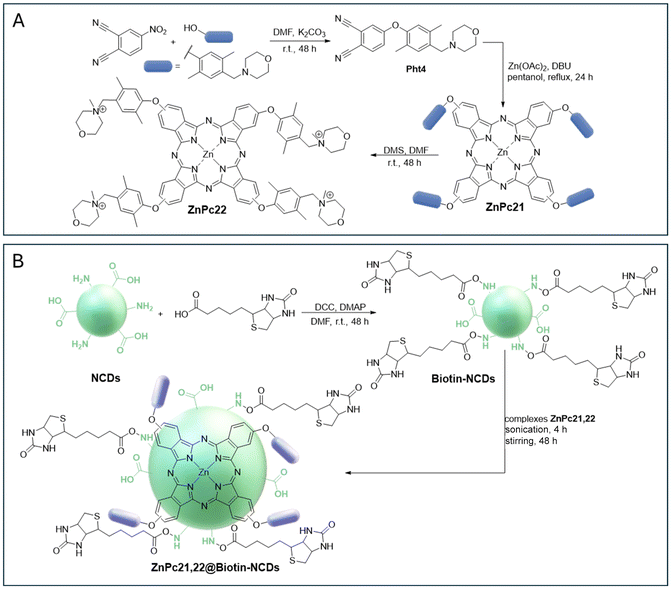

Fig. 6 (A) Synthesis of ZnPc21 and ZnPc22. (B) Synthesis of biotin-NCDs and ZnPc21, 22@biotin-NCD conjugates.¹²⁰

The photophysical characterization of the ZnPc21,22@NCD and ZnPc21,22@biotin-NCD nanoassemblies showed that the conjugation caused quenching of the emission and also a drop in the Φ_Δ values owing to screening effects. However, an increase in PDT activity was observed for the cationic dye in combination with biotin-functionalized NCDs. The PDT activity of the complexes (less cell viability) of ZnPc21 and ZnPc22 was higher than that of their non-functionalized CD conjugates. For ZnPc21@CDs, the low PDT activity may be related to its low Φ_Δ values when compared to the non-immobilized ZnPc21 (Table 2). Indeed, cationic complexes generally perform better than non-charged complexes. This has previously been reported for Pcs¹²⁶ and other charged complexes in cancers,^127,128 where the net anionic membrane charge of cancer cells is believed to be susceptible to cationic drug complexes through electrostatic attraction. This may result in improved drug retention, and hence, more available Pcs for therapy. The combination of charge and biotin ligands improved the therapeutic efficacy of the complex.

In a related study, Nyokong et al.¹²¹ reported the preparation of ZnPc23@NCD and ZnPc23@NSCD nanoassemblies by conjugating cationic ZnPc23 bearing morpholino moieties with NCDs and NSCDs (Fig. 7A). The NCDs and NSCDs were synthesized from citric acid under hydrothermal conditions (180 °C, 5 h) using urea and thiourea, respectively. The efficiency of the obtained assemblies was evaluated for the treatment of MCF7-cells under PDT, sonodynamic therapy (SDT), and combined PDT plus SDT (PSDT). Pc, CDs, and hybrids demonstrated cytotoxicity for PDT, SDT, and PSDT treatments in a concentration-dependent manner due to cellular oxidative stress generated by the formation of ROS (Fig. 7B). The determined IC₅₀ values showed that Pc presented a relatively lower value than the conjugates for all three explored therapies. The results showed that ¹O₂ was generated under all therapeutic conditions and its presence increased upon conjugation. However, the generation of ˙OH radicals, which played a significant role in the eradication of cancer cells, only generated in the SDT and PSDT assays, showing a decrease in signal intensity after the conjugation of Pc to the CDs (Table 2).

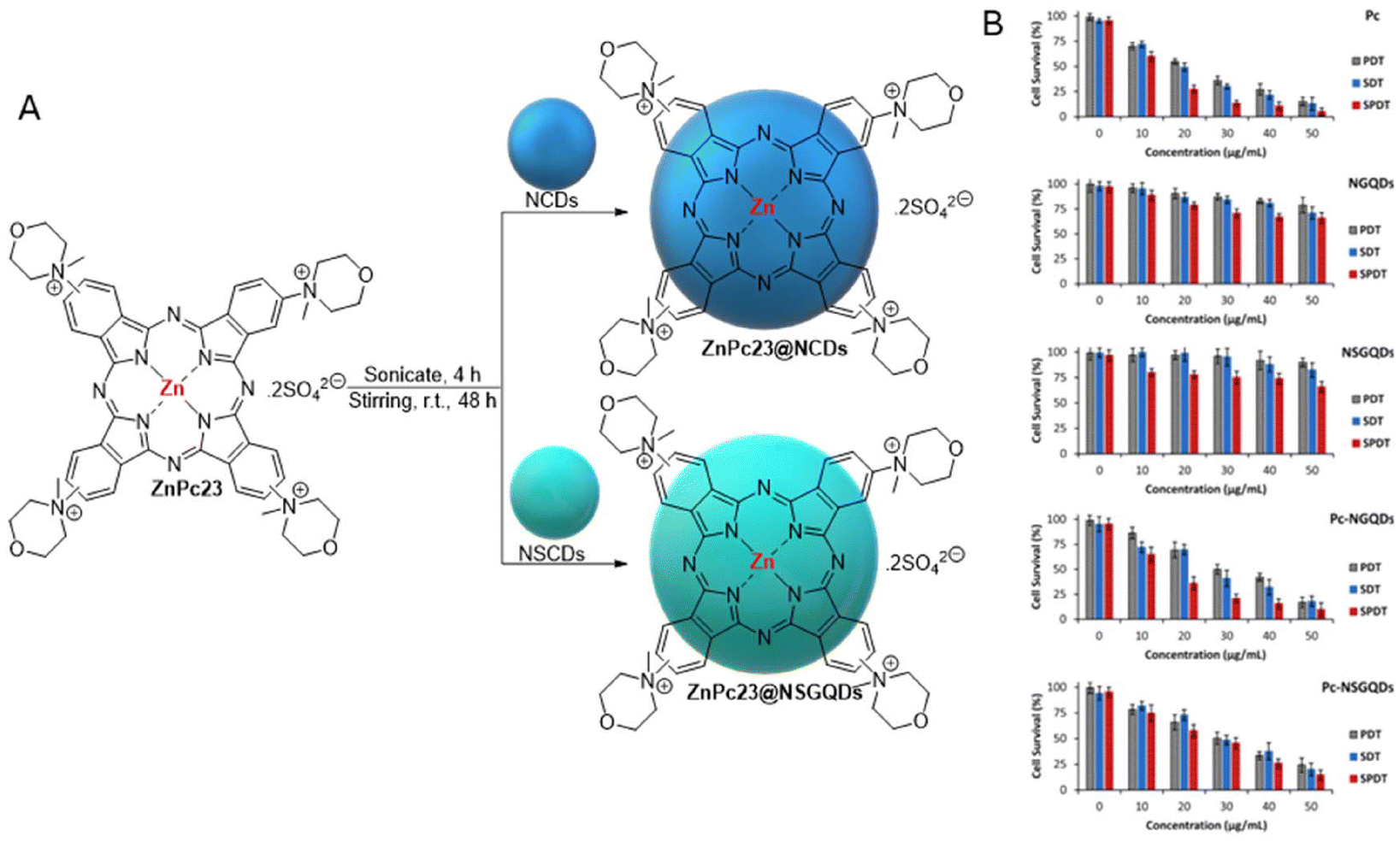

Fig. 7 (A) Structures of ZnPc23@NCD and ZnPc23@NSCD conjugates. (B) WST-assay post-PDT, SDT, and PSDT treatments at varied concentrations in water at 10 min irradiation time, n = 3. Parameters: PDT = irradiation dose of 170 J cm⁻², power 2.3 W at 680 nm. SDT: frequency = 1 MHz, power = 1 W cm⁻², 100% duty cycles. PSDT = combined PDT and SDT parameters with PDT applied first. Reproduced with permission.¹²¹ Copyright 2021, Elsevier B.V.

Knowing that current PDT agents often suffer from low singlet oxygen quantum yields, photobleaching, and poor biocompatibility, Erdoğmus et al.^122–124 developed new hybrid nanomaterials to address these issues, based on the conjugation of indium(III) and zinc(II) phthalocyanines with halogen and phenoxy substituents using GQDs obtained from citric acid and cysteine (GQDs@cysteine) under hydrothermal conditions. Specifically, tetrakis(2-bromo-4-methylphenoxy)phthalocyaninato zinc(II), tetrakis(2-chloro-4-methylphenoxy)phthalocyaninato zinc(II), 4-tetrakis(2-chloro-4-methylphenoxy)phthalocyaninato indium(III) chloride, and 4-tetrakis(2-bromo-4-methylphenoxy)phthalocyaninato indium(III) chloride as regioisomeric mixtures were immobilized onto GQDs@cysteine through π–π stacking interactions. The photochemical and sonophotochemical properties of the resulting nanomaterials and their precursors were evaluated for potential applications in advanced cancer treatments with enhanced ¹O₂. Briefly, all derivatives were exposed to light, sound, or a combination of both to measure their singlet oxygen production yield. The nanoconjugates of InPc and ZnPc exhibited improved Φ_Δ, compared to non-conjugated Pcs. In addition, it was observed that indium, being heavier than zinc, enhanced intersystem crossing and gave a higher singlet oxygen production yield (Table 2). These three studies confirmed that the sono-photodynamic approach (SPDT) enhances therapeutic efficacy by combining the advantages of light and ultrasound.

2.1.3.2. Antibacterial applications. The conjugation of the CDs and Pcs was also explored for antibacterial applications (Table 3), considering previous reports that showed improvements in the required photophysicochemical features after the formation of the hybrids. Nyokong et al. conducted the first study in the context of aPDT using MPc24@CD nanoassemblies (M = 2H, Zn, or In) against the multidrug-resistant Staphylococcus (Fig. 8).¹²⁹ The photoactive platforms were prepared from the free-base H₂Pc24 with acetylphenoxy units and the corresponding ZnPc24 and InPc24 complexes (Fig. 8A). In the selection of these Pcs, the authors took into account the antibacterial features associated with the reactive carbonyl group.^130,131 The synthetic strategy involved the reaction of 4-hydroxyacetophenone with 4-nitrophthalonitrile to afford the required phthalonitrile Pht5, followed by its tetramerization in DMAE and DBU with LiCl or ZnCl₂ to obtain H₂Pc24 or ZnPc24, respectively (Fig. 8A).¹²⁹InPc14 was obtained by the reaction of H₂Pc24 with anhydrous InCl in dry DMF and DBU. The results showed that the efficiency of the conjugates at producing ¹O₂ parallels that observed by the non-conjugated Pcs, with the indium complex being the most efficient, followed by the zinc complex, and then the free base (values ranging from Φ_Δ = 0.20 to 0.79 in DMSO). The aPDT activity of both phthalocyanines and nanoconjugates was tested against multidrug-resistant Staphylococcus aureus (S. aureus), where InPc24@CDs were highly effective causing a 9.68 log reduction in the bacterial viability at 10 μM (based on Pc) when compared to the 3.77 log reduction of ZnPc24@CDs (Fig. 8C and D).

Fig. 8 (A) Synthesis of H₂Pc24, ZnPc24, and InPc24 and (B) conjugation of Pcs with CDs. (C) Survival graphs of S. aureus incubated with 10 μM of photosensitizer for Pcs alone and for the conjugates (D) with irradiation at 670 nm. Reproduced with permission.¹²⁹ Copyright 2019, Elsevier B.V.

Table 3 Summary of the properties of non-covalently bonded Pc@CD conjugates for antibacterial activity

CDs type	Chemical conjugation	Phthalocyanine	Φ CD	Φ Pc	Φ hybrid	Application	Ref.
a Φ f in DMSO. b Φ T in DMSO. c Φ Δ in DMSO. d Φ f in H2O.
CDs	Non-covalent (π–π stacking)	2,9(10),16(17),23(24)-Tetrakis[(phenoxy)ethan-1-one]phthalocyanine (H2Pc24)	CDs (0.35)^a	H2Pc24 (0.20)^a	H2Pc24@CDs (0.0.39)^a	PDT against S. aureus	129
				H2Pc24 (0.31)^b	H2Pc24@CDs (0.27)^b
				H2Pc24 (0.22)^c	H2Pc24@CDs (0.20)^c
CDs	Non-covalent (π–π stacking)	2,9(10),16(17),23(24)-Tetrakis[(phenoxy)ethan-1-one]phthalocyaninato zinc(II) (ZnPc24)	CDs (0.35)^a	ZnPc24 (0.13)^a	ZnPc24@CDs (0.059)^a	PDT against S. aureus	129
				ZnPc24 (0.78)^b	ZnPc24@CDs (0.85)^b
				ZnPc24 (0.72)^c	ZnPc24@CDs (0.77)^c
CDs	Non-covalent (π–π stacking)	2,9(10),16(17),23(24)-Tetrakis[(phenoxy)ethan-1-one]phthalocyaninato indium(III) chloride (InPc24)	CDs (0.35)^a	InPc24 (0.046)^a	InPc24@CDs (0.054)^b	PDT against S. aureus	129
				InPc4 (0.84)^b	InPc24@CDs (0.90)^b
				InPc4 (0.75)^c	InPc24@CDs (0.79)^c
NCDs	Non-covalent (π–π stacking)	2,9(10),16(17),23(24)-Tetrakis[4-(4-(5-chloro-1H-benzo[d]imidazol-2-yl)phenoxy)]phthalocyaninato zinc(II) (ZnPc25)	NCDs (0.19)^d	ZnPc25 (0.17)^a	ZnPc25@NCDs (0.12)^a	PDT against S. aureus	132
CBDs	Non-covalent (π–π stacking)	1, 8(11),15(18),22(25)-Tetrakis[(2,2-dimethyl-1,3-dioxolan-4-yl)methoxy]phthalocyaninato copper(II)	—	—	—	PDT against Gram-positive bacteria (E. hirae and E. faecalis), Gram-negative bacteria (E. coli, P. aeruginosa and B. subtilis)	133

---

The photodynamic action of ZnPc25@NCD nanoassemblies, obtained from nitrogen-doped CDs (NCDs) and ZnPc25 bearing benzoimidazolylphenoxy units, was evaluated towards Gram-positive bacteria S. aureus.¹³² The hybrid constituents were obtained following well-established approaches, and the photophysical/photochemical characterization showed improved singlet oxygen (Φ_Δ = 0.45) and triplet state quantum yields (Φ_T = 0.60) compared to the non-immobilized ZnPc25 (Φ_Δ = 0.36 and Φ_T = 0.54). In the antibacterial tests under UV light exposure, the ZnPc25@NCD hybrid achieved a 99.9% bacterial kill rate, outperforming free ZnPc25 (99.86%). This aligns with its higher singlet oxygen production. In 2024, Özçesmeci et al. reported the synthesis of new nanoconjugates through the non-covalent conjugation of copper(II) phthalocyanine, substituted with 2,3-dihydroxypropoxy groups in the non-peripheral positions, with carbon dots (CDs) and carbon-boron quantum dots (CBDs). The antimicrobial photodynamic therapy (aPDT) efficacy of each hybrid was evaluated against Gram-positive bacteria (E. hirae and E. faecalis), Gram-negative bacteria (E. coli, P. aeruginosa, and B. subtilis), and microfungi (C. parapsilosis and C. albicans). The selected phthalocyanine was obtained by deprotecting the (2,2-dimethyl-1,3-dioxolan-4-yl)methoxy groups in 1,8(11),15(18),22(25)-tetrakis[(2,2-dimethyl-1,3-dioxolan-4-yl)methoxy]phthalocyaninato copper(II) using acetic acid. The CBDs were synthesized via microwave-assisted synthesis, involving citric and boric acids. The aPDT evaluation revealed the lowest minimum inhibitory concentration (MIC) of 4 mg L⁻¹ against Gram-positive bacteria, which decreased further post-irradiation, significantly enhancing antimicrobial effects. Additionally, the study demonstrated promising biological applications for the new conjugates including radical scavenging activity, antidiabetic effects, DNA cleavage activity, and inhibition of biofilm formation by S. aureus and P. aeruginosa.

2.1.4. Photocatalytic applications. The potential of Pc@CDs to generate ROS is much lower in the context of photocatalytic applications than for phototherapeutic ones. However, some promising outcomes were achieved when the photooxidation of 4-chlorophenol was evaluated in the presence of unsymmetrical polystyrene membranes ZnPc@NCDs-PS-membrane bearing nanoassemblies consisting of non-substituted ZnPc and CDs with amino substituents (NCDs) covalently linked through an amide bond to carboxylated polystyrene (CO₂H-PS).¹³⁴ The synthetic strategy involved first the non-covalent conjugation of the unsubstituted ZnPc to the NCDs, obtained from the carbonization of citric acid and polyethyleneimine, according to previous works in the literature.^100,135 Subsequently, before membrane casting, the resulting ZnPc@NCD hybrid was covalently linked to CO₂H-PSvia an amide bond using thionyl chloride to mediate the formation of activated acyl chloride functionalities. This step was considered to avoid the leaching of ZnPc from the membrane, as observed when ZnPc or ZnPc@NCDs were simply mixed with the polymer solution (without prior conjugation). Then, the ZnPc@NCDs-PS-membrane was obtained by casting on glass slides a dispersion of non-functionalized polystyrene (PS) and the conjugate in DMF, followed by precipitation in a methanol bath.¹³⁴ The photophysical characterization confirmed the ability of the membranes to generate ¹O₂ in ethanol (Φ_Δ = 0.43) and water (Φ_Δ = 0.37) versusZnPc@NCDs (Φ_Δ = 0.49), allowing the photocatalytic oxidation of 4-chlorophenol in aqueous media. The study showed that the reaction followed second-order kinetics at 3.24 × 10⁻⁴ mol L⁻¹ with a k_obs of 35.9 L mol⁻¹ min⁻¹ and a half-life of 86 min. Although the membrane was able to photodegrade 4-chlorophenol in water, its efficiency was not fully revealed.

A recent study explored the combination of CDs functionalized with NiPc and Cu–In–Zn–S quantum dots (CIZS QDs) for surface proton generation and reduction. The synthesis of the ternary CIZS QD/NiPc@CD composite is presented in Fig. 9A.¹³⁶ The size of the CIZS QDs and CDs was determined by transmission electron microscopy (TEM), corresponding to 3.5 ± 0.5 and 2.5 ± 0.5 nm, respectively (Fig. 9B and C). The nanocomposite CIZS QDs/NiPc@CDs revealed the formation of smaller NiPc@CDs and larger CIZS QDs. The HRTEM analysis of the CIZSQDs/NiPc@CDs confirms the presence of both nanostructures with lattice spacings of 0.310 nm, corresponding to the CIZS QDs, and 0.210 nm, corresponding to the CDs (Fig. 9D and E). Elemental mapping images of the CIZS QDs/NiPc@CDs further confirmed that In, Cu, Zn, S, Ni, and C were well merged, indicating that CIZS QDs and NiPc@CDs were well integrated to form the nanocomposite material (Fig. 9F-J). The performance of the developed ternary nanocomposites CIZS QDs/NiPc@CDs was evaluated in photocatalytic hydrogen evolution coupled with organic oxidation electron/hole extraction. A preliminary study, based on the photocatalytic degradation of rhodamine B (RhB), showed (Fig. 9K) that the CIZS QD/NiPc@CD nanocomposite presented higher photodegradation activity. The authors demonstrated that the dominant mechanism was based on photogenerated holes because with the addition of ethylenediaminetetraacetic acid (hole quencher), the photodegradation reaction was completely inhibited (Fig. 9I). This clearly illustrates that the photogenerated holes mainly contribute to the degradation of RhB in the CIZS QD/NiPc@CD composite photocatalyst system, which also proves the effectiveness of the hole-extraction strategy by NiPc@CD modification. The performance of the CIZS/NiPc@CD nanocomposite was further assessed for the photocatalytic hydrogen evolution coupled with the oxidation of different alcohols. The photocatalytic hydrogen production rate by CIZS QDs/NiPc@CDsvia MeOH oxidation was found to be the highest among all the tested nanomaterials, reaching 1.121 mmol g⁻¹ h⁻¹ (Fig. 9M and N). Moreover, the oxidation of biomass-derived furfuryl alcohol (FFA) resulted in hydrogen production that reached 2.516 mmol g⁻¹ h⁻¹ (Fig. 9O and P).

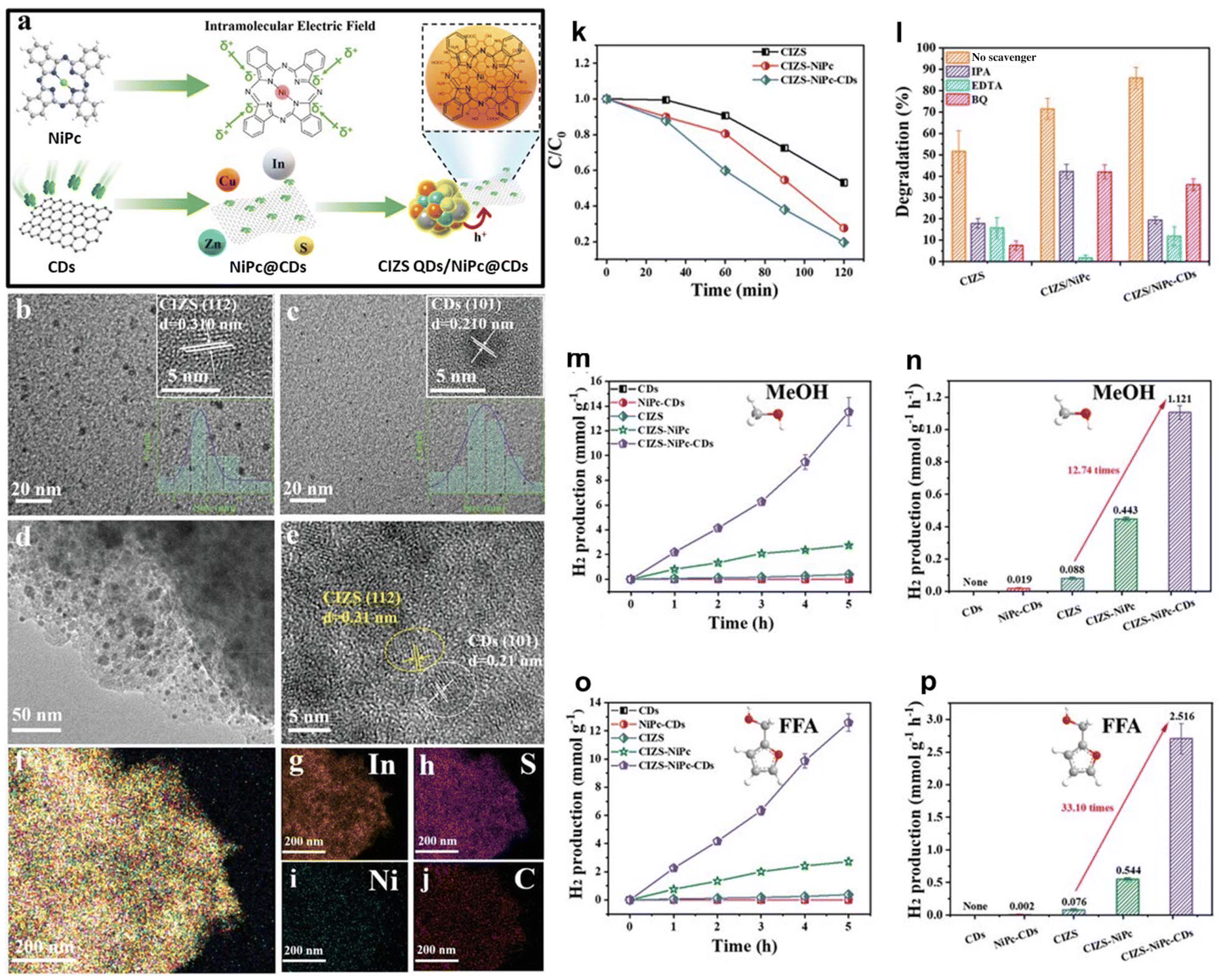

Fig. 9 (a) Schematic diagram for the construction of the ternary CIZS QD/NiPc@CD composite. (b) TEM images of CIZS QDs and (c) CDs and the corresponding HRTEM images (top insets) and size distribution histograms (bottom insets) obtained by counting 100 particles. (d) TEM and (e) HRTEM images of CIZS QDs/NiPc@CDs. (f–j) The corresponding elemental mapping images of CIZS QDs/NiPc@CDs. (k) Photocatalytic degradation ratio of RhB over CIZS QDs, CIZS QDs/NiPc, and CIZS QDs/NiPc@CDs under visible-light irradiation. (l) Active species trapping experiment during the photocatalytic degradation of RhB over CIZS QDs/NiPc@CDs with the addition of quenchers of h⁺ (EDTA), ˙O²⁻ (BQ), and ˙OH (isopropanol, IPA). Photocatalytic hydrogen evolution performance over CDs, NiPc@CDs, CIZS QDs, CIZS QDs/NiPc, and CIZS QDs/NiPc@CDs coupled with (m), (n) methanol oxidation and (o and p) FFA oxidation reactions. Reproduced with permission.¹³⁶ Copyright 2023, John Wiley & Sons, Inc.

2.1.5. Miscellaneous applications. With future applications in molecular sensors and solar cells in mind, Majeed et al. studied the nonlinear optical responses of carbazole-substituted ZnPc (ZnPc26A-C) conjugated to CDs and in thin films (TF) of polystyrene (PS) (Fig. 10).¹³⁷ These ZnPcs were obtained by tetramerization of suitable phthalonitriles in quinolone at 80 °C in the presence of anhydrous Zn(OAc)₂ and DBU. Phts 6A-C were prepared from the reaction of commercially available 4,5-dichlorophthalonitrile with the required carbazoles in dry DMF in the presence of cesium fluoride.

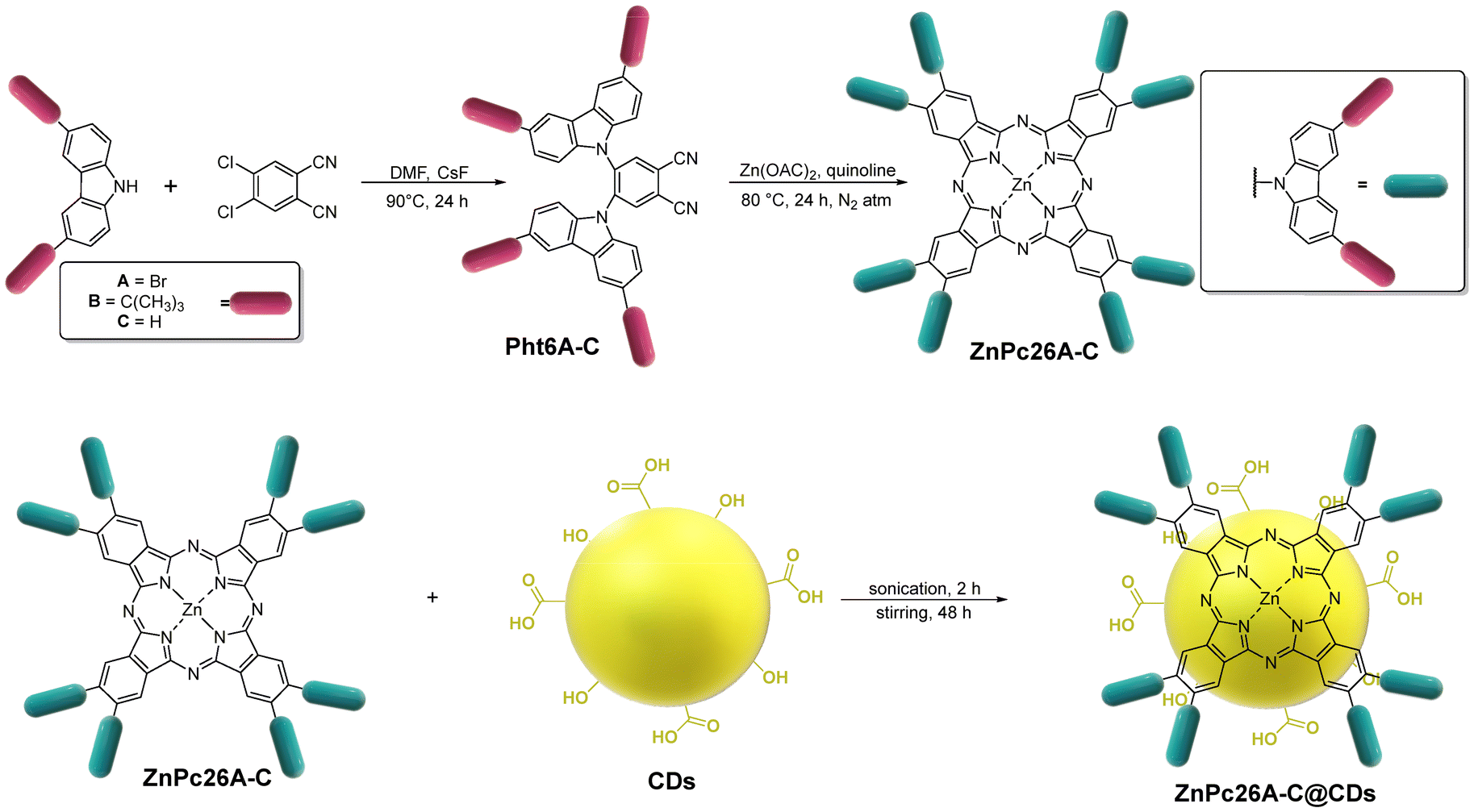

Fig. 10 Preparation of ZnPc26A-C substituted with eight carbazole units used in the synthesis of ZnPc26A-C@CD nanoassemblies further immobilized in polystyrene films.¹³⁷

The immobilization of the ZnPc in CDs obtained from the pyrolysis of citric acid in the presence of NaOH afforded the required nanoassemblies ZnPc26A-C@CDs that after being embedded in PS films showed an average thickness of 0.45–0.62 mm. These thin films of ZnPc26A-C@CDs-PS showed promising optical limiting parameters in different solvents, with improved optical limiting performance, characterized by increased third-order susceptibilities and hyperpolarizabilities, as well as lower limiting threshold values.

In 2021, AlMarzouq et al. selected the analogue manganese phthalocyanine with eight carbazole units (MnPc26C) to conjugate with CDs, which were obtained through the pyrolysis of calcium acetate at 200 °C, to evaluate the influence of the carbazole substituents and CDs on the redox mechanism of MnPc.¹³⁸ The electrochemical performance of MnPc26C and the resulting conjugate was investigated using cyclic voltammetry (CV), square wave voltammetry (SWV), and spectroelectrochemistry (SEC), showing extended metal-based redox processes at low potentials. Furthermore, the carbazole substituents provided additional redox activity, facilitating the electropolymerization of the complex onto the electrode surface, simplifying the electrode modification.

2.2. Covalent functionalization

2.2.1. Fundamental insights into Pc@CDs’ features. The covalent functionalization of the CDs with Pcs has been significantly less explored compared to the non-covalent approach. However, some different applications can be found in the literature and are summarized in Table 4. One of the most relevant advantages of exploring the covalent bond is the stability of the conjugate. The most common approaches for establishing stable covalent bonds between CDs and Pcs generally involve esterification or amidation reactions. In 2020, Prato et al. developed the ZnPc27@NCD hybrid by linking the amorphous NCDs to the non-symmetric ZnPc27via an amide bond (Fig. 11A).¹³⁹ This dye acted as an electron donor with a large extended π-surface and strong absorption in the visible spectrum. Intermolecular interactions were confirmed by steady-state and pump–probe transient absorption spectroscopy, which revealed symmetry-breaking charge transfer/separation and recombination dynamics within pairs of Pcs. Moreover, steady-state fluorescence experiments showed quenching in the formed hybrid material, accompanied by a red shift of the fluorescence maximum, upon excitation at λ = 387 nm (Fig. 11A). The CDs simplify the electronic interactions between the studied Pcs, suggesting that they can be used to support electronic couplings in multichromophoric arrays, which can increase their application in organic electronics, photonics, and/or artificial photosynthesis systems. Examples of this type of conjugation and their respective potential applications are discussed in the following sections.

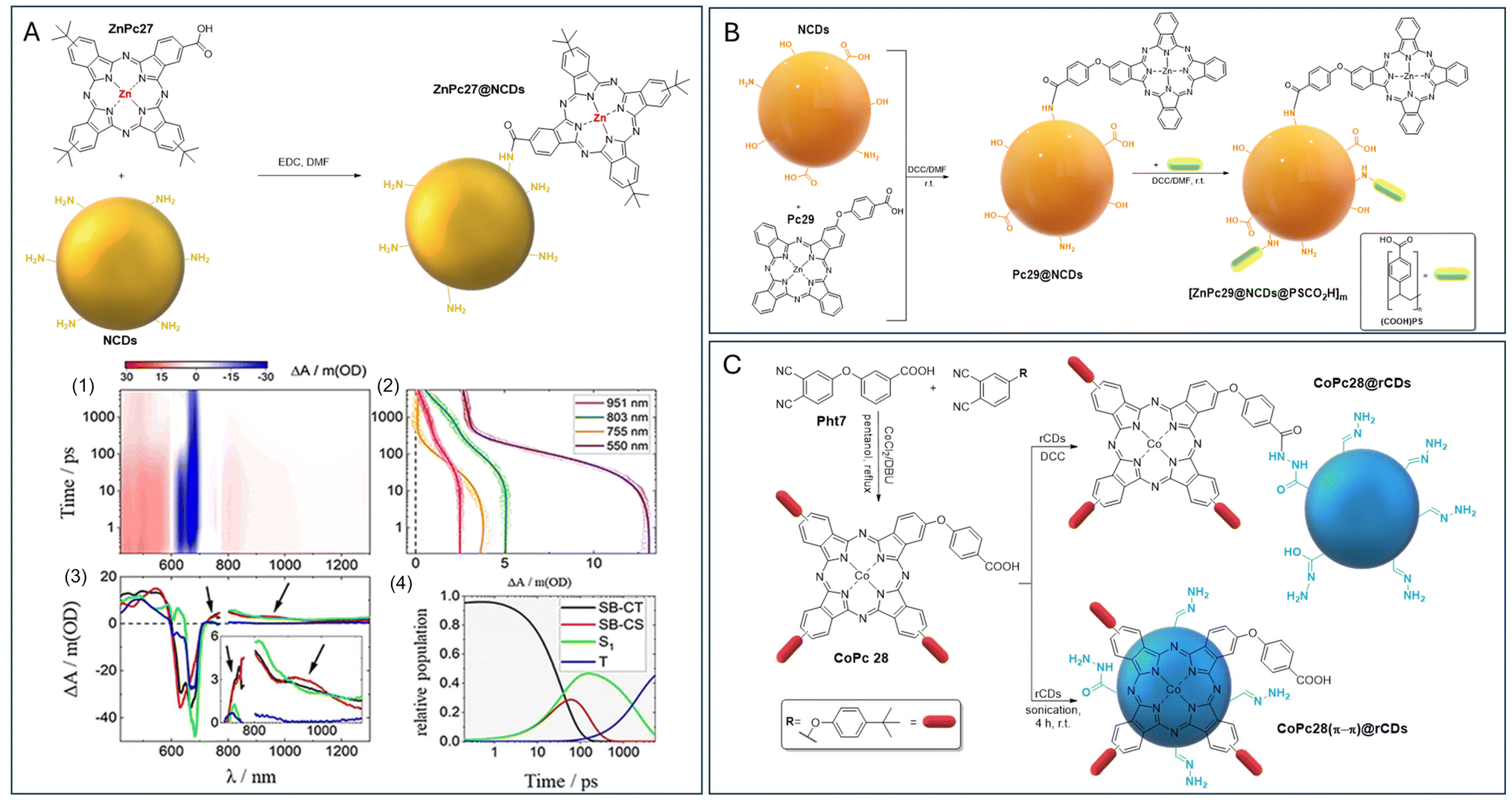

Fig. 11 (A) NCDs covalently linked to ZnPc27: (1) differential absorption 3D map obtained by fsTAS of ZnPc27@NCDs in CH₃OH at room temperature upon excitation at λ = 387 nm; (2) time absorption profiles and the corresponding line fittings at λ = 951 (magenta), 803 (dark green), 755 (orange), and 550 nm (purple); (3) species-associated differential spectra of SB-CT (black), SB-CS (red), S1 (green), and T1 (blue) excited states; and (4) concentration evolution over time.¹³⁹ (B) Synthesis of CoPc28 and its functionalization with rCDs to obtain CoPc28@rCD and CoP28(π–π)@rCD hybrids.¹⁴⁰ (C) Strategy used in the preparation of a [ZnPc29@NCDs@PSCO₂H]_m membrane.¹⁴¹

Table 4 Summary of the properties and applications of covalently bonded Pc@CD conjugates

CDs type	Chemical conjugation	Phthalocyanine	Φ CD	Φ Pc	Φ Hybrid	Application	Ref.
a Φ f in DMSO. b Φ T in DMSO. c Φ Δ in DMSO.
NCDs	Covalent	9(10),16(17),23(24)-Tri-tert-butyl-2-carboxy-5,28 : 14,19-diimino-7,12 : 21,26-dinitrilotetrabenzo[c,h,m,r][1,6,11,16]tetraazacycloeicosinato-(2^−)-N^29,N^30,N^31,N^32 zinc(II) (ZnPc27)	NCDs (0.17)^a	ZnPc27 (0.15)^a	*	Charge transfer	139
CDs, rCDs and NCDs	Covalent and/or non-covalent (π–π stacking)	2-Mono[(4-carboxyphenoxy)]-9(10),16(17),23(24)-Tris[tert-butylphenoxy]phthalocyaninato cobalt(II) (CoPc28)	*	*	*	Electrooxidation of hydrazine	141
NCDs	Covalent and/or non-covalent (π–π stacking)	2-Mono[(4-carboxyphenoxy)]-9(10),16(17),23(24)-Tris[phenyl]phthalocyaninato zinc(II) (ZnPc29)	NCDs (0.16)^a	ZnPc29 (0.16)^a	πZnPc29@NCDs (0.18)^a	Determination of ΦΔ values	140
					πZnPc29@NCDs (0.70)^b
				ZnPc29(0.70)^b	πZnPc29@NCDs (0.33)^c
					ZnPc29@NCDs (0.19)^a
				ZnPc29(0.56)^c	ZnPc29@NCDs (0.49)^b
					ZnPc29@NCDs (0.44)^c
NCDs	Covalent	2,9(10),16(17),23(24)-Tetrakis[(3-carboxyphenoxy)]phthalocyaninato cobalt(II) (CoPc30)	*	*	*	Electrochemical sensors for dopamine, norepinephrine, and epinephrine detection	142

---

2.2.2. Electrocatalytic applications. The possibility of using CDs in the oxygen reduction reaction (ORR) merits special attention from the scientific community because of their efficiency in lowering the oxygen adsorption and first electron transfer barriers and consequently providing enhanced electrocatalytic activity.¹⁴³ This reaction plays an important role in fuel cells and metal–air batteries, and although Pt-based nanomaterials display excellent activities for the ORR, their high cost and poor durability limit their wide application. Thus, CDs can be an excellent alternative, although some drawbacks, such as low limiting current density and potential onset, still require improvement. Based on the knowledge that the hybridization of CDs with other functional materials is a potential strategy for improving their ORR catalytic properties, Koh et al. were prompted in 2017 to evaluate the ORR electrocatalytic activity of FePc@CD conjugates obtained through the coordination of the metal ion in FePc to the CDs.¹⁴⁴ In the selection of FePc, the authors considered its efficiency as an electrocatalyst for the ORR. The CDs were obtained by the hydrothermal treatment of GO using NH₄OH and H₂O₂. The immobilization of FePc on the CDs was performed at room temperature in DMSO and pyridine, and the color change from blue to green confirmed the successful coordination of the metal to the CDs. The results from the electrochemical assays showed a higher performance of FePc@CDs when compared with CDs, and a Pt/C electrode was selected for comparison. All samples in O₂-saturated electrolyte exhibited cathodic current peaks in contrast to the assays performed in N₂ that exhibited only very weak cathodic current peaks due to intrinsic redox.¹⁴⁵ The positive shift of the ORR peak of FePc@CDs (0.1 V vs. Hg/HgO) when compared with the CD peak (0.18 V vs. Hg/HgO) and the two times higher oxygen reduction current of the conjugate was justified to be mainly due to the charge transfer behaviour from CDs to electronegative FePc. The results showed that FePc@CDs, like the Pt/C electrode, mediated the desired four-electron reaction in an alkaline electrolyte, in contrast to CDs, which presented a two-electron transfer process yielding HO₂⁻. Other positive outcomes compared to Pt/C are a higher limiting current density, excellent methanol tolerance, insensitivity to CO poisoning, and electrochemical stability. Thus, FePc@CDs have the potential to be used as efficient nonprecious electrocatalysts for the ORR and may be used in commercial applications of fuel cells.

Knowing that the elimination of oxygen-containing groups from the surface of CDs is responsible for reducing the energy band gap of reduced carbon dots (rCDs) compared to amino-functionalized CDs (NCDs), resulting in materials with improved electron transfer processes and conductivity, Centane et al.¹⁴¹ developed conjugates based on CoPc28 (Fig. 11B) covalently linked to NCDs and rCDs and evaluated their performance during the electrocatalysis of hydrazine on a glassy carbon electrode (GCE). For comparison, the authors also considered the development of analogous nanoassemblies obtained via π–π interactions. Unsymmetrical CoPc28 was obtained by the condensation of 4-(p-tert-butylphenoxy)phthalonitrile (Pht7) and 4-(4-carboxyphenoxy)phthalonitrile in pentanol at 160 °C and in the presence of CoCl₂·6H₂O and DBU (CoPc28, Fig. 11C).¹⁴⁰ NCDs were synthesized by oxidative cutting of GO sheets with KMnO₄ and H₂SO₄, followed by the reaction of the obtained CDs with an ammonia solution in the presence of EDC/N-hydroxysuccinimide (NHS). On the other hand, rCDs were obtained by treating the CDs in water with hydrazine hydrate to eliminate the high number of oxygen-containing functionalities. The CoPc28@rCDs and CoPc28@NCDs hybrids were obtained by reacting CoPc28 and the required CDs in DMF and using EDC/NHS as activating carboxyl reagents. The analogous π–π hybrids (CoP28(π–π)@rCDs and CoPc28(π–π)@NCDs) were obtained by sonication of the required constituents. The efficiencies of the precursors and conjugates covalently and non-covalently linked in the electrocatalysis of hydrazine were evaluated using a GCE. The procedure was conducted by placing each hybrid on the GCE, followed by drying at 70 °C to obtain the following electrodes: CoPc28@GCE/rCDs, CoPc28@GCE/NCDs, CoPc28(π–π)@GCE/rCDs, and CoPc28(π–π)GCE/NCDs. The rCDs@GCE, NCDs@GCE, and CoPc@GCE electrodes were prepared by the same procedure. Low LOD values for hydrazine oxidation were obtained in the presence of electrodes containing the hybrids prepared by covalent conjugation, CoPc28@GCE/rCDs and CoPc28@GCE/NCDs. It was also observed that the hybrids composed of rCDs gave better LOD values than the corresponding NCD hybrids. The results obtained confirmed that the elimination of excessive oxygen-containing groups from the surface of the CDs does indeed tune the energy band gap, improving the required electron transfer and conductivity.

To compare how the efficiency of a Pc at generating ¹O₂ was affected by the type of bond linked to the CDs, Nyokong et al. (2019) developed polystyrene membranes [ZnPc29@NCDs@PSCO₂H]_m bearing NCDs covalently linked to the unsymmetrical ZnPc29 bearing a carboxyphenoxy unit and to carboxyl-functionalized polystyrene (PSCO₂H) through amide bonds; membranes resulting from the π–π interactions between ZnPc29 and NCDs@PSCO₂H were also prepared, [πZnPc29@NCDs@PSCO₂H]_m (Fig. 11B).¹⁴¹ The NCDs were obtained through the hydrothermal treatment of GO with ammonia, and during the covalent conjugation process, their coupling with ZnPc29 and then to PSCO₂H was performed in DMF in the presence of DCC. The observation of shifts in the region of the amide peak in the FTIR spectra, from 1667 cm⁻¹ in ZnPc29@NCDs to 1657 cm⁻¹ in ZnPc29@NCDs-(COOH)-PS, suggested successful conjugation. Initially, the NCDs were monodispersed with a size of approximately 14 nm, but after conjugate formation, the size increased to 21 nm. The XRD diffractograms showed that the synthesized nanoconjugates were amorphous, like their constituents. Photophysical/photochemical characterization revealed that the hybrid materials exhibited better performance prior to incorporation into the membranes (e.g., Φ_Δ of 0.33 (π) and 0.44 (c) compared to 0.16 (π) and 0.29 (c) after incorporation). Moreover, hybrids with covalent linkages consistently outperformed those with π–π interactions under both conditions.

2.2.3. Sensing applications. In 2022, Mashazi et al. developed an electrochemical sensor for the detection of catecholamine neurotransmitters using composites of CoPc30 (Table 4) and aminated CDs (NCDs), covalently functionalized onto an isophthalic acid electrografted gold electrode (Au-IPA).¹⁴² The electrochemical performance of the composite-modified gold surface was evaluated using CV, differential pulse voltammetry (DPV), SWV, and electrochemical impedance spectroscopy (EIS) in PBS and newborn calf serum (NCS). The sensor demonstrated improved electrochemical performance for detecting dopamine (DA), epinephrine (EP), and norepinephrine (NR), with broad linear ranges (1.0–50 μM in PBS and 0.0–60 μM in serum) and low detection limits in the μM range. Moreover, the engineered electrochemical sensor exhibited an interesting capability to suppress background current and was effectively used for the detection of catecholamine neurotransmitters in newborn calf serum with high recovery.

3. Conclusions

CDs have emerged as versatile nanoplatforms capable of addressing key limitations associated with molecular compounds such as Pcs. By combining CDs with Pcs, the resulting hybrid macrocycles exhibit improved light sensitivity, water solubility, stability, and environmental compatibility. This review allows us to conclude that this integration can significantly expand the applications of Pcs, with the resulting hybrids showing great promise in diverse fields, including biosensing, phototherapeutic applications, photocatalysis, electrocatalysis, and oxygen reduction reactions (ORRs) among others.

Most of the research focused on developing Pcs and CDs with compatible functionalities. This involved tailoring the structural features of Pcs, such as peripheral substituents (α and/or β), varying the types and number of functional groups, and modulating charge distributions (neutral, positive, or negative). These modifications enabled the resulting hybrids to achieve in general appropriate performance in terms of Φ_Δ, Φ_F, photostability, hydrophilicity, and targeted functionality.

The conjugation of CDs with Pc dyes through covalent or non-covalent interactions yielded Pc@CD hybrids with distinct photophysical properties. Covalent strategies were primarily based on amidation and esterification. The wide structural variety of Pcs facilitated the functionalization of oxygen and nitrogen-containing groups on the CDs. While covalently bonded hybrids exhibit greater chemical stability and higher reaction yields, their practical applications are hindered by synthetic complexity, generally requiring the preparation of non-symmetrical Pcs. Nevertheless, covalent functionalization influences the interaction between the two structures, modulating photoluminescence, preserving the capacity for ¹O₂ generation and introducing interesting features favorable for mediating electron transfer, conductivity and ORR processes. Although the number of reported examples is limited, we believe that continued efforts to develop these types of hybrids can significantly impact renewable energy technologies, advance environmental sustainability, improve catalytic efficiency, and drive innovations in therapeutic applications. On the other hand, non-covalent conjugation, achieved through electrostatic interactions, complexation, or π–π stacking, facilitates the easy formation of supramolecular structures. Considering that some Pc@CD hybrids exhibit pH-dependent behavior, some groups were prompted to explore electrostatic interactions to optimize Pc–CD binding. The non-covalent conjugation approach offers the advantage of faster and simpler reaction steps while preserving the structural and electronic characteristics of the starting materials. However, non-covalent strategies generally compromise the photoluminescence of Pc@CD hybrids due to quenching effects. These quenching effects were extensively explored in sensing applications, where luminescence was recovered upon interaction with the target analyte.

Despite the observed decrease in the fluorescence quantum yield (Φ_F) of the conjugates and the corresponding increase in triplet quantum yield (Φ_T), these changes did not always translate into improved efficiency in generating ¹O₂ due to competing screening processes that reduce light absorption or oxygen access to the active sites of the photosensitizer. Nevertheless, depending on the structural features of the Pcs, these limitations were overcome in some cases, leading to promising outcomes in PDT and aPDT. The ability to generate ROS was also explored in oxidative processes in water, although the number of studies remains very limited. Similarly, studies related to hydrogen production are scarce.

Despite significant progress, the development of highly efficient Pc@CD hybrids remains an open research frontier. The primary challenge lies in mitigating the partial or total quenching of Pcs by CDs, an effect observed in both covalent and non-covalent conjugation approaches. This quenching typically results in reduced Φ_F values and ROS production, primarily due to Förster resonance energy transfer (FRET), when compared to free-base Pcs. A critical question to address this issue is how to prevent planar coupling between CDs and Pcs. One promising approach involves the exploration of metalated phthalocyanines with bulky aromatic or aliphatic substituents linked by N, O, or S atoms at the peripheral positions (α- and/or β-). These substituents can introduce steric hindrance to aromatic CDs, thereby minimizing quenching effects. Also, the metalation of Pcs with transition metals that require axial ligands, such as In³⁺, Ga³⁺, or Si⁴⁺, can further minimize the direct contact between CDs and Pcs, enhancing the overall performance of the hybrid systems.

Another important aspect is the wide range of synthetic approaches and precursors available to produce CDs in the development of Pc@CD hybrids, which significantly influence their structural and photophysical/photochemical properties. Therefore, ensuring reproducibility and scalability remains a critical challenge. To address this, it is essential to have well-documented and standardized synthetic protocols that provide clear details on reaction conditions, precursor ratios, and processing steps. This will promote reproducibility and comparability across studies. Advanced characterization techniques and quality control measures will also be vital for confirming structural integrity and performance. In this context, emerging technologies like machine learning (ML) and deep learning (DL) can offer powerful tools for the optimization and automated identification of new synthetic conditions. By analyzing large datasets, ML and DL can identify patterns, predict material properties, optimize the process and ultimately enable more efficient synthetic protocols. These approaches have the potential to significantly enhance the performance of these hybrids, unlocking new possibilities for their applications across diverse fields.
