Ni doping in CsPbCl₃ nanocrystals: the key to enhanced photoluminescence

Abstract

This study presents a generic method to selectively enhance radiative pathways over non-radiative states by leveraging vibrational coupling between the host lattice and mid-gap states of doped transition metal ions. While previously demonstrated with Mn, this work successfully incorporates Ni²⁺ ions into CsPbCl₃ perovskite nanocrystals (NCs), showcasing the method's versatility and tunability for radiative decay rates. Structural analyses confirm Ni²⁺ integration, while temperature-dependent photoluminescence studies reveal that Ni-induced shallow trap states enable vibrational coupling, facilitating charge carrier back-transfer to excitonic states. At 2% doping, this mechanism optimally enhances radiative recombination, achieving room-temperature vibrationally assisted delayed fluorescence (VADF). Förster resonance energy transfer (FRET) experiments further validate the improved radiative efficiency. This work establishes transition metal doping as a transformative and selective strategy for tuning optical properties, paving the way for advancements in energy-efficient technologies such as light-emitting diodes, lasers, and photovoltaics.

---

Introduction

Inorganic lead halide perovskites have attracted considerable attention in electronics and photonics due to their outstanding optoelectronic properties, including high absorption coefficients, tunable bandgaps, extended carrier diffusion lengths, and narrow full width at half maximum (FWHM).^1–8 Among these, their photoluminescence quantum yield (PLQY) is a critical factor for applications in light-emitting diodes (LEDs),^9,10 lasers,¹¹ and photovoltaic devices.¹² However, despite their relatively high PLQY, the efficiency of perovskite-based devices remains limited, primarily due to the intrinsic instability of perovskite halides and significant non-radiative recombination pathways. To address these challenges, recent efforts have concentrated on improving both stability and PLQY through strategies such as materials engineering, surface passivation, and advanced doping techniques. Surface passivation, in particular, has proven highly effective in mitigating surface defects and shielding perovskites from degradation. By employing organic or inorganic passivating layers, researchers have successfully minimized non-radiative recombination at the surface, thereby enhancing PLQY.^13,14 These advances underscore the importance of surface engineering in overcoming the inherent limitations of perovskite materials, although industrial-level scalability and uniform surface passivation are still challenging.

Building on these advancements, doping quantum dots with transition metal ions has emerged as a well-studied and effective approach for further enhancing PLQY. This technique involves the deliberate incorporation of impurity atoms into the crystal lattice, which not only improves stability but also optimizes optoelectronic properties by reducing defects.^13–15 For instance, doping with monovalent, divalent, and trivalent ions have been shown to passivate ionic and electronic defects within the perovskite lattice, leading to a substantial increase in PLQY.^16–18 Moreover, strategic dopant selection can enhance phase stability and environmental resilience under operational conditions. Numerous studies have demonstrated the successful incorporation of transition metal and rare earth ions, such as Mn²⁺, Fe²⁺, Cu²⁺, Zn²⁺, Eu³⁺, Er³⁺, and Yb³⁺etc. into lead halide perovskite matrices.^19–25 These doped systems exhibit enhanced band-edge photoluminescence, improved stability, reduced defect state density, and large-scale production, underscoring the versatility and efficacy of doping as a complementary strategy to surface passivation.

Despite advancements in surface passivation and doping strategies, achieving high external quantum efficiency (EQE) in LED devices based on inorganic perovskite halides remains a significant challenge. While these techniques primarily focus on reducing non-radiative recombination and mitigating material degradation, their impact is largely limited to extending device longevity rather than significantly enhancing brightness. Achieving substantial improvements in EQE and color purity necessitates a shift toward optimizing radiative processes, which are directly responsible for efficient photon generation and emission.

One promising strategy for further improving radiative recombination efficiency is engineering materials to couple electronic states with the optical density of states. Microcavity structures, for instance, have demonstrated the ability to enhance spontaneous emission by tailoring the surrounding photonic environment to optimize light-matter interactions.^26,27 A more recent and innovative approach involves the use of transition metal dopants, such as manganese (Mn), to further improve emission efficiency.²⁸ Mn dopants, known for their characteristic long-lived forbidden transitions, serve as electron and hole reservoirs. These dopants facilitate vibrational coupling between their mid-gap states and the radiative states of the host lattice, a mechanism referred to as vibrationally assisted delayed fluorescence (VADF). VADF enables a controlled release of photoexcited carriers into radiative pathways, significantly boosting radiative recombination efficiency. This process not only enhances photoluminescence efficiency but also provides a stable and reliable route for photon emission, even during prolonged operational periods.

Briefly, VADF operates by enabling dopant states to capture photoexcited carriers from the host perovskite's valence or conduction band. These carriers are then gradually released into radiative pathways through vibrational assistance, effectively reducing trapping at defect states and increasing the probability of radiative recombination.²⁹ By modulating vibrational modes within the perovskite lattice, VADF establishes a stable and efficient route for photon emission. Crucially, VADF relies on two key factors: long-lived dopant states and strong vibrational coupling between the host lattice and the dopant. Long-lived states arise from phenomena such as phonon bottlenecking³⁰ where excitations are retained for extended periods due to slow de-excitation processes. Strong temperature dependent vibrational coupling may arise due to presence of dopant levels closer to the host excitonic state, that are strongly hybridized in spite of molecular-like flat dopant levels. Transition metals ions such as Mn, Cu, and Ni^31,32 exhibit these characteristics, with Mn-doped lead halide perovskite nanocrystals (NCs) being the most extensively studied system demonstrating VADF.²⁸ This ability to leverage dopant-mediated radiative processes underpins the potential of VADF to address key challenges in achieving high EQE, stable perovskite-based energy harvesting optoelectronic devices.

Although previous studies have reported improved PLQY with Ni doping,³³ particularly in mixed halide perovskites,³⁴ these improvements were often attributed to increased local structural ordering or potential halide surface passivation arising from the use of excess halide salts during synthesis. VADF has not been explored in transition metal dopants other than Mn. In this work, we focus on unraveling the role of Ni-induced dopant states and their interaction with the perovskite host, specifically investigating the contribution of VADF to PLQY enhancement in Ni-doped perovskite NCs. In particular, we used density functional theory (DFT) calculations to reveal the presence and interaction of the dopant states within the bandgap of the host perovskite lattice. Unlike previous assumptions of improved structural order, our study demonstrates that the PLQY enhancement primarily originates from VADF. Ni²⁺ incorporation was confirmed using extended X-ray absorption fine structure (EXAFS) spectroscopy and the visual distribution of Ni was confirmed via high-angle annular dark field – scanning transmission electron microscopy with energy dispersive X-ray spectroscopy (HAADF-STEM EDX), while host-dopant interactions were probed through electron spin resonance (ESR) and magnetic circular dichroism (MCD). Temperature dependent gated PL spectroscopy and their FWHM analysis provided compelling evidence that the enhanced PLQY results from vibrational coupling between Ni²⁺-induced states and the host lattice, facilitating efficient VADF. This study not only highlights the potential of Ni-doped perovskite NCs to boost excitonic emission quantum yield but also demonstrates practical applicability through successful Förster resonance energy transfer (FRET) to a dye, paving the way for energy-efficient optoelectronic materials.

Results and discussion

The role of Ni doping in enhancing PLQY through VADF was explored using a series of Ni-doped CsPbCl₃ NCs alongside undoped counterparts. Here we specifically choose CsPbCl₃, because among different halides (Cl, Br, and I) based inorganic perovskites, CsPbCl₃ experiences the most significant non-radiative energy losses which hinders their industrial applications. The NCs, including undoped CsPbCl₃ (P1) and Ni-doped variants (Ni_xP1; x = 0.5, 1, 2, 3), were prepared using modified cation and anion injection methods, as reported in prior literature.^1,35 Detailed synthesis protocols are provided in the ESI.† The dopant concentrations were quantified using inductively coupled plasma optical emission spectroscopy (ICP-OES) with values listed in Table S1 in the ESI.†

X-ray diffraction (XRD) patterns, shown in Fig. 1(a), confirmed that both undoped and Ni-doped NCs formed cubic (Pm3̄m) in phase, consistent with bulk CsPbCl₃. However, while the crystal structure remained intact, consistent with the Vegard's law, the XRD peaks shifted slightly towards higher angles with increasing Ni percentages shown in Fig. S1 (ESI).† However, due to the peak broadening effects inherent in NCs, attributing this small shift (eg: ∼0.14° in 2θ for the (110) peak) to lattice contraction due to doping of smaller Ni²⁺ (ionic radius 0.69 Å) in place of larger Pb²⁺ (ionic radius 1.19 Å), is challenging and falls within the experimental error. This finding underscores the need for complementary characterization techniques, such as EXAFS and DFT, to elucidate the dopant's local environment and confirm its role in modulating the optical and electronic properties of the NCs.

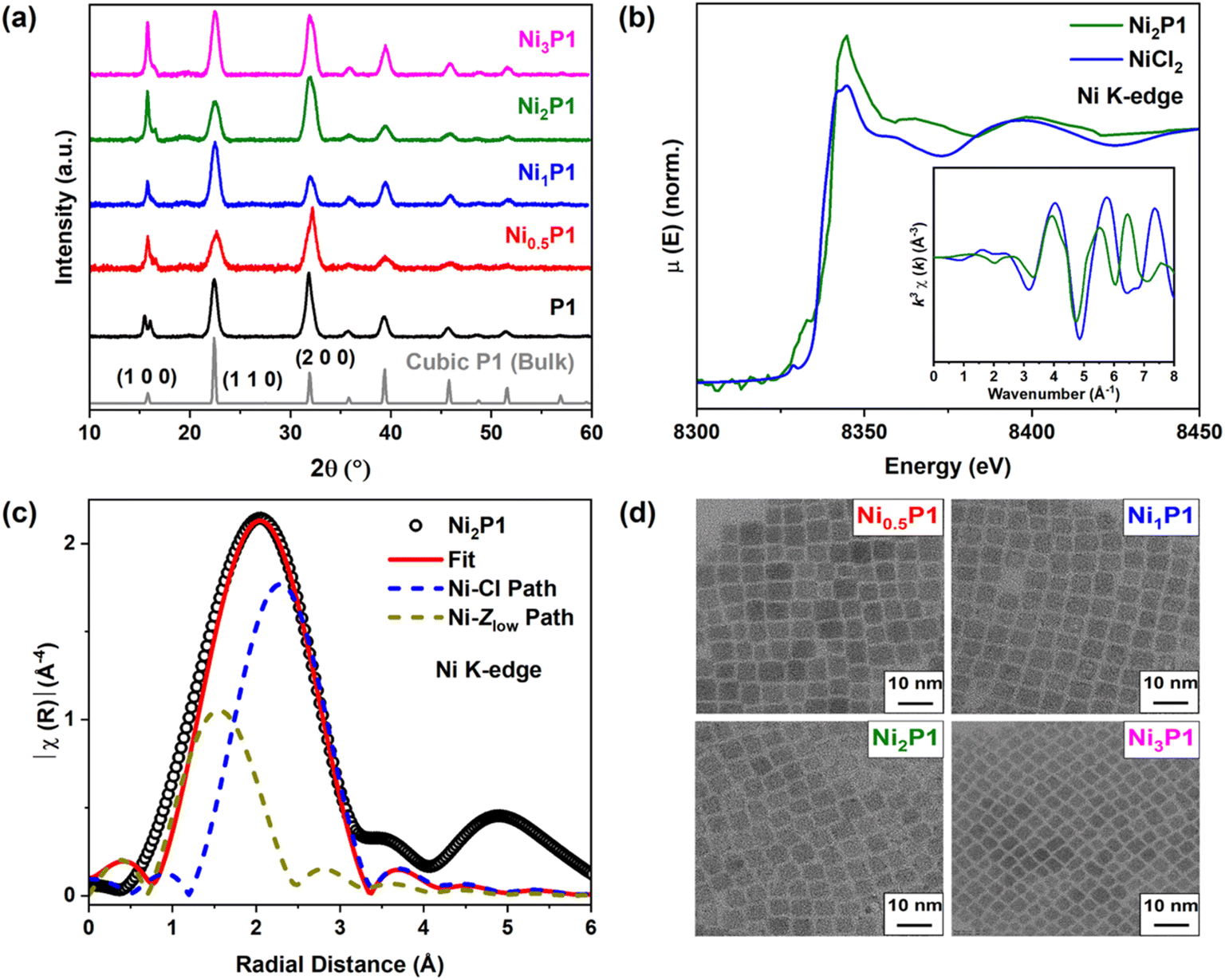

Fig. 1 Structural characterization: (a) XRD pattern of undoped (P1) and various Ni-doped CsPbCl₃ (Ni_xP1; x = 0.5, 1, 2, 3) NCs with bulk cubic CsPbCl₃ data as reference (reference data obtained from inorganic crystal structure database) indicating the cubic (Pm3̄m) phase preserved upon doping. (b) Ni K-edge XANES spectra as a function of incident photoelectron energy along with inset of k³-weighted k-space spectra of Ni₂P1 and NiCl₂ precursor, suggesting the oxidation state of Ni is +2. (c) k³-weighted magnitude of Fourier-transformed Ni K-edge EXAFS spectra of Ni₂P1 (black hollow circle) and best fit (red solid line) along with the possible theoretical paths (dashed lines) for fitting. Dominant Ni–Cl interactions confirm the successful doping of Ni²⁺. (d) High-resolution TEM images of all Ni-doped CsPbCl₃ NCs showing monodisperse cubic NCs.

To corroborate the incorporation of Ni²⁺ into the CsPbCl₃ NCs, we conducted EXAFS analysis on both undoped and Ni-doped NCs. The data were fitted using theoretical paths available in Artemis software. Fig. S2(a) and (b) (ESI)† display the Pb L_III-edge and the k³-weighted magnitude of the Fourier-transformed EXAFS spectra respectively. A dominant peak corresponding to the Pb–Cl interaction was observed at ∼2.29 Å in undoped NCs, which shifted slightly to ∼2.26 Å in Ni-doped NCs. The oxidation state of Ni in the doped NCs was confirmed to be +2 using Ni K-edge X-ray absorption near-edge structure (XANES) spectra, as shown in Fig. 1(b).

From the fitting parameters (Table S2, ESI†), a subtle increase in the Pb²⁺ coordination number (CN) from 5.4 (undoped) to 6.0 (Ni-doped) was observed, while the Debye–Waller factor (σ² = 0.016 Ų), representing the mean square displacement between the absorber and the backscattered atom, showed negligible differences. Moreover, the Pb–Cl bond lengths remained nearly unchanged between undoped (2.85 ± 0.01 Å) and Ni-doped (2.84 ± 0.01 Å) NCs, indicating that Ni doping does not disrupt the local structural order of the [PbCl₆] octahedra. Although the XANES of the doped sample resembled the precursor, the k³-weighted wavenumber (k) space EXAFS spectra of doped sample, shown in the inset to Fig. 1(b), differed significantly from the bulk NiCl₂ precursor, ruling out the presence of unreacted NiCl₂ in the NCs.³⁴ Further analysis of the Fourier-transformed spectrum (Fig. 1(c)) for a representative sample, 2% Ni-doped NCs (Ni₂P1), revealed a broad peak, which was fitted using a lattice substitution model.³⁶ This broad peak arises from a dominant singly scattered Ni–Cl interaction and a minor Ni–Z_low (Z_low = low atomic number, e.g. O or N) interaction, likely due to surface Ni atoms interacting with the ligands. Best-fit parameters (Tables 1 and S2, ESI†) indicate a Ni–Cl CN of 5.8 and a reduced bond length of 2.67 Å, confirming the successful substitution of Pb²⁺ by Ni²⁺ within the NCs lattice.

Table 1 Summary of fitting parameters [CN and bond length] for the best fit of Ni K-edge k³-weighted magnitude of Fourier-transformed EXAFS spectra for Ni₂P1 NCs

Sample	Paths	CN	Bond length (Å)
Ni2P1	Ni–Cl	5.8	2.67 ± 0.01
	Ni–Zlow	1	2.12 ± 0.02

---

To further validate Ni doping, room temperature X-band ESR was performed (Fig. S3, ESI†). The ESR spectra of Ni-doped samples (Ni₁P1 and Ni₂P1) exhibited a single peak, indicative of unpaired electrons in Ni²⁺ ions. At higher Ni concentrations (>2%), slight broadening of the ESR spectra was observed, suggesting dipolar exchange interactions among dopant ions.^37,38 This structural analysis further supports the incorporation of Ni²⁺ into the host lattice.

To verify that the synthesized NCs operate within the quantum confinement regime, high-resolution TEM imaging was performed on Ni-doped NCs with varying Ni concentrations as shown in Fig. 1(d). Images of undoped NCs are provided in Fig. S4 (ESI)† for comparison. Size distribution analysis, based on measurements of approximately 300 particles, confirmed monodisperse cubic NCs (Fig. S5, ESI†). Despite maintaining a constant injection temperature during synthesis, Ni incorporation resulted in a decrease in the average particle size from 11.3 (undoped) to 8.4 nm (3% Ni-doped), as summarized in Table S3 (ESI).† This observation aligns with previous studies,^33,34 which have reported similar effects of dopant incorporation on particle size. Variation in particle size arose due to different nucleation and growth mechanisms of undoped and doped NCs.³⁹ However, since the average particle size remained around 10 nm and the cubic morphology was unaffected by Ni doping, the NCs were confirmed to lie in the weak quantum confinement regime. Further HAADF-STEM EDX images shown in Fig. S6 (ESI)† indicate uniform distribution of Ni throughout the NCs. The Ni content, as determined from EDX mapping, is consistent with the percentage obtained from ICP-OES elemental analysis. These findings provide a robust basis for further structural and photophysical analyses of Ni-doped NCs.

Building on the confirmation of Ni²⁺ incorporation into the perovskite lattice, the optical properties of both doped and undoped NCs were investigated using ultraviolet-visible (UV-vis) absorption, MCD, and PL spectroscopy at room temperature. The absorption and PL spectra for both types of samples are presented in Fig. 2(a). The bandgap variation with increasing Ni concentration (x), shown in the inset of Fig. 2(a), exhibits a slight bowing effect – a characteristic feature of doped NCs.⁴⁰ Size variations within the Bohr diameter of CsPbCl₃ (∼10 nm)^41,42 could account for the slight blue shift in the bandgap, complicating the precise quantification of the red shift attributed to Ni ion incorporation in the NCs.

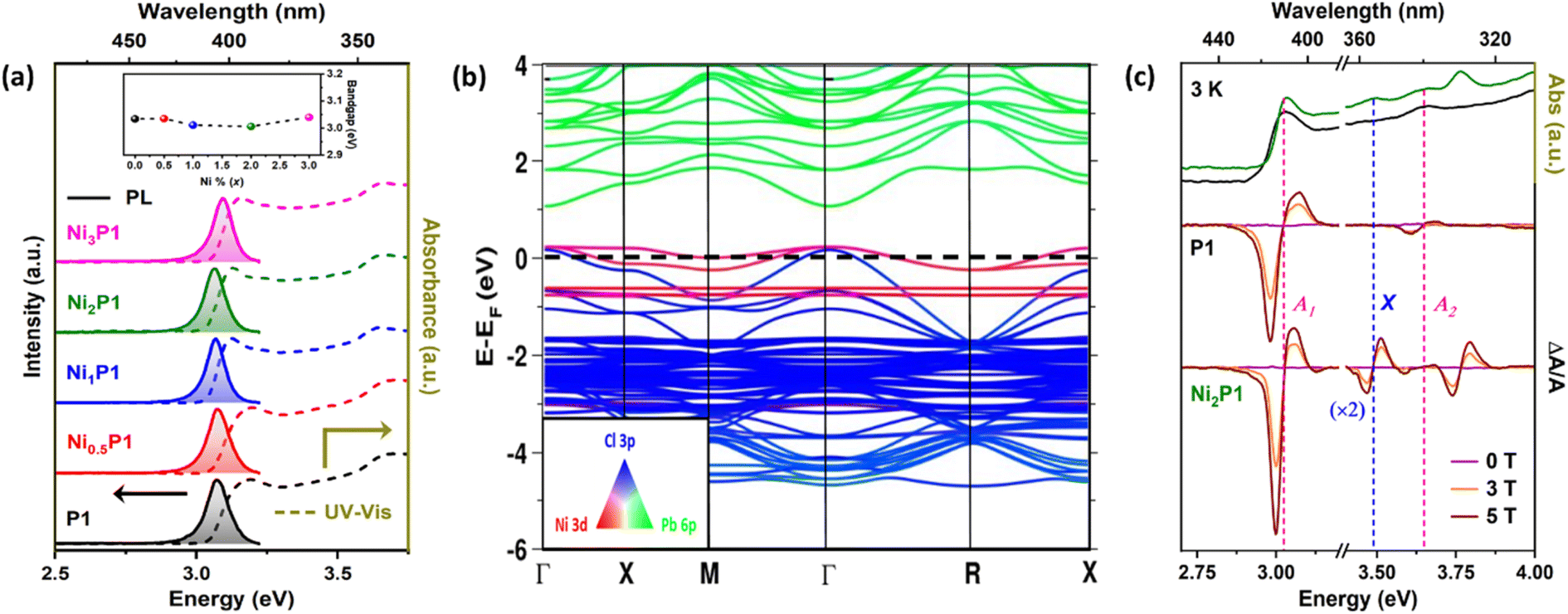

Fig. 2 Optical and electronic properties: (a) room temperature absorption and emission spectra of undoped (P1) and various Ni-doped CsPbCl₃ (Ni_xP1; x = 0, 0.5, 1, 2, 3) NCs with the inset of bandgap variation with different Ni-percentage (dashed line guides to the eye) showing a bowing effect. (b) Orbital projected band structure of Ni-doped CsPbCl₃ with considering spin–orbit coupling (SOC). Red, green, and blue colors represent Ni 3d, Pb 6p, and Cl 3p atomic orbitals respectively, while intermediate colors indicate the extent of mixing or hybridization of these orbital contributions. Band structure confirms significant hybridization of Ni 3d and Cl 3p orbitals near the VBM at Γ point. (c) MCD spectra of P1 and Ni₂P1 with their absorption at temperature 3 K with varying magnetic field (0, 3, and 5 T). The presence of extra differential peak (X) confirms the Ni²⁺-induced exchange interaction.

The PL spectra (Fig. 2(a)) reveal the presence of only band-edge emission with a ∼50 meV Stokes shift from the absorption edge and no additional peaks associated with the Ni mid-gap states, in contrast to the mid-gap emission typically observed for Mn or lanthanide ions.^43–46 Interestingly, the PLQY increased with higher Ni doping percentage, as shown in Fig. S7 (ESI).† However, since halide defects in CsPbCl₃ ⁴⁷ can be passivated by excess chloride salts^14,48 introduced during synthesis in the cation injection method, it was crucial to ascertain whether the PLQY enhancement was due to Ni doping or chloride passivation. To address this, we synthesized samples using the sole Cl precursor benzoyl chloride in the anion injection method,³⁵ ensuring that identical amounts of benzoyl chloride were used for both doped and undoped NCs. This approach standardized the chloride ion levels across all samples (details in the experimental section of ESI†) to rule out the possibility of Cl surface passivation. PL spectra of Ni-doped NCs prepared using either cation or anion injection techniques at the same Ni concentrations are shown in Fig. S8 (ESI).† The PLQY enhancement was observed in Ni-doped samples (Inset of Fig. S7, ESI†) regardless of the chloride ion concentration, ruling out surface passivation as the source of the improved band-edge emission. These findings confirm that the increase in PLQY is directly attributed to the incorporation of Ni²⁺ dopant ions, highlighting that Ni doping effectively enhances the optical properties of the CsPbCl₃ perovskite NCs. Further, it should be noted that dopant ion incorporation efficiency in the anion injection method is higher compared to the cation injection method since there are no pre-existing Pb–Cl bond in the precursors. Although the detailed mechanism reported in the literature³⁵ and beyond the scope of this manuscript, we used this method to prepare samples with higher Ni doping concentration.

To investigate the electronic interaction of Ni²⁺ energy levels with the host CsPbCl₃ NCs leading to this increase, we performed ab initio density functional theory (DFT) calculations. A cubic unit cell of CsPbCl₃ was modeled with one Pb replaced by a Ni ion in the 2 × 2 × 2 supercell, representing a 12.5% Ni-doped system. Given the heavy Pb²⁺ ion, spin–orbit coupling (SOC) was incorporated using fully relativistic pseudopotentials for all the atomic types. As is typical with standard DFT, the calculated bandgap (∼1.91 eV) was smaller than the experimental value (∼3.01 eV).⁴⁹ The band structure, projected onto three atomic orbitals Cl 3p (blue), Pb 6p (green), and Ni 3d (red), is shown in Fig. 2(b). The intermediate colors indicate the extent of mixing or hybridization of these three orbital contributions. Two closely spaced flat Ni 3d bands appear at ∼0.8 eV below the valence band maximum (VBM), along with dopant-induced Ni 3d states near the valence band. These findings are consistent with experimental reports for similar systems.^34,50 Interestingly, significant hybridization of Ni 3d and Cl 3p orbitals was observed near the VBM at Γ point, as evident from the mixing of red and blue colors. This hybridization highlights a strong host-dopant interaction, further supporting the role of Ni²⁺ in influencing the electronic structure of CsPbCl₃ NCs.

To investigate the sp–d exchange interaction between the dopant and the host and to pinpoint the relative position of the dopant ions, we measured MCD of undoped and Ni-doped NCs at 3 K with varying magnetic fields of 0, 3, and 5T, as shown in Fig. 2(c). The applied magnetic field induces the Zeeman effect at the band-edge, observed in both undoped and Ni-doped samples, giving rise to a non-zero differential spectrum. MCD, a differential technique, reveals higher-order transitions otherwise buried in the absorption spectrum.⁵¹ These differential peaks in the MCD spectra correspond to specific transitions in the absorption spectrum under a magnetic field. We identified the band-edge transition at ∼3.03 eV as A₁ (pink dashed line) and the second excited state transition A₂ (pink dashed line) in Fig. 2(c). Interestingly, we observe an additional transition at ∼3.5 eV, labeled X (blue dashed line) that appears exclusively in Ni-doped NCs. This extra peak (X) confirms that Ni²⁺ ions are successfully incorporated into the lattice and actively interact with the host perovskite through exchange interaction.

These results not only confirm successful Ni doping but also underscore the subtle yet impactful influence of Ni²⁺ on the optical and electronic properties of the NCs. This provides a strong foundation for further exploration of dopant-induced phenomena such as VADF, as discussed earlier. To investigate the origin of the increased QY in excitonic emission, we analyzed the decay kinetics using a micro-second flash lamp, as shown in Fig. 3(a). The undoped NCs exhibited a decay profile closely aligned with the instrument response function (IRF), indicating that the band-edge excitons decay fully within a few nanoseconds (ns).⁵²

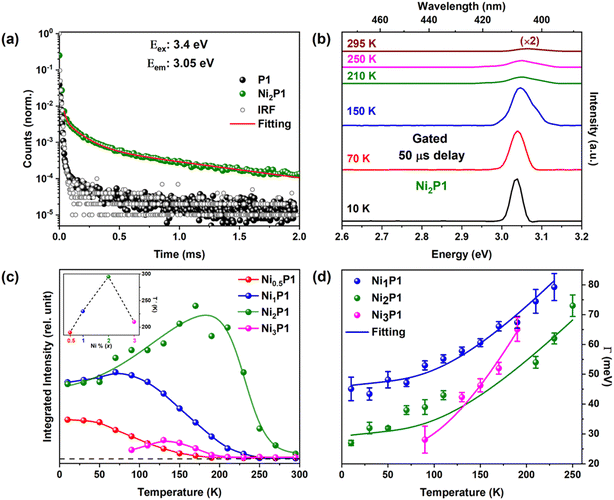

Fig. 3 Proof of VADF: (a) lifetime decay curve of undoped (P1) and 2% (Ni₂P1) Ni-doped CsPbCl₃ NCs with instrument response function (IRF) and fitting curve, indicating the lifetime of doped sample ∼μs and undoped ∼ns. (b) Temperature dependent gated PL spectra of Ni₂P1 with 50 μs gating time after subtracting the contribution from undoped (at 295 K the intensity is multiplied by 2 for clarity), showing a significant delayed emission even at room temperature (295 K). (c) Change in integrated intensity as a function of temperature for all Ni-doped CsPbCl₃ (Ni_xP1; x = 0.5, 1, 2, 3) with inset of onset VADF temperature (T′) vs. Ni percentage (x) curve with 50 μs gating time (for Ni₂P1 solid green line is a guide to the eye), suggesting the optimum doping percentage (∼2%) of Ni²⁺ can tune VADF up to room temperature. (d) Temperature dependent FWHM (Γ) of gated PL (with 50 μs gating time) band-edge emission peak for Ni-doped NCs (Ni_xP1; x = 1, 2, 3) with the best fitting curve.

In contrast, Ni-doped NCs demonstrated a prolonged tail in their band-edge emission, with Ni₂P1 exhibiting a lifetime extending into the microsecond (μs) range. It consists of a fast decay component corresponding to band-edge recombination, and a slow decay component that may be attributed to delayed fluorescence. This behavior is reminiscent of Mn-doped CsPbBr₃ NCs,^28,53 though the time constant for Ni-doped NCs (∼μs) is shorter than the millisecond-scale lifetimes observed for Mn-doped counterparts. Lifetime decay curve fitting of Ni₂P1 NCs shown in Fig. 3(a) indicates while 88% of the sample exhibits fast decay comparable to the IRF, approximately 12% of the NCs exhibit an average lifetime of 45.4 ± 1.6 μs. This value closely matches with the lifetime of Ni-related emission (order of few μs) in II–VI semiconductors.⁵⁴ To better understand this long-lived emission, we performed temperature dependent gated PL measurement with a 50 μs gating time.⁵⁵ In this setup, the sample was excited at t = 0 s and emission spectra were collected starting from t = 50 μs onward using the excitation energy of 3.4 eV. This approach effectively discards contributions from direct radiative recombination, which occurs within a few nanoseconds, and isolates long-lived emission components indicative of processes like delayed fluorescence.

Due to the presence of long tail in IRF, we observed minimal intensity in gated PL spectra for undoped NCs as shown in Fig. S9a (ESI)† and has been used as a baseline and subtracted from all samples. Fig. 3(b) presents the gated PL spectra for Ni₂P1 after subtracting the contribution from the undoped NCs to eliminate distortions from the IRF's asymmetric tail. Remarkably, significant band-edge emission persisted for several microseconds after the excitation was switched off, even at room temperature (295 K) in Ni-doped NCs. Further evidence supporting this long-lived emission behavior is provided by temperature dependent gated PL measurements, shown in Fig. S9 (ESI).† This observation suggests that Ni doping induces delayed emission pathways, which are likely to contribute to enhanced QY.

To quantify the enhancement in gated PL at different Ni concentrations, we plotted the integrated intensity of band-edge emission for all doped NCs, as shown in Fig. 3(c). The inset displays the temperature (T′) at which gated emission vanishes as a function of Ni concentration. From the figure, a clear trend emerges, namely, as the temperature decreases, the PLQY intensity increases, with the band-edge integrated intensity reaching its peak around 2% Ni doping. Interestingly, the onset temperature for VADF shifts from 190 K at 0.5% Ni to 295 K at 2% Ni doping, highlighting the role of Ni concentration in stabilizing delayed fluorescence at room temperature. However, beyond 2% doping, the benefits diminish, as evidenced by the reduced integrated intensity for Ni₃P1 (3% Ni doping), likely due to dopant–dopant interactions that suppress the efficiency of the VADF mechanism.^56,57 At higher doping concentration, the probability of Ni²⁺–Ni²⁺ interactions rises, leading to enhanced non-radiative recombination pathways, giving less PLQY as observed in Fig. 3(c) and S7 (ESI).†

The possibility of surface passivation as the cause of increased PLQY was ruled out by altering synthesis methods, and EXAFS analysis confirms that Ni doping does not enhance structural order in the NCs. Further power-dependent time-resolved PL (TRPL) decay curve of undoped and Ni-doped NCs shows no power dependency (Fig. S10, ESI†), eliminating the possibility of Ni-induced defect passivation. Instead, the observed delayed fluorescence is attributed to the VADF phenomenon, wherein vibrational coupling between the host perovskite's valence or conduction band and the dopant-induced long-lived states continuously supplies charge carriers to the excitonic system. Unlike Mn-doped emissions, which exhibit significantly longer lifetimes (∼milliseconds), Ni²⁺ states in II–VI semiconductors have shorter lifetimes (∼μs),^54,58 aligning with our observations of microsecond-scale delayed emission in Ni-doped perovskite NCs. Notably, this delayed excitonic emission persisted even at room temperature (295 K) in all Ni-doped mixed halide CsPb(Cl_yBr_1−y)₃ perovskites, as shown in Fig. S11 (ESI).† This confirms that delayed fluorescence is an intrinsic property of Ni²⁺ doping and is independent of the host bandgap. The temperature dependence mirrors that of Mn-doped systems, further supporting the conclusion that the enhanced PLQY arises from VADF.

Further evidence of vibrational assistance to radiative pathways is observed in the FWHM of both steady state and gated excitonic emissions as a function of temperature. As shown in Fig. 3(d), the FWHM decreases with lower temperatures, a trend well documented in the literature.⁵ Notably, in Ni-doped NCs, the FWHM of gated emission is narrower than that of steady state emission, in contrast to undoped NCs, where both the emission peaks exhibit similar FWHM trends (Fig. S12, ESI†). This distinction arises because steady state emission encompasses contributions from multiple vibrational states, whereas gated emission in doped NCs is primarily influenced by state-specific vibrational coupling, leading to a narrower FWHM as shown in Fig. 3(d). By comparison, in undoped NCs, although gated emission is detectable, its intensity originates from the steady state process, and the FWHM remains unchanged. To further quantify the VADF phenomenon, the temperature-dependent FWHM curve (Fig. 3(d) and S13, ESI†) was analyzed using the linear exciton–phonon coupling model (eqn (1)).^5,59

In this model, Γ(T) and Γ₀ represent the FWHM at temperature T and 0 K respectively. The parameters γ_ac and γ_lo denote the exciton coupling strength to acoustic and longitudinal optical (LO) phonons, respectively, while E_lo is the LO phonon energy, and k_B is the Boltzmann constant. Fitting parameters for steady state and gated FWHM are detailed in Tables S4 (ESI)† and 2. For steady state FWHM, Γ₀ ranges from 47 to 62 meV, indicating temperature independent inhomogeneity in the NCs. The acoustic phonon contribution is minimal, with γ_ac ∼33 μeV K⁻¹. The LO phonon energy E_lo for doped samples, determined to be ∼13.67 meV, aligns earlier literature,⁵ while γ_lo increases with higher Ni doping levels. In gated PL FWHM fitting, γ_ac = 33 μeV K⁻¹ and E_lo = 13 meV were maintained, revealing smaller Γ₀ values (23 to 46 meV), and significantly higher γ_lo (140 to 270 meV). This indicates stronger exciton–phonon coupling in state-specific back-transfer processes in Ni-doped NCs. This analysis underscores the critical role of vibrational coupling in enhancing radiative pathways, as evidenced by the narrowing of the FWHM in Ni-doped NCs.

Table 2 Fitting parameters [FWHM value at T = 0 K (Γ₀) and longitudinal optical coupling strength (γ_lo)] obtained from the fitting of temperature dependent FWHM in gated PL (with 50 μs gating time) emission for Ni-doped NCs by eqn (1)

Sample	Ni %	Γ 0 (meV)	γ lo (meV)
Ni1P1	1	46.02 ± 1.32	140.45 ± 14.46
Ni2P1	2	29.76 ± 0.73	132.80 ± 11.42
Ni3P1	3	23.39 ± 4.61	268.59 ± 25.15

---

From an electronic structure perspective, the presence of less dispersive Ni 3d bands near the Γ point, just above the Fermi level (Fig. 2(b)), results in a very high effective mass of holes, creating shallow hole trap states. These Ni 3d bands near the VBM trap holes from VB of the host. At lower temperatures, these trapped holes are transferred back to the excitonic system through vibrational assistance, enabling radiative recombination. This process, which is dominant at lower temperatures, selectively channels carriers into radiative pathways, thereby enhancing their contribution to PL.²⁸ Consequently, the radiative recombination of excitons is delayed, resulting in VADF with lifetimes on the order of a few micro-seconds, matching the lifetime of Ni-induced states in Ni-doped CsPbCl₃ NCs. This coupling of electronic and vibrational dynamics underpins the enhanced optical properties observed in the doped system. It is important to note here that we are not talking of energy transfer and hence does not necessitate resonance coupling between the dopant's d–d transition and host's radiative transition. In contrast, for a charge carrier transition, we only require the presence of one dopant state close to the conduction or valence band.

To further confirm the presence of VADF and use it for high-performance energy harvesting applications, we performed FRET experiments by titrating doped and undoped NCs with coumarin-30 (C-30), a dye with significant excitonic emission overlap (Fig. 4(a)). FRET efficiency, determined by the radiative transfer from NCs (donor) to the dye (acceptor), serves as a quantitative measure of the radiative transfer efficiency.^60,61 Recent studies⁵⁷ have shown that VADF facilitates an internal mechanism prioritizing radiative channels, resulting in enhanced FRET efficiency. In line with this understanding, we demonstrated how Ni doping in CsPbCl₃ NCs enhances charge carrier back-transfer to the host material. This process increases the population of charge carriers within the host lattice, thereby boosting FRET efficiency by favoring radiative transitions over non-radiative ones. This observation further substantiates the role of VADF in promoting radiative pathways in Ni-doped NCs, consistent with the findings from exciton–phonon coupling analysis.

Fig. 4 Effects of VADF: (a) absorption and emission spectra of undoped CsPbCl₃ (P1) along with absorption curve of coumarin-30 (C-30) confirming significant excitonic emission overlap between the donor NCs and acceptor dye. (b) Steady state PL spectra of 2% Ni-doped CsPbCl₃ and C-30 physical mixture (Ni₂P1 + C-30) at 77 K showing quenching of donor emission with a simultaneous increment in acceptor's emission. (c) Lifetime decay curve of (Ni₂P1 + C-30) physical mixture, suggesting that with increasing dye concentration lifetime of the band-edge emission decreases. (d) Change of integrated intensity of C-30 emission as a function of C-30 concentration for physical mixture of (P1 + C-30) and (Ni₂P1 + C-30) at 77 K (solid circle and solid line, green solid line is a guide to the eye) and at 295 K (open circle and dashed line). It suggests VADF is significantly enhancing the FRET efficiency at 77 K.

Fig. 4(b) displays the steady-state PL spectra of Ni₂P1 titrated with varying concentrations of C-30 at 77 K. Additional spectra for undoped NCs at 77 K and 295 K, as well as for Ni-doped NCs at 295 K, are provided in Fig. S14 (ESI).† In all cases, quenching of donor emission accompanied by a concurrent rise in acceptor's emission signifies efficient FRET. The lifetime of the band-edge emission for the physical mixture of undoped (Fig. S15, ESI†) and Ni-doped (Fig. 4(c)) NCs decreases with increasing dye concentration. The FRET efficiency, plotted in Fig. 4(d), for different dye concentrations at 77 K and 295 K, highlights a distinct trend. At 295 K, where VADF is negligible, FRET efficiency remains unaffected by doping. However, at 77 K, where VADF plays a significant role, Ni-doped NCs exhibit a pronounced increase in FRET efficiency around 80% compared to 45% in undoped NCs, confirming that VADF is an intrinsic phenomenon linked to transition metal doping like Ni and Mn. By enabling improved radiative transfer, VADF offers a pathway to selectively enhance energy conversion efficiency through careful dopant selection. These findings not only deepen our understanding of dopant-induced phenomena but also demonstrate the potential of transition metal-doped perovskite NCs for high-performance energy harvesting applications.

Conclusions

In summary, we demonstrated the successful incorporation of Ni²⁺ into CsPbCl₃ perovskite NCs, enhancing PLQY via the VADF phenomenon. Structural integrity was confirmed through EXAFS, XANES, and DFT analysis, while optical studies revealed strong exciton–phonon coupling and efficient radiative energy transfer, particularly at lower temperatures. Power-dependent TRPL measurements, comprehensive EXAFS analysis along with the presence of sp–d exchange interaction as obtained from MCD measurements confirmed the increased PLQY is not due to Ni-induced defects or Cl-induced surface passivation. Vibrational coupling between Ni 3d levels and host VB helped to selectively channel charge carriers into radiative pathways, resulting in increased PLQY. FRET experiments further highlighted improved radiative energy transfer efficiency at lower temperatures.

This study highlights Ni²⁺ doping as a promising strategy to enhance the optical performance of perovskite NCs, enabling applications in light-emitting devices, photovoltaics, lasers, single-photon sources, and photocatalysis. The intrinsic VADF mechanism offers a new paradigm for designing NCs with tailored radiative properties. Future research can optimize energy transfer, extend emission lifetimes, and improve efficiencies while exploring mixed-halide perovskites, other dopants, and hybrid systems to develop multifunctional materials for advanced optoelectronic and energy-harvesting technologies.
