Effect of Sr substituted La_2−xSr_xNiO_4+δ (x = 0, 0.2, 0.4, 0.6, and 0.8) on oxygen stoichiometry and oxygen transport properties

Abstract

Stoichiometry and oxygen diffusion properties of La_2−xSr_xNiO_4±δ with x = 0.2, 0.4, 0.6, and 0.8 prepared via a sol–gel method were investigated in this study. Iodometric titration and thermogravimetric analysis were used to determine the oxygen non-stoichiometry. Over the entire compositional range, the samples exhibit oxygen hyperstoichiometry with the minimum value δ = 0.14 at x = 0.4. Mixed effects of reduction of oxygen excess and increasing valence of Ni were found to serve as charge compensation mechanisms; the former dominated at a low level of substitution, x < 0.4, while the latter dominated at higher levels of Sr (0.4 < x < 0.8). The highest oxygen diffusion coefficient was found for the minimum amount of Sr substitution, x = 0.2, continuously decreasing with x until x = 0.6. An unusual increase in D* was observed when the Sr content increased up to x = 0.8.

---

1 Introduction

Materials with mixed ionic and electronic conducting properties (MIECs) have attracted much attention for electrochemical applications, such as SOFCs, high temperature steam electrolysis, sensors and ceramic membranes.^1,2 Most studies concerned with these mixed conducting materials, especially for SOFC cathodes, have focused on perovskite-type oxides such as lanthanum manganite, lanthanum cobaltite and lanthanum nickelate.^3,4 With SOFC development directed towards operation in the intermediate temperature range (400–600 °C), these materials do not satisfy all of the technological requirements, especially mechanical compatibility with other cell components and conductivity.³ Materials with the Ruddlesden–Popper type structure, A₂BO₄, have attracted much interest recently due to their mixed conducting properties while maintaining high electrical conductivity in the target temperature range.^5–8 The Ruddlesden–Popper structure with the general formula A_n+1MnO_3n+1 (n = 1,2,3,…) is a structure that comprises ABO₃ perovskite layers, alternating with AO rock-salt layers, stacked along the c axis. The relatively open structural framework afforded by the rock-salt intergrowth allows the accommodation of hyperstoichiometric oxide-ions in the rock-salt layer as interstitials. Therefore, these oxygen excess materials caught a lot of interest as cathodes for SOFC applications due to their potentially high oxygen transport property. La₂NiO_4+δ and related materials exhibiting Ruddlesden–Popper structure have been proposed as candidates for energy related electrochemical applications because of their excellent transport and electrocatalytic properties.^2,7–10 Moreover, materials in this group exhibit coefficient of thermal expansion (CTE) values in the range of 12.4–13.6 × 10⁻⁶ K⁻¹, close to the common SOFC electrolyte materials such as the ceria-based electrolytes (13.2 × 10⁻⁶ K⁻¹).^4,11 The La₂NiO_4+δ structure is made up of sheets of (NiO₆) corner sharing octahedra, interleaved with La₂O₂ layers in which the additional oxygen could be localized. The compound is therefore able to accept oxygen overstoichiometry that leads to potentially high oxygen diffusivity compared to that of the common cathode materials.^1,2,7,9,12 However, due to insufficient electrical conductivity in La₂NiO_4+δ, 10–70 S cm⁻⁸, attempts to improve such properties have been conducted through substitution of the A site with alkaline-earth ions. Ca and Sr are the most popular dopants due to their compatible ionic radii. However, Ca has been found to have little effect on electrical conductivity, while the replacement of La by Sr leads to a much larger improvement.^5,6,10,13

Most efforts on La_2−xSr_xNiO_4+δ (LSNO) have been devoted to understanding structural stability, electrical and thermal behavior of La_2−xSr_xNiO_4+δ compounds with only a few investigations of the transport of conducting species in the system.^{5,6,8,11,13–16} Zhao et al. studied the lanthanum deficient compound, La_2−xNiO_4+δ (x = 0, 0.05).¹⁷ They found that the D* and k* values for La_1.95NiO_4.13 were higher than that of the stoichiometric compound. Kharton et al. investigated factors affecting ionic transport in oxygen-hyperstoichiometric phases of A₂BO₄ structures such as the lanthanum nickelates and cuprates.¹⁸ They found that decreasing radii of the rare-earth cations in the A-sublattice of both cuprates and nickelates led to a dramatic decrease in ionic transport, similar to that observed with perovskite oxides.¹⁸ Skinner and Kilner studied oxygen transport of La_2−xSr_xNiO_4+δ (x = 0, 0.1) and found that oxygen diffusivity of La_1.9Sr_0.1NiO_4+δ was higher than that of La_xSr_1−xCo_yFe_1−yO_3−δ, particularly at lower temperatures, but lower than that of LaCoO₃. However, La_1.9Sr_0.1NiO_4+δ appears to be more stable than either of these two materials in terms of thermal expansion behavior at high temperatures.¹⁹

A few studies have shown that higher Sr substitution (x > 0.1) could improve the mixed ionic-electronic conductivity (MIEC) of these materials. For example, Ishikawa et al. reported that the electron density in LaSrNiO₄ was almost an order of magnitude larger than that of La₂NiO₄.²⁰ We also have seen in our previous work that 0.8 mol of Sr substitution in La_2−xSr_xNiO_4+δ exhibited superior conductivity while maintaining similar thermal expansion coefficient compared to that of the sample with no or lower Sr substitution amount.¹¹ However, there are still very few reports on the ionic transport in Sr substituted La₂NiO_4+δ, particularly with Sr substitution content at x > 0.1. In this work, we, therefore, aim to extend the knowledge of oxygen transport in LSNO to a higher level of Sr substitution and to evaluate these materials as potential SOFC/SOEC electrodes, and correlate transport properties with oxygen reduction capability. Effects of Sr substitution in La_2−xSr_xNiO_4+δ (x = 0.2, 0.4, 0.6, and 0.8) on the oxygen stoichiometry, phase and transport properties were investigated in this research.

2 Experimental

2.1 Preparation of La_2−xSr_xNiO_4+δ (x = 0.2, 0.4, 0.6, and 0.8)

La_2−xSr_xNiO_4+δ (x = 0.2, 0.4, 0.6, and 0.8) powders were prepared by a sol–gel method following the process described in our previous work.¹¹ Lanthanum(III) acetate hydrate ((CH₃COO)₃La·xH₂O, 99.9%, Sigma-Aldrich), strontium acetate ((CH₃COO)₂Sr, 99.995%, Sigma-Aldrich), and nickel acetate ((CH₃COO)₂Ni·4H₂O, 98%, Sigma-Aldrich) were dissolved in deionized water. The mixture was homogeneously stirred to obtain a clear solution before adding ethanolamine (Labscan Co.), which was used as the directing agent. The mixture was stirred continuously for 6 h before being left at room temperature to gel. The gel was then calcined at 1050 °C with a heating rate of 3 °C min⁻¹ for 2 h, resulting in black powders.

To obtain high density samples for ¹⁸O₂ isotope exchange measurements, the synthesized powders were ground, uniaxially pressed at 65 MPa followed by isostatically pressing at 300 MPa to form 13 mm diameter pellets. The pellets were fired in a box furnace at 1400 °C for 5 h with a heating rate of 5 °C min⁻¹ in air. The Archimedes' method was used to measure the density of the sintered samples to ensure that the samples were adequately dense for the diffusion analysis. All samples tested achieved a density greater than 95% of the theoretical density for the material, ensuring only closed porosity was present in the samples.

2.2 Oxygen content

Oxygen content in the La_2−xSr_xNiO_4+δ samples was determined using two methods. The first one is an indirect measurement through a reduction of Ni³⁺/Ni²⁺ ions to Ni using iodometric titration. The other is the determination of the amount of oxygen via sample weight loss under a reducing atmosphere through thermogravimetric analysis (TGA). For the analysis using the first method, oxygen overstoichiometry (δ) of the compound was assumed to be directly correlated to the Ni³⁺ content according to the formulation La_2−xSr_xNi_2+1−τNi_3+τO_4+τ/2 with δ = τ/2.^1,21 Ni³⁺ content (τ) was determined by iodometry. In the experiment, 0.1 g of sample was dissolved in a 4 ml HCl solution (ACS, 36.5–38.0%, Alfa Aesar) containing 1 g excess potassium iodide (KI, 99.99%, Alfa Aesar). The experiment was performed under flowing nitrogen to prevent oxidation of Ni ions in air. I⁻ anions reduce Ni³⁺ to Ni²⁺ forming I₂ (eqn (1)). The resulting I₂ was then titrated by sodium thiosulfate solution (Na₂S₂O₃, 99.99%, Sigma-Aldrich) using a starch solution (ACS, 1% solution, Alfa Aesar) as the indicator (eqn (2)). All reactions are summarized in eqn (3).

2Ni³⁺ + 2I⁻ → 2Ni²⁺ + I₂ (1)

I₂ + 2S₂O₃²⁻ → 2I⁻ + S₄O₆²⁻ (2)

Summary: 2Ni³⁺ + 2S₂O₃²⁻ → 2Ni²⁺ + S₄O₆²⁻ (3)

To confirm the concentration of Na₂S₂O₃, 0.01 M of KIO₃ (99.995%, Sigma-Aldrich) in 0.01 M of KI and 1 M of H₂SO₄ (ACS, 95.0–98.0%, Alfa Aesar) was titrated by Na₂S₂O₃ solution using starch as the indicator as shown in eqn (4).²¹ Knowing the amount of the reducing agent used, oxygen overstoichiometry, δ, could then be calculated.

6S₂O₃²⁻ + IO₃⁻ + 6H⁺ → I⁻ + 3S₄O₆²⁻ + 3H₂O (4)

To confirm the result from the iodometry, thermogravimetric analysis (TGA) was performed. The TGA (TGA/STDA851e Mettler Toledo) experiment was done under a reducing atmosphere using 5% H₂/Ar flowing gas (BIG, Thailand). The analysis was performed from room temperature up to 1000 °C with a heating rate of 5 °C min⁻¹. The La_2−xSr_xNiO_4+δ compound was reduced to La_2−xSr_xNiO₄ in the first stage of the test (eqn (5)). Further exposure to the reducing atmosphere at higher temperatures should result in the decomposition of the multi-cation compounds into La₂O₃, SrO and Ni metal (eqn (6)). The total reaction involved is shown in eqn (7) in which the amount of oxygen in the starting material could be calculated, and the overstoichiometric amount of oxygen, δ, could then be determined.

La_2−xSr_xNiO_4+δ + δH₂ → La_2−xSr_xNiO₄ + δH₂O (5)

La_2−xSr_xNiO₄ + (1 + 0.5x)H₂ → (1 − 0.5x)La₂O₃ + xSrO + Ni + (1 + 0.5x) + δH₂O (6)

La_2−xSr_xNiO_4+δ + {(1 + 0.5x)+δ}H₂ → (1 − 0.5x)La₂O₃ + xSrO + Ni + {(1 + 0.5x)+δ}H₂O (7)

2.3 Oxygen diffusion and surface exchange coefficients

Isotopic oxygen transport and surface exchange coefficients were investigated for the La_2−xSr_xNiO_4+δ (x = 0.2, 0.4, 0.6, and 0.8) pellets. The sintered pellets were ground with SiC paper (1000 and 800 grit), and were then polished with successive grades of diamond suspension of 15, 6, 3, 1 and 0.25 μm. Oxygen isotopic exchange was performed over the temperature range of 550 to 800 °C at a nominal pressure of 200 mbar. The polished samples were annealed at the testing temperature in research grade ¹⁶O₂ (>99.9995%, BOC, UK) for a period of at least ten times the exchange time with ¹⁸O₂ (26%, Isotec Inc., USA) to ensure that an equilibrium was established. ¹⁸O₂ exchange was performed immediately after the equilibration step with the exchange times between 45 and 240 min, depending on the exchange temperature. All samples were immediately quenched to room temperature after the ion exchange experiment. After removing the sample from the exchange tube, the pellets were sectioned using a diamond bladed saw perpendicular to the exchanged surface. The exposed cross-sections were again polished using diamond suspensions, as described above and mounted together (top surfaces in contact) to perform the Secondary Ion Mass Spectrometry (SIMS) analysis. All the exchanged samples were measured by time-of-fight SIMS (ToF-SIMS) on a ToF-SIMS5 machine (ION-TOF GmbH, Germany) equipped with a bismuth LMIG pulsed gun incident at 45°. A 25 kV Bi⁺ primary ion beam was used to generate the secondary ions using burst alignment mode (eight pulses) for analysis and a Cs⁺ beam (2 kV) incident at 45° for sputtering. The distribution of the oxygen isotopes (¹⁸O and ¹⁶O) as well as other characteristic relevant secondary ion species (e.g. LaO⁻, NiO⁻, and SrO⁻) in La_2−xSr_xNiO_4+δ samples with x = 0.2 at 625–800 °C and at x = 0.8 were measured using SIMS imaging mode (image acquisition interspersed with Cs⁺ sputtering of the surface). However, for the samples with low isotope concentration, La_2−xSr_xNiO_4+δ samples with x = 0.2 (at 500 °C), x = 0.4 and x = 0.6, the secondary ions (¹⁸O, ¹⁶O LaO⁻, NiO⁻, and SrO⁻) from the samples were measured in the depth profiling mode. Oxygen diffusion profiles were obtained by summing all of the ¹⁶O (¹⁸O) images together and summing all the columns (or rows) of this image, to obtain a ¹⁶O (¹⁸O) linescan. Subsequently the number of counts was normalized to obtain the ¹⁸O fraction corrected for the background isotope fraction and the isotope fraction of the annealing gas, as described by De Souza et al.²² Tracer diffusion coefficients, D*, and surface exchange coefficients, k*, of each La_2−xSr_xNiO_4+δ composition were determined by fitting the diffusion data to the solution of the diffusion equation for diffusion in a semi-infinite medium with surface limitation as given by Crank, and described in (ref. 22). Phase analysis was performed on all samples. The samples were analyzed using a Philips PW 1700 Series X-ray diffractometer using Bragg–Brentano configuration with Cu Kα source (λ = 1.5418 Å) over 20–80° 2θ range. Full profile fitting and refinement was performed to confirm the crystal structure along with the corresponding lattice parameters using JADE 9 X-ray analysis software (MDI, USA).

3 Results and discussion

3.1 Oxygen content analysis

Table 1 shows the amount of oxygen over stoichiometry (δ) and the corresponding valence of Ni of the La_2−xSr_xNiO_4+δ samples obtained from the iodometry and TGA. The δ values calculated from both methods are in good agreement, and are within 15% of each other. As the values obtained from both techniques match well, for simplicity, the oxygen non-stoichiometry values referred to in the discussion section are the values obtained from the iodometric titration analysis. With Sr substitution onto the La site at x = 0.2, the oxygen content was found to equal to δ = 0.14, in good agreement with previous findings by Skinner and Kilner.¹⁹ This value is significantly lower than which has been previously reported by these authors for x = 0, where the oxygen excess content was found to be 0.24.¹⁹ The corresponding valence of Ni was found to +2.48 at x = 0.2. This result indicates that the compensation of the Sr²⁺ cation substitution onto the La³⁺ site was mainly accommodated by the reduction of the excess O²⁻ with a small compensation from the change of Ni valence. A similar result was also reported by Skinner and Kilner who studied samples with 5% Sr substitution for La in La_2−xSr_xNiO_4+δ. They observed a decrease in δ from 0.24 to 0.19 upon the Sr substitution while Ni valence stayed constant at +2.48 in both cases.¹⁹

Table 1 Hyperstoichiometric oxygen content (δ) and the corresponding valence of Ni of La_2−xSr_xNiO_4+δ samples

x, Sr content	δ		Average valence of Ni
	Iodometry	TGA	Iodometry	TGA
0	—	0.24 (ref. 19)	—	+2.48 (ref. 19)
0.2	0.14 ± 0.03	0.16 ± 0.01	+2.48	+2.52
0.4	0.15 ± 0.01	0.14 ± 0.01	+2.70	+2.68
0.6	0.17 ± 0.01	0.18 ± 0.01	+2.94	+2.96
0.8	0.20 ± 0.02	0.23 ± 0.02	+3.20	+3.26

---

With a higher level of Sr substitution, x = 0.4 and 0.6, the δ values were found to change slightly from 0.14 to 0.15 and 0.17, while the average Ni valence was found to increase continuously, from +2.48 to +2.70 and +2.94 for x = 0.2, 0.4 and 0.6, respectively. Such results show that under the conditions used in this work, with the level of Sr substitution at x = 0.4–0.6, the charge compensation for Sr²⁺ was done through the change of Ni valence from Ni²⁺ to Ni³⁺ and La_2−xSr_xNiO_4±δ always possesses oxygen hyperstoichiometry with a minimum δ of approximately 0.14. This differs from the results found by other authors who have reported a constant decrease in the amount of oxygen with increasing Sr substitution.^13,23–27 The majority of reports proposed the reason for the continuous decrease of the oxygen content being associated with moving from the reduction in the number of oxygen interstitials to the formation oxygen of vacancies upon higher Sr substitution, with structural instability of the perovskite units if a large amount of Ni³⁺ were to be formed.²⁶ Aguadero et al. reported the critical composition to be La_1.5Sr_0.5NiO_4+δ where the average Ni valence should not exceed +2.5, therefore with higher Sr substitution, the compound becomes oxygen deficient.¹³ The discrepancy in the results likely arises from how the compounds were synthesized along with slight differences in the experimental details.

With a higher amount of Sr substituted for La, at x = 0.8, a slight increase in δ was found together with a significant increase in Ni oxidation state. The δ value was determined to be 0.23, and the corresponding Ni valence corresponded to +3.26. A Ni average valence is higher than 3 indicates that Ni⁴⁺ was formed for the x = 0.8 composition. Although the +4 oxidation state of Ni is rarely found in La_2−xSr_xNiO_4+δ compounds, this situation has been previously reported by Makhnach et al. and Tang et al. in Sr-rich La_2−xSr_xNiO_4+δ.^5,14

3.2 X-ray diffraction analysis

Fig. 1 shows XRD patterns of the sintered La_2−xSr_xNiO_4+δ samples used in the oxygen exchange experiment. Over the whole range of compositions tested, the samples exhibit the Ruddlesden–Popper (A₂BO₄) structure, with the I4/mmm tetragonal crystal structure, in agreement with previous reports by other authors.^13,14,19,24 Minor quantities ranging from 0.2–5.1 wt% of La₂O₃ and NiO were found as impurities in all samples. At x = 0.2–0.6, the total amount of impurities was found to be decreasing with increasing amount of Sr. This is in agreement with what has been found earlier by Nie et al.²⁸ where Sr substitution for La was found to help stabilized the Ruddlesden–Popper structure through the accommodation of Sr²⁺ for the possible Ni³⁺ which could cause structural instability. The amount of the La_2−xSr_xNiO_4+δ phase was found to be 89.9, 94.8 and 99.1 wt% at x = 0.2, 0.4 and 0.6, respectively. With NiO or La₂O₃ impurity, the δ value in La_2−xSr_xNiO_4+δ for the samples is expected to be slightly lower than the calculated one. This is due to the lower probability of Ni being in the Ni³⁺ state in the NiO than that in La_2−xSr_xNiO_4+δ. Moreover, La₂O₃ has been known to exist in the very close to stoichiometric form.²⁹ At the highest level of Sr substitution, x = 0.8, additional peaks besides I4/mmm were observed. The additional peaks arise from the other polymorph of La_2−xSr_xNiO_4+δ with a lower symmetry structure which could be identified as the orthorhombic structure adopting space group Fmmm. The possibility of the coexistence of the tetragonal and orthorhombic phases has been reported previously by Aguadero et al. who reported the coexistence of the two different K₂NiF₄-phases when the Sr content is high as 0.75 and 1 mol ratio.¹³

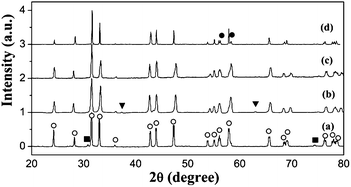

Fig. 1 XRD patterns of La_2−xSr_xNiO_4+δ sintered pellets before ¹⁸O exchange, (a) x = 0.2, (b) x = 0.4, (c) x = 0.6 and (d) x = 0.8 (○ tetragonal (I4/mmm), ● orthorhombic (Fmmm), ■ La₂O₃ and ▼ NiO).

The calculated unit cell parameters and the unit cell volume of the Sr substituted samples are shown in Fig. 2. By increasing the amount of Sr substitution from x = 0 to x = 0.4, the a lattice parameter decreased while the c parameter increased. Such changes in the lattice parameters can be explained by the change in the amount of oxygen excess and the average Ni valence reported in the previous section. With an increase of Sr substitution from x = 0 to 0.4, a slight increase in the amount of oxygen excess could be observed. However, a much more significant increase in the Ni³⁺ content was found. The higher oxidation state of Ni (Ni²⁺ to Ni³⁺) resulted in a decrease in Ni–O bond length thus decreasing the lattice parameter in the perovskite unit, and therefore, a decrease in the lattice parameter in the a, b direction. The slight increase in the c parameter could be explained by the replacement of La³⁺ by Sr²⁺(1.27 Å) which has larger ionic radius than La³⁺(1.20 Å).¹⁵ Both effects resulted in a decrease in total cell volume, which is consistent with previous observation by many authors for x = 0 to 0.5.^5,13,15,16

Fig. 2 Unit cell parameters of La_2−xSr_xNiO_4±δ: (●) a parameter (▲) c parameter and (■) cell volume.

At x = 0.6, an opposite trend was observed. The a parameter was found to slightly increase and the c parameter was found to decrease. Such changes when a large amount of Sr was substituted for La in the La_2−xSr_xNiO_4±δ compound were also observed in other reports and could be explained by a Jahn–Teller distortion.^5,13,15 However, with x = 0.8, the a parameter did not increase; it decreased instead while the c parameter continued to decrease. This is likely caused by the oxidation of Ni³⁺ to Ni⁴⁺. While the substitution of Sr²⁺ for La³⁺ induces an increase in (La,Sr)–O bond length that could lead to an increase in the c lattice parameter, the change of oxidation state from lower to higher charge i.e. Ni³⁺ to Ni⁴⁺ could result in a significant decrease in Ni–O bond length.⁵ Both effects compete with each other, and in this case, the decrease in Ni–O bond length dominates leading to an overall decrease in the c parameter.

3.3 Oxygen diffusion and surface exchange coefficients

Oxygen isotopic exchange and SIMS analyses were performed on the sintered specimens. LaO⁻, NiO⁻ and SrO⁻ mapping results showed homogeneous distribution of all species for all samples, except for x = 0.4 in which areas with higher NiO⁻ counts were observed. This result is consistent with the XRD analysis of the x = 0.4 composition where small amounts of NiO were observed (Fig. 1). Table 2 shows the effect of Sr substitution on the oxygen diffusion coefficients (D*) and surface exchange coefficients, k*, at 800 °C. A relatively small change in the surface exchange coefficient was observed across the compositional range studied. This is consistent with previous reports where the surface exchange was found to be more sensitive to parameters influencing the surface state such as synthesis method, and orientation of the crystal.^21,30 The oxygen diffusion coefficients, however, were found to be very sensitive to the amount of Sr substitution. Examples of SIMS image and oxygen diffusion profile of La_1.8Sr_0.2NiO_4+δ recorded at 800 °C are shown in Fig. 3.

Table 2 Tracer diffusion (D*) and surface exchange coefficients (k*) of La_2−xSr_xNiO_4+δ

Temp (°C)		Sr content, x, in La2−xSrxNiO4+δ (mol ratio)
		0 (ref. 19)	0.1 (ref. 19)	0.2	0.4	0.6	0.8
550	D* (cm^2 s^−1)	—	—	1.52 × 10^−10	—	—	—
	k* (cm s^−1)	—	—	1.18 × 10^−8	—	—	—
625	D* (cm^2 s^−1)	—	—	2.96 × 10^−10	—	—	—
	k* (cm s^−1)	—	—	3.32 × 10^−8	—	—	—
700	D* (cm^2 s^−1)	3.38 × 10^−8	1 × 10^−8	6.06 × 10^−10	—	—	—
	k* (cm s^−1)	1.75 × 10^−7	1.74 × 10^−7	1.22 × 10^−7	—	—	—
800	D* (cm^2 s^−1)	1.71 × 10^−7	1.33 × 10^−8	1.06 × 10^−9	1.15 × 10^−12	3.02 × 10^−13	2.26 × 10^−9
	k* (cm s^−1)	2.55 × 10^−6	6.46 × 10^−7	2.68 × 10^−8	5.47 × 10^−8	2.75 × 10^−8	7.52 × 10^−8

---

Fig. 3 The (a) normalized ¹⁸O SIMS image and (b) ¹⁸O concentration of La_1.8Sr_0.2NiO_4+δ after ¹⁸O₂ exchange at 800 °C for 2 h.

By substituting a small amount of La³⁺ with Sr²⁺, i.e. x = 0.2, D* decreased approximately by one order of magnitude with Sr substitution. This trend has previously been observed by other authors.^6,9,18,19,22 For example, Skinner and Kilner found that the oxygen diffusion coefficient for 5% Sr substituted La_2−xSr_xNiO_4+δ was lower than in the material with no substitution.¹⁹ With the assumption that cation interdiffusion can be neglected coupled with what has been reported earlier that the main transport of oxygen is through interstitialcy mechanism in the oxygen hyper-stoichiometric compound,³⁰ such reduction in the D* value could be explained by a decrease in the amount of oxygen interstitials in the compounds in which δ was reduced.

The La_1.8Sr_0.2NiO_4+δ compound was further evaluated to understand changes in activation energy of the ionic transport in the system compared to that with no substitution and with 5% Sr substitution.¹⁹ Additional oxygen exchange experiments were performed for this composition at temperatures between 550–800 °C. The obtained tracer diffusion coefficients and surface exchange coefficients of the La_1.8Sr_0.2NiO_4+δ compound at these temperatures are shown in Fig. 4a and b, respectively. As expected, D* follows the Arrhenius law, increasing with increasing temperature. Since the diffusivity depends on the mobility of oxygen atoms which is strongly affected by temperature, with decreasing temperature, the mobility of oxygen ions also decreases. The activation energy for D* was found to be 0.60 eV (Table 3) close to the values reported by Skinner and Kilner (E_a = 0.57 eV) for La_1.8Sr_0.2NiO_4+δ.¹⁹ and lower than that with no Sr substitution (E_a = 0.85 eV). The surface exchange coefficients, k*, for La_1.8Sr_0.2NiO_4+δ were found to also follow the Arrhenius-type behavior for the low temperature range (550–700 °C) with the values similar to those found in the literature for x = 0 and x = 0.2.^19,23 However, the k* value do not follow the same trend at 800 °C. The reason for such deviation is not yet conclusive and requires further investigation.

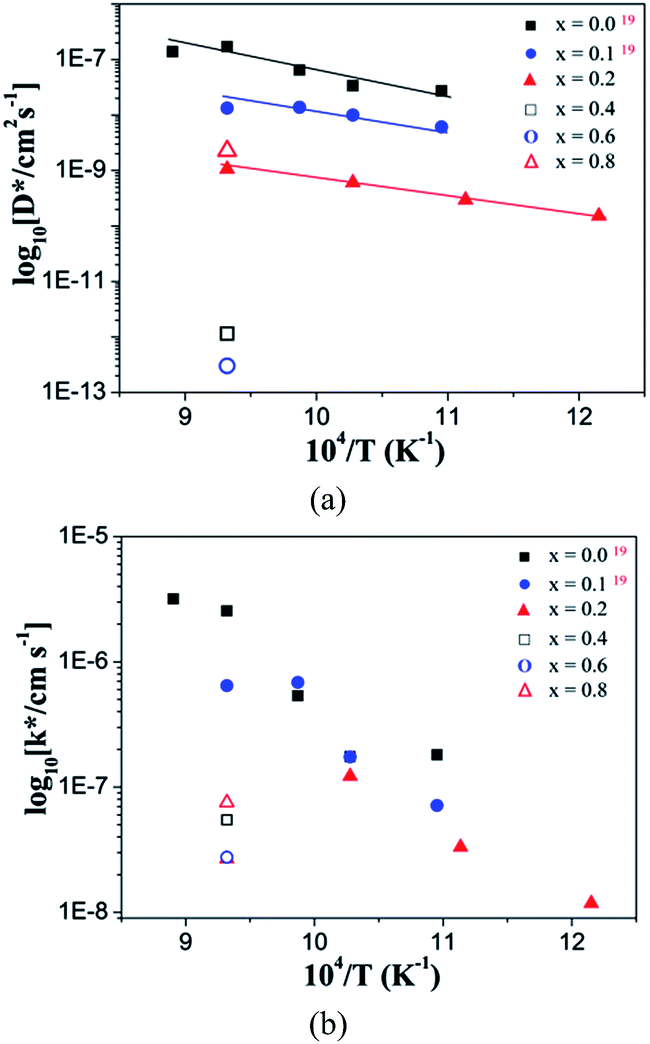

Fig. 4 Arrhenius plots of (a) tracer diffusion coefficients (D*) and (b) surface exchange coefficient (k*) for of La_2−xSr_xNiO_4+δ.

Table 3 Activation energy of the diffusion (D*) and surface exchange coefficients (k*) for La_2−xSr_xNiO_4+δ

La2−xSrxNiO4+δ	Activation energy (eV)
	x = 0 (ref. 19)	x = 0.1 (ref. 19)	x = 0.2
D*	0.85	0.57	0.60
k*	1.61	1.29	1.06

---

At 800 °C for higher levels of Sr substitution, x = 0.4 to 0.6 the diffusivity values decrease by several orders of magnitude as shown in Fig. 4a and Table 2. At x = 2, D* was found to be 1 × 10⁻⁹ cm² s⁻¹, while it was found that D* was 1 × 10⁻¹² cm² s⁻¹ for x = 0.4 and 3 × 10⁻¹³ cm² s⁻¹ for x = 0.6. Considering the amount of oxygen excess in the compound which rarely changed between x = 0.2 to 0.6, the decrease in D* is unlikely due to the concentration of the conducting species alone but the change in mobility of the conducting species (oxygen ion).

With higher Sr substitution (x > 0.6), a dramatic increase of approximately 4 orders of magnitude in D* was observed, from 3 × 10⁻¹³ cm² s⁻¹ for x = 0.6 to 2 × 10⁻⁹ cm² s⁻¹, for x = 0.8. Since the orthorhombic phase has a structure that is very similar to the major tetragonal structure³¹ and from the previous studies by Minervini et al.³² and Cleave et al.³³ who have reported similar activation energies for oxygen interstitials in both phases, within the error of the experiments, it could be expected that the oxygen transport property found could be minimally if at all affected by the existence of the orthorhombic phase. Such a large increase in the diffusion coefficient in the sample is likely due to a significant increase in excess oxygen content (δ) which is almost as high as that of the undoped compound (Table 1). However, it is worth noting that the D* value is almost two orders of magnitude lower than that of the undoped composition even with similar oxygen hyperstoichiometric amount. The much lower diffusivity for x = 0.8 is likely due to lower mobility of oxygen ions in the Sr substituted compound compared to that with no Sr substitution. From our previous work, this composition also exhibits the highest electrical conductivity and lowest thermal expansion coefficient over the range of composition studied (x = 0–0.8).¹¹ Although, D* and k* of La_1.2Sr_0.8NiO_4+δ are lower than the values of one of the most promising cathode candidates for IT-SOFCs, La_1−xSr_xCo_1−yFe_yO_3−δ (LSCF) perovskite (D* ∼ 3 × 10⁻⁸ cm² s⁻¹ and k* ∼ 2 × 10⁻⁷ cm s⁻¹),¹⁹ the compound exhibits other superior properties. It has higher electrical conductivity at intermediate temperature, as high as 160 S cm⁻¹ at 500 °C, and low thermal expansion coefficient much closer to common IT-SOFC electrolytes, 12.4 × 10⁻⁶ °C⁻¹ (400–700 °C) have been previously reported.¹¹

4 Conclusions

Table 4 summarizes the findings of La_2−xSr_xNiO_4+δ (x = 0.2, 0.4, 0.6, and 0.8) synthesized via a sol–gel method. The samples exhibited the I4/mmm tetragonal structure with a minor amount of Fmmm orthorhombic phase for x = 0.8. Trace amount of La₂O₃ and NiO were found in all samples. Over the entire range of the compositions tested, the samples exhibited oxygen hyperstoichiometry with the minimum δ = 0.14 for x = 0.4. At low levels of Sr substitution (x < 0.2), the lower valence substitution on the A site was accommodated by decreasing the oxygen interstitial content. At higher substitution levels, 0.4 < x < 0.6, the accommodation of Ni with higher valence e.g. Ni³⁺ to maintain charge neutrality became increasingly important. At x = 0.8, the charge compensation was attributed almost entirely to an increase in Ni oxidation state where the average Ni valence was found to be +3.26. D* was found to be very sensitive to the doping amount while k* changed very little with the amount of doping. At 800 °C, D* decreased with the increasing amount of Sr from 1 × 10⁻⁹ cm² s⁻¹ at x = 0.2 and reached the minimum value of 3 × 10⁻¹³ cm² s⁻¹ at x = 0.6, then increasing again to 2 × 10⁻⁹ cm² s⁻¹ at x = 0.8. The decreasing D* seems to follow the amount of oxygen excess in the compounds up until x = 0.4, then other mechanisms apparently take over.

Table 4 Summary of the experimental values at different compositions

x, Sr content	Oxygen content analysis		X-ray diffraction analysis	Oxygen transport analysis (800 °C)
	δ	Avg Ni valence	Phase	D* (cm^2 s^−1)	k* (cm s^−1)
a T = tetragonal (I4/mmm) phase.b O = orthorhombic (Fmmm) phase.
0.2	0.14 ± 0.03	+2.48	T^a	1.06 × 10^−9	2.68 × 10^−8
0.4	0.15 ± 0.01	+2.70	T^a	1.15 × 10^−12	5.47 × 10^−8
0.6	0.17 ± 0.01	+2.94	T^a	3.02 × 10^−13	2.75 × 10^−8
0.8	0.20 ± 0.02	+3.20	T^a and O^b	2.26 × 10^−9	7.52 × 10^−8

---
