A biomimetic Setaria viridis-inspired imprinted nanoadsorbent: green synthesis and application to the highly selective and fast removal of sulfamethazine

Abstract

Nowadays, it is very necessary to develop high-efficiency nanoadsorbents to remove drug contaminants from wastewater. Inspired by a biomimetic Setaria viridis-like structure, we provide a simple and general approach for the preparation of hydrophilic magnetic surface molecularly imprinted core–shell nanorods (HMMINs) via a two-step surface-initiated atom transfer radical polymerization in a green alcohol/water solvent mixture at room temperature, with magnetic halloysite nanotubes (HNTs, a hollow tubular structured natural clay mineral) used as nano-cores. HMMINs showed a well-defined core–shell structure with an ultra-thin imprinted film (12 nm) and hydrophilic polymer brushes (2–4 nm), where magnetic nanoparticles (11 nm) were uniformly dispersed onto the surface of halloysite nanotubes. HMMINs possess good magnetic properties and thermal stability. Surface grafting of the hydrophilic polymer brushes enhanced the adsorption selectivity and kinetics. HMMINs exhibited a large adsorption capacity (37.64 ± 1.36 μmol g⁻¹) and fast kinetics (within 45 min) towards a typical antibiotic drug sulfamethazine (SMZ) from pure water. Adsorption isotherm and kinetics data were well described by the Freundlich isotherm model and pseudo-second-order kinetic equation, respectively. HMMINs displayed good selectivity towards SMZ as compared with other antibiotics, as well as good regeneration performance, providing a potentially practical application in the highly efficient and selective removal of antibiotic contaminants from wastewater.

---

1. Introduction

The widespread occurrence of veterinary antibiotics detected in food and eco-environments, particularly in aquatic systems, has remarkably attracted more and more international concerns.^1,2 Sulfonamides (SAs), as a class of bacteriostatic agents, are most commonly used to treat humans and animals and/or to promote growth in animals for more than sixty years, due to their broad-spectrum activity against infections caused by Gram-positive and Gram-negative bacteria and relatively low cost. However, a high proportion of unmetabolized SAs is excreted in the parent form and is finally transported from manured fields to water environments. The intake of SAs (particularly sulfamethazine, SMZ) through food chains and drinking water into the body is dangerous for human health, which can cause adverse effects, including allergic reactions, dysbacteriosis and even carcinogenic effects.^3,4 Conventional water treatment methods, such as coagulation, flocculation, sedimentation and ion exchange, are relatively ineffective in removing antibiotic pollutions from wastewater. Due to its relatively low cost and high efficiency, adsorption is usually considered as an effective method to eliminate many organic pollutants.^5–7 Adsorption performance of the adsorbents used is key to remove the targeted substances. Thus, it is very important to synthesize novel and high-performance adsorbents to remove SAs from water environments.

Molecular imprinting, as an advanced and powerful technique, can obtain artificial receptors with a strong ability to recognize and rebind predetermined/targeted molecules.⁸ Due to their excellent characteristics, such as easy preparation, specific recognition, low cost and high stability, molecularly imprinted polymers (MIPs) have attracted more and more attention in a wide range of application fields including solid phase extraction, chromatography, sensors, and catalysis.^9–12 However, conventional bulk MIPs prepared using traditional techniques, owing to their highly cross-linked nature, suffer from many limitations such as time-consuming crushing, heterogeneous particle size, difficult template removal and low adsorption/desorption kinetics, which thereby decrease their rebinding efficiency. Thus, the development of high-efficient imprinting techniques to solve these problems is notably important. The establishment of a nanoimprinted system, which can control the template molecules to be located on the surface or approximate surface, is an effective approach, for example, the surface imprinting technique.^13–15 The preparation of core–shell MIPs has recently provided a general method for obtaining surface imprinted polymers with various solids as core materials.

Halloysite nanotubes (HNTs, Al₂Si₂O₅(OH)₄·nH₂O) are 1 : 1 layer silicate clay minerals with an obvious hollow tubular structure, where the outer surface and the inner surface consist of a tetrahedral (Si–O) and an octahedral (Al–OH) sheet, respectively.^16,17 The chemical properties of the HNTs are similar to those of pure SiO₂ and Al₂O₃. Generally, the size range of the inner and outer diameters for HNTs is 10–30 nm and 50–100 nm, respectively. Owing to their superior characteristics including high porosity, large surface area and tunable surface chemistry, HNTs have attracted great interest in chemical, material and environmental science, especially for catalysis, drug delivery, template and separation.^18–21 Compared with artificial synthetic materials (e.g. carbon nanotubes, silica-based materials and polymer spheres), HNTs are cheaper and surface hydrophilic, and thus can be used as an ideal core material for loading imprinted polymers. In our previous research, magnetic nanoparticles were first loaded onto HNTs and the imprinted polymer nanoshell with a tunable thickness was coated onto the HNTs surface via a simple precipitation polymerization process.²² When magnetic properties are introduced into molecularly imprinted polymers, the obtained imprinted composites can be easily collected in the presence of an external magnetic field, which facilitates the separation process.

Usually, the preparation and application of MIPs are mostly restricted in various organic solvents; however, the natural recognition system and practical applications of MIPs are mainly in aqueous environments. Obviously, it is necessary to develop novel hydrophilic MIPs, which can be applied in water-phase systems. Two strategies have been developed to improve the MIPs' surface hydrophilicity. One involves the copolymerization of a hydrophilic monomer, functional monomer and cross-linking agent in the preparation process.^23–25 Although the process is very simple, the optimization of the synthesis parameters is complicated and time-consuming, which can affect MIPs' properties due to the extra addition of hydrophilic monomers. Another way is post-modification of the already obtained imprinted materials,^26–28 which is relatively simple and incurs low cost. Moreover, the persistent pursuit of general and facile methodologies is highly desirable towards the development of hydrophilic MIPs.

Atom transfer radical polymerization (ATRP), a new class of controllable radical techniques, has been recently used for the generation of MIPs to improve their properties in the field of molecular imprinting.^29–32 ATRP is tolerant to a wide range of monomers and can be carried out using mild reaction conditions such as low temperature (especially at room temperature) and water-phase environments.^33,34 Previously, we have reported that the narrowly dispersed imprinted microspheres were first prepared using reverse ATRP and then used as macro-active initiator for further surface-modification of hydrophilic polymer brushes.³⁵ This proved that ATRP is a powerful technique that can be used to synthesize “living” polymers with well-defined structures, which can be used as a macro-initiator for further surface multi-functionalization.

To the best of our knowledge, the preparation of hydrophilic magnetic organic–inorganic selective nanoadsorbents and their application in the selective recognition and removal of sulfamethazine antibiotic in pure water is reported herein for the first time. Biomimetically inspired by the unique appearance of a common green plant, Setaria viridis, which has a rod-like tassel with abundant bristle structure along the plant stem (as shown in Fig. 1),³⁶ the aim of this study was to prepare hydrophilic magnetic surface molecularly imprinting core–shell nanorods (HMMINs) based on magnetic halloysite nanotubes via a facile two-step ATRP in a green alcohol/water solvent mixture at room temperature. The obtained HMMINs were used in the adsorption and removal of the SMZ antibiotic from a water environment. The physical and chemical properties, adsorption isotherms, adsorption kinetics, selectivity and regeneration performance of the HMMINs towards SMZ were investigated in detail using a batch adsorption technique.

Fig. 1 Schematic of the synthetic route used to prepare HMMINs.

2. Experimental

2.1. Materials

HNTs were purchased from Zhengzhou Jinyangguang Chinaware Co., Ltd, Henan, China, and purified via repeated sedimentation processes to remove the quartz impurities, followed by drying at 80 °C for 12 h and grinding. 4-Vinylpyridine (4-VP, 96%), hydroxyethyl methylacrylate (HEMA, 96%), 2-bromoisobutyryl bromide (2-BiBr, 98%), 3-aminopropyltriethoxysilane (APTES, 99%), N,N,N′,N′′,N′′-pentamethyldiethylenetriamine (PMDETA, 98%), SMZ (98%), tetracycline (TC, 98%), ethylene glycol dimethacrylate (EGDMA, 98%) and ciprofloxacin (CIP, 98%) were of analytical grade and purchased from Aladdin Reagent Co., Ltd. (Shanghai, China). Cuprous bromide (CuBr), anhydrous toluene, acetone, acetic acid, ethanol, methanol, ethylene glycol (EG, 98%), iron(III) nitrate nonahydrate (Fe(NO₃)₃·9H₂O, 98%), dichloromethane and triethylamine were of analytical grade and purchased from Sinopharm Chemical Reagent Co. Ltd. (Shanghai, China). Deionized ultrapure water was obtained from a Purelab Ultra system (Organo, Tokyo, Japan).

2.2. Preparation of magnetic halloysite nanotubes (MHNTs)

5.0 g of HNTs was added to 150 ml of HNO₃ aqueous solution (2.0 mol L⁻¹) in a three-necked flask and uniformly dispersed under ultrasonication for 30 min. The mixtures were vigorously stirred to remove the impurities at 80 °C for 12 h. The resultant product was collected by vacuum filtration, repeatedly washed with deionized water and dried in an oven. Subsequently, 1.0 g of HNTs and 0.6 g of Fe(NO₃)₃·9H₂O were added to 20 ml of ethanol under ultrasonication for complete dispersion and dissolution. After stirring at room temperature overnight, the mixture was dried at 60 °C until ethanol was completely evaporated. The yellow solid was impregnated with 2.0 ml of EG and heated at 400 °C for 2 h at a heating rate of 5.0 °C min⁻¹ under the protection of a nitrogen atmosphere in a tube furnace. The black product was repeatedly washed with ethanol and water, and dried to obtain MHNTs.

2.3. Preparation of NH₂-modified MHNTs (MHNTs@NH₂)

1.0 g of MHNTs was added to 100 ml of anhydrous toluene in a three-necked flask (250 ml) and uniformly dispersed under ultrasonication. 1.5 ml of APTES was added and the mixture was vigorously stirred and reacted at 90 °C for 24 h. After the reaction, the product was collected with the help of an external magnet and was washed several times with ethanol and deionized water, followed by drying to a constant weight. The APTES-modified product was obtained and denoted as MHNTs@NH₂.

2.4. Preparation of “living” Br-modified MHNTs (MHNTs@Br)

0.5 g of MHNTs@NH₂ and 50 ml of dichloromethane were added into a round bottom flask and were uniformly dispersed under ultrasonication. Then, 1.0 ml of triethylamine and 1.0 ml of 2-bromoisobutyryl bromide were added to the mixture. Under the protection of an nitrogen atmosphere, the reaction was carried out at 0 °C for 2 h and at 25 °C for 12 h with vigorous agitation. After the reaction, the resultant product was washed with water and ethanol and was dried to a constant weight. The “living” Br-modified MHNTs were denoted as MHNTs@Br.

2.5. Preparation of magnetic surface molecularly imprinting core–shell nanorods (MMINs)

In the synthesis process for the imprinted nanoadsorbent, SMZ was used as the template molecule, 4-VP as the functional monomer, and EGDMA as the cross-linking agent. 16 ml of methanol and 4.0 ml of water were added into a flask. 27.8 mg of SMZ, 0.26 ml of 4-VP and 2.30 ml of EGDMA were added to the solvent and self-assembled for 12 h at room temperature in the dark. Under the protection of an nitrogen atmosphere, 14.3 mg of CuBr and 42.3 μl of PMDETA were added, and then 0.2 g of MHNTs@Br was finally added to the mixture. The reaction was performed at 25 °C for 24 h with vigorous stirring. After the reaction, the product was washed six times with ethanol and acetone and was dried at 60 °C for 12 h. The template molecules were removed from the obtained product through Soxhlet extraction using a mixture of methanol and acetic acid (9.0 : 1.0, v/v) as the eluent until SMZ could no longer be detected. Thus, the magnetic surface molecularly imprinting core–shell nanorods (MMINs) were obtained. For comparison, using the same method, magnetic surface non-imprinting core–shell nanorods (MNINs) were also prepared without the addition of the template molecules in the polymerization process.

2.6. Preparation of hydrophilic magnetic surface molecularly imprinting core–shell nanorods (HMMINs)

In brief, 2.0 ml of deionized water and 2.0 ml of methanol were added into a 25 ml flask. 10.47 mg of CuBr, 45.8 μl of PMEDTA and 1.5 ml of HEMA were added to the flask to form a homogeneous solution. Then, the solution was degassed under ultrasonication and exchanged with N₂ to remove any oxygen. 100 mg of MMINs was added to the flask and the reaction was carried out at 25 °C for 24 h. The product was washed six times with acetone, ethanol and water, and then dried in an oven to obtain the HMMINs. Hydrophilic magnetic surface molecularly non-imprinting core–shell nanorods (HMNINs) were prepared using the same method with the addition of MNINs as a macro-initiator.

2.7. Batch adsorption experiments

Adsorption isotherm experiments were performed to study the adsorption equilibrium properties of the nanoadsorbents. 5.0 mg of MMINs, HMMINs, MNINs and HMNINs were added to SMZ aqueous solutions at different initial concentrations between 5.0 and 120 μmol L⁻¹. The adsorption experiments were carried out at 25 °C for 12 h to reach equilibrium. The adsorbents were quickly separated with the help of an external magnet. The free SMZ concentration in the solutions was measured using a UV-vis spectrophotometer (UV-2450, Shimadzu, Japan) at 249 nm. The equilibrium adsorption capacity Q_e (μmol g⁻¹) of SMZ was calculated according to the following equation:where C_o and C_e (μmol L⁻¹) are the initial and equilibrium SMZ concentrations, respectively. V (L) and m (g) are the volume of solution and mass of nanoadsorbent, respectively.

To investigate the adsorption kinetic properties of the nanoadsorbents, 5.0 mg of MMINs, HMMINs, MNINs and HMNINs were added into 10 ml of SMZ solution at an initial concentration of 100 μmol L⁻¹. The adsorption experiments were conducted at 25 °C for different contact times, including 10, 20, 30, 45, 60, 90 and 120 min. The supernatant was quickly obtained with the help of an external magnet and then tested. The adsorption amount of SMZ (Q_t, μmol g⁻¹) at time t (min) was calculated according to the following equation:

where C_t (μmol L⁻¹) is the free SMZ concentration at time t.

The selective recognition properties of HMMINs were studied by adsorption experiments with TC and CIP as reference antibiotics. 5.0 mg of HMMINs and HMNINs were added to each antibiotic solution with an initial concentration of 100 μmol L⁻¹. After the adsorption reached equilibrium at 25 °C, the nanoadsorbents were separated using an external magnetic field, and the free antibiotic concentrations of TC and CIP were tested using a UV-vis spectrophotometer at 357 nm and 276 nm, respectively.

All the adsorption experiments were carried out six times and the experimental data was stable and reproducible, the error of which was much less than 5.0%.

2.8. Instrumentation

Fourier transform infrared spectroscopy was recorded on a Nicolet NEXUS-470 FTIR apparatus (U.S.A.) using KBr pellets. Scanning electron microscopy (SEM, S-4800, Hitachi, Japan) and transmission electron microscopy (TEM, JEOL IEM-200CX, U.S.A) were used to describe the morphology of the samples. Magnetic measurements were carried out using a VSM (7300, Lakeshore, U.S.A) under a magnetic field up to 10 kOe. Thermogravimetric analysis (TGA) of the samples was carried out using a Diamond TG/DTA instruments (STA 449C Jupiter, Netzsch, Germany) under N₂ up to 800 °C at a heating rate of 10 °C min⁻¹. The samples were dispersed in ethanol under ultrasonication (20 mg ml⁻¹) and dropped onto a clean glass. After the ethanol was allowed to evaporate at ambient temperature, the static water contact angle was tested using a contact angle instrument (KSV CM200, Finland).

3. Results and discussion

3.1. Preparation method for HMMINs

Fig. 1 shows a schematic diagram of the synthetic route used to prepare the HMMINs. First, iron ions were introduced into the lumen and surface of HNTs through a wetness impregnation step. MHNTs were obtained via the reduction of the iron ions using EG at high temperature under the protection of a nitrogen atmosphere. Second, amino and bromine groups were successively modified onto the surface of the MHNTs via a silanization and amidation reactions to obtain the MHNTs@NH₂ and MHNTs@Br, respectively. Third, the magnetic surface molecularly imprinting core–shell nanorods (MMINs) were prepared via a surface-initiated ATRP performed at room temperature using a mixture of methanol and water as the reaction solvent, SMZ as the template molecule, 4-VP as the functional monomer, EGDMA as the cross-linking agent, and PMDETA/CuBr as the catalyst system. Finally, poly(HEMA) (PHEMA) brushes were grafted from the surface of MMINs via a surface-initiated ATRP method again to obtain HMMINs with selective recognition ability. This imprinted polymerization technique was non-toxic and required low energy consumption, as compared with other previously reported methods that describe the preparation of hydrophilic MIPs.^23–28

3.2. Characterization

Fig. 2 shows the FT-IR spectra of MHNTs, MHNTs@NH₂, MHNTs@Br, MMINs and HMMINs. As shown in the spectrum of the MHNTs, the characteristic peaks at 1087 and 1032 cm⁻¹ correspond to the Si–O and Si–O–Si stretching vibrations, respectively. The sharp peaks at 3707 and 3622 cm⁻¹ are attributed to stretching vibration of the inner surface –OH and the peak for the deformation vibration of the inner surface –OH appeared at 912 cm⁻¹. The deformation vibration of the Al–O–Si bond was clearly observed at 534 cm⁻¹.³⁷ The peak intensity of the Fe–O bond was too weak to be detected. The spectrum of the MHNTs@NH₂ showed a weak peak at 2954 cm⁻¹, which was assigned to the –CH₂ stretching vibration of APTES. The broad peak at 3452 cm⁻¹ corresponded to –NH₂ stretching vibrations. After the amidation reaction, the peak of the amide carbonyl group was observed at 1649 cm⁻¹ in the spectrum of MHNTs@Br, indicating that the initial group was successfully grafted onto the surface of MHNTs. In the spectra of MMINs, the C=N characteristic peak of pyridine ring occurred at 1601 and 1558 cm⁻¹, and a C=O stretching vibration peak was observed at 1725 cm⁻¹, demonstrating that 4-VP and EGDMA were successfully grafted from the surface of MHNTs. It could be seen that the intensity of the peaks at 1158 and 1245 cm⁻¹ were enhanced, which appeared due to the C–O–C stretching vibrations. Moreover, the intensity of the –OH characteristic peak at 3435 cm⁻¹ increased. Thus, it can be inferred that the PHEMA brushes were efficiently introduced onto the surface of MMINs.

Fig. 2 (A) FT-IR spectra of MHNTs (a), MHNTs@NH₂ (b) and MHNTs@Br (c). (B) FT-IR spectra of MMINs (d) and HMMINs (e).

Fig. 3 shows the SEM images of HNTs, MHNTs, MMINs and HMMINs. HNTs had a tubular structure with a length of 1.0–3.0 μm and an external diameter of 50–180 nm. As compared with HNTs, the overall morphology of MHNTs did not change. The surface of MHNTs became a little more rough, which might be caused by the loading of magnetic nanoparticles. After grafting of the imprinted polymers, both the length and diameter of MMINs increased slightly. In Fig. 3d, HMMINs exhibit a smooth surface and a little cross-linking.

Fig. 3 SEM images of HNTs (a), MHNTs (b), MMINs (c) and HMMINs (d).

To further obtain their morphology and structural information, TEM was used to characterize HNTs, MHNTs, MMINs and HMMINs, as shown in Fig. 4. HNTs exhibited a hollow tubular structure with non-uniform length and diameter. From Fig. 4b, it could be clearly seen that the magnetic nanoparticles were uniformly dispersed into the lumen and onto the surface of HNTs, and have an average size of 11 nm. In Fig. 3c, MMINs show an evident core–shell structure, with an imprinted polymer nanoshell thickness of about 12 nm. After surface grafting of PHEMA, the polymer nanoshell thickness increased to 14–16 nm, thus the average thickness of the polymer brushes was in the range of 2–4 nm. From the SEM and TEM images, it can be inferred that the imprinted nanofilm and polymer brushes were successfully grafted onto the surface of MHNTs.

Fig. 4 TEM images of HNTs (a), MHNTs (b), MMINs (c) and HMMINs (d).

Fig. 5A presents the magnetization curves for MHNTs, MMINs and HMMINs. It was obvious that in all the three samples, there were no hysteresis, and remanence and coercivity were near zero in the hysteresis loop, suggesting that the samples were superparamagnetic. Magnetization saturation (M_s) value for MHNTs was 2.81 ± 0.071 emu g⁻¹ at 298 K. After surface grafting of the imprinted polymer, the M_s value for MMINs was reduced to 2.51 ± 0.056 emu g⁻¹. Moreover, the M_s value for HMMINs was 2.29 ± 0.042 emu g⁻¹. With an increase in the polymer shell thickness, the M_s value decreased gradually, which efficiently matches with the results of the TEM analysis. Although the M_s value for HMMINs was not very large, it was enough to achieve magnetic separation. As shown in Fig. 5B, HMMINs were uniformly dispersed in pure water placed in a glass bottle. When a magnet was close to the bottle, HMMINs moved quickly to the wall of the bottle, and the solution became clear immediately. HMMINs thus show a good separation performance in an aqueous environment.

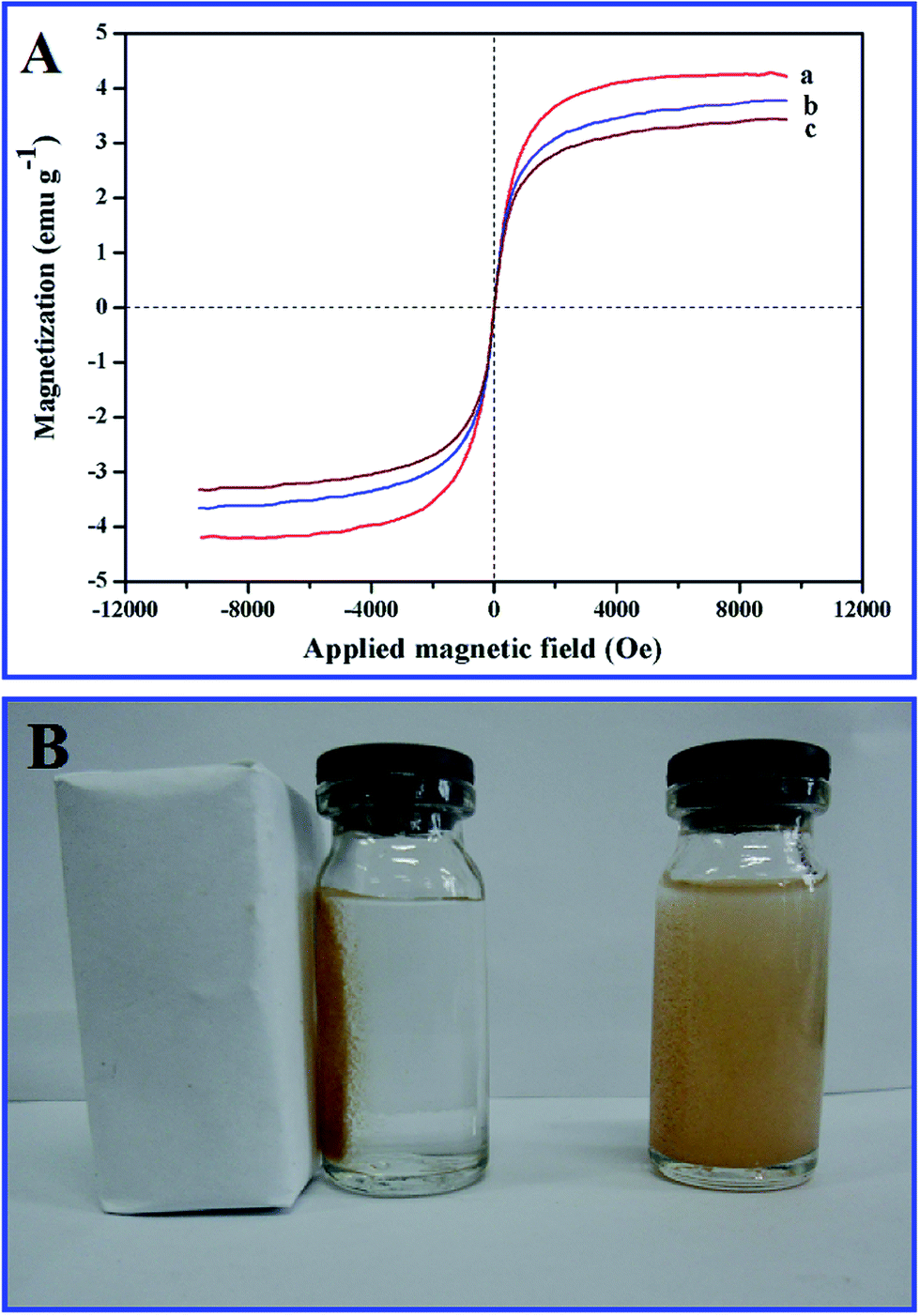

Fig. 5 (A) Magnetization curves for MHNTs (a), MMINs (b) and HMMINs (c). (B) An image of the magnetic separation of HMMINs using an external magnet.

Fig. 6 shows the TGA curves for MHNTs, MHNTs@NH₂, MHNTs@Br, MMINs and HMMINs. At temperatures below 200 °C, only a low proportion of mass loss was observed for MHNTs, due to the evaporation of physically absorbed water. In the temperature range of 400–800 °C, because of the dehydration of Al–OH group in the lattice, the mass loss ratio for MHNTs at 800 °C was 11.83%. After silanization reaction, the mass loss ratio for MHNTs@NH₂ was 14.52%. The mass loss for MHNTs@Br increased to 15.52%, indicating that the initiator was grafted onto the surface by the amidation reaction. For MMINs and HMMINs, the mass loss mainly occurred at a temperature range of 300–600 °C, due to the thermal decomposition of the polymers. The mass loss ratios for MMINs and HMMINs were about 29.78% and 43.62%, respectively. As obviously described by the TGA curves, the weight loss of the samples gradually increased stepwise, which demonstrated that each reaction step was completed successfully.

Fig. 6 TGA curves for MHNTs (a), MHNTs@NH₂ (b), MHNTs@Br (c), MMINs (d) and HMMINs (e).

Fig. 7 shows the photographs of the static water contact angles of MMINs and HMMINs. It can be clearly seen that HMMINs showed a much lower static water contact angle than MMINs. The static water contact angles for MMINs and HMMINs were 122.34° ± 0.4° and 45.14° ± 0.2°, respectively, which indicated that the PHEMA brushes were grafted successfully onto the surface of MMINs and improved the surface hydrophilicity.

Fig. 7 Images of static water contact angle for MMINs (a) and HMMINs (b).

3.3. Adsorption isotherms

Fig. 8A shows adsorption isotherm curves for MMINs, MNINs, HMMINs and HMNINs towards SMZ at 298 K. Over the entire concentration range, the adsorption amount increased with an increase in the initial concentration and gradually reached adsorption equilibrium. The adsorption capacities of MMINs and HMMINs were much higher than that of MNINs and HMNINs, indicating that the imprinted sites exist in the polymer network. The adsorption capacities of SMZ onto MMINs, MNINs, HMMINs and HMNINs in an aqueous solution were 43.82 ± 1.85, 20.18 ± 0.625, 37.64 ± 1.36 and 14.42 ± 0.649 μmol g⁻¹, respectively. Here, the HMMINs nanoadsorbent obtained by us shows a higher adsorption affinity for the SMZ template as compared to the other previously SMZ-imprinted adsorbents reported.^38–41 It can be clearly observed in Fig. 8A that the adsorption amount decreased after the surface grafting of the hydrophilic polymer brushes, which could inhibit the hydrophobic interactions. The imprinted factors enhanced the absorption amount over the entire concentration range studied. Previous SMZ-imprinted adsorbents could only achieve relatively good recognition ability in an organic solvent, but were poor in a pure aqueous system. Through the surface grafting of the hydrophilic polymer without blocking the effective imprinted sites, this novel imprinted nanoadsorbent exhibited good selective recognition for the SMZ template in water.

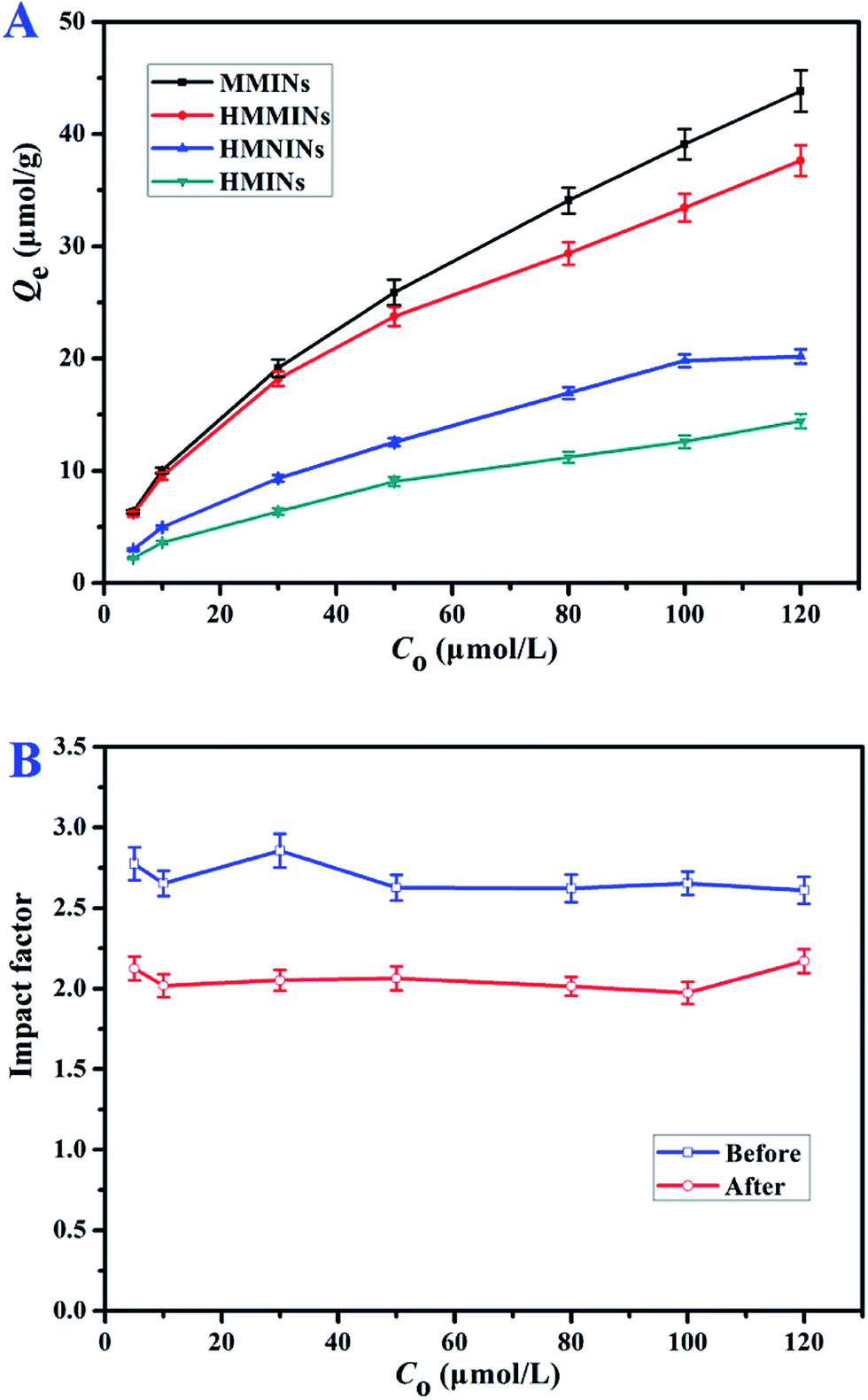

Fig. 8 Adsorption isotherm curves for MMINs, MNINs, HMMINs and HMNINs (A) and the imprinted factor before and after surface-grafting (B).

Langmuir and Freundlich isotherm models⁴² were used to analyze adsorption experimental data, the non-linear forms of which are listed as eqn (3) and (4), respectively:

Q_e = K_FC_e^1/n (4)

where Q_m (μmol g⁻¹) represents the maximum monolayer adsorption capacity. K_L (L μmol⁻¹) and K_F ((μmol g⁻¹) (L μmol⁻¹)^1/n) represent the Langmuir and Freundlich constant, respectively.

Fig. 9 shows the non-linear fitting curves of the adsorption isotherm for MMINs, MNINs, HMNINs and HMNINs towards SMZ, and the isotherm constants are listed in Table 1. Fig. 9 shows that the Langmuir fitting curves deviated from the experimental data for all the four nanoadsorbents. However, the fitting correlation coefficients (R²) of the Freundlich model for the four nanoadsorbents were all higher than 0.997, exhibiting good correlations. Moreover, the fitting curves of the Freundlich isotherm agreed well with the experimental data. The n values were all higher than 1.0, suggesting the procedure was in favor of SMZ adsorption. Thus, the Freundlich model could better describe the adsorption data, and multi-molecular layer adsorption was dominant in the adsorption process.

Fig. 9 The non-linear fitting curves for the Langmuir and Freundlich isotherms of MMINs and MNINs (A) and HMNINs and HMNINs (B) toward SMZ at 298 K.

Table 1 Isotherm constants of MMINs, MNINs, HMMINs and HMNINs toward SMZ at 298 K

Isotherm models		Langmuir			Freundlich
Nanoadsorbents	Qe (μmol g^−1)	Qm (μmol g^−1)	KL (L mg^−1)	R^2	KF ((μmol g^−1) (L μmol^−1)^1/n)	1/n	R^2
MMINs	43.82 ± 1.85	50.76	0.04039	0.9461	4.633	0.4829	0.9988
MNINs	20.18 ± 0.625	26.60	0.02664	0.9626	1.535	0.5591	0.9975
HMMINs	37.64 ± 1.36	42.19	0.047239	0.9627	4.561	0.4521	0.9994
HMNINs	14.42 ± 0.649	17.92	0.026399	0.9598	1.721	0.5429	0.9979

---

3.4. Adsorption kinetics

Batch adsorption experiments were performed to investigate the kinetic properties of MMINs, MNINs, HMMINs and HMNINs. The kinetic curves for the four nanoadsorbents are shown in Fig. 10. In the initial stage, owing to the existence of large empty binding sites, the adsorption amount quickly increased. With an increase in the contact time, the effective binding sites were gradually captured and the adsorption amount slowly achieved equilibrium. Due to the ultrathin polymer film, the adsorption equilibrium time was very short, which for MMINs, MNINs, HMMINs and HMNINs was only 60, 45, 45, and 30 min, respectively. Obviously, after grafting of the PHEMA brushes, the adsorption equilibrium time was shorter, which was attributed to the improvement in the surface hydrophilicity and an increase in the contact probability in water. Moreover, the adsorption amounts of MMINs and HMMINs were higher than that of the corresponding MNINs and HMNINs over the entire time range studied.

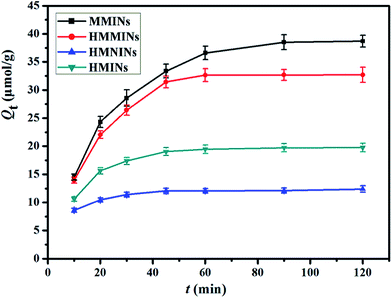

Fig. 10 Adsorption kinetics of SMZ onto MMINs, MNINs, HMNINs and HMNINs at 298 K.

To study adsorption kinetics, pseudo-first-order and pseudo-second-order kinetic equations⁴³ are commonly used to analyze the kinetics data, the linear forms of which are shown in eqn (5) and (6), respectively:

ln(Q_e − Q_t) = ln Q_e − k₁t (5)

where k₁ (min⁻¹) and k₂ (g μmol⁻¹ min⁻¹) represent the pseudo-first-order and pseudo-second-order kinetic constants, respectively.

The linear fitting curves for the adsorption kinetics of MMINs, MNINs, HMNINs and HMNINs towards SMZ are shown in Fig. 11 with the kinetic constants being listed in Table 2. For all the four nanoadsorbents, the R² values of the pseudo-second-order kinetic equation were higher than that of the pseudo-first-order kinetic equation, which were all higher than 0.996, exhibiting good linear correlations. As shown in Table 2, the Q_e,c values obtained from the pseudo-second-order kinetic equation are closer to the experimental values. All the results suggested that the adsorption processes were better described by the pseudo-second-order kinetic model. Moreover, it is obviously seen that k₂ values increase after surface-grafting of the hydrophilic polymer brushes, which is attributed to the reduction in the binding time between the SMZ molecules and nanoadsorbents.

Fig. 11 The linear fitting curves of the pseudo-first-order (A) and pseudo-second-order (B) rate equations for MMINs, MNINs, HMINs and HMNINs toward SMZ.

Table 2 Adsorption kinetic parameters of pseudo-first-order and pseudo-second-order rate equations of SMZ onto MMINs, MNINs, HMMINs and HMNINs at 298 K

Kinetic models		Pseudo-first-order			Pseudo-second-order
Nanoadsorbents	Qe,exp (μmol g^−1)	Qe,c (μmol g^−1)	k1 (min^−1)	R^2	Qe,c (μmol g^−1)	k2 (g μmol^−1 min^−1)	R^2
MMINs	39.09 ± 1.36	32.44	0.0386	0.9866	45.25	0.001255	0.9961
MNINs	19.81 ± 0.564	10.55	0.0513	0.9682	21.23	0.006563	0.9981
HMMINs	33.44 ± 1.22	17.73	0.0432	0.9446	37.74	0.003153	0.9977
HMNINs	12.40 ± 0.567	4.791	0.0449	0.8877	12.80	0.019049	0.9996

---

3.5. Selective adsorption ability

In this section, CIP and TC were selected as reference antibiotics to investigate the specific adsorption performance of the selective nanoadsorbents. The initial concentration of each antibiotic was 100 μmol L⁻¹, and the process was carried out at 25 °C for 12 h to reach adsorption equilibrium. The adsorption capacities of HMMINs and HMNINs toward the three antibiotics are shown in Fig. 12. The adsorption amounts of HMNINs towards SMZ, TC and CIP were 12.6 ± 0.567, 17.24 ± 0.64 and 11.42 ± 0.52 μmol g⁻¹, respectively, showing no specific recognition. Moreover, HMMINs exhibited a larger adsorption amount of SMZ (33.44 ± 1.22 μmol g⁻¹) than that of TC (19.77 ± 0.78 μmol g⁻¹) and CIP (15.63 ± 0.63 μmol g⁻¹). The adsorption amounts of TC and CIP onto HMMINs and HMNINs had a slight difference. However, the adsorption amount of HMMINs was a lot larger than that found for HMNINs towards SMZ. The phenomenon could be explained by the fact that HMMINs possessed imprinted recognition sites in the polymer network, which matched with the molecular size, space structure and functional groups of the SMZ template. There were no imprinted sites in HMNINs, thus they showed no selectivity. The abovementioned results demonstrated that the imprinted nanoadsorbents were successfully synthesized and the specific recognition ability was satisfactory.

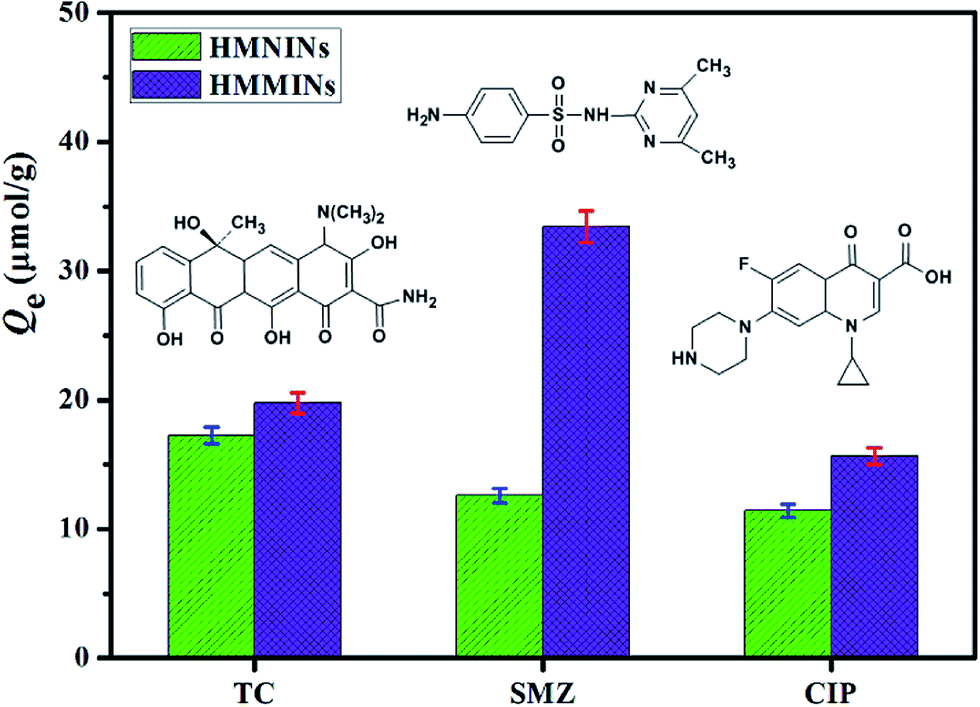

Fig. 12 Chemical structures of three antibiotics (insets) and selective adsorption data for HMMINs and HMNINs.

3.6. Regeneration performance of HMMINs

The regeneration ability is one of the key factors for the application performance of adsorbents. A batch adsorption experiment for HMMINs was first conducted to reach saturation adsorption. The SMZ adsorbed onto HMMINs was completely eluted using a solvent mixture of methanol and acetic acid (v/v = 9 : 1). Adsorption–desorption cycles were carried out to test the reusability of HMMINs, and the experimental results are shown in Fig. 13. After seven cycles, the adsorption amount of HMMINs toward SMZ in an aqueous solution exhibited only a reduction of 7.62%, exhibiting a good stability and regeneration performance.

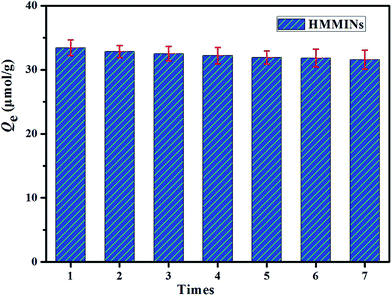

Fig. 13 Regeneration performance of HMMINs toward SMZ.

4. Conclusions

In conclusion, HMMINs was successfully prepared via a two-step surface-initiated ATRP from the surface of MHNTs. The characterization results showed that the thickness of the imprinted film and hydrophilic polymer brushes were about 12 and 2–4 nm, respectively. HMMINs exhibited good thermal and chemical stability, as well as ideal magnetic properties. After the surface grafting of the hydrophilic polymer brushes, the static water contact angle was obviously reduced to 45.14° ± 0.2° with the hydrophobic interactions being inhibited. Although the adsorption amount decreased, the imprinted factor increased over the entire concentration range studied. The adsorption isotherm data was well described by the Freundlich model. Due to the ultra-thin polymer nanofilm, the adsorption process for HMMINs could reach equilibrium within 45 min, and the kinetics data was better fitted to the pseudo-second-order rate equation. In addition, HMMINs exhibited a good specific recognition to the SMZ template molecule and good regeneration performance. This approach not only developed a simple and general synthesis technique for molecular imprinting in an aqueous system, but also for obtaining multifunctional (e.g. hydrophilic, thermosensitive and photosensitive) imprinted nanoadsorbents without affecting the recognition sites to achieve the highly efficient and selective removal of various pollutants from water.

Acknowledgements

This study was financially supported by the National Natural Science Foundation of China (No. 21176107, 21174057, 21277063, 21446015 and U1407123), the National Basic Research Program of China (973 Program, 2012CB821500), the Natural Science Foundation of Jiangsu Province (BK20140534), Ph.D, the Innovation Programs Foundation of Jiangsu Province (No. CXZZ13_0668), Research Fund for the Doctoral Program of Higher Education of China (20133227110022 and 20133227110010) and Jiangsu Planned Projects for Postdoctoral Research Funds (1102119C).
