A novel electrolyte additive for improving the interfacial stability of LiMn₂O₄ cathode lithium-ion batteries at elevated temperature

Abstract

Methanesulfonic acid 2,2,3,3-tetrafluoropropyl (TFPMS) is newly explored as a protection additive to improve the interfacial stability of LiMn₂O₄ cathode/electrolyte at an elevated temperature. At 1C rate, the addition of 0.5 vol% TFPMS improves the capacity retention of an LiMn₂O₄/Li cell from 56.9% to 72.9% after 200 cycles at 55 °C. Electrochemical impedance spectroscopy (EIS) and transmission electron microscopy (TEM) results suggest that the electrolyte with 0.5 vol% TFPMS forms a thinner and less resistive interface. X-ray photoelectron spectroscopy (XPS) analysis reveals that the addition of TFPMS restrains the formation of LiF and Li₂CO₃. Moreover, X-ray diffraction (XRD) and inductively coupled plasma (ICP) analysis confirms the effectiveness of TFPMS-enhanced structural stability of LiMn₂O_4.

---

Introduction

LiMn₂O₄ is an ideal high-power cathode material for lithium-ion batteries because of its high thermal stability, low manufacturing cost, environmentally friendly nature, high energy density and long life cycles. However, capacity fading of LiMn₂O₄-based batteries at high temperatures is still a barrier for practical applications. The reasons for capacity fading and poor thermostability are the following possible mechanisms^1–5: (1) LiPF₆-based carbonate electrolyte decomposition, (2) manganese dissolution: 2Mn³⁺ (s) = Mn²⁺ (aq.) + Mn⁴⁺ (s) on the surface of the LiMn₂O₄ electrode, (3) irreversible crystal phase transition (Jahn–Teller distortion), and (4) oxygen deficiency.

Methods such as element doping^6–9 and surface coating^10–12 have been proposed in previous studies. The electrolyte is one of the main factors for serious deterioration of LiMn₂O₄-based batteries at elevated temperatures. Recently, researchers have used new lithium salts and functional electrolyte additives to improve cyclic stability.

It is reported that lithium difluoro(oxalato)borate, instead of LiPF₆, can improve the capacity retention of an LiMn₂O₄ cathode significantly after 100 cycles at 25 °C and 60 °C.¹³ X. J. Huang et al. reported that LiFNFSI as a single electrolyte salt improves the stability of LiMn₂O₄ at 60 °C.¹⁴ Some new lithium salts, such as LiTFSI, LiFAP, and LiBETI, with properties superior to those of LiPF₆ have been evaluated.^15,16 However, the new lithium salts due to some of their own drawbacks have not fully replaced LiPF₆ in LiMn₂O₄-based batteries in recent years.

Using a functional additive is the most economical and effective method. W. T. Li et al. mentioned that the addition of 3% DMAc to an electrolyte increases the thermal stability of the electrolyte and reduces both surface corrosion and deposition of electrolyte decomposition products on LiMn₂O₄ particles.¹⁷ Y. K. Li et al. reported that the stability of batteries using electrolytes with 0.1 wt% heptamethyldisilazane can be improved after storage at 60 °C for 7 days.¹⁸ L. Li et al. used tris (trimethylsilyl) borate (TMSB) as an effective SEI electrolyte additive to improve the cycling performance of an LiMn₂O₄ lithium-ion battery at both room temperature and 55 °C.¹⁹ Park et al. added 2 wt% fluoroethylene carbonate (FEC) into an electrolyte (EC/DEC/PC with 1 M LiPF₆). When 2 wt% FEC was added, the capacity retention at 60 °C after 130 cycles significantly improved by about 20%.²⁰ W. Li et al. reported that trimethyl borate (TPB) can stabilize the LiMn₂O₄/carbonate-based electrolyte interface.²¹ Nan et al. evaluated the effectiveness of 0.5 wt% MMDS in LiMn₂O₄-based LIBs on the cycling performance at 60 °C and capacity retention storage at 85 °C.²²

In this study, methanesulfonic acid 2,2,3,3-tetrafluoropropyl (TFPMS) was synthesized and used as a new SEI-forming additive for lithium-ion batteries. It was found to be effective for stabilizing the interface between LiMn₂O₄ and a carbonate-based electrolyte at 55 °C. The effect of TFPMS was investigated using electrochemical impedance spectroscopy (EIS), X-ray photoelectron spectroscopy (XPS), transmission electron microscopy (TEM), nuclear magnetic resonance spectroscopy (NMR), X-ray diffraction (XRD) and inductively coupled plasma (ICP).

Experimental

Preparation of electrolyte

TFPMS was synthesized in our laboratory. 2,2,3,3-Tetrafluoro-1-propanol (176 g, 1.33 mol) and triethylamine (157 g, 1.56 mol) were added to a round flask, stirred and cooled to 10 °C in an ice bath. Then, under stirring, methylanesulfonyl chloride (145 g, 1.26 mol) was added dropwise from a dropping funnel with the reaction mixture temperature controlled below 10 °C. Next, the mixture was stirred at 50 °C for another 6 h. Then, the mixture was cooled to room temperature and deionized water (300 ml) was added. The organic layer was washed with deionized water 6 times and dried over anhydrous magnesium sulphate. Methanesulfonic acid 2,2,3,3-tetrafluoropropyl ester was obtained by fractional distillation under vacuum with 185 g (70%) yield.

¹H-NMR (CDCl₃, ppm): 5.95 (tri, 1H); 4.55 (tri, 2H); 3.12 (s, 3H).¹³C-NMR (CDCl₃, ppm): 115.87 (tri); 113.38 (tri); 111.47 (tri); 110.88 (tri); 108.99 (tri); 106.50 (tri); 63.65 (tri); 37.84.

Electrolytes of 1 M LiPF₆/EC + DMC + EMC (Dongguan Shanshan Battery Materials Co., Ltd.) with and without 0.5 vol% TFPMS were prepared in an argon atmosphere glove box (the oxygen and water contents were less than 5 ppm).

Cell assembly

The LiMn₂O₄ electrode with an active mass loading of about 2.3 mg cm⁻² was prepared by combining 80 wt% LiMn₂O₄, 10 wt% polyvinylidene fluoride (PVDF) and 10 wt% acetylene black. Also, 2025-type coin cells were assembled in an argon atmosphere glove box using a lithium sheet as the anode, the above LiMn₂O₄ electrode as the cathode, 1 M LiPF₆/EC + DMC + EMC with and without 0.5 vol% TFPMS as electrolytes (ESI 1†), and Celgard 2325 porous polypropylene as a separator.

Electrochemical measurements

Cycling performance testing of LiMn₂O₄/Li cells was carried out on a Land cell tester, CT2001A. The formation cycles were as follows: 0.1C (1C = 148 mA g⁻¹) three times, 0.2C three times, 0.5C three times, and 1.0C three times at 25 °C under constant current conditions from 3.0 to 4.3 V. The LiMn₂O₄/Li cells were then cycled at 1.0C at 55 °C for the cycling performance test. The LiMn₂O₄/Li cells were then cycled at 0.1C, 0.2C, 0.5C, 1C, and 5C at 25 °C for rate performances. The EIS measurements were tested through a frequency response analyzer (VSP, Bio-logic). EIS measurements were tested at the fully delithiated state of 4.3 V for LiMn₂O₄/Li cells. The frequency range was from 100 kHz to 10 MHz, and the amplitude was 5 mV.

Physical characterizations

The cycled LiMn₂O₄ was disassembled in a glove box and washed three times with DMC solvent to remove the residual electrolyte. TEM measurements were performed with JEM-2010, JEOL. The XPS measurements were obtained with an X-ray photoelectron spectrometer (ESCALAB 250, USA) to investigate the interfacial components of the electrodes. The electrolyte was taken from the cells, which were disassembled in an argon atmosphere glove box. ¹H NMR data of the electrolytes were tested by NMR (AVANCE III, Bruker Biospin) using a CD₃CN solvent. The crystal structure was identified by X-ray diffraction (XRD, Bruker D8 ADVANCE) using Cu Kα radiation. ICP analysis was carried out on IRIS Intrepid II XSP. The cycled lithium electrodes for ICP analyses were rinsed with DMC solvent three times and dissolved in 5.0 wt% HNO₃.

Results and discussion

Fig. 1 presents the cyclic stability of LiMn₂O₄ electrodes in electrolytes without and with 0.5 vol% TFPMS at 1.0C at 55 °C after 200 cycles. The discharge capacity of LiMn₂O₄ without an additive at the first cycle was 105 mA h g⁻¹ but became 59.7 mA h g⁻¹ after 200 cycles. After adding 0.5 vol% TFPMS into the electrolyte, the cyclic stability of LiMn₂O₄ improved, becoming 76.6 mA h g⁻¹. The coulombic efficiencies of 0.5 vol% TFPMS-containing Li/LiMn₂O₄ cells were better than that of the cell with no additive. Apparently, TFPMS could provide protection for LiMn₂O₄ at an elevated temperature. The charge–discharge profiles of the LiMn₂O₄/Li cells cycled at 55 °C are shown in ESI 2.† The change in the charge–discharge platform of the cell without an additive was larger than that observed for the cell containing TFPMS additive. Unlike the cell with the electrolyte without additive, the cell with the electrolyte containing 0.5 vol% TFPMS additive exhibited negligible polarization and smooth charge–discharge profiles.

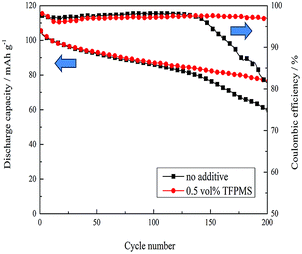

Fig. 1 The cyclic stability of LiMn₂O₄ electrodes in the electrolytes without and with 0.5 vol% TFPMS at 1.0C at 55 °C after 200 cycles.

The discharge curves and corresponding differential capacity (dQ/dV) plots of LiMn₂O₄/Li cells cycled in electrolyte with and without TFPMS after different cycles are shown in Fig. 2. From Fig. 2(a) and (c), we can see that the discharge capacity and voltage plateau of the electrode in the electrolyte without the additive fade quickly compared with those of the electrode in the electrolyte with 0.5 vol% TFPMS after 200 cycles, indicating that the latter exhibits smaller electrochemical polarization. Differential capacity plots exhibit two main peaks located at around 3.98 V and 4.1 V at the 1st cycle, as shown in Fig. 2(b) and (d). All these peaks shift negatively with cycling in the electrolyte with and without the additive. This shows that the peak position shift becomes less significant in the TFPMS-containing electrolyte compared to that for the electrolyte without the additive after cycling, which can be ascribed to the protection provided by the cathode interface film due to TFPMS.

Fig. 2 Selected discharge curves and corresponding dQ/dV plots of LiMn₂O₄ electrode in the electrolytes without (a and b) and with 0.5 vol% TFPMS (c and d).

The rate capability of the cathode is influenced by polarization. A rate performance study is carried out, as shown in Fig. 3. It can be seen that the cell with 0.5 vol% TFPMS displays better rate performance than that without the additive (especially at 5C), suggesting that the incorporation of TFPMS can decrease polarization.

Fig. 3 The rate performances of LiMn₂O₄/Li cells cycled in the electrolytes with and without TFPMS at different charge/discharge rates.

EIS measurements were obtained at the fully delithiated state of 4.3 V for LiMn₂O₄/Li cells. The EIS spectra of the cells mainly include bulk resistance (R_e), SEI resistance (R_f), and charge transfer resistance (R_ct). Fig. 4 presents the EIS of LiMn₂O₄/Li cells with different electrolytes. Re is the bulk resistance of the cell, which reflects the electric conductivity of the electrolyte, separator, and electrodes. Also, 0.5 vol% concentration of TFPMS in the electrolyte was shown to have a negligible effect on the electrical conductivity of the electrolytes. Thus, the values of R_e with different electrolytes are nearly the same. After the formation cycle at 25 °C, it can be found that R_f and R_ct with different electrolytes are nearly the same. However, after 200 cycles at 55 °C, R_f of the cell with TFPMS (59.53 Ω) is smaller than that of the cell without the additive (63.51 Ω), and the lower R_f value implies that SEI due to TFPMS can be thinner. R_ct of the cell with TFPMS (81.31 Ω) is significantly smaller than that of the cell without the additive (116.6 Ω), showing that the charge transfer is easier through the film; this confirms the ability of TFPMS in hindering the increase in electrode polarization. This is in agreement with the results shown in Fig. 2.

Fig. 4 EIS of LiMn₂O₄/Li cells with and without 0.5 vol% TFPMS after (a) formation at 25 °C and (b) 200 cycles at 55 °C.

Fig. 5 shows ¹H NMR data of the electrolytes with 0.5 vol% TFPMS before and after formation at 25 °C and 200 cycles at 55 °C. The peaks at 5.9–6.2 ppm were assigned to –CF₂H of TFPMS, and the peak appearing at 3.17 ppm corresponded to –CH₃ of TFPMS. The TFPMS peaks disappeared after 200 cycles. Based on EIS and NMR results, we believe that SEI on the LiMn₂O₄ surface is formed gradually during cycling due to TFPMS.

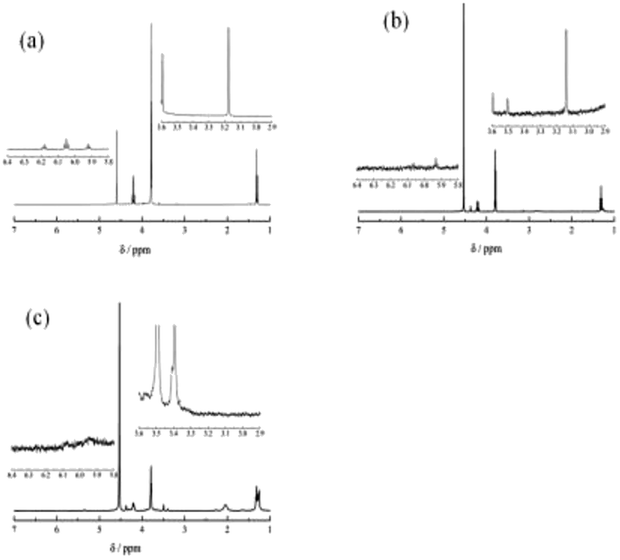

Fig. 5 ¹H NMR data of the electrolytes with 0.5 vol% TFPMS before (a) and after formation at 25 °C (b) and 200 cycles at 55 °C (c).

TEM images (Fig. 6) show the edges of LiMn₂O₄ particles after being cycled with different electrolytes at 55 °C. After cycling, in the electrolyte without the additive, the LiMn₂O₄ particles are covered with a thick deposit, as shown in Fig. 6(a). The TEM image in Fig. 6(b) shows that a thin and uniform film exists on LiMn₂O₄ particles, indicating that a protective SEI film has been formed due to TFPMS.

Fig. 6 TEM images of LiMn₂O₄ cathodes after 200 cycles at 55 °C in the electrolyte (a) without and (b) with 0.5 vol% TFPMS.

Fig. 7 presents the XPS spectra of the observed elements on the LiMn₂O₄ electrode cycled in different electrolytes at 55 °C. In the Mn 2p spectra, three main peaks can be found. The peaks located at 641.7 eV, 642.9 eV, and 653.6 eV correspond to Mn³⁺, Mn⁴⁺, and Mn 2p^1/2.²³ The O 1s spectrum is dominated by the peak of O–Mn (529.6 eV²⁴) in metal oxide, C=O (531.3 eV^25,26), C–O (533.3 eV^25,26), and Li₂CO₃ (532 eV²⁵). There are two characteristic peaks in the F 1s spectra: LiF (684.5eV²⁷) and PVDF (687.6 eV²⁸). The Mn peaks of Mn 2p and Mn–O of O 1s for the electrode with TFPMS are stronger than that for the electrode without the additive, confirming that the CEI film from electrolyte decomposition is thinner due to TFPMS. When 0.5 vol% TFPMS is added, the intensity of the C=O peak of O 1s decreases, whereas the intensity of the C–O peak of O 1s increases, suggesting that TFPMS can efficiently hinder the polymerization of EC solvent. The intensities of Li₂CO₃ of O 1s and LiF of F 1s on the LiMn₂O₄ electrode with TFPMS are much smaller than those without the additive, suggesting that the LiMn₂O₄ cathode electrode with TFPMS is covered with less inorganic degradation products. This leads to decreased R_f and R_ct of the cells with 0.5 vol% TFPMS. The C 1s peaks located at 290.3 eV and 285.7 eV correspond to the PVDF binder.²² The peaks at 284.7 eV,²⁹ 288.5 eV,²⁹ and 286.5 eV³⁰ are assigned to graphite, C=O and C–O, respectively. There are only minor differences seen, which is in accordance with the O 2p spectra. However, there is a small peak at 292.7 eV³¹ from C–F, which indicates the existence of C–F due to the decomposition of TFPMS on the cathode surface film. This is because C–F is the functional group of the TFPMS additive. The existence of S indicates that TFPMS contributes to the surface film of the cathode. The S 2p spectrum at 169 eV in our analysis can be assigned to ROSO₂Li.^32,33 The possible reaction paths of TFPMS are presented in Fig. 8.³⁴

Fig. 7 The XPS spectra of LiMn₂O₄ cathodes cycled in different electrolytes at 55 °C.

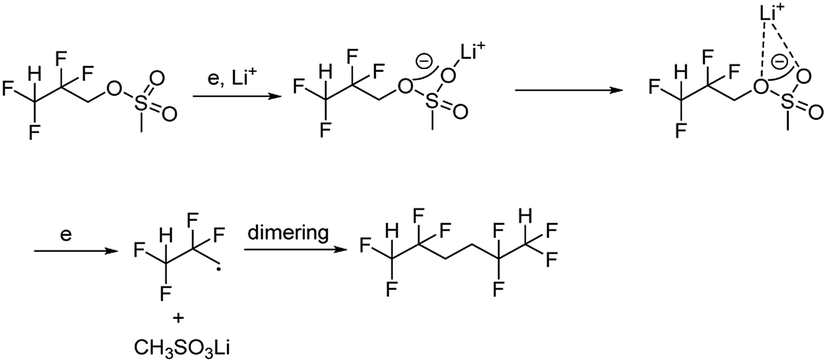

Fig. 8 The possible reaction paths of TFPMS on the cathode.

Fig. 9 presents the XRD spectra of LiMn₂O₄ electrodes cycled in different electrolytes at 55 °C. The intensities of all the LiMn₂O₄ diffraction peaks of the electrodes become weaker compared to that of the pristine electrode, which may be due to the dissolution of Mn²⁺ in the electrolyte at an elevated temperature.^19,35,36 It can be found that the peak intensities of the electrodes with TFPMS are stronger than those of the electrode without the additive. The diffraction peaks (111) of the cycled cathodes shift to higher angles, whereas the extent of the shift in the peaks of the electrode without the additive is much larger than that with the additive. This indicates that the extent of degradation of the spinel structure of LiMn₂O₄ in the electrode with TFPMS is much weaker than that without the additive, which is in accordance with the Mn 2p spectra as discussed above.

Fig. 9 The XRD spectra of LiMn₂O₄ cathodes cycled in different electrolytes at 55 °C.

Manganese metal dissolved from LiMn₂O₄ is also deposited on the anode, which can be confirmed by analyzing the elemental contents on the lithium electrode. The contents of Mn are 1.46 ppm for the electrolyte without the additive and 1.05 ppm for the electrolyte with TFPMS. The contents of Mn on the lithium electrode cycled in the electrolyte without TFPMS are higher than those in the electrolyte with 0.5 vol% TFPMS. TFPMS shows better ability to suppress manganese metal dissolution, resulting in enhanced structural stability of LiMn₂O₄.

Conclusions

In summary, TFPMS can be used as an effective electrolyte additive for the formation of a stable SEI layer on the LiMn₂O₄ electrode at 55 °C. The addition of 0.5 vol% TFPMS can increase the cycling and rate performance of LiMn₂O₄/Li cells. After 200 cycles at 55 °C, the capacity retention is significantly increased from 56.9% to 72.9% with TFPMS. The stable SEI layer derived from TFPMS is thinner and less resistive, and we also observe enhanced structural stability of LiMn₂O₄.
