High refractive index La-rich lanthanum borate glasses composed of isolated BO₃ units

Abstract

La₂O₃–B₂O₃ binary glasses were prepared by containerless processing using a levitation technique. The bulk glass-forming region in a B-rich composition was extended compared to that using conventional melt-quench techniques. Furthermore, additional glass formation was realized in an La-rich composition. The glass transition temperature and crystallization temperature of La-rich glasses are much higher than those of B-rich glasses. Both B- and La-rich glasses were colorless and transparent and had a high refractive index with low wavelength dispersion in the visible region. With the increase of the La₂O₃ content, the optical absorption edge in the ultraviolet (UV) region shifts to a long wavelength. An additional infrared (IR) transmittance window was observed in La-rich glasses, indicating that the La-rich borate glasses are expected to be used in optical components in a wide wavelength region. Local structural analyses using ¹¹B magic-angle spinning (MAS) nuclear magnetic resonance (NMR) and Raman scattering spectra revealed that every B-atom in La-rich glasses formed a planar trigonal BO₃ unit and these BO₃ units were entirely isolated. The evident difference from B-rich glasses where B-atoms formed a complex network structure with BO₃ and BO₄ units caused the characteristic physical and optical properties of La-rich glasses.

---

Introduction

Containerless processing is a way to keep a material in the air by a levitation technique using some types of force to resist gravity, such as electromagnetic force, electrostatic force, magnetic force, sound waves, and gas flow.¹ By applying laser heating, the material can be melted while being levitated. Because no container, such as a crucible, is used to hold the melt, containerless processing can suppress heterogeneous nucleation that occurs at the boundary between the melt and the container's wall. Deep undercooling of the melt can thus be promoted,² which often leads to glass formation without crystallization even if the material has a low glass-forming ability. Accordingly, this process employing levitation has been recognized as an approach not only to extend the glass-forming region of conventional oxide glasses,^3,4 but also to develop new glass systems.^5–10

Among new glasses obtained by containerless processing, some binary oxide systems without any network former oxides have characteristic optical properties. TiO₂-,¹¹ Nb₂O₅-,¹² WO₃-,⁸ and Ga₂O₃-based¹³ binary glasses are colorless and transparent and have a high refractive index (n_d) over 1.9 to 2.35 at 587.65 nm. It should be noted that these glasses show low wavelength dispersion. Using high refractive index glass with low wavelength dispersion as a lens, focal points for various wavelengths get close in a wide wavelength region. Chromatic aberration is thus suppressed. Therefore, a high refractive index and low wavelength dispersion are the desired properties in the field of optical glasses. In order to improve optical properties regarding the refractive index, various third components were added to TiO₂-, Nb₂O₅-, and Ga₂O₃-based glasses. Some glasses having a high refractive index with low wavelength dispersion were successfully obtained.^14–17 Although the third components were effective in reducing the wavelength dispersion, the refractive index still decreased in the cases of high refractive index TiO₂-, Nb₂O₅-, and Ga₂O₃-based glasses. Therefore, previous studies whose aim was to develop high refractive index glasses with low wavelength dispersion were oriented toward decreasing the wavelength dispersion and keeping the refractive index high.

Besides the aim of obtaining high refractive index glasses with low wavelength dispersion as mentioned above, there must be an opposite approach to increase the refractive index of low wavelength dispersion glasses. It is well known that commercial optical glasses with low wavelength dispersion and a comparatively high refractive index (n_d = 1.7–1.8) are designed on the basis of rare-earth borate composition.^18,19 It was reported that La₂O₃–B₂O₃ binary glasses were formed in the range 0–28 mol% La₂O₃ by the conventional melt-quench technique. However, glasses with 2–22 mol% La₂O₃ were milky and phase-separated owing to the immiscibility of the liquids.^20,21 Therefore, the content of La₂O₃ required to obtain clear and homogeneous glasses is limited in the vicinity of 25 mol%.^20–27 Nevertheless, if La₂O₃ content of the glasses increases, the refractive index of the glasses with low wavelength dispersion will increase because La₂O₃ is regarded as a key component to increase the refractive index, besides TiO₂ and Nb₂O₅. In this study, containerless processing was applied to La₂O₃–B₂O₃ glasses in order to obtain high-La₂O₃-content glasses. Glass formation in La₂O₃-rich compositions in La₂O₃–B₂O₃ binary systems is reported. In addition, the thermal, optical, and structural properties of the glasses were investigated.

Experimental procedures

High-purity La₂O₃ and H₃BO₃ powders were mixed stoichiometrically in the composition of xLa₂O₃–(100 − x)B₂O₃. The mixtures were pelletized and sintered at 600 °C for 12 h to remove H₂O. A piece of ∼20 mg was taken from the crushed pellets as a target and placed on the nozzle of an aerodynamic levitation furnace and levitated by O₂ gas, with the flow rate controlled by a mass-flow controller. A 100 W CO₂ laser was used to melt the levitated target. The temperature was monitored using a pyrometer with a 100 Hz sampling rate. The melt was maintained above its melting point for a few seconds in order to achieve homogeneity. The laser power was set as low as possible to avoid evaporation of the target. Then, the laser was turned off, and the melt was cooled naturally down to room temperature at the rate of several hundred kelvins per second. The solidified samples were spherical, and their diameters were approximately 2–3 mm.

Cu Kα X-ray diffraction (XRD) patterns were measured to confirm glass formation. Inductively coupled plasma atomic emission spectrometry (ICP-AES) analysis indicated the composition deviation of some glasses from the target material was less than approximately 3 mol%. A differential thermal analysis (DTA) at a heating rate of 10 °C min⁻¹ was performed to determine the glass transition temperature (T_g) and the crystallization on-set temperature (T_x) (SII, TG/DTA6300). All the glasses were annealed slightly above T_g for 10 min to remove internal strain before physical property measurements. The densities of glasses were measured on a gas pycnometer (AccuPycII 1340; Micromeritics). For the transmittance measurement, both sides of the glass samples were optically polished to a thickness of ∼500 μm. The transmittance spectra were measured using an ultraviolet–visible (UV-Vis) spectrometer (UV3100PC; Shimadzu) in the range of 250–2000 nm and using a Fourier transform infrared spectrometer (FTIR 8200; Shimadzu) in the range of 2000–10 000 nm. In order to measure the refractive index, a spectroscopic ellipsometer (M-2000F; J.A. Woollam) was used in the range of 250–1000 nm. The incident light was at an angle of 75° to the glass surface.

Unpolarized Raman scattering spectra were obtained in a 180° scattering geometry on a T-64000 Jobin–Yvon spectrometer equipped with a liquid-nitrogen-cooled CCD detector. The incident source was an Ar⁺ ion laser of 514.5 nm operating at 250 mW. ¹¹B nuclear magnetic resonance (NMR) spectroscopy measurements were performed on a JEOL JNM-ECA 500 spectrometer at 11.74 T (¹H-500 MHz) equipped with a magic-angle spinning (MAS) probe head (spinning rate: 15 kHz, zirconia rotor of a 4 mm diameter). The NMR spectra were recorded using μ/6 pulses (1.0 μs) and a relaxation delay of 30 s and 64 accumulated signal transients. ¹¹B chemical shifts are expressed in parts per million (ppm) relative to 1 M boric acid at 19.5 ppm. The decomposition of the NMR spectra was performed using the “dmfit” program.²⁸ All of the measurements except for the DTA were performed at room temperature.

Results and discussion

Glass-forming region

Fig. 1 is a phase diagram of the La₂O₃–B₂O₃ binary system²¹ together with glass-forming regions. The glass-forming region was reported to be limited in a very narrow region in B-rich compositions around 22 ≤ x ≤ 28 in bulk form by the conventional melt-quench method and up to x = 30 in flake form by the twin roller rapid quench technique.^20,26 The bulk glass-forming region was expanded to x = 35 using the levitation technique. Furthermore, glass formations were found in not only the B-rich composition range, but also the La-rich composition range. The newly discovered La-rich glass-forming region was 50 ≤ x ≤ 63. The edges of the glass-forming region correspond to the crystalline phase LaBO₃ (x = 50), and the eutectic point was at x = 63. No glass formation was observed in other compositions. The liquid state of this region is thus peculiarly easy to amorphasize differently from others. The occurrence of two separate glass-forming regions is of particular note, because there are very few reports on more than one glass-forming region in binary oxide systems such as the Na₂O–B₂O₃ system and the La₂O₃–Nb₂O₅ system.^29,30 As reported in La₂O₃–Nb₂O₅ glasses, the structures of B- and La-rich glasses might have different connectivity. In both regions of B- and La-rich compositions, colorless and transparent sphere glasses were obtained as shown in the inset.

Fig. 1 Glass-forming regions on the phase diagram of the La₂O₃–B₂O₃ binary system.²¹ The open and cross symbols represent glass formation and crystallization, respectively. The inset is a picture of the glasses obtained.

Physical properties

The composition dependences of the glass transition temperature (T_g) and the crystallization on-set temperature (T_x) of xLa₂O₃–(100 − x)B₂O₃ glasses are shown in Fig. 2(a). Both T_g and T_x decreased by increasing the La₂O₃ content in B- and La-rich glasses. However, it is clearly seen that both T_g and T_x of La-rich glasses are much higher than those of B-rich glasses. The obvious difference in the temperature region between B- and La-rich glasses suggests a difference in the glassy state itself, which might be one of evidences of the connectivity change from B-rich glasses to La-rich glasses. The temperature difference between T_g and T_x (ΔT = T_x − T_g) is a measure of glass stability against crystallization. ΔT was decreased by increasing the La₂O₃ content, as shown in Fig. 2(b). However, although ΔT of La-rich glasses was small, its glass formation is easy comparable to B-rich glasses. The melting point of the glasses has not been determined in this study because of the measurement limit for especially La-rich glasses. Nevertheless, the observation at the levitation experiments indicated the melting point of the glasses seemed to be close to the liquidus temperature shown on the phase diagram of La₂O₃–B₂O₃ binary system.

Fig. 2 (a) Glass transition temperature (T_g) (red circles) and crystallization on-set temperature (T_x) (black triangles). (b) ΔT = T_x − T_g of xLa₂O₃–(100 − x)B₂O₃ glasses.

Fig. 3 shows the density of xLa₂O₃–(100 − x)B₂O₃ glasses together with the values from references.²⁰ There is no reliable data in the vicinity of x = 10 because the region corresponds to the phase separation region. Nevertheless, the density in the B-rich region increased linearly. It is clearly seen that the density increased monotonically with x. However, the increase in the slope became more gentle in the La-rich region.

Fig. 3 Densities of xLa₂O₃–(100 − x)B₂O₃ glasses. The closed circles represent the data obtained in this study. The open symbols represent data from a reference.²⁰

Fig. 4 shows the transmittance spectra of xLa₂O₃–(100 − x)B₂O₃ glasses in the UV-Vis region. The absorption edge of the x = 25 glass was approximately 200 nm. The absorption edge shifted toward long wavelengths by increasing the La₂O₃ content. At the highest La₂O₃ composition of x = 63, the absorption edge was still below 250 nm, indicating that the glasses are good transparent media in the UV-Vis region. The optical band gap energy (E_g) was estimated from the wavelength of the absorption edge.¹¹E_g was decreased monotonically from 6.2 to 5.1 eV by increasing the La₂O₃ content, as shown in the inset. The valence band is originated from O 2p band, while the conduction band is from cation band. Decreasing E_g by adding La₂O₃ to the system means that the conduction band originated from La³⁺ developed to the lower energy side compared to that of B³⁺. Accordingly, the band gap was dominated by the density of state of La and O. Below 300 nm, there were some small absorption bands that were likely to be assigned to the absorption by O–H bonds in the glasses. These bands can be eliminated by careful optimization of the melting process and the removal of the water content in raw materials.

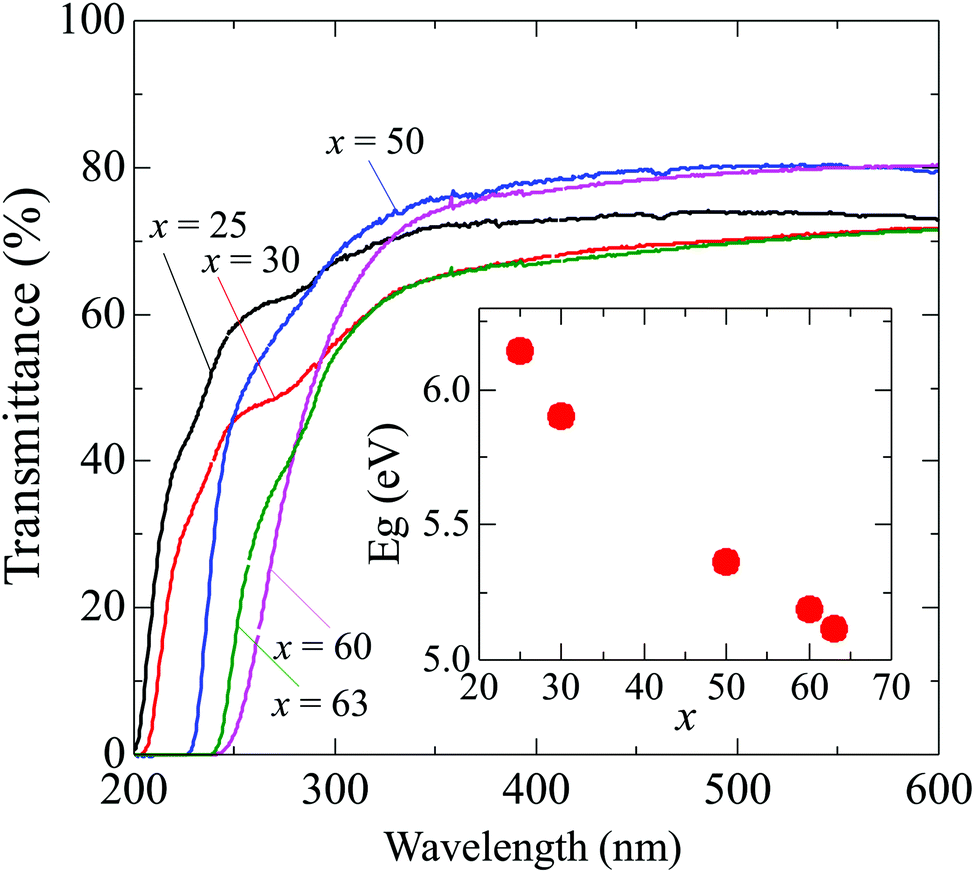

Fig. 4 Transmittance spectra in the UV-Vis region of xLa₂O₃–(100 − x)B₂O₃ glasses. The inset shows the composition dependence of the optical bandgap (E_g).

The infrared (IR) transmittance spectra of xLa₂O₃–(100 − x)B₂O₃ glasses are shown in Fig. 5. It is clearly seen that the main absorption edge was approximately 2700 cm⁻¹ (3.7 μm) of the x = 25 glass, and there were small transmittance windows at 2500 cm⁻¹ (4.0 μm) and 2000 cm⁻¹ (5.0 μm). At x = 30, the main absorption edge shifted toward the long wavelength side. Furthermore, the peaks of the two small transmittance windows also shifted toward the long wavelength side at 2435 cm⁻¹ (4.1 μm) and 1910 cm⁻¹ (5.2 μm), and the transmittance increased. In the La-rich region, two transmittance windows at approximately 2300 cm⁻¹ (4.3 μm) and 1800 cm⁻¹ (5.6 μm) were clearly observed. The peak of the 2300 cm⁻¹ band shifted toward the long wavelength side by increasing x, whereas the peaks of the 1800 cm⁻¹ band did not shift. It is unclear whether the two obvious transmittance windows in La-rich glasses correspond to those in B-rich glasses. Due to the fact that these two transmittance windows had large transmittance, the main absorption edge of La-rich glasses was taken as 1500 cm⁻¹ (6.7 μm), which is much longer than that of B-rich glasses. It has been considered that borate glasses are not transparent in the near-IR (NIR) region. However, it was found that La-rich La₂O₃–B₂O₃ glasses had extra optical windows suitable for optical applications in the visible-to-NIR region.

Fig. 5 IR transmittance spectra of xLa₂O₃–(100 − x)B₂O₃ glasses.

Fig. 6 shows the refractive index dispersions of xLa₂O₃–(100 − x)B₂O₃ glasses. It is clearly seen that the refractive index was increased by increasing the La content. The inset shows that the refractive index (n_d) at 587.56 nm increased linearly with x. A high refractive index, over 1.9, was achieved in La-rich glasses. Furthermore, it seems that the wavelength dispersion of La-rich glasses was small enough. Unfortunately, it is difficult to calculate the Abbe number of these glasses accurately, because the accuracy of the data obtained by the ellipsometer was not so high when the refractive index was less than 2.0. Nevertheless, the original goal, to increase the refractive index of low-wavelength-dispersion La₂O₃–B₂O₃ glasses by increasing the La₂O₃ content, was achieved.

Fig. 6 Refractive index dispersions of xLa₂O₃–(100 − x)B₂O₃ binary glasses. The inset shows the composition dependence of the refractive index at 571 nm (n_d).

Local structure around B

It is well known that the local structure around B-atoms in borate glasses undergoes complex changes of structural groups with the increase in modifier oxides.³¹ In B₂O₃ glass, B- and O-atoms form boroxol ring networks where B-atoms are coordinated by three oxygen atoms. BO₄ units are formed via the addition of modifier oxides to B₂O₃ glasses. The fraction of BO₄ units to all BO_n units (n = 3 or 4) is called the N₄ value. This value increases when the content of the modifier oxides increases, before it reaches the maximum value at a certain amount of modifier oxides.³² A further increase in the modifier oxides decreases the N₄ value. Generally, the results of NMR, Raman scattering, and IR spectra can be used to estimate N₄ values.^31–36

Under a simple presumption that oxygen atoms introduced by modifier oxides are used to form BO₄ units without producing any nonbridging oxygen, N₄ can be easily estimated from chemical compositions. In the case of alkali borate glasses, x_AA₂O–(100 − x_A)B₂O₃, and alkali-earth borate glasses, x_MMO–(100 − x_M)B₂O₃, N₄ is calculated to be X/(100 − X) (X = x_A, x_M). Experimentally obtained N₄ values agree rather well with the estimated data in the range X < 30, and they reach the maximum at approximately X ∼ 40. This means that, at low concentrations of modifier oxides, X < 30, no nonbridging oxygen is formed in binary borate glasses as the simple presumption suggests. By further increasing X, networks of BO₃ and BO₄ units are broken and the number of structural units with nonbridging oxygen increases. There are few examples on local structure analyses around B-atoms at much larger X due to the low glass-forming ability over X ∼ 40, although it was reported that N₄ certainly decreased with X and became almost zero at X = 70 in the case of alkali borate glasses.³¹ This means that glass formation in borate systems requires network structures composed of BO₃ or BO₄ units.

In order to consider structural changes depending on the amount of modifier oxides in rare-earth borate glasses, xR₂O₃–(100 − x)B₂O₃, and to compare alkali borate and alkali-earth borate glasses, the chemical composition should be modified to x_RR_2/3O–(100 − x_R)B₂O₃. The value of x_R corresponds to x_A and x_M, and N₄ is calculated to be X/(100 − X) (X = x_R). Here, there is a relationship between x and x_R, as shown below.

Accordingly, in the case of xLa₂O₃–(100 − x)B₂O₃ system, glass-forming regions (20 ≤ x ≤ 35 and 50 ≤ x ≤ 63) were translated to be 42.9 ≤ x_R ≤ 61.8 and 75 ≤ x_R ≤ 83.6, respectively. Since the x_R value corresponding to even the smallest x of 20 was already as large as 42.9, N₄ should decrease by increasing x_R and reach zero, referring to the cases of alkali borate and alkali-earth borate glasses. B-rich glasses might still have BO₄ units. However, x_R in La-rich glasses is much larger than 70, indicating that La-rich glasses may not have any BO₄ units.

Fig. 7(a) shows the results of ¹¹B MAS NMR of xLa₂O₃–(100 − x)B₂O₃ glasses. The ¹¹B-atom has I = 3/2 nuclear spin. In addition, the NMR spectrum is affected by a second-order quadrupole interaction that depends on three parameters: isotropic chemical shift (δ_iso), quadrupole coupling constant (C_Q), and quadrupole asymmetry parameter (η). δ_iso reflects the degree of connectivity of BO_n units. C_Q is a function of electric field gradient at the nucleus eq and nuclear quadrupole moment eQ, which can be accordingly defined as C_Q = e²qQ/h. C_Q is a measure of symmetry for a coordination shell around a nucleus. η describes the deviation of the electric field gradient from the axial symmetry.³⁷ The ¹¹B MAS NMR spectral decomposition for binary borate glasses is usually performed using one Gaussian/Lorentzian line for the BO₄ site and two quadrupolar lines including a Gaussian distribution on the chemical shift for BO₃ units.³⁸ The parameters δ_iso, C_Q, and η deduced from the fitting are shown in Table 1.

Fig. 7 (a) ¹¹B NMR spectra of xLa₂O₃–(100 − x)B₂O₃ binary glasses. (b) Composition dependence of N₄ values. The dashed line is a guideline.

Table 1 ¹¹B NMR parameters, chemical shift (δ_iso), quadrupolar constant (C_Q), and asymmetry parameter (η), extracted from spectral decompositions using the Gaussian/Lorentzian and Q MAS 1/2 models for the B4 and B3 signals, respectively

Sites	δ iso (ppm)	C Q (MHz)	η	Fraction (%)	N 4
x = 20					0.44
BO4	0.52	—	—	44
BO3 I	16.5	2.34	0.45	13
BO3 II	18.4	2.70	0.08	43
x = 25					0.41
BO4	0.73	—	—	42
BO3 I	17.4	2.34	0.4	21
BO3 II	19.3	2.79	0.08	37
x = 30					0.34
BO4	0.83	—	—	34
BO3 I	18.0	2.53	0.5	29
BO3 II	19.7	2.70	0.08	38
x = 50					0
BO4	—	—	—	0
BO3 I	—	—	—	0
BO3 II	21.3	2.67	0.08	100
x = 60					0
BO4	—	—	—	0
BO3 I	—	—	—	0
BO3 II	21.3	2.67	0.08	100

---

The sharp peak at approximately 0 ppm of δ_iso, which corresponds to BO₄ units, was clearly seen only in B-rich glasses. The relative peak intensity was decreased by increasing the La₂O₃ content, and it became zero in La-rich glasses. The fractions of BO₃ and BO₄ units were estimated using the integral of fitted curves and were used to calculate the N₄ value, as shown in Table 1. Fig. 7(b) shows the composition dependence of N₄ values, which agrees well with those of alkali borate and alkali-earth borate glasses considering the x_R value. Accordingly, the formation of BO₄ and BO₃ with nonbridging oxygen by the addition of modifier oxides can be discussed quantitatively and universally for alkali, alkali-earth, and rare-earth borate glasses.

Here, the details regarding the parameters for BO₄ and BO₃ peaks of the binary La₂O₃–B₂O₃ glasses were investigated. In the case of B-rich glasses, the observed shift of δ_iso for the BO₄ peak might be caused by the effect of BO₃ peaks, which even shifted to larger values from 0.5 to 0.83 by increasing the La₂O₃ content. The BO₄ sites had negligible second-order quadrupolar broadening with C_Q and η, indicating a high symmetrical environment around B-atoms.

The peak due to BO₃ units changed its shape and shifted to a large chemical shift in B-rich glasses, whereas the spectra of La-rich glasses were almost identical to each other in shape and position. The spectral change indicates the local structure change of BO₃ units. In order to discuss the local structure of the BO₃ unit using NMR parameters, the work reported by Kroeker and Stebbins is highly helpful.³⁹ They precisely examined the correlations between short-range structures around the BO₃ unit in various kinds of crystalline borate compounds and their chemical shift δ_iso. The values of δ_iso were clearly categorized by the bonding characteristics of trigonal BO₃ units, T⁰, T¹, T²-ring, T², T³-ring, and T³, where T and the superscripts mean the capital of trigonal and number of bridging oxygen atoms, respectively. It is indicated that δ_iso of BO₃ units in the range of around 10–25 ppm moved to the downfield region as the number of bridging oxygen atoms decreased, as in the inequality δ_iso(T⁰) ≥ δ_iso(T¹) > δ_iso(T²-ring) > δ_iso(T²) ≥ δ_iso(T³-ring) > δ_iso(T³). Kashiwakura et al. developed a two-dimensional map with δ_iso and η for a variety of T species.⁴⁰ The η values of BO₃ peaks were significantly small (<0.1) when the number of bridging oxygen atoms was zero or three, owing to the symmetrical electric field gradient around B-atoms. On the other hand, the η values of T¹ and T² became higher (≥0.4) because of the asymmetrical coordination of the boron nucleus.

These previous NMR data were acquired with an external magnetic field strength of 14.1 T, which is different from our experimental conditions. There may be a little concern about comparing our data with those ones. However, it was confirmed the differences in NMR parameters between 11.7 and 18.8 T are small enough.⁴¹ Therefore, the classification mentioned above is available for this study. For the spectra of x = 20, 25, and 30 glasses, there were two BO₃ NMR signals referred to as BO₃ I and BO₃ II. δ_iso of BO₃ II is larger than that of BO₃ I. Two δ_iso's shifted to high values by increasing the La₂O₃ content. η of BO₃ I was as large as 0.4–0.5, whereas that of BO₃ II was significantly small. BO₃ I was in the range between T¹ and T². By increasing the La₂O₃ content, BO₃ I shifted from the T² to the T¹ region.

For La-rich glasses, one BO₃ site is enough to fit the spectra. The large chemical shift of approximately 20 ppm and the small η correspond to T⁰ values and are also almost the same values of orthoborate LaBO₃. Therefore, in La-rich glasses, there was no BO₄ as expected from the simple estimation using chemical composition. In addition, there was no bridged BO₃, but isolated BO₃.

The Raman scattering spectra of xLa₂O₃–(100 − x)B₂O₃ glasses, as shown in Fig. 8, strongly support the composition dependence of the local structure around B and the existence of isolated BO₃ units as shown from the NMR results. In the B-rich region, the peak intensity of the spectra changed depending on the composition, whereas the shift was small. The band assignment for the spectra of B-rich glasses was carried out by referring alkali and alkali-earth borate binary glasses.^42,43 The bands of 659, 839, and 929 cm⁻¹ correspond to the B–O–B stretching vibration of BO₃ units in depolymerized groups with only BO₃ triangles such as metaborate rings, pyroborate groups, and orthoborate groups, respectively. The band of 768 cm⁻¹ is assigned to the vibration of the ladder-type ring unit (2BO₃ + 2BO₄ units) existing in the LaB₃O₆ crystalline structure. The band of 240 cm⁻¹ is due to La–O bonds. At x = 30, the band from orthoborate shifted to a low wavenumber side of 920 cm⁻¹, and the intensity was increased drastically. The band from pyroborate also shifted to a low wavenumber side and the intensity was slightly increased. These results agree with the composition dependence of N₄ values and NMR results, indicating the progress of fragmentation of the BO₃ network by increasing the La₂O₃ content.

Fig. 8 Raman scattering spectra of xLa₂O₃–(100 − x)B₂O₃ binary glasses.

By further increasing the La content, the spectra were almost identical to each other in La-rich glasses. In La-rich glasses, no peak shift and no intensity change were found. This means no change in the environment around B. There are intense bands at 602, 743, 917, 1190, and 1490 cm⁻¹, which correspond to the reported values for crystalline LaBO₃ of 585, 596, 621, 932, 1228, 1249, and 1369 cm⁻¹.⁴⁴ This result indicates that the local structure around B-atoms of La-rich glasses resembled that of crystalline LaBO₃. There is one B-site in crystalline LaBO₃. A B-atom is coordinated to three oxygen atoms, and the BO₃ units are isolated. The trigonal planar BO₃ units form an infinite net that lies perpendicular to the c-axis, with La³⁺ ions residing between the layers. Each La³⁺ is coordinated to nine oxygen atoms from six different borates.

From the results of NMR and Raman scattering spectra, it is concluded that La-rich glasses had only isolated BO₃ units, meaning a simple environment around B-atoms. The effect of the disappearance of a variety of BO_n units on the physical properties was seen in the IR spectra in Fig. 5. In the IR transmittance spectra at the B-rich composition, the absorption edge was approximately 2700 cm⁻¹. IR light below the energy was absorbed by multiple vibrations of various types of BO_n units. On the other hand, the absorption edge was 1500 cm⁻¹ in the La-rich composition, even though there were some absorption peaks between 2700 and 1500 cm⁻¹. The IR transmittance spectra of La-rich glasses are similar to those of crystalline LaBO₃.⁴⁵ The remnant absorption, thus, was caused by B–O vibration only in isolated BO₃ triangles. Therefore, the small value of the absorption edge of La-rich glasses was due to the absence of a variety of BO_n units, which caused large absorption in a wide region. Although binary borate glass systems are conventional in glass science, the simplification of the local structure around B-atoms caused the wide transmittance in the IR region. The La-rich glasses are suitable materials from UV to NIR regions with a high refractive index and low wavelength dispersion. Very recently, Tb-rich borate glasses with a large Faraday effect have been developed by a levitation technique.⁴⁶ These results indicate that there is still a possibility of adding further functionalities to conventional glass systems by extending glass-forming regions and tuning local structures.

Conclusion

xLa₂O₃–(100 − x)B₂O₃ glasses were fabricated via containerless processing using an aerodynamic levitation technique. In addition to the expansion of the glass-forming region in the B-rich composition, a new glass-forming region was discovered in La-rich regions. All of these glasses were colorless and transparent in the visible region. The absorption edge shifted to a long wavelength by increasing the La content. The refractive index increased monotonically by increasing the La content, and these glasses showed very low wavelength dispersion. The local structure around B-atoms was investigated. In La-rich glasses, completely isolated B-atoms were found. The few kinds of BO_n units decreased the multiphonon process and then new transmittance windows were obtained in the NIR region.
