Huijie Zhanga,
Kunlun Lib,
Xiaojun Zhangc,
Chenghu Dongd,
Haipeng Jid,
Runhui Kee,
Zhaojun Banf,
Yunfeng Hua,
Shaohua Ling and
Cunkun Chen*d
aCollege of Food Science and Engineering, Tianjin University of Science and Technology, Tianjin, China
bInstitute of Plant Protection, Tianjin Academy of Agricultural Sciences, Tianjin, China
cCollege of Food Science and Nutritional Engineering, China Agricultural University, Beijing, China
dNational Engineering Technology Research Center for Preservation of Agricultural Products, Key Laboratory of Postharvest Physiology and Storage of Agricultural Products, Ministry of Agriculture of China, Tianjin, China. E-mail: chencunkun@126.com
eChina National Research Institute of Food & Fermentation Industries Co., Ltd, Beijing, China
fZhejiang University of Science and Technology, Hangzhou, China
gDepartment of Food and Biological Engineering, Beijing Vocational College of Agriculture, Beijing, China
First published on 15th October 2020
Strawberries are highly popular around the world because of their juicy flesh and unique taste. However, they are delicate and extremely susceptible to peroxidation of their membrane lipids during storage, which induces water loss and rotting of the fruit. This study investigated the effects of ozone treatment on the physiological traits, active oxygen metabolism, and the antioxidant properties of postharvest strawberry. The results revealed that the weight loss (WL) and respiration rate (RR) of strawberry were inhibited by ozone treatment (OT), while the decline of firmness (FIR) and total soluble solids (TSS) were delayed. Ozone also reduced the generation rate of superoxide radical anions , and the content of hydrogen peroxide (H2O2) enhanced the activity of superoxidase (SOD), catalase (CAT), ascorbate peroxidase (APX), and monodehydroascorbate reductase (MDHAR), as well as promoted the accumulation of ascorbic acid (ASA), glutathione (GSH), and ferric reducing/antioxidant power (FRAP). In addition, a total of 29 antioxidant-related proteins were changed between the OT group and control (CK) group as detected by label-free proteomics during the storage time, and the abundance associated with ASA–GSH cycle was higher in the OT group at the later stage of storage, and the qRT-PCR results were consistent with those of proteomics. The improvement of the antioxidant capacity of postharvest strawberry treated with ozone may be achieved by enhancing the activity of the antioxidant enzymes and increasing the expression of the antioxidant proteins related to the ascorbic acid–glutathione (ASA–GSH) cycle.
Ozone is a strong oxidant with bactericidal properties and no residue and has been widely used in the storage of agricultural products, as it can help maintain a higher storage quality of fruit in terms of firmness,21 water loss,22 total soluble solids and titratable acids,23 respiration, and ethylene content.24 This is because ozone not only effectively inhibits the growth of microorganisms and reduces pesticide residues,25,26 but it also activates the antioxidant defense system of the fruit to remove active oxygen produced during physiological metabolism.27,28 The ozone-activated fruit antioxidant defense is mainly manifested in both enzymatic and non-enzymatic reactions. On the one hand, this induces the accumulation of non-enzyme antioxidant active substances, such as ascorbic acid (ASA), glutathione (GSH), and flavonoids.29–31 On the other hand, it enhances the activities of antioxidant enzymes, such as superoxidase (SOD), catalase (CAT), and ascorbate peroxidase (APX).32–34 Zhang et al. demonstrated that ozone treatment suppressed decreases in the ASA content and CAT enzyme activity to maintain the quality of postharvest strawberries.35 Chen et al. also found that the content of total phenols, flavonoids, and anthocyanins was increased in ozone treatment compared with the CK group to extend the storage time of postharvest strawberries.36 In addition, the content of ASA and the capacity of total antioxidants were increased in the OT group.37 However, studies on the antioxidant effects of ozone on postharvest strawberries are still relatively rare, especially on the regulation of the active oxygen metabolism and improvement of the antioxidant capacity.
The development of omics technology has provided a great aid to study the mechanism of postharvest agricultural products,38–40 especially the recent application of proteomics in fruit preservation, revealing the molecular level regulation mechanism of aging.41,42 Pan et al. discovered 5 protein candidate genes of sweet orange involved in carotenoid biosynthesis and regulation based on proteome and transcriptome analyses.43 Li used proteomics to study the aging mechanism of lychees and found that changed proteins were linked to active oxygen scavenging, glycolysis, tricarboxylic acid cycle, and ATP synthesis.44 Also, Jiao revealed the molecular mechanism of postharvest soybean sprouts induced by sodium nitroprusside was related to proteins from antioxidant progress, lipid peroxidation, and flavonoid synthesis through iTRAQ proteomics.45 Proteomics has an essential role to play in understanding the physiological and metabolic mechanisms of plants.
Our previous research also found that 10.72 mg m−3 was a suitable ozone concentration to prolong the storage time of postharvest strawberry, and the phenylalanine metabolic mechanism, which was explained using label-free quantitative proteomics.36 However, few studies have systematically elucidated the effects of ozone on the ASA–GSH cycle and reactive oxygen metabolism in postharvest strawberries. Therefore, the ‘Jingtaoxiang’ strawberry was used as an experimental material and was treated with ozone at 10.72 mg m−3 concentration to investigate the antioxidant mechanism. The effects of ozone treatment on the weight loss (WL), respiration rate (RR), firmness (FIR), total soluble solids (TSS), superoxide anion , hydrogen peroxide (H2O2), SOD, CAT, ferric reducing/antioxidant power (FRAP), and ASA–GSH cycles of strawberry fruit during storage were studied, and the active oxygen metabolism was investigated by unlabeled proteomics and verified by qRT-PCR technology.
The methods for assessing strawberry firmness (FIR) and respiration rate (RR) were performed as per our previous study.24 The results of FIR are expressed in newton (N) and the RR as mg kg −1 h−1 CO2.
The content of total soluble solids (TSS) was detected according to the method of Fuggate,48 and the TSS content is expressed as %.
The activity of catalase (CAT, EC 1.11.1.6) was determined according to the method of Xu et al.27 The CAT activity measured the absorbance of H2O2 that reacted with the enzyme extract at 240 nm, and the enzyme activity of 1 unit of CAT was defined as the amount of enzyme that reduced the absorbance by 0.01 at 240 nm min−1.
The ASA and GSH contents were determined according to the methods of Yin et al.52 and Israr et al.,53 respectively. The change in absorbance was measured at 525 nm to determine the ASA concentration, and the absorbance of GSH was determined at 412 nm. The contents of ASA and GSH were calculated according to the standard curve, and the unit is expressed as mg kg−1.
The enzyme activity of monodehydroascorbate reductase (MDHAR) was determined according to the MDHAR test kit produced by Shanghai Enzyme Biotechnology Co., Ltd. Fresh samples were taken according to the manufacturer's instructions, and the MDHAR activity was calculated by measuring the absorbance at 340 nm. One enzyme unit was defined as the amount of enzyme that oxidized 1 nmol of NADH per milligram of protein per minute at 25 °C.
Strawberry peptides were analyzed on a Q-Exactive HF mass spectrometer (Thermo Scientific, Waltham, MA, USA) and Ultimate 3000 system (Thermo Scientific). Tandem mass spectra were searched against Mascot 2.0 (Matrix Science, London, UK) using a UniProt sequence database. Raw spectral data were processed using SEQUEST software to extract the peaks. The obtained peak lists were analyzed using the Proteome Discoverer (Thermo Scientific, version 1.4) against strawberry RNA-seq sequences combined with the sequences of common impurities. The false discovery rates (FDR) were set to 0.01. A database for strawberry and all plant protein sequences can be searched using the UniProt sequence database, including Blast and UniProt annotation information in the protein database.

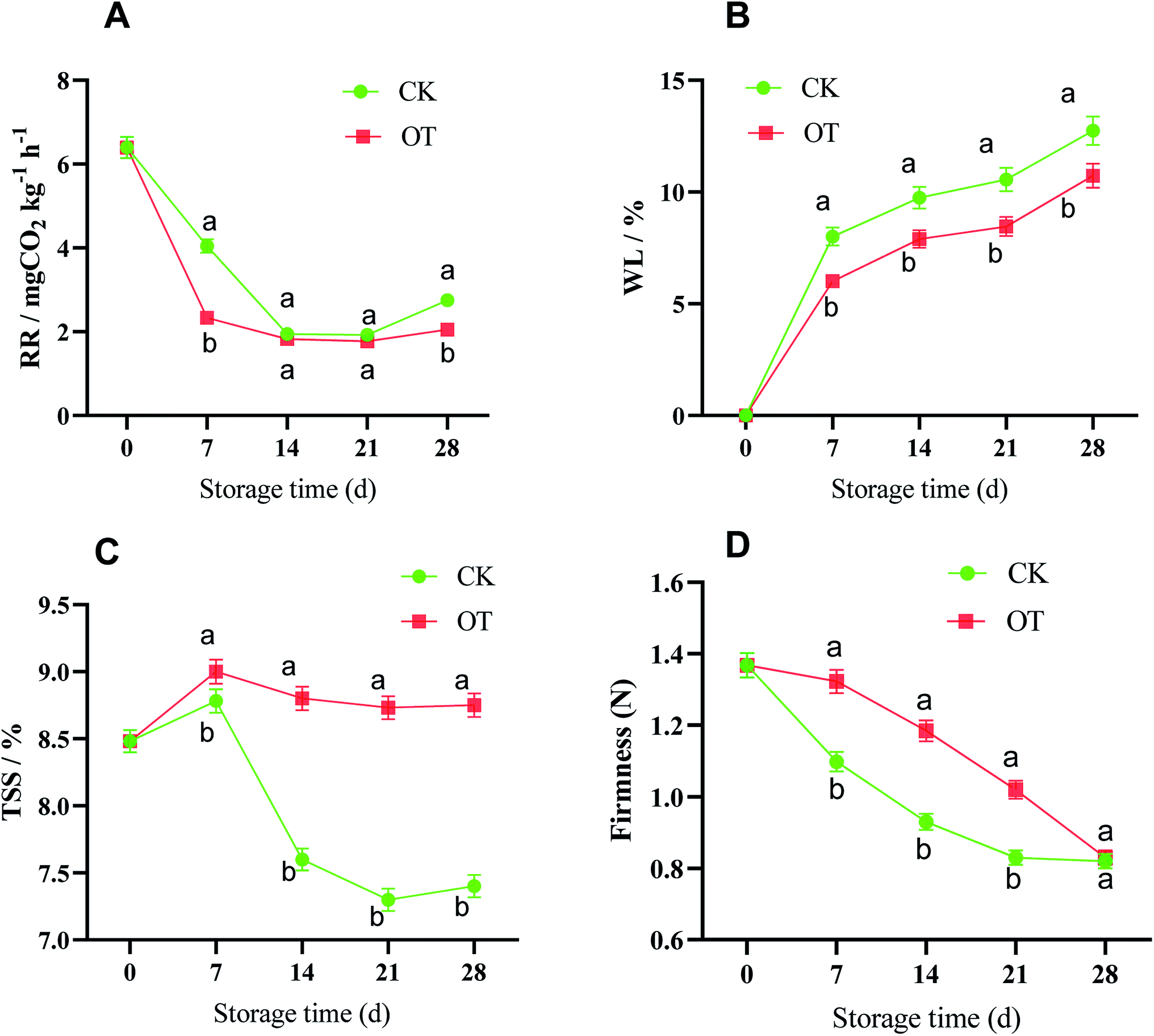

The respiration rate (RR), as an important indicator, reflecting the consumption of nutrients and the aging of the fruit, as shown in Fig. 2A. The change in the RR in strawberry fruit in the CK group and the OT group was consistent, but was suppressed in the OT group compared with the CK group, especially on day 7, where the RR of the OT group (2.32 mg kg−1 h−1 CO2) was 42.57% lower than that of the CK group (4.04 mg kg−1 h−1 CO2). A lower RR was also detected in ozone-treated papaya fruit (Carica papaya L.), cantaloupes, and coriander compared with the controls.24,27,34
Weight loss (WL) is a key sensory feature for evaluating vegetable and fruit quality,22 and is closely related to the transpiration and respiration of postharvest vegetable and fruit.54,55 In this study, the WL of both the CK and OT groups increased with the storage time, especially in the first 7 d, which may be related to the accelerated ventilation during refrigeration in the cold storage. Also, the OT group could effectively suppress the dehydration of the strawberry compared with the CK group during the whole storage, which may be why the respiration of fruit treated with ozone was inhibited and the energy embolism was reduced. Chen et al. also found a significant positive correlation between the reduction of respiration in their ozone-treated group and the WL of postharvest Toona sinensis, and the RR and WL were lower in the OT group compared with the CK group.22
Firmness (FIR) directly reflects the changes in the ripening and softening degree and storage quality of strawberry fruit after harvest because they are very susceptible to water loss and wilting.56 The trend of FIR was a decrease during the whole storage time in both the CK and OT groups; however, the value in the OT group was always significantly higher than that in the CK group, except on day 28, indicating that the strawberry pulp after ozone treatment was firmer. Ali believed that ozone had the advantages of delaying maturity and maintaining hardness in papaya fruit.57 The same phenomenon was also found in postharvest ‘Iedzenu’ apples.58 Ioannis concluded that ozone treatment significantly reduced kiwi fruit pulp softening and cell wall disintegration.59
Total soluble solids (TSS) have a positive effect on the formation of flavor and nutrients of fresh fruit,60,61 and the main component of these is sugars, followed by a small number of acids, vitamins, minerals, pectin, and some volatile compounds. Also, the decomposition of the TSS leads to a rapid decline in postharvest strawberry quality in middle and late storage.62 As shown in Fig. 2C, the TSS of strawberry increased first and then decreased in both the CK and OT groups throughout the storage period, with a peak on day 7. However, the TSS of the CK group decreased rapidly after the peak time, while the content was maintained at a high level in the OT group. Tests on ozone-treated papaya and mulberry also reached the same conclusion.23,57
A lower RR contributes to the accumulation of TSS, maintenance of FIR, and reduction of WL in postharvest fruit, all of which contribute to the appearance of postharvest fruit.55,63–65 A good appearance and retention of nutrients are not only beneficial to the market economic effects of postharvest strawberry, but also to the health of consumers. In this research, it was indeed found that ozone could inhibit the respiration of postharvest strawberry and maintain high quality based on the analysis of physical traits, but the mechanism of this was not clear. Gas exchange in the plant was limited under OT and this may be one of the reasons,66 but the mechanism of ROS metabolism, one of the most important factors that affect the aging and quality of postharvest fruit as confirmed in many studies,67,68 may be needed to unveil this phenomenon. Next, we explored the effect of OT on the key reactive oxygen species and their rate-limiting proteins.
SOD, a dismutase that catalyzes to H2O2, is the first line of defense to remove reactive oxygen species in plant cells,75 and to maintain the balance of reactive oxygen species and protect the structure of the cell membrane.76 CAT is a key enzyme for scavenging reactive oxygen species in plants, and can cooperate with POD to catalyze the decomposition of H2O2 into water and oxygen.77

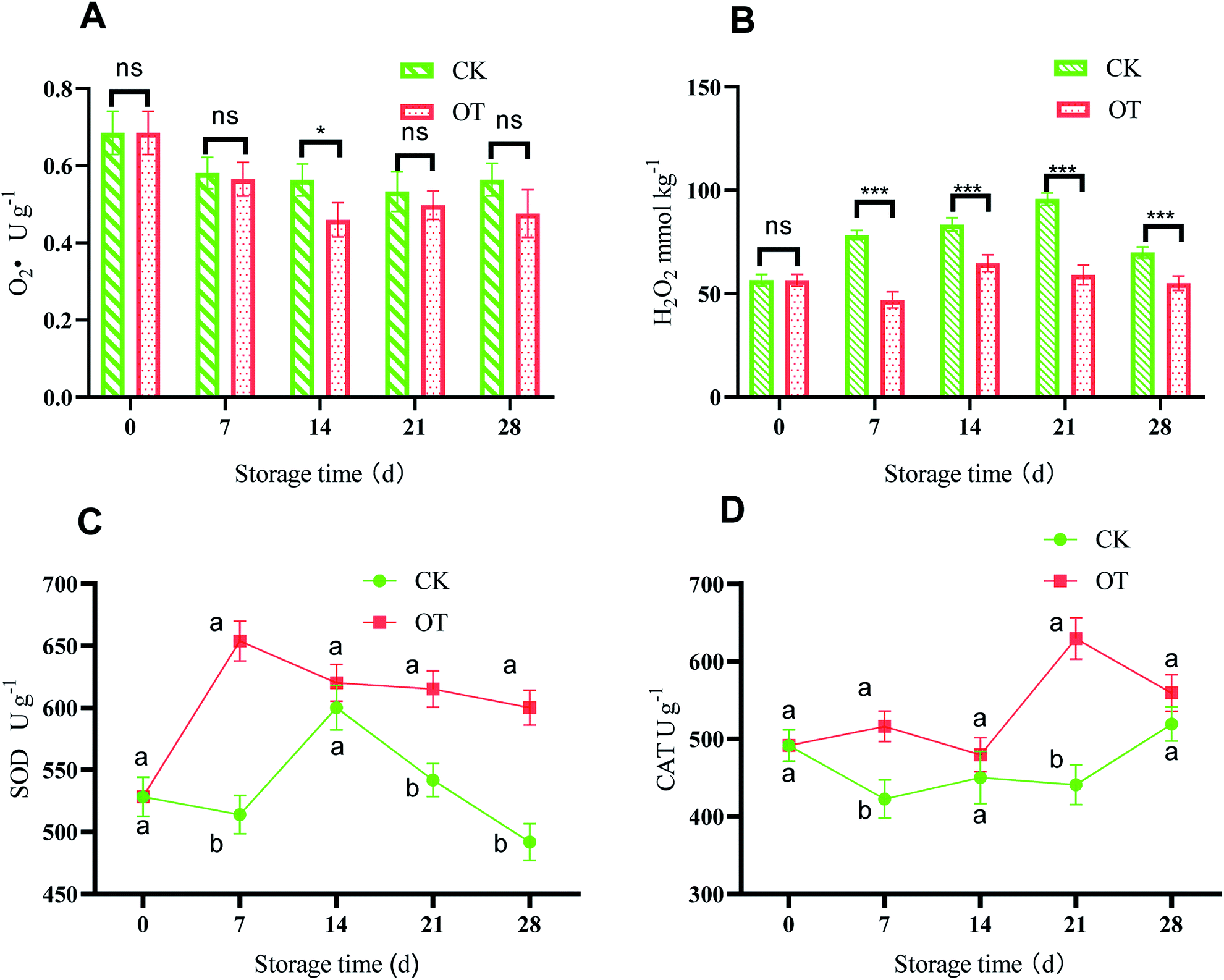

The changes in and H2O2 in different treatments are shown in Fig. 3A and B. The trend for the production of
was decreased in both the CK and OT groups at the beginning of storage, and the generation rate of
in the OT group was lower than that of the CK group during the entire storage period. At the same time, the content of H2O2 in the CK group continued to increase in the first 21 d and was significantly higher than that in the OT group during the entire storage period. This showed that the production of
and H2O2 in postharvest strawberry was inhibited by ozone treatment, which may be due to the induction of antioxidant enzymes by ozone to increase the metabolism of reactive oxygen species.
and H2O2 are the main active oxygen components in plants. The decrease in the
production rate in the treatment group and the CK group in the early storage period may be related to the low temperature. Kan et al. also found that low temperature can control the accumulation of active oxygen in peach to maintain quality.78 The generation rate of
in the OT group was lower than that in the CK group, which may be due to ozone-induced higher SOD activity in the harvested fruit, which led to the conversion of
to H2O2 under the catalysis of SOD. Tomasz et al. found that an appropriate concentration of ozone treatment could maintain higher SOD activity in postharvest raspberry, and the
and H2O2 produced by the fruit were significantly lower than those of the control.28
CAT and SOD are the criteria for evaluating antioxidant properties, and their high enzyme activity can help resist fruit aging. As shown in Fig. 3C, with the extension of storage time, the SOD activity of strawberry in the treatment group increased rapidly in the first 7 d and reached a maximum of 653.92 U g−1 on day 7, which was significantly higher than for the control (p < 0.05). After 7 d, the SOD activity of the treatment group decreased, but it was still significantly higher than that of the CK group. It can be seen that the SOD activity of strawberry was improved significantly in the OT group compared with the CK group and also its high peak appeared earlier. This may be because SOD is subjected to a certain degree of oxidative stress,79 and the appropriate ozone concentration stimulates the enzyme activity. From a molecular point of view, the increase of SOD activity may be due to the induction of the SOD gene and its isozyme gene expression by O3.80
Fig. 3D shows that the activity of CAT in the OT group was higher than that in the CK group during the entire storage period, especially on day 21, where the CAT of the OT group was 1.45 times that of the CK group. This indicated that ozone treatment stimulated the catalase activity of postharvest strawberry during the storage period. Zhang et al. found that ozonation inhibited the decrease in CAT and POD activities during storage, and improved the storage quality and extended the storage life of strawberry.35 Boonkorn et al. also found that the CAT activity of oranges treated with ozone was significantly higher than that of the CK group stored at room temperature for 3 d, which was consistent with our results, indicating that the CAT activity of postharvest strawberry could be enhanced by ozone.81
It can be seen from Fig. 4 that the total antioxidant capacity showed a trend of first increasing and then decreasing with the extension of storage time. The total antioxidant capacity of the treatment group was at a high level during days 7–28, and peaked on day 14 at 46.61 μmol FeSO4 g−1. Compared with the initial storage period, the OT group increased by 25.93%, and was significantly higher than that of the CK group of 38.94 μmol FeSO4 g−1 (p < 0.05). Except for the initial value, the total antioxidant capacity of the treatment group remained at between 42.81–46.61 μmol FeSO4 g−1. The FRAP of the CK group appeared on day 7, and was 49.48 μmol FeSO4 g−1, which was significantly higher than for the OT group (p < 0.05). As the FRAP of the CK group continued to decline, it was reduced to 26.70 μmol FeSO4 g−1 at the end of storage, which was significantly lower than that of the OT group (p < 0.05). OT can not only increase the FRAP of strawberry fruit, but also delay the time when the peak appears, especially at the end of storage, thus showing certain advantages. Alothman et al. also reached a similar conclusion.82 Fresh-cut pineapple and bananas were treated with ozone for more than 20 min, which significantly increased the total phenol and total flavonoids content of the fruit, which enables the fruit to obtain higher DPPH free radical scavenging capacity and FRAP. This conclusion was also supported by Sudheer et al.83

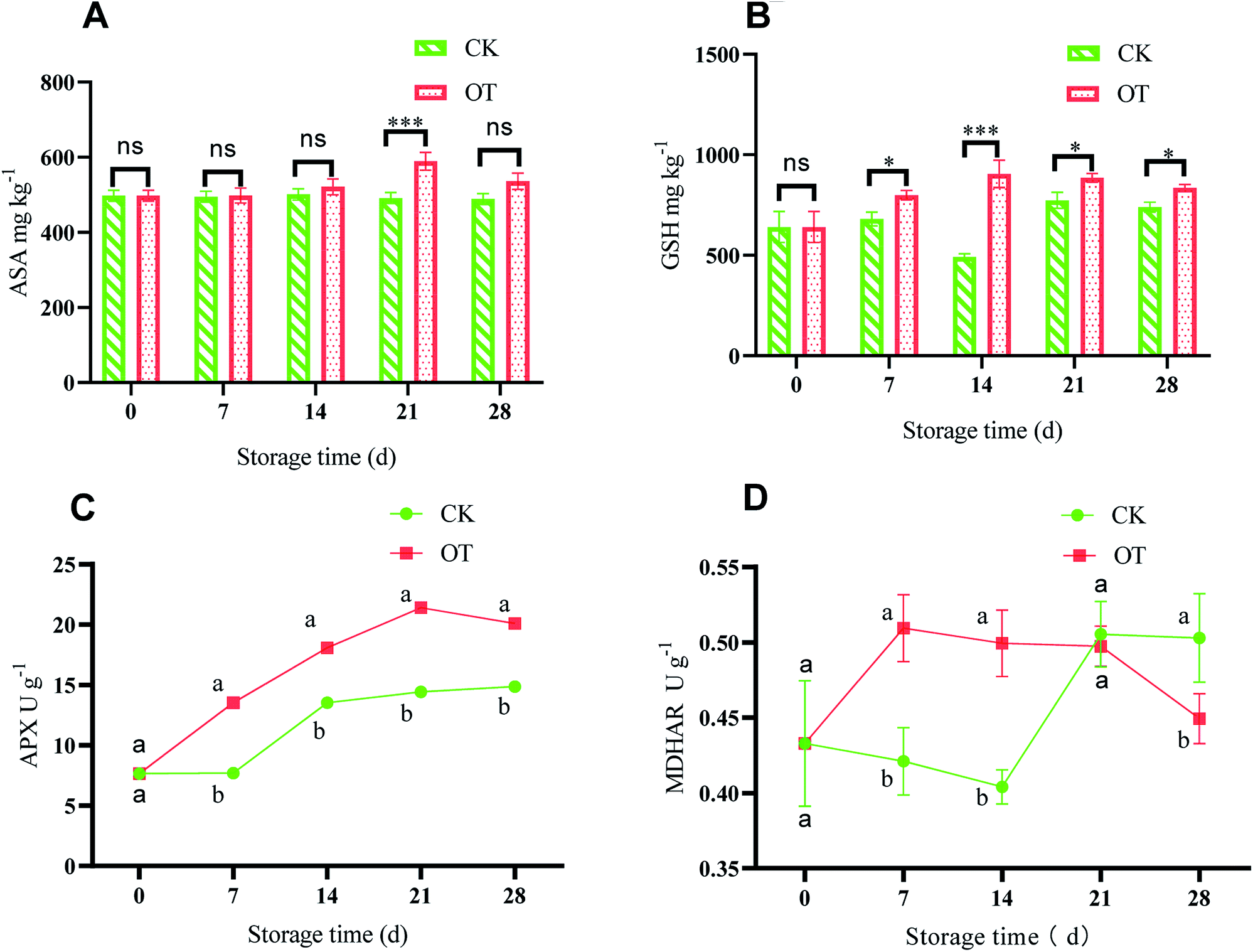

ASA with the function of eliminating various reactive oxygen plays a key role in improving antioxidant capacity.92 As shown in Fig. 5A, with the extension of storage time, the ASA content of strawberry in the CK group did not change much, while it first increased and then decreased in the OT group. Besides, the ASA content in the OT group was significantly higher than that in the CK group on days 21 and 28 during the storage (p < 0.05). Therefore, ozone treatment can significantly promote the production of ASA in strawberries during the storage, especially on days 21 and 28 (p < 0.05), which is beneficial to the cycle of ASA. The results of Ali were consistent with ours, and the peak value of ASA content in papaya treated with O3 was also delayed.57 Pérez et al. also found that the content of ASA in postharvest strawberry treated with ozone was increased compared with in their CK group.93
As a rich antioxidant in plant tissues, GSH participates in the detoxification of active oxygen, and H2O2 can be eliminated through the ASA–GSH cycle.94 As shown in Fig. 5B, with the extension of storage time, the GSH content in the OT group first increased and then remained stable, and it was higher than that in the CK group, indicating that production of GSH in postharvest strawberry was induced by ozone. Dumont also found that the total ASA and GSH contents of the three Euramerican poplar genotypes increased under the action of ozone.95 Also, the contents of ASA and GSH in the passion fruit liana were also stimulated by fumigation with ozone.96
APX is a key enzyme to eliminate large amounts of H2O2 in plants, and catalyzes ASA to MDHA under the oxidation of H2O2.97 Pang showed that the ASA–GSH cycle is an important part of a plant's active oxygen scavenging system, and APX is the key enzyme of the ASA–GSH cycle.90 As shown in Fig. 5C, the APX activity of the OT group continued to increase at first and reached a maximum of 21.41 U g−1 at day 21, which was significantly higher than that in the CK group (p < 0.05). Although the APX activity showed an increasing trend with storage time in the CK group, this was significantly lower than that of the OT group during the entire storage period. This indicated that O3 treatment could improve the APX activity and induce the cycle of ASA–GSH of postharvest strawberry. Goffi found that gradual cooling and ozone treatment increased APX activity levels in kiwifruit, and the activity of APX was positively correlated with the content of ASA.33 The APX activity of tangerine was also increased after ozone fumigation of tangerine.81
MDHAR is an important member of ASA metabolism. ASA is oxidized to MDHA, and MDHA is reduced to ASA by MDHAR.98 As shown in Fig. 5D, the activity of MDHAR in the early storage period was significantly higher in the OT group than in the CK group, but there was no significant difference at the later stage of storage. This indicated that MDHAR activity in the postharvest strawberry was induced by ozone at first, which was beneficial to the ASA–GSH cycle in the early storage time. The increased MDHAR activity was beneficial to the maintenance of ASA content in tomato fruit.99
On the whole, the productions of and H2O2 in the OT group were lower than in the CK group, and the ROS-removal enzyme activity and the content of antioxidants in the OT group were higher than those in the CK group. Ozone treatment improved the ability of eliminating ROS by promoting postharvest strawberry antioxidant systems. This may be due to the increase in free radicals produced by the appropriate concentration of ozone that could induce the strawberry antioxidant system. Huan also found that the antioxidant enzyme system was induced by the production of ROS.74,100 At the same time, the activity of antioxidant enzymes, such as APX and MDHAR, produced more non-enzymatic antioxidants, such as ASA and GSH.101 However, it is unknown whether the expression levels of these key enzymes are also induced by ozone.
Sample | Weight (g) | Optical density | Protein concentration (g L−1) | Total volume (μL) | Total protein (μg) | Volume of electrophoresis (μL) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
a Values are mean ± standard deviation of three replicates; where CK 0 is the initial time, and CK 7 and CK 21 are the CK group at day 7 and day 21; OT 7 and OT 21 are the OT group at day 7 and day 21. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CK 0 | 0.8 ± 0.01 | 1.026 ± 0.014 | 1.74 ± 0.04 | 150 | 261 ± 6 | 14.43 ± 0.33 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CK 7 | 0.8 ± 0.02 | 1.054 ± 0.031 | 1.88 ± 0.06 | 150 | 287 ± 9 | 12.55 ± 0.39 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
OT 7 | 1.0 ± 0.05 | 1.213 ± 0.062 | 2.86 ± 0.13 | 150 | 423 ± 19.5 | 9.01 ± 0.42 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CK 21 | 0.8 ± 0.01 | 1.059 ± 0.019 | 1.98 ± 0.08 | 150 | 297 ± 12 | 12.57 ± 0.51 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
OT 21 | 1.0 ± 0.03 | 1.177 ± 0.052 | 2.64 ± 0.12 | 150 | 414 ± 18 | 9.43 ± 0.41 |
The antioxidant capacity of plants is not only related to the activity of antioxidant proteins as many studies have proved that the increased expression of antioxidant genes and proteins could also improve the antioxidant capacity of plants. Wang et al. found that the specific PbrSODs mRNA expression levels of PbrCDS5, PbrCDS6, PbrFSD1, and PbrMSD2 after pear ripening are considered to be positively correlated with SOD activity. Through 1-MCP fumigation, the expression levels of PbrCDS5 and PbrFSD1 were upregulated, while ethephon treatment inhibited their expression, which was consistent with the decrease in SOD activity and the increase in ROS levels.102 It was also found that the SOD activity and the expression of the mSOD1 gene were high in the fruit of cucumber transferred with cassava mSOD1 compared with the CK group, which shows it played a defensive role against oxidative stress.103 The expression level of CAT and enzyme activity in transgenic plants were increased under the regulation of transcription factor (PtrbHLH), leading to a decrease in ROS accumulation under low-temperature stress.104 The overexpression of AO (ascorbate oxidase) in transgenic tobacco plants led to a decrease in H2O2 content and induced increased levels of ASA cycle-related genes, such as APX, DHAR, and GR, to delay dark-induced senescence.105 The activity and transcriptional abundance of APX and GR in cantaloupe were increased within 1 day post-spore-inoculation to activate the process of H2O2 removal in the early stage of fruit treatment.106 The relative expressions of MDHAR and DHAR were positively correlated with the accumulation of ASA in the peel and pulp of citrus fruit, respectively, which helped to increase the circulatory capacity of ASA–GSH.107 MDHAR allele was also considered as a candidate gene for increasing the ASA content in tomato.99 Eltelib's group found that the expression of MDHAR could be detected in overripe acerola and the transcription level of DHAR was highest in the middle stage of the fruit maturity.108 GSH can reduce H2O2 to water under the catalysis of GPX.109 Liang found that there were significantly more GST upregulated genes (28) than downregulated genes (3) in kiwifruit under the treatment of exogenous melatonin, which may be due to the increase in the GST transcription level to reduce the generation of free radicals and to improve the plant's oxidation resistance.110 The antioxidant capacity of tobacco was enhanced by the overexpression of GST and GR genes simultaneously.111 The transcription levels of PpAPXs, PpMDHARs, PpDHARs, and PpGRs were upregulated and the accumulation of ASA was stimulated in postharvest peach fruit treated with melatonin to remove H2O2 and to reduce oxidative damage.88 In addition, Liang et al. showed that the pattern of ASA metabolism in kiwifruit was consistent with the changing pattern of mRNA expression levels of AO2, APX3, GR1, and DHAR1.112 Different treatments improved the antioxidant capacity of fruits and vegetables, and there was a certain correlation between antioxidant enzymes and transcription abundance. The activity and transcription levels of SOD, CAT, APX, and GR, as well as the expression levels of AO, APX, DHAR, GR, and GST, increased, leading to a decrease in ROS accumulation. The regulation of AO, APX, GR, MDHAR, and DHAR mRNA expression levels was consistent with the change law for the ASA content. The upregulation of their transcription levels promoted the accumulation of ASA, eliminated H2O2, reduced the generation of free radicals, and enhanced the antioxidant capacity.

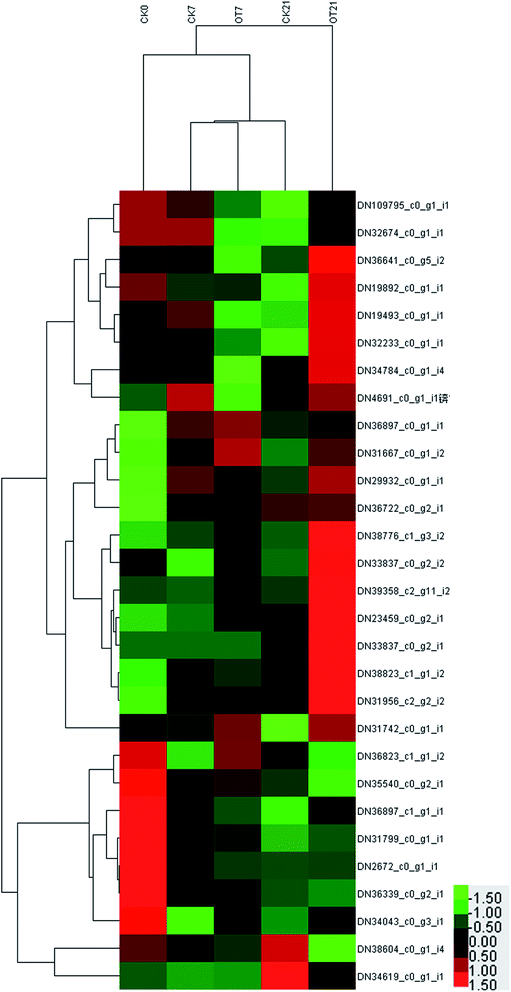

As shown in Table 2 and Fig. 6, a total of 29 antioxidant-related proteins were changed, of which 3 proteins were identified as L-ascorbate oxidase (L-AO); 4 proteins were identified as ascorbate peroxidase (APX); 2 proteins were dehydroascorbate reductase (DHAR); 1 protein was identified as monodehydroascorbate reductase (MDHAR); 2 proteins were glutathione peroxidase (GPX); 10 proteins were identified as glutathione S transferase (GST); 1 protein was identified as glutathione reductase (GR); 3 proteins were identified as superoxide dismutase (SOD); 1 protein was identified as catalase (CAT); and 2 proteins were identified as peroxidase (POD).
Accession | Blast-hit | Blast-hit-description | FC(CK 7/CK 0) | FC(CK 21/CK 0) | FC(OT 7/CK 0) | FC(OT 21/CK 0) | FC(OT 7/CK 7) | FC(OT 21/CK 21) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
a Where the accession is the number of proteins, and the Blast-hit protein is the most homologous protein obtained by comparison with the nonredundant database of the National Center for Biotechnology Information (NCBI); CK 0 is the initial time, and CK 7, OT 7, CK 21, and OT 21 are for the CK group and OT group on day 7 and 21, respectively. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN109795_c0_g1_i1 | A0A0B2QFU7 | L-Ascorbate oxidase like | 0.958 | 0.711 | 0.802 | 0.935 | 0.837 | 1.316 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN19493_c0_g1_i1 | A0A0V0IGF6 | Putative L-ascorbate oxidase-like | 1.108 | 0.882 | 0.857 | 1.192 | 0.774 | 1.352 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN36897_c0_g1_i1 | A0A1S4AXF2 | L-Ascorbate oxidase homolog | 1.450 | 1.225 | 1.500 | 1.388 | 1.034 | 1.133 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN36641_c0_g5_i2 | A0A067XJ96 | Cytosolic ascorbate peroxidase | 0.850 | 0.783 | 0.647 | 1.183 | 0.761 | 1.511 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN36823_c1_g1_i2 | M9QZ26 | Chloroplast ascorbate peroxidase (fragment) | 0.651 | 0.761 | 0.936 | 0.642 | 1.437 | 0.843 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN36897_c1_g1_i1 | O48919 | Cytosolic ascorbate peroxidase | 0.650 | 0.515 | 0.610 | 0.767 | 0.938 | 1.489 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN19892_c0_g1_i1 | M9QZ14 | Dehydroascorbate reductase (fragment) | 0.650 | 0.453 | 0.654 | 1.119 | 1.006 | 2.473 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN31799_c0_g1_i1 | S4VM76 | Dehydroascorbate reductase | 0.721 | 0.574 | 0.644 | 0.618 | 0.894 | 1.077 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN38776_c1_g3_i2 | A0A1S4CLG2 | Monodehydroascorbate reductase 5, mitochondrial-like isoform X2 | 1.102 | 1.086 | 1.345 | 1.686 | 1.221 | 1.552 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN32674_c0_g1_i1 | M9R5M8 | Mitochondrial ascorbate peroxidase (fragment) | 1.000 | 0.541 | 0.553 | 0.794 | 0.553 | 1.467 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN32233_c0_g1_i1 | M5WVT4 | Glutathione peroxidase | 1.059 | 0.510 | 0.696 | 1.324 | 0.657 | 2.596 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN39358_c2_g11_i2 | K9LWY5 | Glutathione reductase | 0.968 | 1.018 | 1.144 | 2.113 | 1.182 | 2.076 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN23459_c0_g2_i1 | A0A061G4E6 | Glutathione peroxidase | 1.065 | 1.261 | 1.196 | 1.717 | 1.122 | 1.362 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN2672_c0_g1_i1 | W9S5P8 | Putative glutathione S-transferase | 0.322 | 0.238 | 0.253 | 0.244 | 0.785 | 1.025 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN29932_c0_g1_i1 | A0A193KWW8 | Glutathione S-transferase U22 | 1.589 | 1.267 | 1.456 | 1.678 | 0.916 | 1.325 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN31667_c0_g1_i2 | A0A061FY71 | Glutathione S-transferase tau 9 | 1 | 1 | 1 | 1 | 1.485 | 2.884 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN31742_c0_g1_i1 | M5WTI5 | Glutathione S-transferase Riant1 | 0.932 | 0.770 | 1.114 | 1.136 | 1.195 | 1.475 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN33837_c0_g2_i1 | A0A1C7A0M2 | Phi class glutathione S-transferase | 1.000 | 1.064 | 1.000 | 1.191 | 1.000 | 1.120 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN33837_c0_g2_i2 | A0A1C7A0M2 | Phi class glutathione S-transferase | 0.754 | 0.895 | 1.200 | 1.486 | 1.591 | 1.660 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN34043_c0_g3_i1 | A0A061FH05 | Glutathione S-transferase TAU 19 | ND | 0.195 | 0.592 | 0.535 | ND | 2.738 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN34784_c0_g1_i4 | W9QWL1 | Glutathione S-transferase L3 | 0.992 | 1.088 | 0.976 | 1.248 | 0.984 | 1.147 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN35540_c0_g2_i1 | A0A1J6IGD0 | Putative glutathione S-transferase | 0.692 | 0.670 | 0.850 | 0.546 | 1.228 | 0.815 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN38823_c1_g1_i2 | A0A0X9LEN0 | Glutathione S-transferase 1 | 2.241 | 2.184 | 1.770 | 4.759 | 0.790 | 2.179 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN31956_c2_g2_i2 | B2CP37 | Superoxide dismutase [Cu–Zn] | 2.400 | 2.160 | 2.060 | 4.100 | 0.858 | 1.898 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN36339_c0_g2_i1 | M9R044 | Superoxide dismutase (fragment) | 0.695 | 0.644 | 0.678 | 0.622 | 0.976 | 0.966 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN36722_c0_g2_i1 | H9TEU1 | Superoxide dismutase [Cu–Zn] | 1.701 | 1.896 | 1.753 | 1.922 | 1.031 | 1.014 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN38604_c0_g1_i4 | M9R036 | Catalase (fragment) | 0.718 | 1.154 | 0.611 | 0.309 | 0.850 | 0.267 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN34619_c0_g1_i1 | M5W6X8 | Peroxidase | 0.479 | 7.041 | 0.562 | 3.858 | 1.172 | 0.548 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DN4691_c0_g1_i1 | M5WIW4 | Peroxidase | 1.268 | 1.049 | 0.894 | 1.244 | 0.705 | 1.186 |
Compared with the initial time, the expressions of 9 proteins in the CK group were downregulated on the 7th day of storage, which comprised 2 APX proteins, 2 DHAR proteins, 2 GST proteins, and 1 SOD protein, 1 CAT protein, and 1 POD protein. Also, the expressions of 11 proteins were downregulated in the OT group on day 7 compared with the initial time, respectively: comprising 3 APX proteins, 2 DHAR proteins, 1 GPX protein, 2 GST proteins, 1 SOD protein, 1 CAT protein, and 1 POD protein. The abundances of DN34619_c0_g1_i1 (POD), DN38604_c0_g1_i4 (CAT), DN36339_c0_g2_i1 (SOD), DN2672_c0_g1_i1 (GST), DN31799_c0_g1_i1 (DHAR) and DN36897_c1_g1_i1 (APX) were lessened in both the CK and OT group on day 7. At the same time, the number of upregulated proteins in both the CK and OT groups that were the same was five, comprising: DN36722_c0_g2_i1 (SOD), DN31956_c2_g2_i2 (SOD), DN38823_c1_g1_i2 (GST), DN29932_c0_g1_i1 (GST), DN36897_c0_g1_i1 (AO). These results suggested that the expression of proteins related to antioxidant behavior significantly occurred during the early storage. Also, as shown in the trend clustering graph, the changed proteins between the OT group and the CK group were not large during the early storage period, which can infer that the strawberry protein changes in the early storage period may be mainly caused by low temperature.
On the 21st day, there were 10 proteins and 7 proteins in the CK, and OT groups that were downregulated on day 21 compared with initial time, 5 of which were the same proteins. Also, 6 proteins identified as POD, SOD, GST, and GPX were upregulated in both the CK and OT groups, and the expressions of another 5 proteins related to ASA–GSH were found to be more abundant in the OT group compared with the initial time. The results indicated that the ozone mainly induced the ASA–GSH cycle-related proteins of postharvest strawberry at the end of the storage. In addition, as shown in Fig. 7C and Table 2, the expressions of 17 proteins were more abundant in the OT group compared with the CK group, while only 2 proteins were downregulated. Interestingly, the downregulated proteins in the OT group were CAT (DN38604_c0_g1_i4) and POD (DN34619_c0_g1_i1), while 16 of the upregulated proteins were related to the ASA–GSH cycle and another 1 protein was SOD; these results revealed that the expressions of CAT and POD of strawberry after harvest were inhibited, and ozone mainly activated the ASA–GSH pathway to reduce the accumulation of H2O2. This study thus demonstrated that the appropriate concentration of ozone treatment can stimulate the fruit ASA–GSH cycle to achieve the purpose of removing active oxygen.96 H2O2 itself is the reaction substrate of CAT and the content of H2O2 is positively correlated with the expression of CAT,113,114 which may be the reason for both the reduction of the H2O2 content and the expression of CAT in the later storage period. Besides, POD not only had the ability to catalyze the removal of hydrogen peroxide but was also related to the decline of the fruit quality and plant senescence.115,116 Studies have shown that POD is one of the key enzymes for the browning of postharvest fruit,117 and Ting et al. also found that both POD activity and POD genes were closely related to the browning of fresh-cut lotus root.118 The changes of CAT and SOD protein and enzyme activity were not synchronized; indicating that the storage quality is regulated by both enzyme activity and protein expression.
![]() | ||
Fig. 7 Variation trend of the oxidation-related proteins in the OT group and CK group throughout the entire storage period; (A) is the CK group; (B) is the OT group; (C) is the OT group/CK group. |
On the whole, the expression of antioxidant proteins was changed with the storage time. On the 7th day of storage, there was no significant difference in the expression of antioxidant proteins between the CK group and the OT group. However, the abundance of most proteins related to the ASA–GSH cycle in the OT group was significantly high than that in the CK group on day 2, which was consistent with the trend of the expression of proteins related to phenylalanine metabolism in our previous study. This indicated that the ozone treatment has a positive effect on the expression of the ASA–GSH cycle proteins of postharvest strawberry in the late storage period, and that the changes in the expression of antioxidant proteins in the early storage may be related to low temperature.
