Fabrication of flower-like bismuth vanadate hierarchical spheres for an improved supercapacitor efficiency

Abstract

A cost-effective and simple method has been developed for the preparation of flower-like hierarchical spheres of semiconductor oxide materials. Efficient self-assembly of BiVO₄ flower-like hierarchical spheres was performed via a simple hydrothermal method, followed by calcination at 500 °C. X-ray diffraction (XRD) studies distinguished diffraction planes of the monoclinic BiVO₄ phase, which was further confirmed by field emission scanning electron microscopy (FESEM) analysis. The electronic and optical properties of BiVO₄ were studied via X-ray photoelectron spectroscopy (XPS) and UV-visible spectroscopy. XPS analysis confirmed the binding energy relations and the formation of BiVO₄, and also an increase in the Bi–O, V–O bond strengths in BiVO₄. The remarkable efficiency of pseudocapacitor electrode materials depends on the consistent fabrication of nano architectures. The carbon-free BiVO₄ electrodes showed a higher specific capacitance of 1203 F g⁻¹ at 2 A g⁻¹, without detectable degradation after 2000 cycles and a beneficial cycling stability was achieved because of the electrochemical activity of the distinctive porous hierarchical architecture. Our synthetic method suggests a simple procedure for the design and fabrication of bismuth vanadate hierarchical nano architectures, encouraging electrochemical energy storage. These nanocomposites could be utilized as anode materials in lithium-ion batteries.

---

Introduction

The fabrication of 3D micro/nanostructures with hierarchical or complex structures in recent years have gained considerable recognition for their popularity in numerous fields,^1–3 such as medicine,^4–8 microfluidics,^9,10 electronics,^11–13 optics,^14–16 and chemistry.^17–19 Encouraged by the great multiplicity of fascinating properties, researchers have carried out experiments to find out new functionalities and used various methods for preparing multiscale hierarchical surfaces or three-dimensional (3D) structures. The inorganic nanomaterials show large numbers of size and shape-dependent properties. Therefore, synthesizing nanomaterials with controlled shape, size, dimension and structure has unique implications.^20,21 Extensive examination of hierarchical nanostructures made from nanocrystals, such as nanoparticles,²² nanowires/belts/rods^23,24 and nanoplates/sheets/disks,^25,26 showing exclusive physical and chemical properties different from that of the nanocrystals. Numerous hierarchical nanostructures with metals,²⁷ oxides,^28,29 sulfides,^30–34 hydrates,³⁵etc.,^36–38 have been fabricated for multiple applications. Therefore, discovering and exploring new nanoarchitectures or hierarchical nanostructures are promising for next-generation devices. Besides their abilities and properties, addressing fundamental science questions and their utilization in technical applications is much needed.

The supercapacitors play a important role in next-generation energy storage systems, because of its attractiveness as a source of energy. In contrast to batteries, they are high-power storage devices, maintenance-free, thus providing a long life-cycle with rapid charge–discharge. They require a simple charging system without a memory effect, which is more secure than the conventional storage devices. Physical energy storage is advantageous over chemical energy storage for operational safety with more extended periods. Thus, supercapacitors satisfy longer lifecycles because of their high charging and discharging rates. Supercapacitors have a better reputation mainly to electric vehicles and their remarkable potential to facilitate future journeys. In the recent times, there have been extensive efforts to develop novel electrode materials with higher capacity, unique and more compatible miniature designs. More advances in optimizing electrode materials such as surface morphology, crystallinity, porosity, surface chemical reactivity, capacitance, and storage efficiency play an important role in deciding the supercapacitor quality, which may help to maximize supercapacitors’ widespread potential as power storage devices.^39,40 Pseudo-capacitors are excellent candidates to solve the efficiency difference between batteries and supercapacitors.

To overcome the above-mentioned issues, the BiVO₄ ternary oxide semiconductor is drawing attention due to its superior attributes such as nontoxicity, solar light utilization for water splitting,^41–44 toxic chemical degradation,^45–50 and high stability and low bandgap (2.4 eV) in nature. However, the photo-induced BiVO₄ charge carriers (electron and holes) can easily recombine, leading to poor photocatalytic efficiency.^51–53 BiVO₄ has three stable crystalline forms: namely the monoclinic scheelite structure (ms-BiVO₄), tetragonal zircon (tz-BiVO₄), and tetragonal scheelite (ts-BiVO₄). Among them, ms-BiVO₄ exhibits better electron conductivity⁵⁴ and light-induced catalytic activity relative to other forms. The band structure of BiVO₄ with conduction and valence bands comprising of V 3d, Bi 6s, and O 2p orbitals are characteristic nature of BiVO₄. Hence, numerous researchers focus on developing visible light-active photocatalysts using BiVO₄^55–57 compared to their energy storage-related applications. The list of previous BiVO₄-based energy storage works is limited, and their specific capacitance results are summarized in Table 1.

Table 1 List of BiVO₄ literatures on supercapacitor applications

No.	Source materials	Synthesized product	Method, temperature & time	Specific capacitance	Structure & morphology	Ref.
1	Graphene oxide, Bi(NO3)3·5H2O, NH4VO3	Gr/BiVO4	Hydrothermal 180 °C	479 F g^−1 at 5 A g^−1	Free standing composites	Deng et al., 2018^60
2	Bi (NO3)3·5H2O, NH4VO3, Graphene oxide,	rGO/BiVO4	Hydrothermal 180 °C – 24 h	94.83 F g^−1 at 1.4 A g^−1	Rod-like structures	Patil et al., 2016^62
3	Bi (NO3)3·5H2O, Na2VO3, NaOH, Sodium dodecyl benzene sulfonate (SDS), GO	rGO/BiVO4	Hydrothermal 200 °C – 1.5 h	400 F g^−1 at 5 mV s^−1	m-BiVO4 nanoparticles on/rGO	Dutta et al., 2018^59
4	Bi (NO3)3·5H2O, NH4VO3, Sodium dodecyl benzene sulfonate (SDS)	SWCNT/BiVO4	Hydrothermal 160 °C – 18 h	395 F g^−1	m-BiVO4 nanoparticles on/SWCNT	Khan et al., 2014^61
5	Bismuth oxyiodide electrodeposited on FTO, annealed at 450 °C in vanadyl acetylacetonate	rGO/BiVO4	Annealed at 450 °C	141.8 F g^−1 at 0.2 A g^−1	m-BiVO4/rGO	Roy et al., 2020^63
6	Bi (NO3)3·5H2O, NH4VO3, Graphene oxide,	rGO/BiVO4	Hydrothermal 180 °C – 24 h	484 F g^−1 at 5 mV s^−1	BiVO4/rGO nanocomposites	Sengottayan et al., 2019^64
7	Bi (NO3)3·5H2O, NH4VO3, Polymerization: aniline, H2SO4, potassium peroxoxdisulphate	BiVO4/PANI	Solution synthesis at 120 °C – 12 h annealed at 400 °C – 3 h	701 F g^−1 at 1 A g^−1	BiVO4/PANI nanocomposites	Srinivasan et al., 2020^65
8	Bi (NO3)3·5H2O, NH4VO3, AgNO3, NaBH4	BiVO4: Ag	Solution synthesis	109 F g^−1 at 1 A g^−1	BiVO4 nanosheets/Ag nanoparticles hybrid	Zhang et al., 2017^66
9	Bi (NO3)3·5H2O, NH4VO3, Graphene oxide, sodium dodecyl benzene sulfonate (SDS)	PRGO/BiVO4 for Li-Ion batteries	Hydrothermal 180 °C – 12 h	160 F g^−1 at 0.9 A g^−1	Nanorods of BiVO4/PRGO	Dubai et al., 2018^58
10	Bi (NO3)3·5H2O, NH4VO3	BiVO4	Hydrothermal 220 °C – 24 h	1203 F g^−1 at 2 A g^−1	Nanosheets composed hierarchical m-BiVO4	This work

---

According to our literature survey, in almost all of the BiVO₄-based energy storage devices,^58–66 the materials were fabricated by a hydro/solvothermal process, and the temperature ranged from 120 °C to 220 °C. The source materials of bismuth nitrate pentahydrate and ammonium vanadate are common in the presence of nitric acid solvent. However, the use of graphene/reduced graphene oxide or other conductive materials in support of BiVO₄ is dominant in improving the conductivity of the electrodes for supercapacitor applications. Up until this point, only few studies have been accounted for BiVO₄ as an anode material for supercapacitors. In recent times, it has been proven that BiVO₄ can improve the performance of supercapacitors as an electrode material due to its admirable physicochemical behavior and high stability. This study focuses on flower-shaped BiVO₄ for supercapacitor application without addition of any noble metals (such as Au and Ag) or carbon materials (such as RGO, SWCNT, and graphene) etc. The addition of noble metals, graphene, reduced graphene oxides are more expensive. Controlling only the shape of BIVO₄ may influence the higher activity. The overall approach result with the nanocomposites of different morphologies ranging from particles to nanorods. The morphological and surface area of the BiVO₄ material is essential in addition to its structural control (m-BiVO₄). The highest specific capacitance of 479 F g⁻¹ was achieved by Deng et al. with the current density of 5 A g⁻¹. Here, graphene was used as the conducting support and the effect of the structural and morphological features of BiVO₄ was not explicated towards its specific capacitance.⁶⁰

Thus, we present a facile and robust one-step^67–69 carbon-free synthesis of BiVO₄ hierarchical structures via a hydrothermal method and achieved the highest specific capacitance for supercapacitor applications. This surfactant-free process approach is energy-efficient and reliable for structure and morphological control. The detailed results and discussions are as follows.

Experimental section

Materials and methods

Bismuth nitrate pentahydrate [Bi(NO₃)₃·5H₂O, purity of 98%] and ammonium metavanadate (NH₄VO₃, purity of 99.0%) were purchased from Sigma-Aldrich. Solvents of 1 M HNO₃ (70% pure), sodium hydroxide and ethanol were purchased from Merck. All the chemical products were of analytical grade and used without further purification. All the tests were done using deionized (DI) water.

The hydrothermal method was used to synthesize BiVO₄. First, 30 mL of NH₄VO₃ (5 mmol) was preheated to 75 °C and then 30 mL of Bi(NO₃)₃·5H₂O (5 mmol) aqueous suspension was added and stirred for 15 min until it turns into light-yellow solution. Then pH of the solution mixture was adjusted to 7 with dilute NaOH. Further, stirring was carried out for 30 min before transferring into a 100 mL volume Teflon-lined stainless autoclave and kept at 220 °C for 24 h. After the reaction, the products were washed with DI water, absolute ethanol, acetone and centrifuged. This process was repeated five times to obtain pure precipitate without any impurities and unreacted products. The dried sample was calcined at 500 °C in an ambient air atmosphere for 5 h to get the BiVO₄ nanomaterial.

Characterizations

A variety of analytical measurement techniques were utilized to characterize the as-prepared BiVO₄ material. A field emission scanning electron microscope (FESEM, Hitachi S-4100) was used to visualize the morphology of the material. Before the measurement, the sample was prepared on a carbon tape platform and coated with platinum by a magnetron sputter for 5 min. Morphological and microstructural behaviors of BiVO₄ nanosheets were studied via high-resolution transmission electron microscopy (TEM, JEM-2100, JEOL, Japan), X-ray diffraction (XRD, Japan, Rigaku D/max-2500) and UV-visible DRS (TU-1901, Pgener al) spectrometer. The X-ray photoelectron spectra (XPS) were collected on an ESCA Lab 220i-XL, VG Scientific X-ray photoelectron spectrometer, using MgKα X-ray as an excitation source. The base pressure was about 3 × 10⁻⁹ mbar.

Electrode preparation

The electrochemical behaviors of the electrodes were analyzed by utilizing a three-electrode system. Here, the three electrodes used were a Pt wire (as the counter electrode), Ag/AgCl electrode (as the reference electrode) and the as-synthesized BiVO₄ hierarchical spheres (1 mg) (as the working electrode). First, BiVO₄ was dispersed in distilled water (1 mL) under sonication for ∼60 min, and 5 μL of the dispersion solution was drop-cast onto the surface of the glassy carbon (GCE) working electrode before CV and GCD measurements. The GCE was pre-treated with acetone, absolute ethanol and deionized water for 15 min to get the clean surface. 2 M KOH was used as the electrolyte. Working electrodes were prepared separately by blending 95% of the as-synthesized BiVO₄, along with a 5% Nafion®perfluorinated resin solution (0.5% w/v, 5 μL) as a binder in ethanol solvent. After coating the as-prepared slurry on GCE, it was dried at 80 °C for 30 min and then the electrode weight was measured to figure out the quantity of as-synthesized materials on the GCE.

Results and discussion

The structural behavior of the as-synthesized sample was studied on a powder X-ray diffractometer, and the results are shown in Fig. 1. The diffraction planes from XRD patterns well-matched with the corresponding monoclinic BiVO₄ (JCPDS card no. 75-1866).⁷⁰ The peak positions of 15.13°, 19°, 28.97°, 30.55°, 34.51°, 35.24°, 40.28°, 42.49°, 46.09°, 46.75°, 47.31°, 50.33°, 53.32°, 55.93°, 57.93°, 58.31°, 59.71°, 63.58°, 66.23°, 69.72°, 72.78°, 74.83° and 76.72° are belong to (002), (011), (112), (004), (200), (020), (121), (015), (123), (204), (024), (220), (116), (215), (107), (303), (026), (008), (134), (127), (400), (028) and (136) reflection planes, respectively. The clear matching of planes without any peak position shift suggests that the as-synthesized BiVO₄ phase is of high purity and free from any other trace intermediates.⁷¹ The intense sharp peaks reveal the highly crystalline nature of BiVO₄ (Fig. 1).

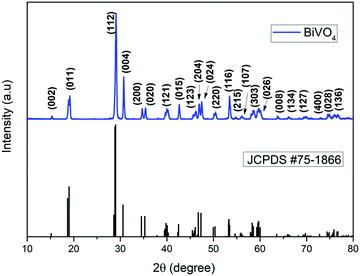

Fig. 1 X-ray diffraction pattern of BiVO₄ and the corresponding reference.

The surface morphology of the as-prepared BiVO₄ was investigated via FESEM, as shown in Fig. 2. The FESEM image (Fig. 2a) shows that the samples possessed monodispersed BiVO₄ hierarchical sheet composed of architectures. These 3D nanosheets composed of architectures expose high active surfaces at the inner core of the ball-like structure. The hydrothermal method under closed pressure for the high concentration source materials has influenced the hierarchical structural growth. It can be seen that the material is composed of a large number of nanosheets with the diameter of hierarchical spheres ranging from 2–2.5 μm. To validate the above range of size, we have calculated the hierarchical size distribution related histogram and the mean size was found to be 2.3 μm, as shown in Fig. 2c. The shape of the nanosheets was uniform, and thickness was found to be ∼25 nm from Fig. 2b. To elucidate the size confirmation of nanosheets, we performed the image analysis and the mean thickness of nanosheets was measured by comparing roughly 200 different nanosheets (Fig. 2d). Several tiny pores existing on the flat structures could be due to the discharge of water molecules and the structural contraction during the calcination process.⁷² For the hierarchical structure formation, a mechanism was proposed involving the growth of intercrossed nanosheets in the oriented attachment, followed by “Ostwald ripening.” In addition, there were pore structures observed on the hierarchical spheres of BiVO₄; this could be due to the results of cross-linked sheets with the exposed mesopores to microporous structures.^34,73,74

Fig. 2 FESEM images of BiVO₄ (a) wide view and (b) narrow view (c) histogram of the size of hierarchical structures (d) histogram of the nanoheet thickness.

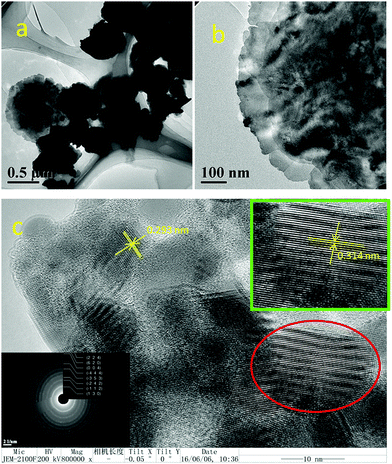

The hierarchical structure formation was further studied via transmission electron microscopy (TEM). Since the particles size was in the micrometer order, during the sample preparation process smaller sized particles were deposited on the TEM sample grid, which was then analysed. Fig. 3 shows the respective TEM and high-resolution TEM images of the BiVO₄ nanostructure. From Fig. 3a, it is clear that these floral hierarchical spheres are actually madeup of several nanosheets linked with each other. The interlinking of nanosheets formed 3D hierarchical structures, which mostly diffracted the electrons in TEM. However, the high-resolution TEM image in Fig. 3c reveals lattice fringes with different grain boundaries. It could be due to the composition of multiple sheets. The corresponding Fast Fourier Transform (FFT) patterns were used to measure the interplanar distances of 0.314 nm and 0.293 nm. These lattice fringes were related to the (112) and (004) reflection planes in the XRD pattern of monoclinic scheelite BiVO₄ (m-BiVO₄).⁵⁷ The above crystal planes were the dominant peak position of m-BiVO₄, which again confirmed the presence of the highly crystalline phase of pure BiVO₄. The selected area electron diffraction (SAED) pattern implies the polycrystalline nature of the BiVO₄ material (inset of Fig. 3c). The corresponding SAED pattern highlights the bright patterns of first order circles. Due to the polycrystalline nature of the BiVO₄ material, multiple circular ring patterns of bright fringes were observed.

Fig. 3 TEM images of BiVO₄ at (a) 500 nm, (b) 100 nm scale magnifications, (c) high resolution TEM images and the corresponding lattice fringes at 10 nm scale with the SAED pattern.

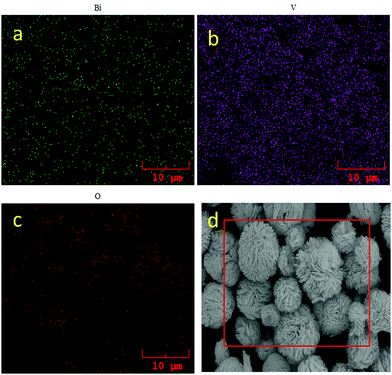

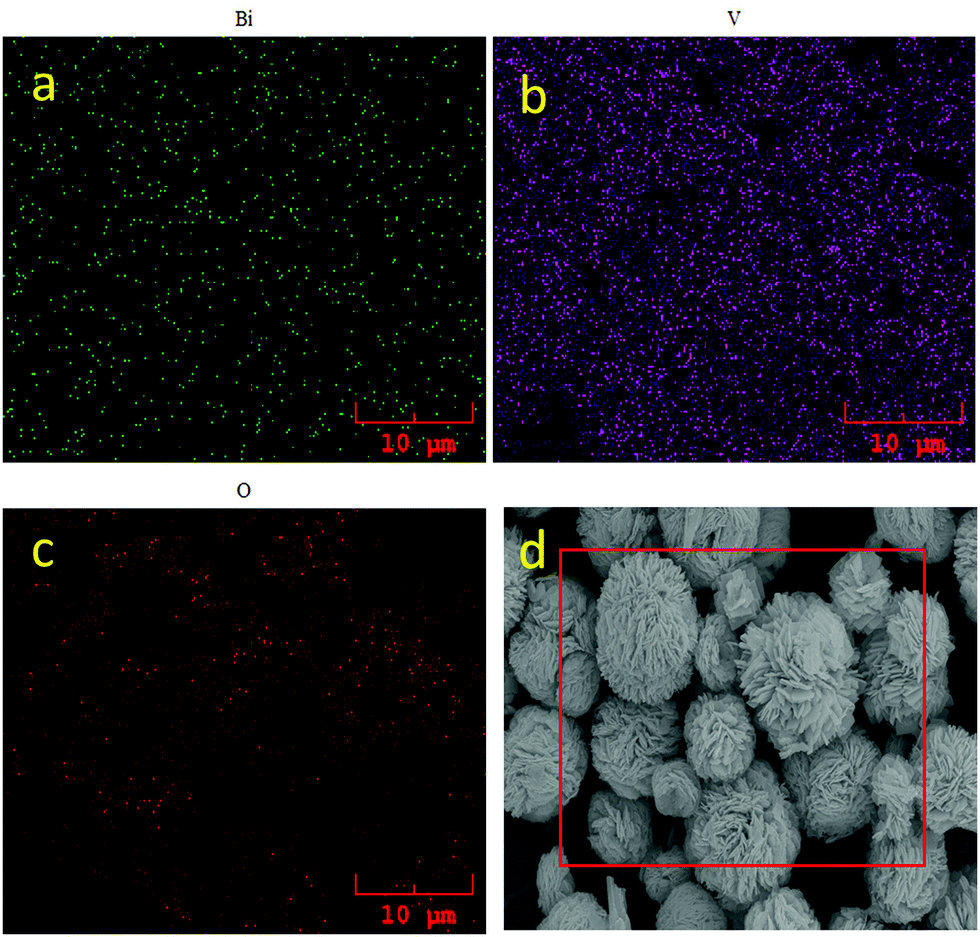

To confirm Bi, V, O elemental distribution on BiVO₄, EDS elemental mapping was carried out via the FESEM analysis. Fig. 4 shows the elemental mapping of bismuth, vanadium, oxygen and the corresponding FESEM image. There is a homogenous distribution of Bi, V and O observed with the uniform patterns on Fig. 4a–c. Thus, the EDS mapping revealed that the material was composed of Bi, V and O without any form of trace impurities.

Fig. 4 EDS mapping of BiVO₄ (a) Bi (b) V (c) O elements and (d) corresponding SEM image.

Fig. 5 shows the XPS spectra of BiVO₄. The C–C peak position of 284.8 eV clearly indicates that the wide spectrum of BiVO₄ is a charge corrected spectrum. Also, small amounts of C–O–C and O–C=O are present at 288.9 and 286.5 eV, respectively. Fig. 5a is observed because of the carbon used for calibration during the measurements. Fig. 5b, c, d and f correspond to the spectra of O 1s, Bi 4f, V 2p and survey spectrum, respectively. The O 1s peak at 531.77 eV is due to the adsorbed H₂O or surface hydroxyl group from the atmospheric moisture. This broad peak can be fitted into two peaks at about 530.04 eV and 533.28 eV, which is related to the existence of non-equivalent lattice oxygens (Fig. 5b). It is assigned to the lattice oxygen (O²⁻) of Bi₂O₂²⁺ on the composite surface and for the surface adsorbed oxygen, respectively. The binding energy peaks at 164.4 eV and 159.1 eV (Fig. 5c) are related to Bi 4f_5/2 and Bi 4f_7/2, respectively, showing the presence of Bi³⁺ in the lattice of Bi₂O₂²⁺. The metallic Bi binding energy values of 4 f_5/2 and Bi 4f_7/2 are 164.4 eV and 159.1 eV, respectively.⁷⁵ The symmetric peaks of Bi 4f are well matched with the compounds of bismuth oxides and its spin–orbit component has a well seprated Δ value of 5.3 eV equivalent to bismuth oxides.

Fig. 5 High resolution XPS spectra of BiVO₄ (a) C 1s, (b) O 1s, (c) Bi 4f, (d) V 2p and (f) survey spectra.

The binding energy peaks at 524.4 eV and 517.2 eV belong to V 2p_1/2 and V 2p_3/2, respectively, which is related to the +5 oxidation state of vanadium, as shown in Fig. 5d.^57,76 The deconvolution of vanadium spectrum showed a peak around 518.9 eV, which corresponded to the +4 oxidation state. Thus, although the vanadium was present in the lattice as V⁺⁵, the reduction of V⁺⁵ to V⁺⁴ could occur due to the presence of surface defects. It does influence the electronic structure of monoclinic scheelite BiVO₄.⁷⁷ Besides the structural confirmation from XRD, the XPS analysis provides the required binding energies for BiVO₄ formation. The XPS spectra clearly confirm the formation of BiVO₄ from the elemental analysis.

UV-Diffuse reflectance spectroscopy (UV-DRS) is a suitable analysis to disclose the band structure of a semiconductor. The optical behavior of a semiconductor is determined by the photo-absorption properties also by diffusion related to its band energy structure of photo-induced electrons and holes. As displayed in Fig. 6, a pure BiVO₄ sample shows high absorption till 560 nm.^78,79 The transition from a valence band formed by Bi 6s to a CB of V 3d is reflected by the strong Ultraviolet to visible light absorption.⁸⁰ In particular, the edge at ∼560 nm is related to the characteristic peak of BiVO₄ (Fig. 6a). It shows the outstanding narrow bandgap with a high absorption coefficient. Visible light-induced photo absorption abilities are helpful to elucidate the electronic transition and excitation of more active species. The material bandgap (E_g) can be defined using eqn (1):⁷¹

ahν = A(hν − E_g)ⁿ (1)

where a is the absorption coefficient, h is the Planck's constant, ν is the incident light frequency, A is the constant and E_g is the bandgap energy. For BiVO₄, the value of n was found to be 1/2. From the plots of (ahν)²vs. photon energy (hν) given in Fig. 6c, the bandgap (E_g) of BiVO₄ was estimated to be 2.32 eV.⁸⁰

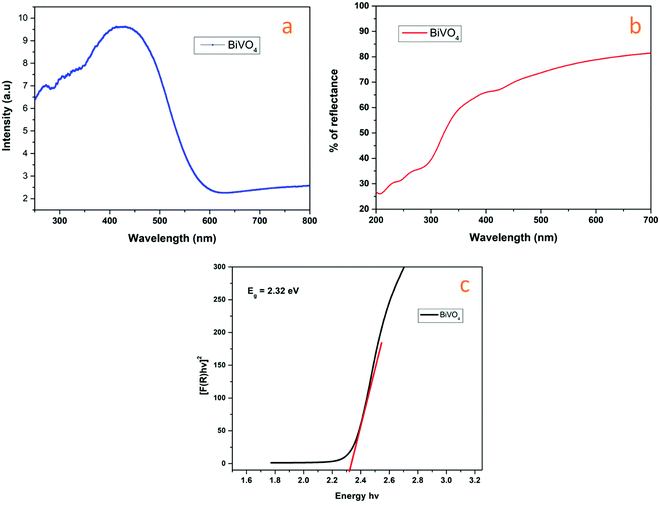

Fig. 6 UV-DRS of BiVO₄ (a) absorbance and (b) reflectance spectra (c) relationship between Kubelka–Munk function vs. band gap.

The valence band (VB) and conduction band (CB) edges of hierarchical BiVO₄ semiconductor can be determined using eqn (2) and (3).

ECB = X − E_e − 0.5E_g (2)

EVB = E_g + ECB (3)

where X is the absolute electronegativity of a semiconductor (geometric mean of the absolute electronegativity of the component atoms), as determined from eqn (4):in which a, b, and c are the number of atoms in A, B, and C compounds, respectively. The absolute electronegativities of Bi, O, and V atoms are reported to be 4.69, 3.6, and 7.54, respectively.^81,82 Therefore, the absolute electronegativity of BiVO₄ was calculated to be 6.16 eV. E_e is the energy of a free electron in the hydrogen scale (about 4.5 eV), and E_g is the bandgap energy of a BiVO₄ semiconductor obtained from UVDRS spectra. According to the UV-vis absorption spectra, the E_g of BiVO₄ was found to be about 2.32 eV. Thus, the calculated E_CB edge and E_VB edge values for BiVO₄ were 0.5 eV and 2.82 eV, respectively.

Fig. 7 shows the BiVO₄ electro-chemical properties obtained using a three-electrode system in a 2.0 M aqueous KOH solution. The as-prepared BiVO₄ showed a near-perfect rectangular CV curve that showed good capacitive behavior (Fig. 7a). The BiVO₄ material showed pseudocapacitive nature with a well-resolved redox peak at 2 mV s⁻¹. Even at a rate of 100 mV s⁻¹, the CV curve indicated its rectangular shape, and this symmetric peak behavior represents a more significant reversibility of redox reactions. As shown in Fig. 7a, the anodic (at −0.33, −0.49 and −0.65 V) and cathodic peaks (at −0.515, 0.62 and 0.78 V) were observed at different potentials.^83,84 The well-organized redox peaks in the CV curve confirm the influence of faradaic processes in the energy storage.⁸⁵ The observed redox behavior was also similar to that of the Bi₂O₃ material, i.e., the reduction of Bi³⁺ to metallic Bi (−0.515 V and 0.62 V) during the negative sweep and oxidation of metallic Bi to Bi³⁺ (−0.35 V at 2 mV) during the positive sweep.⁸⁶ It is valuable to note that the peak current value increased with the scan rate. Also, small shifts were observed in the redox peak position in the positive potential directions (0.35 V to 0.11 V (100 mV)) with no deterioration (Fig. 7b).

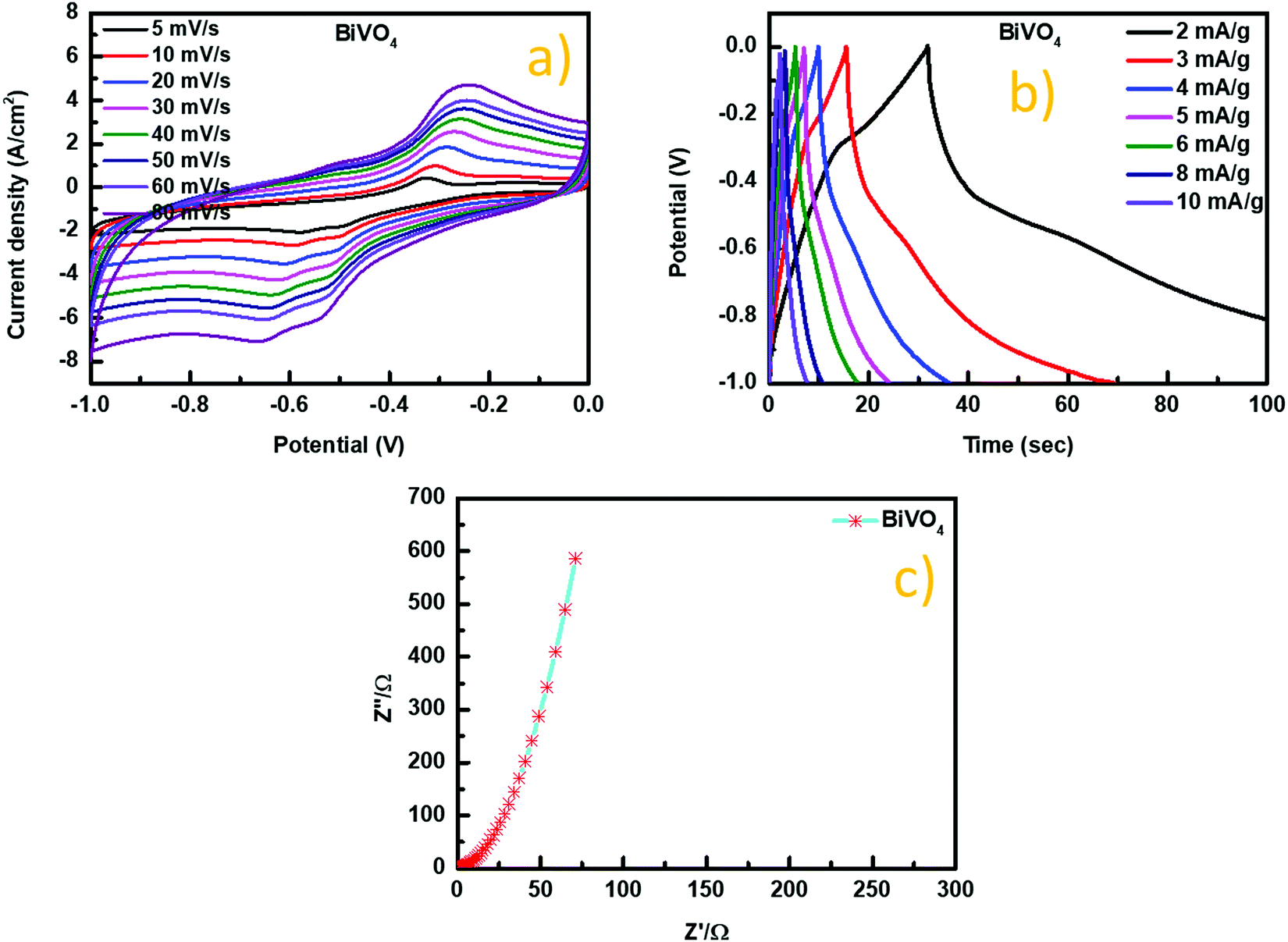

Fig. 7 (a) Cyclic voltammetry curves (b) charge–discharge curves (c) impedance spectra of BiVO₄.

EIS was measured at a frequency range of 0.01 Hz to 100 000 Hz at the open-circuit configuration. BiVO₄ showed a semicircle shape in the observed EIS spectrum at a higher frequency with a spike in the lower frequency (Fig. 7c). The slope in the low-frequency area related to the Warburg impedance (W) reflected the diffusion of electrolytes in host materials through pore electrodes and protons. An intersecting curve on the real part at a high frequency indicates the solution resistance (R_s), and the semicircle diameter represents the charge transfer resistance (R_ct).^83,84

The capacitive performance was investigated through a charge–discharge behavior of BiVO₄ surfaces, and also at the same region of 0.3 cm² diameter, the applied currents were measured (Fig. 7b). BiVO₄ electrodes were measured by separate, narrow potential windows between −1.0 to −0.4 V and −0.3 to 0.1 V. Due to the synergy between two components, the hybrid supercapacitor-electrode was working within the window of −1.0–0.1 V. Bismuth vanadate materials had significant increase in the voltage at levels above a certain point leading to significant variations of the linearity in their galvanostatic charge–discharge curves. The charge–discharge curves of BiVO₄ were similar in shape to the equilateral triangles under high current conditions.⁸⁹ During the charging and discharging process, linear curves show strong reversibility of the material. Furthermore, the charge–discharge curves of the hybrid supercapacitor at different currents kept a similar shape, indicating broad current range sustainability. The specific capacitance of modified electrodes was shown to be a more reliable candidate for supercapacitor devices, especially in the case of devices with minimal active materials.^86,87

Current increase or decrease affects the specific capacity, but the flat plateau of the hybrid electrode compared to the BiVO₄ electrode offered achievable rate improvements. The hybrid BiVO₄ supercapacitor electrode's spatial capacitance increased until a saturation limit was achieved.

where m is the mass of the electrode material (g), V is the potential (V), t is the discharge time (s), and I is the current density (A). The plotted graph in Fig. 8a describes the relationship between the specific capacitance vs. current density of BiVO₄. The BiVO₄ microspheres exhibited a maximum specific capacitance of 1203 F g⁻¹ at a current density of 2 A g⁻¹. In addition, a decrease in the specific capacitance value was observed with an increase in the current density. The reduction in specific capacities at higher current densities could be due to the following reasons: (i) the faradaic reaction does not have sufficient time, (ii) increase in ionic resistivity and (iii) decrease in charge diffusion to the inner active sites.^88,89

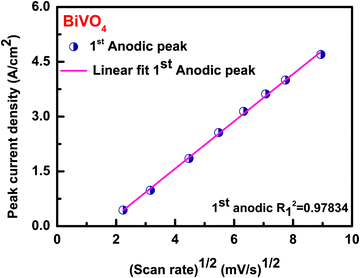

Fig. 8 Peak current density vs. square root of the scan rate plot of BiVO₄.

Fig. 8 shows the relationship between peak current density vs. square root of the scan rate plot of BiVO₄. The calculated plot visualized as linear with the correlation coefficient (R²) of 0.97834 for the 1st anodic peak implies that the whole electrode reaction is controlled by the diffusion controlled-process.^90–94Fig. 9 shows the recycling stability test results under the current density of 2 Ag⁻¹. The specific capacitance values decreased during consecutive cycle runs. At around 2000 cycles, 75% of the specific capacitance value was retained. This value is higher than the typical BiVO₄ material reported in the literature.⁶⁴ The decrease in the cyclic stability of 75% could be due to the absence of the carbon additive. Among the known reported studies, the as-synthesized BiVO₄ stands out as a better material.

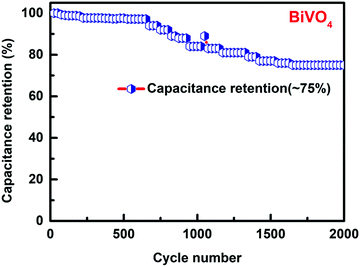

Fig. 9 Cyclic stability of BiVO₄.

Conclusion

Hierarchical BiVO₄ was fabricated by a simple and one-step hydrothermal procedure. Such architectures have been designed with nanosheets that are highly orientated. The Ostwald's ripening mechanism played a key role in the growth design of 3D sheet composed architectures. The as-prepared hierarchical m-BiVO₄ (1203 Fg⁻¹) showed excellent electrochemical properties because of its smaller particle size and structure. This was ascribed to the full utilization of m-BiVO₄ and increased electrical conductivity and ionict ransfer. Notably, stable cycle capability was also achieved. Hence, BiVO₄ is a promising candidate for superior supercapacitor fabrications. We foresee that our synthesis method to hierarchical m-BiVO₄ nanocomposites will be very beneficial for the development of solar cells and other energy storage devices.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

Dr Balachandran Subramanian is grateful for the financial support of the CAS President's International Fellowship Initiative (2016PM045) of China, the National Natural Science Foundation of China (51650110503 & 51133009), and the National Basic Research Program of China (2012CB720304). Dr Karthikeyan Rajan is thankful for the National Natural Science Foundation of China (51871114).
