Near-infrared phosphorescence in a ruthenium(II) complex equipped with a pyridyl-1,2-azaborine ligand

Abstract

The 4-methyl-2-(pyridin-2-yl)-2,1-borazaronaphthalene molecule Hazab-py has been successfully used, for the first time, as a ligand in a ruthenium(II) polypyridine complex A (with the formula [Ru(dtbbpy)₂(azab-py)]⁺, where dtbbpy = 4,4′-di-tert-butyl-2,2′-bipyridine). This compound was characterized by NMR spectroscopy and high-resolution mass spectrometry (MS), and its electrochemical and photophysical properties were fully investigated and compared to those of its homoleptic analogue [Ru(dtbbpy)₃]²⁺ (B), an archetypical mono-cationic cyclometalated complex C (with the formula [Ru(dtbbpy)₂(ppy)]⁺, where Hppy = 2-phenylpyridine), and the more structurally similar analogue [Ru(dtbbpy)₂(naft-py)]⁺ (D), where the B–N unit of the azaborine ligand is replaced by a standard C=C one, resulting in the 2-(naphthalen-2-yl)pyridine ligand (Hnaft-py). The presence of the novel 1,2-azaborine ligand induces a 0.51 V decrease in the redox gap of complex A, compared to that of B, leading to electrochemical and photophysical properties that resemble those of C and D. Accordingly, the azaborine complex displays an emission band extending up to the near infrared region of the spectrum (with the maximum at 765 nm in room-temperature acetonitrile solution), arising from a triplet metal-to-ligand charge-transfer (³MLCT) state. As in the case of other mono-cationic cyclometalated ruthenium(II) complexes, A shows modest photoluminescence quantum yields (PLQYs), but higher PLQYs when compared to those of its direct C=C analogue D (e.g., PLQY = 0.6 vs. 0.1% in a PMMA matrix at 298 K). Density functional theory (DFT) calculations were used to provide complete rationalization of the electronic properties of all the complexes and to identify lower-lying metal-centred triplets (³MC), responsible for the low PLQYs of such an azaborine-based ruthenium(II) complex.

---

Introduction

In the last few years, azaborine chemistry has seen a significant expansion.^1,2 The introduction of boron–nitrogen units into aromatic benzenoid moieties has been intensively explored to tune the properties of the related organic molecules. The replacement of two aromatic sp² carbon atoms in a benzene ring with one boron and one nitrogen atoms can lead to three structural isomers: (i) 1,2-azaborine,³ (ii) 1,3-azaborine⁴ or (iii) 1,4-azaborine.⁵

The BN/CC isosterism can be a powerful tool to modify the molecular properties and stimulate research in materials science,^6,7 and for biomedical applications.^8–10 Moreover, azaborine-containing ligands have been demonstrated to promote different reactivities and selectivities in transition-metal complexes for catalysis.^11,12 Azaborines also find applications in optoelectronic devices, such as organic field-effect transistors (OFETs), organic light-emitting diodes (OLEDs), organic photovoltaics (OPVs), and sensors.¹³ In 2023, 1,4-azaborines were used by Huang and coworkers as donor units in organic solar cells,¹⁴ while Zysman-Colman and coworkers synthesized a 1,4-azaborine-triazine derivative displaying thermally activated delayed fluorescence (TADF), tested as an active material in OLEDs.¹⁵

In coordination chemistry, five- or six-membered 1,2-azaborine rings have often been used as cyclopentadienyl alternatives in the formation of organometallic compounds.¹⁶ Indeed, several 1,2-azaborine compounds based on zirconium(IV),^17–20 titanium(IV),²¹ ytterbium(III),²² chromium(III),^23–27 molybdenum(III),²⁸ palladium(II),¹² iron(II),^29,30 and ruthenium(II)^31–34 have been synthesized and deeply investigated. However, all the above-cited organometallic complexes have been studied for other purposes rather than luminescence, since they are not emissive.

The photophysical properties of azaborines (considered as single organic molecules) have already been investigated in recent years.^35–42 However, only in a few examples, the photophysical properties of such B–N compounds have been directly compared with those of their isoelectronic C=C counterparts.^43,44 In such literature examples, interesting differences in the absorption and emission properties have been reported between azaborines and their C=C analogues.

Recently, our research group published a paper on a series of iridium(III) complexes having an 1,2-azaborine derivative as an ancillary ligand.⁴⁵ In that study, we decided to functionalize the boron atom of a 2,1-borazarolenaphthane core with a pyridyl moiety, in order to obtain a suitable chelating ligand for the iridium(III) centre. The obtained 4-methyl-2-(pyridin-2-yl)-2,1-borazaronaphthalene ligand (Hazab-py, Scheme 1) coordinates the metal centre through its two nitrogen atoms (i.e., one from the azaborine unit and the other from the pyridyl moiety), forming a typical five-membered metal-containing ring. To directly evaluate the effects of this new azaborine ligand on the properties of the related complexes, we also synthesized and characterized the isoelectronic C=C equivalent (Hnaft-py, Scheme 2) and its isosteric iridium(III) complexes. Remarkably, a blue shift in the emission spectra of the azaborine-based complex is observed when compared to that of its isosteric C=C counterpart.⁴⁵

Scheme 1 Synthesis of the azaborine complex A. Complex B was used for comparison in the characterization.

Scheme 2 Synthesis of the isoelectronic C=C complexes C and D.

Encouraged by the above results, and since only a few examples of azaborine-based ruthenium(II) complexes are reported in the literature (all of which are non-emissive, see above for references), we wanted to explore the effect of our azaborine ligand on the electrochemical and photophysical properties of a prototypical ruthenium(II) complex.

Herein, we report the synthesis and characterization of a new near-infrared phosphorescent ruthenium(II) complex with the formula [Ru(dtbbpy)₂(azab-py)][BF₄] (A, Scheme 1) equipped with two neutral 4,4′-di-tert-butyl-2,2′-bipyridine ligands (dtbbpy) and one anionic pyridyl-1,2-azaborine chelator (azab-py⁻). The properties of complex A are compared with those of the prototypical and well-known [Ru(dtbbpy)₃][BF₄]₂ complex B,^46,47 which could be readily obtained as a reaction by-product (Scheme 1). For a more rigorous comparison, we also synthesised another reference complex, having the same charge as A, since it is equipped with an anionic cyclometalating 2-phenylpyridine ligand (i.e., [Ru(dtbbpy)₂(ppy)][BF₄], C, Scheme 2).⁴⁸ Lastly, as already done for the iridium-based series,⁴⁵ we used the C=C isoelectronic counterpart of our azaborine ligand (Hnaft-pyvs.Hazab-py) to obtain the corresponding ruthenium-based complex [Ru(dtbbpy)₂(naft-py)][BF₄] (D, Scheme 2). It is worth noting that, in the case of ruthenium, the cyclometalation only occurs at the C-3 position of the naphthyl core, and any attempt to achieve C-1 cyclometalation was not successful.

Results and discussion

Synthesis and structural characterization

To set up an effective synthetic protocol to get complex A, the [Ru(dtbbpy)₂Cl₂] precursor was prepared following a standard procedure.⁴⁹ Accordingly, RuCl₃ was accurately reacted with 2 equivalents of 4,4′-di-tert-butyl-2,2′-bipyridine (dtbbpy) dissolved in degassed ethanol at reflux, under an inert atmosphere and protected from light. Once the formation of [Ru(dtbbpy)₂Cl₂] was complete, ethanol solvent was replaced with dichloromethane, and the precursor was treated in situ with AgBF₄ to remove the chloride ions from the ruthenium(II) coordination sphere, increasing the metal reactivity. The as-obtained solvato complex (1) was reacted at room temperature with an excess of the azaborine ligand (Hazab-py), previously deprotonated with NaH in dry dichloromethane. As mentioned in the introduction, the 4-methyl-2-(pyridin-2-yl)-1,2-dihydrobenzo[e][1,2]azaborine ligand (Hazab-py) was synthesized following a procedure previously reported by us.⁴⁵

The reaction mixture was stirred for 24 hours under an inert nitrogen atmosphere. After a standard workup, followed by a purification by column chromatography on basic alumina, complex A was obtained in good yield (40%, Scheme 1). Despite the amount of dtbbpy ligand being limited, the homoleptic complex [Ru(dtbbpy)₃][BF₄]₂ (B) was also found in the reaction crude product as a minor by-product (13% yield). While this complex is well-known in the literature,^46,50–52 it was nonetheless investigated and directly compared to A.

Complexes A and B were characterized by NMR spectroscopy and mass spectrometry (Fig. S1–S10†). The ¹H NMR spectrum of complex A shows 21 signals in the aromatic region and 5 singlets in the aliphatic region: this number fits with the expected signals. In contrast, the ¹H NMR spectrum of B shows the presence of just 3 peaks in the aromatic region and 1 singlet in the aliphatic zone, due to the D₃ symmetry of the complex.

Finally, to better compare the properties of complex A, two additional reference complexes C and D were also synthesized (Scheme 2). For this scope, the [Ru(dtbbpy)₂Cl₂] precursor was synthesized with a different reaction, using a large excess of LiCl in DMF at reflux to avoid the formation of B and, unlike the previous case reported in Scheme 1, it was isolated and characterized by ¹H-NMR to confirm its structure (Fig. S11†).

To obtain complex C, the ruthenium(II) precursor was reacted with AgBF₄ to remove the chlorine atoms and subsequently reacted with 2-phenylpyridine (Hppy), used as a cyclometallating ligand. It is worth noting that, unlike B, the reference complex C is mono-cationic and heteroleptic as A.

To get an even more similar reference complex, we also synthesized the Hnaft-py ligand (i.e., the C=C equivalent of Hazab-py) following the procedure recently reported by us.⁴⁵ As we already demonstrated in the case of iridium(III) complexes, the ligand Hnaft-py can undergo cyclometallation at two different positions (i.e., C-1 and C-3). Therefore, we expected to obtain an isomeric mixture of two ruthenium(II) complexes; however, in this specific case, we obtained only one product (D), which is the less sterically hindered complex and probably the most thermodynamically stable.⁴⁵ Apart from the isomerism, this complex has a structure similar to that of A, with the notable substitution of the B–N fragment by the isoelectronic C=C unit. Even in these cases, all complexes were fully characterized by NMR spectroscopy, mass spectrometry and elemental analysis (Fig. S12–S24†).

Complexes B–D were used as reference compounds for all the subsequent structural, photophysical and electrochemical characterization studies, to properly identify the effects of the new azaborine ligand on ruthenium(II) complexes.

DFT calculations: ground-state properties

Initially, the structural and electronic properties of [Ru(dtbbpy)₂(azab-py)]⁺ (A) were explored by DFT methods, adopting the same level of theory successfully used for previously reported azaborine-based iridium(III) complexes (see the Experimental section for further details).⁴⁵ The reference complexes B–D were compared to A to explore the effect of replacing the anionic azaborine ligand with (i) a neutral N^N analogue like dtbbpy (as in B), (ii) an archetypical anionic C^N counterpart as the ppy⁻ ligand (in C) or (iii) a more similar C=C analogue naft-py⁻ (as in D). Since it was synthetically impossible to obtain the same cyclometallation mode observed in the azab-py⁻ ligand also for the naft-py⁻ counterpart (see above), we have also theoretically investigated complex D′, which is an analogue of A in which the B–N fragment is merely replaced with the isoelectronic C=C part.

The energy diagrams and the frontier molecular orbitals of complexes A–D and D′ are depicted in Fig. 1. Notably, due to the D₃ point-group symmetry of complex B, some of its molecular orbitals are degenerate.

Fig. 1 Energy diagram showing the frontier molecular orbitals of complexes A–D, calculated in acetonitrile. For some relevant orbitals, the corresponding isosurface is also displayed (isovalues = 0.04 e^1/2 bohr^−3/2). Along the series, relevant orbitals with similar topologies are plotted with the same colour for an easier comparison (see the legend). The C=C theoretical analogue of complex A is displayed as D′, for the sake of comparison.

In all complexes, the three highest occupied molecular orbitals are dominated by the contribution of the pseudo-t*_2g (d_π) orbitals of ruthenium(II), despite minor contributions from the π orbitals of the azaborine (or C^N ligands) being present in the HOMO of complex A (or C, D and D′).

Complex B displays the lowest-energy HOMO of the whole series, basically due to its bis-cationic nature compared to all the other complexes (i.e., 2+ vs. 1+). Indeed, by replacing one neutral dtbbpy ligand with the anionic azaborine-based one, a HOMO destabilization of 0.74 eV is observed (compare B and A in Fig. 1). Similarly, if the azaborine ligand is replaced by a regular C^N cyclometalating ligand, like ppy⁻ (as in C) or naft-py⁻ (as in D or D′), a further destabilization is observed, but of just about 0.12 eV (Fig. 1). For a deeper understanding of this more subtle phenomenon, the readers could have a look at the orbital-interaction diagrams in Fig. S25–S28,† showing how the π and σ orbitals of the anionic ligands interact with the set of ruthenium(II) pseudo-t*_2g orbitals, lifting up their energy.

In contrast, the lowest unoccupied orbitals of all the investigated complexes are less affected by the replacement of their third ligand. Indeed, both the LUMO and LUMO+1 are always centered on the π* orbitals of the two dtbbpy ligands that all the complexes have in common. Consequently, the LUMO levels in the mono-cationic complexes differ by less than 0.05 eV, and a LUMO stabilization of about 0.3 eV is observed for the bis-cationic complex B (Fig. 1).

Accordingly, the homoleptic complex B presents the widest HOMO–LUMO gap of the series (i.e., 3.61 eV), mainly due to HOMO stabilization. For the heteroleptic (and mono-cationic) ones, the gap decreases in the order: A > C > D > D′. It is worth noting that, if the azaborine-based complex A is compared to its theoretical direct analogue D′, a 0.10 eV reduction in the HOMO–LUMO gap is observed (i.e., 3.18 vs. 3.08 eV, see Fig. 1).

Electrochemistry

To explore the effect of the anionic azaborine ligand on the electronic properties of its corresponding ruthenium(II) complex, cyclic and square-wave voltammetry experiments were carried out in room-temperature acetonitrile solutions of complex A and all the reference complexes B–D; the well-known archetypical complex [Ru(bpy)₃][ClO₄]₂ (E) was also investigated for the sake of completeness. All cyclic voltammograms are reported in Fig. 2, square-wave voltammograms in Fig. S29,† and the recorded redox potentials in Table 1 and S1,† relative to the ferrocene/ferrocenium (Fc/Fc⁺) couple.

Fig. 2 Cyclic voltammograms of complexes A–D (1.0 mM) in acetonitrile solution at 298 K, together with that of the archetypical complex [Ru(bpy)₃][ClO₄]₂ (E), used as further reference.

Table 1 Electrochemical data of complexes A–D in acetonitrile solution (1.0 mM) + 0.1 M TBAPF₆ at 298 K, together with that of the archetypical complex [Ru(bpy)₃][ClO₄]₂ (E)

	E ox (ΔEp)^a [V (mV)]	E red (ΔEp)^a [V (mV)]	ΔEredox^b [V]
a The reported potential values are obtained by cyclic voltammetry and reported vs. the ferrocene/ferrocenium couple, used as an internal reference. The values in parentheses are the peak-to-peak separation (ΔEp); redox processes are reversible, unless otherwise stated (irr.). b ΔEredox = Eox − Ered.
A	+0.06 (irr.)	−1.991 (70), −2.262 (73)	2.05
B	+0.735 (72)	−1.825 (69)	2.560
C	−0.009 (68)	−2.071 (70), −2.333 (67)	2.062
D	−0.013 (73)	−2.075 (77), −2.328 (74)	2.088
E	+0.889 (73)	−1.730 (70), −1.923 (73), −2.172 (72)	2.619

---

As already well documented in the literature,⁵¹ the presence of the electron-donating tert-butyl groups on the 2,2′-bipyridine ligands are able to cathodically shift the redox processes of the corresponding homoleptic ruthenium(II) complex by about 0.1 V (compare Bvs.E, Fig. 2 and Table 1). This effect is strongly amplified if one neutral dtbbpy ligand is replaced by an anionic one (as in A, C or D), a phenomenon that is basically due to electrostatic reasons.

Indeed, the first oxidation process in the azaborine-based complex A occurs at much lower potentials when compared to that of B (i.e., +0.06 vs. +0.735 eV, Table 1). Notably, such a process is further shifted to lower potentials by approx. 0.07 V, if a standard anionic C^N cyclometalating ligand is used instead of the azab-py⁻ azaborine derivative (compare Avs.C or D, Fig. 2 and Table 1). However, it should be noted that, in all the investigated complexes, the first oxidation always involves the formal oxidation of Ru(II) to Ru(III), as demonstrated by spin-unrestricted calculations preformed on the corresponding oxidized radicals (Fig. S30†). It is worth noting that, for the azaborine complex A, such an oxidation process is found to be irreversible at any scan rate from 100 to 1000 mV s⁻¹ (Fig. S31†), while good first-oxidation reversibility is observed for all other complexes.

A similar trend is also observed in the first reduction processes, though less pronounced, as the replacement of one dtbbpy ligand (as in B) with the anionic azaborine (in A) or C^N cyclometallating alternatives (in C and D) has an indirect effect. Indeed, in all the complexes, the first reduction process consistently involves the formal reduction of one of the dtbbpy ligands (Fig. S30†). For instance, the first reduction potential of A is more negative by 0.166 V when compared to that of the homoleptic complex B, and a further 0.08 V cathodic shift is observed in the case of C and D.

As suggested by DFT calculations (Fig. 1), the redox gap of the azaborine-based ruthenium(II) complex (A) is consequently about 0.51 V narrower than that of the archetypical [Ru(dtbbpy)₃][BF₄]₂ complex (B), and it is substantially comparable to that of the cyclometalated complexes C and D (Table 1), indicating that, in this case, the BN/CC isosterism seems not to affect dramatically the electronic properties of the complexes.

Photophysical properties and excited-state calculations

The UV-Vis absorption spectra of all the ruthenium(II) complexes were recorded in both acetonitrile and dichloromethane solutions at 298 K (Fig. 3 and S32†). The absorption profiles of all the samples are virtually not affected by solvent polarity, and only a minor red shift is observed on passing from acetonitrile to dichloromethane (Fig. S32†). It should be also noted that the spectrum of the well-known [Ru(dtbbpy)₃]²⁺ complex (B) and that of the cyclometalated [Ru(dtbbpy)₂(ppy)]⁺ equivalent (C) are in line with literature data.^51,53

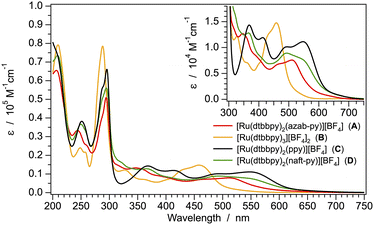

Fig. 3 Absorption spectra of complexes A–D in acetonitrile solution at 298 K. The lowest-energy transitions are magnified in the inset.

As commonly observed in ruthenium(II) polypyridine complexes,⁵⁴ the intense absorption peaks at 275–300 nm can be assigned to spin-allowed ligand-centered (¹LC) π → π* transitions. The bands at longer wavelengths, magnified in the inset of Fig. 3, are attributed to spin-allowed metal-to-ligand charge-transfer (¹MLCT) processes, while direct singlet-to-triplet ³MLCT transitions can be detected as a shoulder at even lower energy. Notably, in line with DFT and electrochemical findings, the lowest-energy MLCT band of the homoleptic (and bis-cationic) complex B is considerably blue-shifted compared to that of the azaborine-based complex A, and a further red shift is detected when C^N cyclometalating ligands are used, as in C and D (Fig. 3, inset).

To gain a more rigorous understanding of the excited-state scenario in complexes A–D, the lowest triplet states were investigated using the TD-DFT approach. Tables S2–S6† show the triplet excitation below 2.5 eV, using the Natural Transition Orbital (NTO) formalism,⁵⁵ and Fig. 4 summarizes the lowest triplet vertical excitation computed from the ground-state minimum of all the complexes examined (see the Experimental section for further details).

Fig. 4 Energy diagram of the lowest-lying triplet states for complexes A–D, computed in acetonitrile as vertical excitation from the respective ground-state minimum-energy geometries.

TD-DFT results clearly indicate that, for all complexes, the lowest triplet states are MLCT in nature, resulting in a charge-transfer from the ruthenium(II) d orbitals to the π* orbitals on the dtbbpy ligands (Fig. 4). In particular, the energy of the lowest triplet state (T₁) increases in the order: D ≈ C < A ≪ B. Such a trend is in agreement with the onset of the experimental absorption profiles (Fig. 3, inset).

Notably, for complex A, equipped with the novel azab-py⁻ ligand, the lowest triplet state involving such an azaborine unit is T₇, which is found to be 0.52 eV above T₁ (or 2.42 eV above S₀, see also Table S2†); accordingly, a direct contribution of such a ligand in the emitting state of A can be safely ruled out. A similar scenario is also observed for C, with T₇ being a mixed ³LC/³MLCT involving the ppy⁻ cyclometalating ligand and located 2.39 eV above the ground state. When the π-extended C=C analogue of the azaborine ligand is used in D, both T₇ and T₈ are found to involve such a cyclometalating ligand, but such states are again found well above T₁ (Fig. 4 and Table S5†). It is important to mention that the different cyclometalation mode of the naft-py⁻ ligand (which can form the Ru–C bond at C-3 or C-1 positions, as in D or D′) has virtually no impact on the nature and energy of the lowest triplet vertical excitation of the related ruthenium(II) complexes (compare Tables S5 and S6†).

Fig. 5 shows the normalized emission spectra of all the complexes, recorded in both acetonitrile and dichloromethane solutions at 298 K, and in butyronitrile glass at 77 K; all the related photophysical data are summarized in Table 2.

Table 2 Luminescence properties and photophysical parameters of [Ru(dtbbpy)₂(azab-py)]⁺ (A) and of reference complexes B–D

	Oxygen-free acetonitrile solution, 298 K					Oxygen-free dichloromethane solution, 298 K					Butyronitrile, 77 K
	λ em [nm]	PLQY^a [%]	τ [ns]	k r [10^5 s^−1]	k nr [10^6 s^−1]	λ em [nm]	PLQY^a [%]	τ [ns]	k r [10^5 s^−1]	k nr [10^6 s^−1]	λ em [nm]	τ [μs]
a λ exc = 440 nm. b λ exc = 465 nm. c Radiative constant: kr = PLQY/τ. d Non-radiative constant: knr = 1/τ − kr. ^shShoulder.
A	765	0.073	15	0.49	67	700	0.19	26	0.74	38	644^sh, 690	0.434
B	630	14.3	832	1.72	1.03	617	15.4	910	1.69	0.930	578, 625, 675^sh	5.36
C	814	0.037	17	0.22	59	792	0.12	33	0.38	30	722, 785^sh	0.423
D	800	0.041	39	0.11	26	784	0.11	53	0.21	19	635^sh, 714, 785^sh	0.454

---

Fig. 5 (Top) Normalized emission spectra of complexes A–D in acetonitrile (solid) and dichloromethane (dotted) at 298 K and (bottom) in butyronitrile glass at 77 K (dashed). Sample concentration: ≈15 μM.

As is typically expected for ³MLCT transition, the emission spectra of all the investigated compounds display (i) a broad and unstructured emission profile at 298 K; (ii) a red-shifted band in the more polar acetonitrile solvent vs. dichloromethane; (iii) a strong blue shift in the butyronitrile rigid matrix at 77 K, with associated spectra displaying vibronic progressions. Moreover, in line with DFT and electrochemical findings, the emission maximum of the homoleptic complex B is found at much higher energy, compared to the other compounds (Fig. 5 and Table 2). Indeed, the emission spectrum of the azaborine complex A is very similar to those of the cyclometalated complexes C and D, displaying only a minor blue-shift compared to them, but still extending in the near-infrared region of the electromagnetic spectrum (Table 2 and Fig. 5).

To rigorously attribute the ³MLCT nature of the emitting states, the lowest triplet states of all the complexes were fully optimized by a spin-unrestricted DFT approach (Fig. S33†). Such calculations further confirm that, in all cases, the emitting state has the excited electron located on the lowest π* orbitals of a dtbbpy ligand and the hole on the highest ruthenium pseudo-t*_2g (d_π) orbital. Notably, two virtually isoenergetic triplets are found in the case of the heteroleptic complexes (A, C and D) due to the presence of two non-equivalent dtbbpy ligands (i.e., T₁ and T₂ in Fig. S33†). In addition, the adiabatic energy difference between S₀ and T₁ is calculated to be 1.61, 2.04, 1.52 and 1.59 eV for A, B, C and D, respectively; such theoretical findings are in excellent agreement with the experimental emission maxima recorded in acetonitrile solution at 298 K (i.e., 1.62, 1.97, 1.52 and 1.55 eV, Table 2).

Notably, the photoluminescence quantum yield (PLQY) of the azaborine complex A is extremely low and dependent on the solvent (i.e., 0.07% vs. 0.19% in acetonitrile vs. dichloromethane solution at 298 K, Table 2), while that of B is rather solvent-independent and around 15%. The much lower PLQY of A, compared to that of B, is mainly due to a 50-times higher non-radiative rate constant (k_nr) of its emitting state, rather than a significant change in the radiative constant (k_r, Table 2). Such findings further confirm the similar nature of the emitting state in both compounds, but suggest the presence of effective non-radiative pathways in the azaborine-based complex.

Nonetheless, when the photophysical parameters of A are directly compared to those of its C=C analogue D, a much similar scenario is observed. However, it must be emphasized that the azaborine complex A exhibits nearly double the PLQY of D (Table 2), primarily due to a significantly higher k_r of the emitting state. Despite the overall modest performances of both A and D, these novel complexes display higher emission efficiencies than the archetypical (and previously reported) cyclometalated complex C.⁵³

As already reported in the literature,⁵⁴ non-emissive metal-centered states of triplet multiplicity (³MC) can be responsible for the poor PLQYs observed in ruthenium(II) complexes, providing fast radiationless channels to the ground state. The population of such ³MC levels formally results from the excitation of an electron from the occupied pseudo-t*_2g (d_π) orbitals of the ruthenium(II) ion to the unoccupied pseudo-e*_g (d_σ*) orbitals of the metal itself, which are usually found at high energy and, as a consequence, not readily populated.⁵⁴ Commonly, the relaxed geometry of a ³MC state in a polypyridine ruthenium(II) complex involves the elongation of selected Ru–N bonds,⁵⁶ possibly resulting in the decoordination of one or more pyridine moieties from the metal coordination sphere.^57,58

Accordingly, unrestricted DFT calculations were carried out to explore the presence of accessible ³MC states in the novel azaborine-based ruthenium(II) complex A, for appropriate rationalization of its low PLQYs (Table 2). Due to the asymmetric nature of the azaborine ligand, there are three possible axial deformations leading to the population of different ³MC states, through the elongation of trans-Ru–N bonds. As reported in Fig. 6, all the three ³MC states were properly optimized and two of them are found at lower energy, compared to the ³MLCT states (i.e., T₁ and T₂). Nevertheless, energy barriers are likely expected between such ³MC states and the emissive ³MLCT ones; thus these theoretical findings may provide a reasonable explanation for the modest (but still appreciable) emission performances of A, the first known ruthenium(II) complex equipped with an azaborine ligand.

Fig. 6 Schematic energy diagram reporting the ground state (S₀), the emitting triplets (T₁ and T₂, see Fig. S33† for further details), and the three metal-centered (³MC) states calculated for A in acetonitrile. The fully relaxed minimum-energy geometries are also reported, together with the associated spin-density distribution (isovalues: 0.002 e bohr⁻³). For ³MC states, double-ended arrows indicate the axis of the elongated N–Ru–N bonds. Since minima are fully relaxed, the x axis of the graph is arbitrary, spanning all the possible degrees of freedom of A.

It must be also stressed that complexes A, C and D are red-to-NIR (near-infrared) emitters, so that the energy gap between the emissive and the ground states is very close in energy. Indeed, such a small energy difference can enable fast non-radiative pathways from the emissive triplet to S₀ due to vibrational overlap between such electronic states (i.e., energy-gap law).

The emission properties of complexes A–D were also investigated in the solid state by dispersing the emitters in a poly(methyl methacrylate) (PMMA) matrix at a concentration of 1% by weight; related spectra and photophysical parameters are reported in Fig. S34† and Table 3.

Table 3 Luminescence properties and photophysical parameters of complexes A–D in PMMA 1% w/w at 298 K

	λ em [nm]	PLQY^a [%]	τ [ns]	k r [10^5 s^−1]	k nr [10^6 s^−1]
a λ exc = 440 nm. b λ exc = 465 nm. c Radiative constant: kr = PLQY/τ. d Non-radiative constant: knr = 1/τ − kr.
A	696	0.6	126	0.5	8
B	614	15.9	1120	1.42	0.751
C	762	0.3	63	0.5	16
D	753	0.1	74	0.1	14

---

The emission profiles of all complexes mostly preserve the same characteristic already discussed for the spectra in solution, with two notable differences: (i) a blue shift is observed in the PMMA matrix, due to the lack of solvent stabilization of the emitting states and (ii) a much higher PLQY is obtained for A compared to the solution data, which can be attributed to the combined effect of its fast k_r (relative to its C=C analogue D) and the solid-state matrix limiting the excited-state distortions needed to populate the above-mentioned ³MC states. Indeed, for all the complexes, the k_nr values in the PMMA matrix are considerably lower than those in solution, while the k_r values are comparable (see Tables 2 and 3).

Conclusions

A near-infrared emissive ruthenium(II) polypyridine complex equipped with a 1,2-azaborine ligand has been reported for the first time. Such [Ru(dtbbpy)₂(azab-py)]⁺ complex (A) has been obtained with satisfactory yields (40%), together with the corresponding homoleptic by-product [Ru(dtbbpy)₃]²⁺ (B), and its electrochemical and photophysical performances are compared to those of similar complexes having more standard anionic cyclometallating ligands (C and D).

Notably, complex A displays a phosphorescence emission from a ³MLCT state, peaking at 765 nm and extending up to 1100 nm in room-temperature acetonitrile solution. However, the quantum yield of its near-infrared photoluminescence is low, particularly in solution at 298 K (i.e., below 0.2%). Nevertheless, the emission performances of the azaborine complex A are remarkably superior when compared to those of its direct C=C analogue (D). To provide a full picture of the excited states of the novel complex A, DFT calculations were used to identify and characterize accessible ³MC states, which are known to quench the ³MLCT emissive states in transition-metal complexes by providing fast non-radiative deactivation pathways to the ground state.

This work opens the way to a novel class of luminescent ruthenium(II) complexes, which might be expanded by suitably designed 1,2-azaborines to optimize their luminescence performances, allowing their exploration in sensing or optoelectronic applications.

Experimental section

General information

4-Methyl-2-(pyridin-2-yl)-2,1-borazaronaphthalene (Hazab-py) and 2-(naphthalen-2-yl)pyridine (Hnaft-py) were prepared according to reported methods.⁴⁵ Analytical grade solvents and commercially available reagents were used as received, unless otherwise stated. Chromatographic purifications were performed using aluminium oxide 90 active neutral (70–230 mesh). ¹H, ¹⁹F, ¹¹B and ¹³C NMR spectra were recorded on Varian Mercury (400 MHz for ¹H) and Agilent (500 MHz for ¹H) spectrometers. Chemical shifts (δ) are reported in ppm relative to residual solvent signals for ¹H and ¹³C NMR (¹H NMR: 7.26 ppm for CDCl₃ and 5.33 ppm for CD₂Cl₂; ¹³C NMR: 77.0 ppm for CDCl₃ and 53.84 ppm for CD₂Cl₂) or relative to an internal standard as a chemical shift reference for ¹⁹F and ¹¹B NMR (¹⁹F NMR: −163 ppm for C₆F₆; ¹¹B NMR: 0 ppm for BF₃·Et₂O). ¹³C{¹H} NMR spectra were acquired with the ¹H broadband decoupled mode. Coupling constants are given in Hz. The abbreviations used to indicate the multiplicity of signals are: s, singlet; d, doublet; t, triplet; q, quartet; dd, double doublet; and m, multiplet. The high-resolution mass spectra (HRMS) were obtained with an ESI-QTOF (Agilent Technologies, model G6520A) instrument, and the m/z values are referred to the monoisotopic mass. ESI-MS analyses were performed by direct injection of acetonitrile solutions of the compounds using a WATERS ZQ 4000 mass spectrometer.

General procedure for the synthesis of complexes A and B

In a 50 mL round bottom flask, RuCl₃·3H₂O (37 mg, 0.14 mmol, 1.0 equiv.) and 4,4′-di-tert-butyl-2,2′-bipyridine (75 mg, 0.28 mmol, 2.0 equiv.) were dissolved in deoxygenated ethanol (6 mL) and the reaction vessel was shielded from light. The resulting solution was refluxed under a nitrogen atmosphere for 1 h. Afterward, the solution was cooled to room temperature and anhydrous CH₂Cl₂ (15 mL) was added. AgBF₄ (82 mg, 0.42 mmol, 3.0 equiv.) was added in the absence of light. The mixture was kept in the dark and stirred under nitrogen at reflux for further 6 hours. The solution was evaporated to dryness, and the resulting solid was used in the next step of the synthesis without further purification.

A solution of the Hazab-py compound (35 mg, 0.16 mmol, 1.2 equiv.) and NaH 60% dispersion in mineral oil (16 mg, 0.4 mmol, 2.9 equiv.) in anhydrous CH₂Cl₂ (8 mL) was stirred for 2 h at room temperature and then added dropwise to the previous solid. The mixture was stirred for further 24 h in the dark, under a nitrogen atmosphere, at room temperature. After this time, the solvent was evaporated, and the crude product was purified by flash chromatography on neutral Al₂O₃ using a mixture of dichloromethane/methanol from 99.5 : 0.5 to 98 : 2.

[Ru(dtbbpy)₂(azab-py)][BF₄] (A). 52.8 mg as a dark-red solid, 0.056 mmol, yield = 40%. ¹H NMR (400 MHz, CDCl₃) δ 8.54 (dd, J = 4.7, 2.0 Hz, 2H), 8.31 (d, J = 6.0 Hz, 1H), 8.14 (d, J = 6.0 Hz, 1H), 8.07 (d, J = 2.2 Hz, 1H), 8.04 (d, J = 2.2 Hz, 1H), 7.74 (dd, J = 8.0, 1.8 Hz, 1H), 7.70 (d, J = 6.0 Hz, 1H), 7.65 (td, J = 7.5, 1.4 Hz, 1H), 7.56 (d, J = 6.1 Hz, 1H), 7.51 (dd, J = 6.0, 2.1 Hz, 1H), 7.43 (d, J = 5.9 Hz, 1H), 7.36 (dd, J = 6.1, 2.1 Hz, 1H), 7.20–7.16 (m, 2H), 7.15 (dd, J = 6.0, 2.1 Hz, 1H), 7.03–6.95 (m, 2H), 6.87 (t, J = 8.1 Hz, 1H), 6.65 (t, J = 8.5 Hz, 1H), 6.50 (dd, J = 8.7, 1.2 Hz, 1H), 2.66 (s, 3H), 1.46 (s, 9H), 1.43 (s, 9H), 1.40 (s, 9H), 1.35 (s, 9H); ¹³C NMR (126 MHz, CDCl₃) δ 161.3 (C), 160.1 (C), 159.7 (C), 158.8 (C), 158.1 (C), 157.7 (C), 157.4 (C), 157.3 (C), 157.1 (C), 153.8 (C), 153.2 (CH), 150.5 (CH), 150.1 (CH), 149.9 (CH), 149.7 (CH), 148.0 (C), 134.2 (CH), 129.8 (C), 129.6 (CH), 125.7 (3 CH), 125.4 (CH), 124.0 (CH), 123.9₈ (CH), 123.9 (CH), 123.6 (CH), 123.2 (CH), 120.7 (CH), 120.4 (CH), 119.4 (CH), 119.3 (CH), 117.7 (CH), 35.6 (C), 35.4 (C), 35.3 (C), 35.1 (C), 30.6 (CH₃), 30.5 (CH₃), 30.4₅ (CH₃), 30.4₄ (CH₃), 23.1 (CH₃); ¹⁹F NMR (470 MHz, CDCl₃) δ −153.12, −153.17; ¹¹B NMR (160 MHz, CDCl₃) δ −6.70. ESI-MS: 857 [M]⁺. HRMS (ESI-QTOF) for C₅₀H₆₀BN₆Ru: ([M]⁺): m/z calcd: 850.4080; found: 850.4092. Anal. calc. for A = C₅₀H₆₀B₂N₆F₄Ru: C 63.63% H 6.41% N 8.91%; found: C 62.66% H 6.63% N 6.69%.

[Ru(dtbbpy)₃][BF₄]₂ (B). 19.0 mg as an orange solid, 0.018 mmol, yield = 13%. ¹H NMR (400 MHz, CDCl₃) δ 8.45 (d, J = 2.2 Hz, 6H), 7.75 (d, J = 6.0 Hz, 6H), 7.58 (dd, J = 6.0, 2.1 Hz, 6H), 1.45 (s, 54H); ¹³C NMR (126 MHz, CDCl₃) δ 162.3, 156.5, 151.3 (CH), 125.8 (CH), 120.8 (CH), 35.7, 30.5(CH₃); ¹⁹F NMR (470 MHz, CDCl₃) δ −152.46. ESI-MS: 453 [M]²⁺; 993 [M + BF₄]⁺.

General procedure for the synthesis of complexes C and D

In a 50 mL round bottom flask, RuCl₃·3H₂O (360 mg, 1.38 mmol, 1.0 equiv.), 4,4′-di-tert-butyl-2,2′-bipyridine (741 mg, 2.77 mmol, 2.0 equiv.) and LiCl (585 mg, 13.8 mmol, 10 equiv.) were dissolved in deoxygenated N,N-dimethylformamide (5 mL). The resulting solution was refluxed under a nitrogen atmosphere overnight. Afterward, the solution was cooled to room temperature and ice-cold acetone (50 mL) was added dropwise. The solution was filtered under vacuum and the precipitate was washed with 4 °C pre-cooled water and acetone. The solid was discarded and the solution was evaporated to dryness. The resulting crude product was purified by flash chromatography on neutral Al₂O₃ using dichloromethane as the eluent. Finally, the resulting solid was washed with ethyl ether. [Ru(dtbpy)₂Cl₂] was obtained as a dark red-violet solid in 31.2% yield (305 mg, 0.43 mmol). ¹H NMR (400 MHz, CDCl₃) δ 10.18 (s, 1H), 8.07 (s, 1H), 7.93 (s, 1H), 7.56 (d, J = 4.0 Hz, 2H), 6.93 (d, J = 4.4 Hz, 1H), 1.49 (s, 9H), 1.29 (s, 9H).

[Ru(dtbbpy)₂(ppy)][BF₄] (C). Following a previously reported procedure with slight modifications,⁴⁸ a 50 mL round bottom flask containing [Ru(dtbpy)₂Cl₂] (142 mg, 0.2 mmol, 1.0 equiv.), AgBF₄ (81.9 mg, 0.42 mmol, 2.1 equiv.), and 2-phenylpyridine (82.6 μL, 0.58 mmol, 2.9 equiv.) in 16 mL of dichloromethane was stirred at reflux overnight under a nitrogen atmosphere. The solution was left to cool to room temperature and the solvent was removed with vacuum. The crude was purified by flash chromatography on neutral Al₂O₃ using a mixture of dichloromethane/methanol from 100 : 0 to 98 : 2. This solid was collected and washed with hexane (15 mL) to afford complex C as a purple solid in 84.2% yield (148 mg, 0.168 mmol). The ¹H NMR spectrum was consistent with that previously reported in the literature.⁵³¹H NMR (500 MHz, CD₂Cl₂) δ 8.30 (d, J = 1.9 Hz, 1H), 8.22 (d, J = 2.1 Hz, 1H), 8.14 (dd, J = 5.3, 2.0 Hz, 2H), 7.96 (d, J = 6.3 Hz, 1H), 7.93 (d, J = 8.4 Hz, 1H), 7.81 (d, J = 6.4 Hz, 1H), 7.72 (d, J = 5.8 Hz, 1H), 7.67–7.62 (m, 2H), 7.57 (d, J = 6.1 Hz, 1H), 7.53 (d, J = 5.3 Hz, 1H), 7.42 (dd, J = 6.0, 1.9 Hz, 1H), 7.22–7.18 (m, 2H), 7.16 (dd, J = 6.1, 2.1 Hz, 1H), 6.93–6.89 (m, 2H), 6.86 (t, J = 7.9 Hz, 1H), 6.50 (d, J = 7.2 Hz, 1H), 1.44 (s, 9H), 1.41 (s, 9H), 1.40 (s, 9H), 1.39 (s, 9H). ESI-MS: 792 [M]⁺.

[Ru(dtbbpy)₂(naft-py)][BF₄] (D). In a 50 mL round bottom flask, [Ru(dtbpy)₂Cl₂] (133 mg, 0.187 mmol, 1.0 equiv.), AgBF₄ (76.4 mg, 0.39 mmol, 2.1 equiv.), and 2-(naphthalen-2-yl)pyridine (100 mg, 0.49 mmol, 2.6 equiv.) in 15 mL of dichloromethane were stirred at reflux overnight under a nitrogen atmosphere in the absence of light. The solution was left to cool to room temperature and the solvent was removed with vacuum. The crude product was purified by flash chromatography on basic Al₂O₃ using a mixture of dichloromethane/methanol (99.5 : 0.5). This solid was collected and washed with exane (15 mL) to afford complex D as a purple solid in 12.1% yield (21 mg, 0.023 mmol). ¹H NMR (500 MHz, CD₂Cl₂) δ 8.32 (d, J = 2.1 Hz, 1H), 8.28 (s, 1H), 8.24 (d, J = 2.1 Hz, 1H), 8.19–8.14 (m, 2H), 8.13 (d, J = 2.3 Hz, 1H), 8.06 (d, J = 6.1 Hz, 1H), 7.81–7.71 (m, 4H), 7.63–7.59 (m, 2H),7.44 (dd, J = 5.7, 2.0 Hz, 1H), 7.29–7.15 (m, 5H), 7.08 (dd, J = 6.4, 2.1 Hz, 1H), 6.99 (t, J = 7.1 Hz, 1H), 6.72 (s, 1H), 1.45 (s, 18H), 1.37 (s, 9H), 1.36 (s, 9H); ¹³C NMR (126 MHz, CD₂Cl₂) δ 187.2 (C), 167.2 (C), 160.5 (C), 159.1 (C), 158.0 (C), 157.7 (C), 157.4 (C), 156.7 (C), 156.4 (C), 155.2 (C), 153.6 (CH), 150.2 (CH), 149.4 (CH), 149.1 (CH), 148.5 (CH), 145.3 (C), 135.2 (CH), 134.6 (C), 132.8 (CH), 129.9 (C), 128.7 (CH), 126.2 (CH), 124.9 (CH), 124.3 (CH), 123.6 (CH), 123.5 (CH), 123.4 (CH), 122.8 (CH), 122.7 (CH), 122.4 (CH), 119.6 (CH), 119.5 (CH), 119.4₃ (CH), 119.3₈ (CH), 119.2 (CH), 35.3 (C), 35.1 (C), 35.0 (C), 34.9₈ (C), 30.2 (2 CH₃), 30.1 (CH₃), 30.0₆ (CH₃); ¹⁹F NMR (470 MHz, CD₂Cl₂) δ −153.15, −153.21. ESI-MS: 842 [M]⁺. HRMS (ESI-QTOF) for C₅₁H₅₈BN₅F₄Ru: ([M]⁺): m/z calcd: 922.3829; found: 922.3814. Anal. calc. for D = C₅₁H₅₈BN₅F₄Ru: C 65.94% H 6.29% N 7.54%; found: C 66.08% H 8.62% N 5.92%.

Electrochemical characterization

Voltammetric experiments were performed using a Metrohm d AutoLab PGSTAT 302N electrochemical work-station in combination with the NOVA 2.1.6 software package. All the measurements were carried out at room temperature in acetonitrile solutions with a sample concentration of approximately 1.0 mM and using 0.1 M tetrabutylammonium hexafluorophosphate (electrochemical grade, TBAPF₆) as the supporting electrolyte. Oxygen was removed from the solutions by bubbling nitrogen. All the experiments were carried out using a three-electrode setup (BioLogic VC-4 cell, volume range: 1–3 mL) with a glassy carbon working electrode (having an active surface disk of 1.6 mm diameter), a Ag/AgNO₃ redox couple (0.01 M in acetonitrile, with 0.1 M TBAClO₄ supporting electrolyte) as the reference electrode, and a platinum wire as the counter electrode. At the end of each measurement, ferrocene was added as the internal reference. Cyclic voltammograms (CV) were typically recorded at a scan rate of 100 mV s⁻¹. Osteryoung square-wave voltammograms (OSWV) were recorded with a scan rate of 25 mV s⁻¹, a SW amplitude of ±20 mV, and a frequency of 25 Hz.

Photophysics

The spectroscopic investigations were carried out in spectrofluorimetric grade acetonitrile and dichloromethane. The absorption spectra were recorded with a PerkinElmer Lambda 950 spectrophotometer. For the photoluminescence experiments, the sample solutions were placed in fluorimetric Suprasil quartz cuvettes (10.00 mm) and dissolved oxygen was removed by bubbling argon for 30 min. The uncorrected emission spectra were obtained with an Edinburgh Instruments FLS920 spectrometer equipped with a Peltier-cooled Hamamatsu R928 photomultiplier tube (PMT, spectral window: 185–850 nm) and an R5509-72 InP/InGaAs PMT supercooled at 193 K in a liquid nitrogen cooled housing and a TM300 emission monochromator with a NIR grating blazed at 1000 nm. An Osram XBO xenon arc lamp (450 W) was used as the excitation light source. The corrected spectra were acquired by means of a calibration curve, obtained by using an Ocean Optics deuterium–halogen calibrated lamp (DH-3plus-CAL-EXT). The photoluminescence quantum yields (PLQYs) in solution were obtained from the corrected spectra on a wavelength scale (nm) and measured according to the approach described by Demas and Crosby,⁵⁹ using an air-equilibrated water solution of tris(2,2′-bipyridyl)ruthenium(II) dichloride as a reference (PLQY = 0.040).⁶⁰ The emission lifetimes (τ) were measured through the time-correlated single photon counting (TCSPC) technique using an HORIBA Jobin Yvon IBH FluoroHub controlling a spectrometer equipped with a pulsed NanoLED as the excitation source and a red-sensitive Hamamatsu R-3237-01 PMT (185–850 nm) as the detector. The analysis of the luminescence decay profiles was accomplished with the DAS6 Decay Analysis software provided by the manufacturer, and the quality of the fit was assessed with the χ² value close to unity and with the residuals regularly distributed along the time axis. To record the 77 K luminescence spectra, samples were put in quartz tubes (2 mm inner diameter) and inserted into a special quartz Dewar flask filled with liquid nitrogen. The poly(methyl methacrylate) (PMMA) films containing 1% (w/w) of the complexes were obtained by dropcasting and the thickness of the films was not controlled. Solid-state PLQY values were calculated with corrected emission spectra obtained from an Edinburgh FLS920 spectrometer equipped with an integrating sphere coated with barium sulphate, following the procedure described by Würth et al.⁶¹ Experimental uncertainties are estimated to be ±8% for τ determinations, ±10% for PLQYs, and ±2 nm and ±5 nm for absorption and emission peaks, respectively.

Computational details

Density functional theory (DFT) calculations were performed using the B.01 revision of the Gaussian 16 program package,⁶² in combination with the M06 global-hybrid meta-GGA exchange–correlation functional.^63,64 The fully relativistic Stuttgart/Cologne energy-consistent pseudopotential with multielectron fit was used to replace the first 28 inner-core electrons of the ruthenium metal centre (i.e., ECP28MDF) and was combined with the associated triple-ζ basis set (i.e., cc-pVTZ-PP basis);⁶⁵ on the other hand, the Pople 6-31G(d,p) basis was adopted for all other atoms.^66,67 The efficacy of the adopted computational protocol has already been validated on similar studies as reported in the literature.⁴⁵ All the reported complexes were fully optimized, using a time-independent DFT approach, in their ground state (S₀) and lowest triplet states; all the optimization procedures were performed using the polarizable continuum model (PCM) to simulate acetonitrile solvation effects.^68–70 Frequency calculations were always used to confirm that every stationary point found by geometry optimizations was actually a minimum on the corresponding potential-energy surface (no imaginary frequencies). To investigate the nature of the emitting states, geometry optimizations and frequency calculations were performed at the spin-unrestricted UM06 level of theory (imposing a spin multiplicity of 3), using the S₀ minimum-energy geometry as an initial guess. To locate and fully relax metal-centered triplet excited states (³MC), an analogous procedure was adopted, but using properly designed initial geometries as guesses (i.e., by selectively elongating the axial Ru–N bonds to approx. 2.5 Å).⁵⁶ Time-dependent DFT calculations (TD-DFT),^71,72 carried out at the same level of theory used for geometry optimizations, were used to calculate the first 16 triplet excitation from S₀ minima and their nature was assessed with the support of Natural Transition Orbital (NTO) analysis.⁵⁵ Charge decomposition analysis was performed and orbital-interaction diagrams were obtained using Multiwfn 3.8 – a Multifunctional Wavefunction Analyzer.⁷³ All the pictures showing molecular geometries, orbitals and spin-density surfaces were created using GaussView 6.⁷⁴

Author contributions

A. B., F. M. and L. S. supervised and coordinated the project. L. S. and N. A. were responsible for funding acquisition. M. P. synthesized the compounds and, together with A. B., was responsible for their structural characterization. The photophysical and electrochemical studies were carried out by F. M. and M. P., and discussed with N.A.; F. M. was also responsible for the DFT calculations. The original draft was prepared by A. B. and F. M.; all the authors reviewed, edited, and approved the final version of the manuscript.

Data availability

The data supporting this article have been included as part of the ESI.†

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

We acknowledge financial support under the National Recovery and Resilience Plan (NRRP), Mission 4, Component 2, Investment 1.1, Call for tender No. 104 published on 2.2.2022 by the Italian Ministry of University and Research (MUR), funded by the European Union – NextGenerationEU – Project 2022HX5CHP “HEPIrCOS”; Investment 1.5 (project ECOSISTER – Ecosystem for Sustainable Transition in Emilia-Romagna, grant number ECS00000033, Concession Decree No. 1052 of 23/06/2022, within Spoke 1 – Materials for sustainability and ecological transition and Spoke 2 – Clean energy production, storage and saving). Funding from the University of Bologna is also gratefully acknowledged.
