Understanding the effects of adduct functionalization on C₆₀ nanocages for the hydrogen evolution reaction

Abstract

In this work, we use experimental and theoretical techniques to study the origin of the boosted hydrogen evolution reaction (HER) catalytic activity of two pyridyl-pyrrolidine functionalized C₆₀ fullerenes. Notably, the mono-(pyridyl-pyrrolidine) penta-adduct of C₆₀ has exhibited a remarkable HER catalytic activity as a metal-free catalyst, delivering an overpotential (η₁₀) of 75 mV vs. RHE and a very low onset potential of −45 mV vs. RHE. This work addresses fundamental questions about how functionalization on C₆₀ changes the electron density on fullerene cages for high-performance HER electrocatalysis.

---

New concepts

In this work, we thoroughly investigated the electrocatalytic performance of two pyridyl-pyrrolidine functionalized C₆₀ fullerenes for the hydrogen evolution reaction (HER) using advanced experimental and theoretical tools. These functionalized fullerenes showed an exceptional electron density relocation at the C₆₀-ligand interfaces, which significantly impacts the electronic structure of the carbon atoms in the nearest regions, thus inducing a new type of highly active electrocatalytic site for the molecular generation of hydrogen. Notably, the mono-(pyridyl-pyrrolidine) penta-adduct of C₆₀ has exhibited a remarkable HER catalytic activity as a metal-free catalyst, delivering an overpotential (η₁₀) of 75 mV vs. RHE and a very low onset potential of −45 mV vs. RHE. Additionally, we identified the key factors that influence the intermolecular electron transfer at the C₆₀-addend interface and their impact on the HER. This work introduces new chemistry concepts to understand the origin of the electrocatalytic activity of metal-free 0D-low-dimensional nanomaterials with curved surfaces.

The HER must achieve technological maturity, relying on widely available carbon-based materials. Pt-group metal (PGM) catalysts constitute a significant portion of the design and cost for proton-exchange membrane fuel cells (PEMFCs) and electrolyzers.^1–3 Over the past decade, substantial efforts have been made to develop PGM-free cathodes for HER, especially with the recent promising developments in metal–N–C-based and metal single-atom alternatives to PGMs.⁴ Most recent reports have focused on studies of metal-containing carbides and Ni-based materials for HER catalysis, which exhibit only moderate activities and require greater stability and reproducibility.^4–6 Low-dimensional carbons, such as 1D-carbon nanotubes and 2D-graphene, have been used as metal-free catalysts for the electrochemical generation of molecular hydrogen because of their large surface area, excellent chemical stability, and high conductivity.^7,8 Despite these advances, employing metal-free catalysts for HER and their applications remains challenging due to their large molecular footprint, poor durability, and limited electrochemical stability.^9,10 With the latest progress in electrocatalysts, properties such as high electrochemical stability and high conductivity, are drawing researchers to use molecular catalysts for energy conversion applications.¹¹ 0D-based fullerene architectures have recently emerged as a unique alternative to reduce protons to hydrogen molecules for fuel cell applications.^12–16 The distinctive chemical and physical characteristics of fullerenes and their derivatives primarily arise from their electron-accepting abilities and high charge transport capabilities in three dimensions. However, the role of interfacial chemistry at the C₆₀-ligand heterointerface for hydrogen evolution reactions has not been completely unveiled.

In this work, we report an activation approach involving the regio- and stereoselective synthesis of hybrid fullerene C₆₀ penta (P-C₆₀) and hexa-adduct (H-C₆₀).¹⁷ These functionalized fullerenes showed an exceptional electron density relocation at the C₆₀-ligand interfaces, which significantly impacts the electronic structure of the carbon atoms in the nearest regions, thus inducing a new type of highly active electrocatalytic sites for the molecular generation of hydrogen. Hexa and penta adduct of C₆₀ are prepared as shown in the scheme presented in Fig. 1 and Supporting information 1 (ESI†).

Fig. 1 Synthesis of penta and hexa-adducts of C₆₀: hexa-adduct (C_2h-symmetric trans-1-(bis-pyrrolidine)-tetra-malonate hexa-adducts of C₆₀) and penta-adduct-C₆₀ (mono-pyrrolidine penta-adduct of C₆₀) were synthesized through the reaction of C₆₀-TM with methyl glycine ester, using diacetoxyiodobenzene (DIB) and sodium carbonate decahydrate as reagents in ortho-dichlorobenzene (o-DCB), under sonication at room temperature.

The ¹³C NMR spectrum (Fig. S1–S3, ESI†) of H and P-C₆₀ exhibited resonances analogous featuring carbonyl group signals at δ = 163.8 and 163.4 ppm, seventeen signals between 156.1 and 122.6 ppm corresponding to twelve sp² fullerene carbon atoms and five 2-pyridyl groups, pyrrolidine addend signals at δ = 70.6 and 76.5 ppm, methylene group signals at δ = 62.7 and 62.1 ppm, and methyl group signals at δ = 14.1 ppm. Furthermore, five additional signals at δ = 72.7, 70.9, 66.2, 45.4, and 44.1 ppm confirmed the presence of the cis–anti–cis isomer.¹⁸ The crystal data of the as-separated structures of penta and hexa adduct are presented in (Fig. S4 and Supporting information 2, ESI†). The exclusive formation of cis–anti–cis hexa-adduct isomers was primarily ascribed to the interactions between the pendant groups in the malonate and the pyrrolidine rings. These interactions, crucial in the gas phase (van der Waals forces), are diminished when the solvent (o-DCB) is present.

The hydrogen evolution characteristics of functionalized fullerenes were investigated through linear sweep voltammetry (LSV) in 0.5 M H₂SO₄ (Experimental details in Supporting information 3, ESI†). Catalytic activities for hydrogen evolution are depicted in Fig. 2A, showcasing pristine C₆₀, P-C₆₀, and H-C₆₀, alongside the benchmark Pt/C. The onset potentials and current densities for hexa and penta functionalized fullerenes (−90 mV and −45 mV vs. RHE) significantly exceed those of pristine C₆₀, suggesting that organic functionalization decreases the uphill thermodynamic barrier towards the hydrogen adsorption in the fullerene cage.¹⁷ Notably, the catalytic activity of P-C₆₀ surpasses that of the H-C₆₀, reflecting the importance of the group, as well as the degree of functionalization and symmetry.¹⁷ Remarkably, P-C₆₀, with an onset potential of −45 mV vs. RHE, an overpotential of 75 mV to reach 10 mA cm⁻² and a high current density of 160 mA cm⁻² at −0.6 V vs. RHE, outperforms the HER activity of the state-of-the-art metal-free carbon nanostructure electrocatalysts (Tables S1 and Supporting information 4, ESI†). The superior catalytic activity of the P-C₆₀ can be associated with the unique distribution of ester-pyrrolidine motif in the carbon cage, which activates the nearest carbon atoms at the C₆₀-ligand interfaces, thus creating new highly active centers, enhancing the adsorption of catalytic intermediates, and improving the catalytic rates for the HER. Tafel plots provide insights into the HER mechanisms of the functionalized C₆₀ surfaces, with the penta-C₆₀ adduct displaying a Tafel slope of 48 mV dec⁻¹ (Fig. 2B). It is worth pointing out that the Tafel slope of the functionalized C₆₀ molecules is by far lower than that of pristine C₆₀, thus implying a more efficient HER pathway, possibly the Volmer–Heyrovsky mechanism, and an improved kinetic efficiency upon the fullerene functionalization.

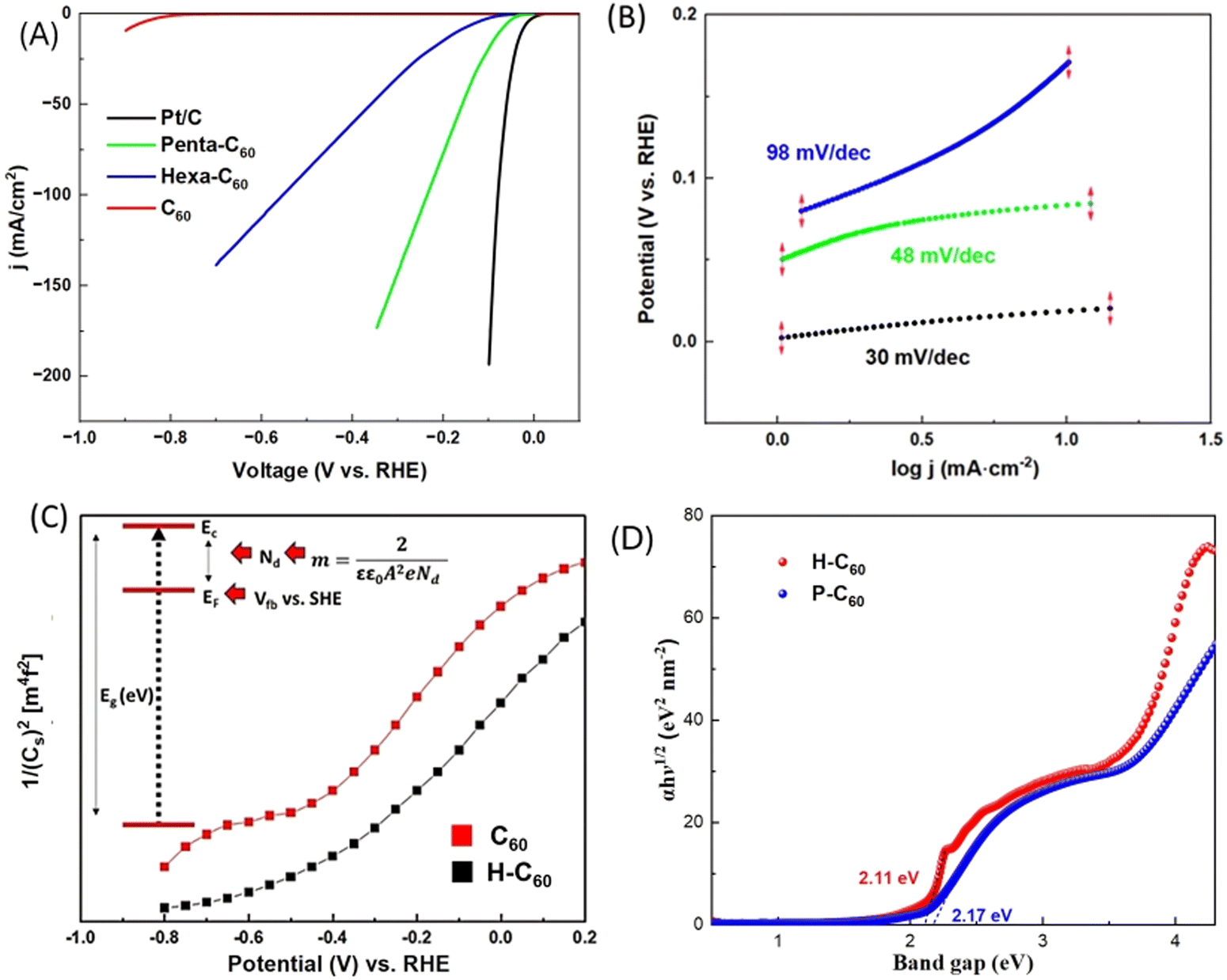

Fig. 2 (A) Hydrogen evolution linear sweep voltammetry profile of pristine C₆₀, hexa adduct of C₆₀, H-C₆₀ and penta adduct P-C₆₀ the benchmark Pt/C. (B) Tafel slope of the optimum penta adduct C₆₀ and Pt/C; (C) Mott–Schottky analysis of C₆₀ and H-C₆₀. (D) DRS profile of the hexa (red) and penta (blue) adduct of C₆₀.

Furthermore, the P-C₆₀ demonstrates remarkable electrochemical stability in acidic conditions, maintaining 97% of the initial current density after 20 000s, as evidenced in Fig. S5 and Supporting information 4 (ESI†). Mott–Schottky (M–S) and diffuse reflectance spectroscopy (bandgap) analyses were conducted to assess the charge carrier densities (N_d) for the HER of the electrochemical materials (Fig. 2C and D).

The well-established inverse relationship between the M–S and N_d suggests that a decrease in slope corresponds to an increase in N_d, thereby enhancing the charge carrier densities and consequently, the electron transfer kinetics. The P-C₆₀ exhibited a lower slope than non-functionalized C₆₀ fullerenes, suggesting that functionalization improves the charge carriers, significantly boosting the charge transfer at the M–S interfaces. Furthermore, the flat band potential shifted from −0.6 V for pristine C₆₀ to −0.4 V for the P-C₆₀, suggesting a higher electron density near the Fermi level in the case of the P-C₆₀. Additionally, XPS experiments were carried out before and after a chronoamperometric experiment with the F-C₆₀ (Fig. S6 and Supporting information 5, ESI†). Ex situ XPS after the chronoamperometry experiment shows a slight shift in the N 1s band most likely due to the electron transfer processes in the C₆₀-addend interface (Fig. S6b, ESI†). The faradaic efficiency (FE) of P-C₆₀ catalysts was also determined by dividing the measured H₂ produced by the expected amount based on the charge passed during controlled-potential electrolysis measurements. For longer 24 hour experiments, the FE was found to be 89%, a promising value for a metal-free HER catalyst.¹⁹ (see Table S2 and Supporting information 5, ESI†).

To unlock the effects of the ligand functionalization strategy in the HER electrocatalytic properties of C₆₀ fullerenes and gain an in-depth mechanistic understanding, we employed density functional theory (DFT) calculations. We first calculated the electronic properties of H-C₆₀ and P-C₆₀ adducts. The density of states of the H-C₆₀ and P-C₆₀ molecules was studied using different link groups (Fig. 3A and D). For the H-C₆₀ adduct, the group-1 has a higher contribution to the C₆₀ compared to the group-2 (Fig. 3A). The density of states near the Fermi level was mainly contributed by the 2p orbitals of C and N atoms (Fig. 3G). Moreover, the 2p orbital of O atoms from the addends is hybridized with the 2p orbital of C atoms in the cage, indicating that the addends exhibit a strong interaction with the C₆₀ cage. The P-C₆₀ adduct shows the same trend (Fig. 3D and H).

Fig. 3 The calculated density of states and charge density difference maps of different ligands for H-C₆₀ (A)–(C) and P-C₆₀ (D)–(F); the calculated density of states for different elements contribution of H-C₆₀ (G) and P-C₆₀ (H); (I) the calculated Gibbs free energies for different C sites of H-C₆₀ and penta-C₆₀, the pristine C₆₀ was included for comparison (the iso-surface value is 0.0015 e Å⁻³).

We further calculated the charge distribution of the H-C₆₀ and P-C₆₀ to uncover the charge change of the C atoms at the C₆₀-addend interfaces. The calculated Bader analysis shows that there are significant electron transfers between the ligands and C₆₀ atoms. Depending on the distance from the functional group, the C atoms of C₆₀ will gain or lose different electrons. For the P-C₆₀, the first nearest C atoms that are directly connected to the functional group will gain 0.02–0.12 electrons from the functional groups. The second nearest C atoms may gain or lose electrons according to their distance from the other functional groups. For H-C₆₀, the first nearest C atoms that are directly connected to the functional group lose 0.08 electrons while the second nearest C atoms all gain 0.01–0.3 electrons. The C atoms of pristine C₆₀ are not active for HER due to the weak interaction with the H.²⁰

After the functionalization, the electronic properties of C atoms that are near the addends were drastically affected. There are two different types of addends for the H-C₆₀ and P-C₆₀ adducts (pyridine and ethyl ester groups, respectively). We have calculated the charge density difference maps of H-C₆₀ and P-C₆₀ for each type of addend, respectively. There is a charge transfer process from the ligands to the C atoms of the C₆₀ cages (Fig. 3B, C and E, F). The calculated Bader analysis shows that the ligands release electrons and the C atoms near the ligands gain electrons, thus promoting an intramolecular electron transfer phenomenon. Moreover, the charge distribution of C atoms around the functional groups on the C₆₀ cage can also influence the H absorption strength during the electrocatalytic reaction. To verify this prediction, the Gibbs free energy values of the absorbed H on different C sites were calculated. As expected, the ideal HER catalyst requires a value of ΔG_H* close to zero. According to the distance between the C atoms of C₆₀ and the ligands, two types of catalytic sites, including the first and second nearest C atoms, were investigated (Fig. S7, S8 and Supporting information 6, ESI†). The results show that the first nearest C atoms were the most active sites for HER with Gibbs free energies of −0.28 and 0.27 eV for H-C₆₀ and P-C₆₀, respectively. As the distance between the C atoms and ligands increases, the Gibbs free energy of the absorbed H becomes more positive (0.42 and 0.37 eV for H-C₆₀ and P-C₆₀, which is close to the 0.44 eV of pristine C₆₀), suggesting a substantial change in the HER efficiency (Fig. 3I).

In summary, we have disclosed the principal factors that control the intermolecular electron transfer at the C₆₀-addend interface and their implication for the molecular generation of hydrogen. The C₆₀-addend interface can finely tailor the nearest carbon atoms' electronic structure and decrease the H adsorption's thermodynamic barrier, thus promoting the overall catalytic activity. We have also proven the importance of the pyrrolidine addends, being more active in the ester groups when compared with those from the pyridine. This work offers a unique approach to the rational design of functionalized fullerene-based molecular catalysts for efficient electrochemical hydrogen evolution.
