A conformationally adaptable tetrahedral cage with different guest encapsulation models

Abstract

Through imine condensation, a tetrahedral cage-shaped molecule was obtained in a one-pot manner, which comprises four trisamino vertices and four trisformyl faces each containing three meta-methyl-pyridyl units. Within the cage framework, each of the twelve pyridines undergoes pivoting around the corresponding imine-pyridine-phenyl axle, endowing the cage with adaptable conformations. By modulating the number of pyridyl nitrogen atoms that point inwards, the cage can switch the effective volume of its cavity where a wide range of guest molecules including quaternary ammoniums, or different amounts of alkali cations, are encapsulated, by utilizing dipole–cation forces and/or hydrogen bonding. This behavior is reminiscent of biological enzymes that can adjust their conformations to optimize binding affinity.

---

Introduction

Biological acceptors can precisely modulate their conformations to optimize their binding affinity towards target substrates.¹ A typical example of adapting conformations in regulation of guest upload and release is hemoglobin.² This enzyme cooperatively accommodates four oxygen molecules in one conformation and switches to another that favors the release of all oxygens. This behavior enhances the ability of hemoglobin to deliver oxygen. In order to unravel the underlying mechanism of how these conformational change behaviors occur, one of the often-used approaches is to synthesize artificial hosts, whose conformations can be modulated precisely with different guest binding models.³ Various metal–ligand coordinative macrocycles^4,5 and cages^6–12 have been developed for this purpose. Their conformations can be adjusted upon recognition of different guests, and in some cases, multiple guests could be recognized within the host cavities in either a positive^13–16 or negative^17,18 cooperative manner. As a comparison, using purely covalent hosts^19–24 to achieve conformationally adaptive guest binding has been much less successful. Purely covalent hosts self-assembled via dynamic covalent chemistry^25–30 often comprise relatively rigid building blocks, in order to suppress entropy loss in self-assembly for the sake of high yields. The rigidity, on the other hand, would jeopardize the adaptability of conformations. Examples^31,32 of purely covalent cages, which can incorporate the advantages of both high yielding synthesis and adaptability of conformation with different binding modes, are still rare.

Here, we obtained a tetrahedral molecule in high yield (i.e., 88%), by condensing four equivalents of trisamine as vertices and four trisformyl residues as faces each bearing three meta-methyl-pyridyl units. The relatively high yield of the cage results from intramolecular forces including CH⋯π interactions. Within the cage framework, each of the twelve meta-methyl-pyridyl units undergoes free pivoting motion around the corresponding imine-pyridyl-phenyl axle, allowing the cage to adopt different conformations. In the absence of guests, on average, six of the twelve pyridyl nitrogen atoms point inwards while the others point out, implying that the “free” cage cavity is occupied by six methyl units. The cage can adapt its conformation to recognize a wide range of guests, by switching or decreasing the number of methyl units that are located inside the cavity. The pyridyl units afford the cage the ability to recognize Lewis acidic guests including quaternary ammoniums and alkali cations, by providing hydrogen bonding and/or cation–dipole interactions. For example, by adopting a conformation with nine pyridyl nitrogen atoms pointing inwards, the cage can encapsulate a single Na⁺ cation. When all twelve pyridyl nitrogen atoms are directed inward, the cage can accommodate two cations simultaneously.

Results and discussion

The triangular trisformyl compound F1 was synthesized via Suzuki coupling. In F1, each of the formyl units is grafted at the 5-position of a meta-methyl-pyridyl unit. F1 was combined with tris(2-aminoethyl)amine (TREN), a commercially available trisamine, in CDCl₃. After placing the solution at room temperature for 30 h, the recorded ¹H NMR spectrum revealed a new set of sharp resonances corresponding to a tetrahedral cage T1 (Fig. 1 and S14, ESI†). This tetrahedron is composed of four TREN residues as the vertices and four F1 residues as the faces. The self-assembly yield of T1 was determined to be 88%, by integrating and comparing the resonances corresponding to the formyl precursor F1 and the product T1 relative to an internal standard in the NMR sample, whose concentration remained constant before and after self-assembly (Fig. S14, ESI†). Such a high yield of T1 resulted from the dynamic nature of imine formation, during which error checking was allowed so that the system was able to search for its thermodynamic minimum. A pure solid-state sample of T1 was isolated in 57% yield via crystallization by diffusion of isopropyl ether into its chloroform solution. This solid was then re-dissolved in CDCl₃ for the ¹H NMR spectrum, in which T1 was the only observable product, indicating that no decomposition occurred during isolation. The formation of T1 was further confirmed by mass spectrometry (Fig. S13, ESI†) and ¹H-DOSY NMR spectroscopy (Fig. S12, ESI†).

Fig. 1 Structural formula and graphic representation of a tetrahedral cage T1 by condensing F1 and TREN in CDCl₃. F1 adopts a twisted conformation due to the steric hindrance between the methyl unit and a central phenyl proton, which proved to be of importance in the cage self-assembly. A putative tetrahedron T2, however, was not obtained by using an analogous formyl precursor F2 and TREN, on account of the planar conformation of T2.

As a comparison, F2, an analogue of F1 whose Me units are replaced with protons, was also combined with TREN under the same conditions. However, the formation of the putative tetrahedral cage T2 was not observed (Fig. S16, ESI†). The self-assembly of T2 was not successful either, even when employing quaternary ammonium species as potential templating agents. It has been reported by us^33–36 that the formation of tetrahedra was favored by the intramolecular CH⋯π interactions between the two adjacent phenylene units in each corner of the cage. In the case of T1, the occurrence of CH⋯π interactions requires pyridyl in each vertex to orientate in an edge-in manner. This twisted conformation indeed occurs in the precursor F1 before self-assembly, because of the steric hindrance between the methyl units in the pyridine and the corresponding protons in the central phenyl ring. As a comparison, F2 adopts a relatively planar conformation due to the absence of methyl units, making the formation of the putative cage T2 more energy demanding.

The presence of CH⋯π interactions within the framework of T1 was confirmed by its ¹H NMR spectrum (Fig. 2b). The resonances corresponding to the two protons in the ortho positions relative to the imine bond, denoted as protons a and b, underwent remarkable upfield shifts by 0.81 and 1.06 ppm, respectively, compared to the precursor F1 (Fig. S3, ESI†). These shifts suggest that in the framework of T1, both a and b spend a substantial amount of time near the surface of an adjacent pyridyl unit, resulting in a shielded magnetic environment. Considering that only one set of sharp resonances was observed, it is thus reasonable to propose that each pyridyl underwent fast pivoting motion along the phenyl-pyridyl-imine axis on the timescale of ¹H NMR spectroscopy. Compared to F1, the resonance corresponding to the methyl unit in the cage T1 shifted upfield by 0.52 ppm, further confirming our hypothesis that the methyl units spent substantial amounts of time within the cage cavity.

Fig. 2 (a) Recognition of a guest within the cavity of the tetrahedron T1. The structures of the guests and the corresponding binding constants are listed. The partial ¹H NMR spectrum of T1 (400 MHz, CDCl₃, 298 K) (b) before and (c) after 1 equiv. of TMA⁺·Cl⁻ was added.

The nitrogen atom in a pyridyl unit represents a typical Lewis basic binding site, endowing the cage T1 with the ability to recognize Lewis acidic guests. Upon the addition of tetramethylammonium (TMA⁺) chloride into a solution of T1 in CDCl₃, the resonances of the latter underwent remarkable shifts (Fig. 2c). A resonance corresponding to TMA⁺ encapsulated within the cage cavity was observed at 1.66 ppm, which shifted upfield by 1.88 ppm compared to the “free” TMA⁺. This observation confirmed the recognition of TMA⁺ within the cage cavity. Compared to the “free” cage T1, the resonance corresponding to the protons a in the ortho position of nitrogen shifted upfield by 1.42 ppm, while those corresponding to the methyl units and the protons b near the methyl units shifted downfield by 0.35 and 1.21 ppm, respectively. These observations clearly indicated that upon recognition of TMA⁺, all the methyl units in the cage framework moved out from the cage cavity, and simultaneously all the nitrogen atoms moved inside to form cation–dipole interactions with the guest and N⋯HC hydrogen bonds with the methyl protons in TMA⁺. The complex TMA⁺⊂T1·Cl⁻ underwent slow host–guest association/dissociation exchange on the timescale of ¹H NMR spectroscopy, as inferred from the fact that the “free” cage and the host–guest complex exhibited two independent sets of resonances. By integrating the resonances corresponding to the “free” cage, “free” guest, and the host–guest complex, the binding constant (K_a) of TMA⁺⊂T1·Cl⁻ was determined to be (2.0 ± 0.06) × 10⁵ M⁻¹ (Fig. S25, ESI†). Using UV-vis absorption spectroscopy, K_a was measured to be (5.9 ± 0.4) × 10⁴ M⁻¹ (Fig. S24, ESI†), which is in close agreement with the ¹H NMR spectroscopic results. We also investigated the possibility of the cage to recognize other quaternary ammonium guests. After adding tetraethylammonium (TEA⁺) chloride, no changes were observed in the ¹H NMR spectrum of T1, indicating that the size of TEA⁺ is too large to fit within the cavity of T1. In the case of trimethylethylammonium (TMEA⁺) with I⁻ counterions, as well as choline, chlormequat, mepiquat and trimethylamine hydrochloride (TMAH⁺·Cl⁻), whose counterions are all Cl⁻, the binding constants were measured to be (3.2 ± 0.12) × 10⁴ M⁻¹ (Fig. S69, ESI†), (1.4 ± 0.08) × 10⁴ M⁻¹ (Fig. S75, ESI†), (1.1 ± 0.02) × 10³ M⁻¹ (Fig. S76, ESI†), (2.0 ± 0.27) × 10² M⁻¹ (Fig. S89, ESI†) and (1.1 ± 0.18) × 10² M⁻¹ (Fig. S94, ESI†), respectively. These binding constants are one or two orders of magnitude lower than that of TMA⁺. One explanation is that these guests have less complementary sizes relative to the cage cavity. We also attempted to use T1 to recognize neutral compounds with complementary sizes. However, only one zwitterion namely trimethylamine N-oxide was observed to be encapsulated within the cage cavity of T1. The binding constant was measured to be only 2.2 ± 0.06 M⁻¹ by using the ¹H NMR spectrum (Fig. S80, ESI†), which is lower by nearly four or five orders of magnitude compared to the cationic guest TMA⁺. This result indicated that the binding between T1 and the aforementioned quaternary ammonium guests mainly relied on dipole–cation interactions.

The ability of the cage to recognize alkali cations was then investigated. Sodium tetrakis[3,5-bis(trifluoromethyl)phenyl]borate (Na⁺·BArF⁻) was added into a solution of T1 in CDCl₃. The BArF⁻ counterion served to enhance the solubility of Na⁺ in CDCl₃. Upon the addition of one equiv. of Na⁺, a remarkable change occurred to the ¹H NMR spectrum of T1 (Fig. 3d). The resonances corresponding to the protons e in imine units and protons d in the central phenyl units only underwent modest shifts. As a comparison, the resonances corresponding to the protons a and b in the pyridyl units were observed to broaden out into the baseline and become almost unobservable. This observation indicated that after recognition of one Na⁺ cation within the cage cavity, the pivoting of pyridyl units was significantly slowed down compared to the “free” cavity, on account of cation–dipole interactions between Na⁺ and pyridyl nitrogen atoms. In fact, the resonances corresponding to the protons a and b gradually sharpened at elevated temperatures. These two resonances were observed at 7.33 and 7.78 ppm, respectively at 323 K (Fig. 3c), implying an upfield and a downfield shift by 0.83 and 0.75 ppm respectively relative to the “free” cage. This observation is not surprising, because after accommodation of a Na⁺ guest, more nitrogen atoms in the pyridyl units would point inwards, in order to enhance the cation–dipole interactions with the cationic guest. The ¹H NMR spectrum of Na⁺⊂T1·BArF⁻ was also recorded at 213 K (Fig. 3e). At such a low temperature, each resonance of the cage observed at room temperature splits into four distinct peaks. For example, the resonances corresponding to the methyl units (protons c) were observed at 2.48, 2.45, 2.27, and 1.61 ppm respectively, while those corresponding to the protons b in the ortho positions of the methyl units were observed at 8.41, 8.38, 8.24, and 5.31 ppm, respectively. In both cases, one of the four resonances undergoes a remarkable upfield shift while the other three are located relatively downfield. The resonances corresponding to the protons a beside pyridyl nitrogen atoms have the opposite trend, i.e., one was observed at a downfield position (i.e. 9.17 ppm), while the other three were located upfield (i.e., 6.70, 6.68, and 6.43 ppm, respectively). Considering that the cage bears twelve pyridyl units, the appearance of four resonances indicated that the framework of the complex Na⁺⊂T1·BArF⁻ has a C₃ axis of symmetry. The Na⁺ guest coordinates with the three pyridyl units in one corner of the tetrahedron, driving all three methyl in this corner to reside outside the cage cavity. In each of the other three corners where the cation is absent, one methyl points inwards and occupies the cavity while the other two reside outside, driven by intramolecular Me⋯N hydrogen bonding. At 213 K, the motion of Na⁺ between the four corners of the cage occurred at a relatively slow rate on the timescale of ¹H NMR spectroscopy. However, raising temperature will speed up this motion, making the four corners of the cage chemically equivalent. This proposition is consistent with the observation that at room temperature or 323 K, only one set of resonances of Na⁺⊂T1 was observed.

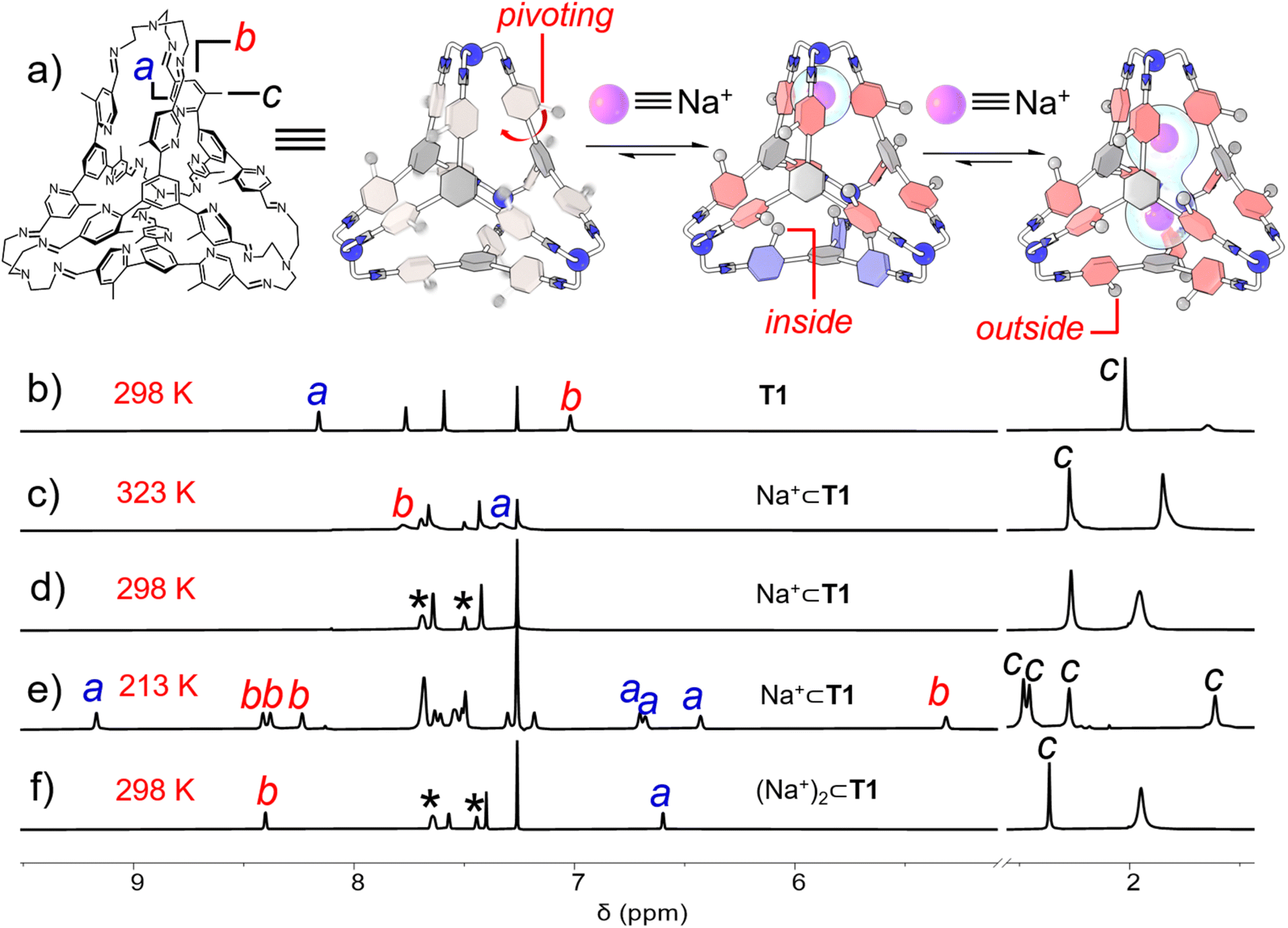

Fig. 3 (a) Graphical representation of the allosteric regulated binding behaviors of cage T1 toward one of the two Na⁺. Partial ¹H NMR spectra (400 MHz, CDCl₃) of (b) T1 recorded at 298 K, Na⁺⊂T1·BArF⁻ recorded at (c) 323 K, (d) 298 K, and (e) 213 K, and (f) (Na⁺)₂⊂T1·2BArF⁻ recorded at 298 K. The resonances corresponding to the protons a, b, and c in the cage framework were labelled with the corresponding letters in the spectra. The resonances corresponding to the BArF⁻ counterions were labelled with black stars.

Addition of another equiv. of Na⁺ into Na⁺⊂T1·BArF⁻ led to the appearance of a new set of resonances in the corresponding ¹H NMR spectrum (Fig. 3f), corresponding to a ternary complex namely (Na⁺)₂⊂T1·2BArF⁻. Compared to Na⁺⊂T1·BArF⁻, the resonances corresponding to the methyl units and protons b undergo downfield shifts by 0.09 and 0.62 ppm respectively, while that of the proton a shifted upfield by 0.73 ppm. These shifts indicate that after the addition of the second equiv. of Na⁺, all twelve pyridyl units point inward due to the occurrence of cation–dipole interactions and thus drive all twelve methyl units to reside outside the cage cavity. Unlike Na⁺⊂T1·BArF⁻ whose ¹H NMR spectrum is temperature dependent, the ¹H NMR spectrum of (Na⁺)₂⊂T1·2BArF⁻ barely changed at all temperatures above 213 K (Fig. S39, ESI†), indicating that the two cationic guests underwent fast movement between the four corners, marking all twelve pyridyl units chemically equivalent. The addition of excess Na⁺ into the solution of (Na⁺)₂⊂T1·2BArF⁻ resulted in no further changes in the ¹H NMR spectrum, indicating that the accommodation of the third or more cations did not occur, due to coulombic repulsion.

The ability of T1 to accommodate other alkali cations such as Li⁺, K⁺ and Cs⁺ (Fig. S40–S59, ESI†), whose counterions are BF₄⁻, BArF⁻ and NTf₂⁻ respectively, was also investigated. The ¹H NMR spectroscopy results indicated that these cations exhibited similar host–guest recognition behaviors with the cage to Na⁺. All the complexes underwent slow host–guest exchange on the timescale of ¹H NMR spectroscopy. As a consequence, the corresponding binding constants (K₁ and K₂) were measured by integrating the relevant resonances (Table 1). In CDCl₃, K₁ values for Na⁺, K⁺ and Cs⁺ were measured to be (1.09 ± 0.02) × 10⁴ M⁻¹, (2.96 ± 0.76) × 10³ M⁻¹ and (2.94 ± 0.29) × 10³ M⁻¹, respectively, while K₂ values were measured to be (1.73 ± 0.47) × 10³ M⁻¹, (7.3 ± 0.3) × 10² M⁻¹ and (4.4 ± 0.1) × 10² M⁻¹, respectively. For all the cations, K₁ is larger than K₂ by nearly one order of magnitude, indicating that the binding of two cations within the cage cavity exhibits negative cooperativity. This observation is attributed to coulombic repulsion, which makes the accommodation of the second cation more energetically demanding. Li⁺·BF₄⁻ is poorly soluble in CDCl₃. We thus measured its K₁ and K₂ in a 1 : 1 mixture in CDCl₃ and CD₃CN, which are (1.93 ± 0.2) × 10⁵ M⁻¹ and (2.3 ± 0.1) × 10² M⁻¹, respectively. We also performed binding experiments for Na⁺ and K⁺ in this mixture solvent (Fig. S60, ESI†). In the case of K⁺, the cage exhibited little or no binding. In the case of Na⁺, T1 can only accommodate one equiv. of Na⁺, even after the addition of an excess amount of Na⁺ cation. K₁ of Na⁺⊂T1 was measured to be (2.74 ± 0.17) × 10³ M⁻¹ (Fig. S61, ESI†) in 1 : 1 CDCl₃ and CD₃CN, which is significantly lower than that in pure CDCl₃ by one order of magnitude. This observation indicated that the presence of CD₃CN suppressed the ability of the cage to accommodate cationic guests, probably because CD₃CN acts as a competitive ligand to coordinate with the cationic guests. In addition, smaller alkali cations such as Li⁺ and Na⁺ have larger binding affinity with the cage T1 compared to their larger counterparts such as K⁺ and Cs⁺. This is not surprising, given that smaller cations have larger electron density and represent better Lewis acids. The ability of the cage to recognize transition metal cations such as Cu⁺, Ag⁺, Pd²⁺, Zn²⁺ and Cd²⁺ and T1 was also investigated (Fig. S95, ESI†). Unfortunately, the addition of these metal ions resulted in quick precipitation of cage, probably because of the formation of polymeric products on account of the coordination of the metal and pyridyl units in the cage framework.

Table 1 The binding constants of the cage T1 to recognize different cations

Cation	Anion	Solvent	K1 (M^−1)	K2 (M^−1)
Li^+	BF4^−	CDCl3/CD3CN (1 : 1 v/v)	(1.9 ± 0.2) × 10^5	(2.3 ± 0.1) × 10^2
Na^+	BArF^−	CDCl3	(1.1 ± 0.02) × 10^4	(1.7 ± 0.5) × 10^3
Na^+	BF4^−	CDCl3/CD3CN (1 : 1 v/v)	(2.7 ± 0.2) × 10^3	Not bound
K^+	BArF^−	CDCl3	(3.0 ± 0.8) × 10^3	(7.3 ± 0.3) × 10^2
K^+	BF4^−	CDCl3/CD3CN (1 : 1 v/v)	Not bound	Not bound
Cs^+	NTf2^−	CDCl3	(2.9 ± 0.3) × 10^3	(4.4 ± 0.1) × 10^2

---

Single crystals of the “free” cage T1 (Fig. 4a), the complex TMA⁺⊂T1·Cl⁻ (Fig. 4b), and the ternary complex (Cs⁺)₂⊂T1·2NTf₂⁻ (Fig. 4c) were obtained by slow vapor diffusion of isopropyl ether into the corresponding solutions in chloroform. In the solid state structure of the “free” T1, six of its twelve methyl units reside inside the cage cavity and are labeled with pink color in Fig. 4a. Among these three methyl units, three are located in one corner and one resides in each of the other three corners. Close contacts were observed between the protons in these methyl units and either the adjacent pyridyl nitrogen atoms or the π-electron moieties, indicating the occurrence of either hydrogen bonding or CH⋯π interactions. In both TMA⁺⊂T1·Cl⁻ and (Cs⁺)₂⊂T1·2NTf₂⁻, all twelve methyl units in the cage framework were observed to locate outside the cage cavity. As a consequence, all the pyridyl nitrogen atoms point inwards, forming either hydrogen bonds with the protons of TMA⁺, or cation–dipole interactions with the Cs⁺ cations. These results in solid state are consistent with the ¹H NMR spectroscopic results recorded in solution, namely that accommodating either a quaternary ammonium guest or two alkali cations drove all the methyl units to reside outside. The cavity of the cage in (Cs⁺)₂⊂T1·2NTf₂⁻ also encapsulates four water molecules. Each of the four water molecules forms one O–Cs bond with each of the two Cs⁺ cations simultaneously. These water molecules act as glues between the two cationic guests, helping the latter suppress Coulombic repulsion. Attempts to obtain single crystals of the binary complexes such as Na⁺⊂T1·BArF⁻ were unsuccessful.

Fig. 4 Side views of the core structures of (a) T1, (b) TMA⁺⊂T1·Cl⁻, and (c) (Cs⁺)₂⊂T1·2NTf₂⁻ from single crystal X-ray diffraction analysis. H white, C grey, N blue, O red, and Cs purple. Disordered solvent molecules, counterions namely Cl⁻ and NTf₂⁻ and hydrogen atoms which are not involved in hydrogen bonding interactions are omitted for the sake of clarity. In figure (a), there are six methyl units pointing inside the cage cavity, which were labelled with pink color.

Conclusions

To sum up, we successfully self-assembled a tetrahedral cage via imine condensation. The methyl units in the trisformyl building blocks play an important role in the cage formation, by introducing steric hindrance to afford a twisted conformation that favors the occurrence of intramolecular CH⋯π driving forces. Within the framework, each of the twelve meta-methyl-pyridyl units undergoes pivoting motion, affording the cage multiple conformations with a different number of methyl units pointing inwards/outwards. The “free” cage adopts a conformation where six methyl units point inward on average, as indicated by crystallography in solid state and ¹H NMR spectroscopy in solution. In the presence of a guest, the cage can switch its conformation to increase the effective volume of its cavity, by moving more methyl units outside and placing more pyridyl nitrogen atoms inside. The latter units, which are Lewis basic binding sites, endow the cage with the ability to accommodate Lewis acidic guests. On average, after accommodating one alkali cation such as Na⁺, nine of the twelve nitrogen atoms pointed inwards to form cation–dipole interactions with the guest. The effective volume of the cage cavity can be further increased, by adopting a conformation in which all twelve nitrogen atoms point inwards. This conformation allows the cage to accommodate either one quaternary ammonium guest or two alkali cations simultaneously. This cage modulating its conformation to optimize guest binding improves our understanding of the mechanism of how biological hosts employ allosteric effects to accomplish a variety of tasks, such as cargo loading and release within cells.

Data availability

The data supporting this article have been included as part of the ESI.† The X-ray crystallographic coordinates for structures reported in this study have been deposited at the Cambridge Crystallographic Data Centre (CCDC), under deposition numbers 2395426, 2441591 and 2396911. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via https://www.ccdc.cam.ac.uk/structures.

Author contributions

H. L. and H. T. conceived the concept. H. T. and Y. L. performed the experiments and analyzed the data. Y. Q. offered a variety of alkali cations. J. L. tested and refined the single crystals. H. C. provided beautiful image models. The manuscript was written through contributions of all authors. All authors have given approval to the final version of the manuscript.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The research at Zhejiang University was supported by the Starry Night Science Fund of Zhejiang University Shanghai Institute for Advanced Study (No. SN-ZJU-SIAS-006). H. L. also wants to acknowledge the support from the Leading Innovation Team grant from the Department of Science and Technology of Zhejiang Province (2022R01005), the Natural Science Foundation of Zhejiang Province (No. LZ24B020002) and the National Natural Science Foundation of China (Grant No. 22471240). We thank Prof. Qiaohong He, Dr Jiyong Liu, Dr Yaqin Liu, Dr Lina Gao and Dr Yifan Zhao from the Chemistry Instrumentation Center at Zhejiang University for the technical support. We also thank Xiangqi Shao from the ZJU-Hangzhou Global Scientific and Technological Innovation Center for the VT NMR measurements.
