Continuous coordination modulation with different heteroatoms unveils favorable single-atom Ni sites for near-unity CO selectivity in CO₂ electroreduction

Abstract

Coordination modulation is a key strategy for enhancing the catalytic activity of single-atom catalysts (SACs) in CO₂ electroreduction. However, achieving such modulation within the same framework by incorporating an array of heteroatoms with differing electronic properties remains unexplored, despite its potential for optimizing active sites. Here, we investigate unprecedentedly three Ni-based SACs (N₃Ni–C, N₃Ni–N, and N₃Ni–O), where varying coordinating atoms (C, N, and O) modulate continuously the electronic structure to explore their effects on CO₂ electroreduction. Compared to the N₃Ni–N catalyst with classic Ni–N₄ coordination, N₃Ni–C demonstrates significantly enhanced CO₂ conversion, achieving remarkably a near-unity Faradaic efficiency for CO (99.3%) at −0.7 V_RHE in the H-cell and a CO partial current density of 396.8 mA cm⁻² at −1.15 V_RHE in the flow cell, whereas N₃Ni–O exhibits inferior performance. Operando and computational investigations reveal that both C- and O-coordination enhance CO₂ hydrogenation by elevating the Ni d-band center, thereby strengthening *COOH intermediate adsorption. However, the concurrent promotion of the hydrogen evolution reaction competes with CO₂ reduction, ultimately leading to opposite effects on performance. This work provides atomic-level insights into CO₂ electroreduction mechanisms and offers compelling strategies for improving SAC performance via coordination modulation with heteroatoms.

---

1 Introduction

Rising global consumption of fossil fuels has led to excess CO₂ emissions, resulting in severe environmental repercussions and significant sustainability challenges.^1–4 The electrochemical CO₂ reduction reaction (eCO₂RR), powered by electrical energy preferably sourced from renewable origins, is recognized as a sustainable and clean approach for transforming CO₂ into valuable chemicals and fuels.^5–9 Carbon monoxide (CO), one of the simplest products of the eCO₂RR, enjoys strong market demand because of its versatility as a chemical feedstock extensively utilized in numerous industrial processes.^10–14 Thus, converting CO₂ to CO via electrochemical reduction offers a multifaceted solution that addresses environmental concerns, integrates renewable energy sources and supports industrial needs. However, this conversion is currently hindered by high overpotentials and competing reactions, such as the hydrogen evolution reaction (HER), necessitating the development of catalysts that are more efficient, selective, and ideally also cost-effective to enhance the practical viability of this process.^15–17

Noble metals gold (Au) and silver (Ag) are widely regarded as the most efficient materials for catalyzing the conversion of CO₂ to CO in the eCO₂RR.^18–21 Nevertheless, their high costs and limited Faradaic efficiency (FE) at elevated current densities continue to present significant challenges.^22,23 To achieve efficient CO₂ conversion to CO, the rational design and controllable synthesis of electrocatalysts with improved reaction efficiency—grounded in a deep understanding of reaction mechanisms and structure–activity relationships—have emerged as key research areas. In this regard, single-atom catalysts (SACs) with metal–nitrogen–carbon (M–N–C) structures have attracted considerable attention in recent years for the eCO₂RR, owing to their low cost, well-defined atomic structures, and unique electronic properties.^24–27 SACs based on non-precious metals, such as Ni, Fe, Co, Mn, and Sn, have shown particular promise in the electrocatalytic conversion of CO₂ to CO.^28–32 Nevertheless, earlier studies of M–N–C SACs primarily employed symmetric M–N₄ coordination configurations, which, as a classic configuration, while demonstrating potential, typically require further improvement in electron transfer efficiency and the adsorption and activation of CO₂ molecules to enhance the overall efficiency of CO₂-to-CO conversion.^33–35 Furthermore, the reduction of CO₂ to CO typically involves two proton-coupled electron transfer steps, with overcoming the high energy barrier for the formation of the key intermediate COOH* in the first (rate-determining) step remaining a major challenge for M–N₄-configured SACs.^36,37 Given these challenges, research focused on modulating the electronic properties of the metallic active sites within M–N–C structures is crucial for achieving efficient CO₂ conversion.

Generally, N doping of carbon-based substrates induces significant changes in the properties of the support material, providing abundant coordination sites that facilitate the formation of various N-coordinated metal structures (M–N_x, x ≤ 4).^38–41 As a result, beyond merely adjusting the number of N coordination sites, strategies have been developed to incorporate other heteroatoms with differing electronic properties—such as carbon (C) and boron (B), which possess electron-donating characteristics compared to N, and oxygen (O) and fluorine (F), which exhibit electron-withdrawing characteristics—into catalysts by substituting N atoms to optimize the electronic properties of the metallic active sites.^42–52 These approaches are particularly attractive because they effectively alter the charge distribution and/or structural symmetry of the active sites, providing significant opportunities to enhance the catalytic performance of M–N–C SACs. For example, the incorporation of electron-deficient C has been shown to enhance the catalytic performance of the eCO₂RR by modifying the electronic structure and thereby optimizing the binding energies of intermediates (*COOH and *CO) through cooperative regulation with N of the coordination environment of the Ni₂ center within the N_x–Ni₂–C_7−x SACs.⁵³ In contrast, in N₃–Sn–O₁ SACs, the electron-rich nature of O atoms was found to precisely tune the binding strengths of intermediates (*COO and *COOH) in the eCO₂RR, markedly improving the selectivity for CO as the dominant product.⁵⁴

Across reported results, heteroatoms, despite having opposite electronic effects relative to N (i.e., electron-donating and electron-withdrawing), have all been shown to facilitate CO₂-to-CO conversion following N-coordination substitution. While this phenomenon is not unexpected, as relevant studies primarily employed only a single type of heteroatom to regulate the electronic properties of the active sites within different SAC systems, it raises confusion regarding which types of heteroatoms, based on their electronic effects, are more advantageous for CO₂-to-CO conversion in specific new SACs. Resolving this confusion is fundamentally important for a more comprehensive understanding of the structure–activity relationships and is also practically useful for the rational design of more advanced SACs aimed at efficient CO₂-to-CO conversion. To address this confusion, incorporating heteroatoms with opposite electronic effects into the coordination sites within the same SAC structure to enable bidirectional regulation of the electronic properties of metallic active centers is essential. However, to the best of our knowledge, no studies to date have investigated the regulation of active sites within the same SAC system by introducing different types of heteroatoms with varying electronic effects (i.e., electronegativities stronger and weaker than N, thus presenting electron-donating and electron-withdrawing properties) for N-coordination substitution.

In this study, we report for the first time the selective replacement of a coordinated N atom in the M–N₄ structure with C and O atoms, respectively, to modulate continuously the coordination environment of the metallic sites in SACs and investigate their impacts on electrochemical CO₂-to-CO conversion. Due to their differing electronegativities and coordination properties, C and O atoms modify the electronic structure of the catalyst in distinct ways, enabling the identification of favorable active sites with optimal adsorption behaviors for intermediates in the eCO₂RR. To this end, we explore novel Ni-based SACs with three types of atomic coordination (N₃Ni–C, N₃Ni–N, and N₃Ni–O) supported on carbon nanoribbons. Among these catalysts, N₃Ni–C demonstrates the best catalytic performance in the eCO₂RR, while N₃Ni–O shows the worst. In more detail, for N₃Ni–C, the CO Faradaic efficiency (FE_CO) remains above 96.2% across a wide potential range from −0.6 to −1.0 V_RHE, reaching a maximum of 99.3% at −0.7 V_RHE, and is sustained for around 24 hours in an H-type cell. When applied in a flow cell, the N₃Ni–C catalyst also exhibits a high FE_CO exceeding 98.6% at current densities ranging from 50 to 400 mA cm⁻². Detailed experimental characterization and theoretical density functional theory (DFT) calculations reveal that substituting the N-coordinate in the N₃Ni–N catalyst with C promotes both CO₂ hydrogenation and the HER, with CO₂ hydrogenation being favored. In contrast, while the O-substitution also enhances both CO₂ hydrogenation and the HER, the HER is preferred over CO₂ hydrogenation. These contrasting preferences between the two competitive reactions lead to distinct CO₂ conversion performances, providing valuable insights into the favorable coordination environment for Ni sites to efficiently catalyze CO₂-to-CO conversion.

2 Results and discussion

2.1. Synthesis and characterization

Fig. 1a illustrates the synthesis of nickel-based SACs supported on carbon nanoribbons using a facile yet effective method involving physical mixing and high-temperature pyrolysis (see details in the ESI†). The process began with the preparation of a homogeneous precursor mixture by mixing and grinding ammonium chloride (NH₄Cl), nickel chloride hexahydrate (NiCl₂·6H₂O), and rod-shaped perylene-3,4,9,10-tetracarboxylic dianhydride (PTCDA) powders (Fig. S1†), which serve as the sources of nitrogen (N), nickel (Ni), and carbon (C), respectively. The mixture was then calcined at high temperatures under an argon atmosphere, followed by post-treatment with sulfuric acid solution, yielding the final catalyst. Notably, the catalyst structure was determined by the pyrolysis temperature, with N₃Ni–O, N₃Ni–N, and N₃Ni–C forming at 800 °C, 900 °C, and 1000 °C, respectively. This temperature-dependent structural evolution among N₃Ni–O, N₃Ni–N, and N₃Ni–C likely arises from the varying thermal stability of O, N, and C during high-temperature treatment, governed by their respective binding strengths with the central Ni atom (O < N < C). This results in differing volatilization tendencies (O > N > C) as the annealing temperature increases—a phenomenon that has been well-documented.²² However, the underlying mechanism may be more intricate, potentially involving factors such as the formation of unsaturated metal sites, partial reduction of the catalyst, or other temperature-induced transformations, as suggested in previous studies.¹ To gain a deeper understanding of the growth mechanism, each individual component was removed from the precursor mixture to examine its effect on the product, while keeping all other synthesis procedures unchanged. Experimental results showed that the absence of NiCl₂·6H₂O resulted in irregular carbon nitride (CN) thin layers (Fig. S2†). When NH₄Cl was removed, only nickel (Ni) nanoparticles were observed, with the carbon material completely volatilized at high temperatures. Similarly, after removing PTCDA, NH₄Cl completely decomposed as well, leaving only Ni nanoparticles. These results indicate that the nitrogen from NH₄Cl plays a critical role in stabilizing the carbon material at high temperatures, while the presence of nickel from NiCl₂·6H₂O is essential for maintaining the nanoribbon structure.

Fig. 1 Preparation and structural characterization of N₃Ni–C/N/O. (a) Schematic illustration of the synthesis pathway for N₃Ni–C. (b) XRD patterns. (c) and (d) Low- (c) and high- (d) magnification TEM images. (e) AC-HAADF-STEM image. (f) HAADF-STEM and elemental mapping images. (g) XPS spectra of Ni 2p_3/2.

X-ray diffraction (XRD) was first employed to analyze the phase and structural information of the three samples (i.e., N₃Ni–O, N₃Ni–N, and N₃Ni–C). As shown in Fig. 1b, two broad diffraction peaks appeared at approximately 26° and 44° in all samples, corresponding to the (002) and (101) planes of graphite carbon, respectively. No diffraction peaks related to Ni crystallites were observed, indicating that the Ni species were either too small in size or too low in loading.^25,30 The graphitic carbon structure of the samples was further confirmed by Raman spectroscopy, which revealed two characteristic bands typical of carbon materials: one assigned to disordered carbon (1355 cm⁻¹, I_D) and the other to graphitic carbon (1585 cm⁻¹, I_G) (Fig. S3†). Notably, the I_D/I_G ratio was 1.000, 0.907, and 0.886 for N₃Ni–O, N₃Ni–N and N₃Ni–C, respectively, indicating a gradual decrease in the disorder of the carbon substrate with increasing pyrolysis temperature.^24,37 The decreasing disorder can be attributed to the increased volatilization of heteroatoms (such as O or N) from the carbon substrate induced by higher temperatures, contributing to a more ordered carbon structure.

Fig. 1c presents a representative transmission electron microscopy (TEM) image of the N₃Ni–C sample, illustrating its nanoribbon morphology with thickness and width approximately 25 nm and 500 nm, respectively. Such a one-dimensional structure is expected to facilitate oriented electron transport and promote the exposure of surface-active sites, thereby enhancing electrocatalytic activity.⁵⁵ Higher-magnification TEM imaging further revealed the presence of thin-layered wrinkles and micropores on the ribbons (Fig. 1d and e), which can potentially increase the surface area of the material. Indeed, the N₃Ni–C sample achieved a Brunauer–Emmett–Teller (BET) surface area of 114.11 m² g⁻¹, the highest among the three samples studied (Fig. S4†). We further examined the atomic structure of N₃Ni–C using aberration-corrected high-angle annular dark-field scanning transmission electron microscopy (AC-HAADF-STEM). The AC-HAADF-STEM image depicts bright dots sharply against a dim substrate due to the stark Z-contrast between Ni atoms and the carbon substrate, which unambiguously suggests the presence of Ni species in the form of highly dispersed single atoms (Fig. 1e). Elemental mapping confirmed that C, N, and Ni elements were uniformly distributed across the carbon support (Fig. 1f). Taken together, the TEM findings are in good alignment with the XRD and Raman results discussed earlier, providing evidence for the single-atomic-Ni structure of the N₃Ni–C sample. Likewise, N₃Ni–O and N₃Ni–N possess analogous single-atom structures, as verified by TEM and elemental mapping (Fig. S5 and S6†). Inductively coupled plasma optical emission spectrometry (ICP-OES) determined the Ni loading for the three samples to be 0.774 wt%, 0.393 wt%, and 0.375 wt%, respectively, indicating a slight decrease in Ni content with increasing pyrolysis temperature.

The chemical states of Ni species were investigated using X-ray photoelectron spectroscopy (XPS) (Fig. 1g). The Ni 2p spectra revealed that the principal Ni 2p_3/2 peaks for the three samples (N₃Ni–O, N₃Ni–N, and N₃Ni–C) were all positioned between the Ni⁰ peak (853.5 eV) and the Ni²⁺ peak (855.8 eV), suggesting their oxidation states ranging between 0 and +2. Notably, as the electronegativity of the coordinating atoms (O, N, and C) decreased, the Ni 2p_3/2 peaks of the respective samples (N₃Ni–O, N₃Ni–N, and N₃Ni–C) shifted progressively to lower binding energies, specifically, from 855.3 eV to 854.5 eV.

This trend highlights the electronic interactions between the central Ni atom and the surrounding coordinating atoms, which affect the electron density around the Ni center and alter its electronic environment.

The chemical state and local atomic environment of Ni species within the three samples were further analyzed using X-ray absorption spectroscopy (XAS), with Ni foil, NiO, and nickel phthalocyanine (NiPc) serving as references. Consistent with the XPS results (Fig. 1g), the X-ray absorption near-edge structure (XANES) spectra (Fig. 2a) show that the absorption edges of N₃Ni–O, N₃Ni–N, N₃Ni–C and NiPc are all positioned between those of Ni foil and NiO, confirming their positive valence states lying between Ni⁰ and Ni²⁺. Likewise, as the coordinating atom varies from O to N to C, the absorption edge of the corresponding sample gradually approaches that of Ni foil, demonstrating a shift toward a lower valence state. To gain further insights into the local coordination characteristics of Ni atoms, we conducted an analysis using extended X-ray absorption fine structure (EXAFS) spectroscopy at the Ni K-edges. The Fourier-transformed k³-weighted EXAFS (FT-EXAFS) spectra are presented in Fig. 2b, along with their curve-fitting analysis and results shown in Fig. 2c–e, S7 and Table S1.† As illustrated in the FT-EXAFS spectra, prominent characteristic peaks corresponding to Ni–N, Ni–Ni, and Ni–O coordination were observed at approximately 1.90, 2.48, and 2.07 Å for NiPc, Ni foil, and NiO, respectively. These reference peaks provide a solid basis for comparison with the Ni SAC samples (Fig. 2b and Table S1†). Notably, the Ni–Ni coordination peak was absent in all three Ni SAC samples, which agrees well with the AC-HAADF-STEM results indicating that the Ni species exist as isolated single atoms rather than as Ni particles. Furthermore, all Ni SAC samples exhibited the Ni–N coordination peak, although with a slight shift in peak position. The curve-fitting analysis further revealed that the prominent peak in the N₃Ni–N sample arises from the collective scattering of four Ni–N bonds with a bond length of 1.88 Å, confirming a Ni–N₄ coordination environment (Fig. 2d, and Table S1†). In contrast, the central Ni atom in the N₃Ni–C sample coordinates with three N atoms (bond length: 1.88 Å) and one C atom (bond length: 2.11 Å), resulting in a N₃–Ni–C coordination (Fig. 2c and Table S1†). Similarly, in the N₃Ni–O sample, the Ni atom coordinates with three N atoms (bond length: 1.91 Å) and one O atom (bond length: 2.10 Å), forming a N₃–Ni–O coordination (Fig. 2e and Table S1†), with the O atom bonded to the C matrix (Fig. S16†). Additionally, the fitting results were corroborated by density functional theory (DFT) calculations using structural models based on the fitted coordination environments (Fig. S17†). These calculations indicate that the Ni atom exhibits increasingly higher oxidation states as one coordinating atom changes from C to N to O (Fig. 2f–h), which echoes the afore-discussed XPS results (Fig. 1g).

Fig. 2 XAS-analysis of N₃Ni–C/N/O and reference samples. (a) and (b) Ni K-edge XANES spectra (a) and FT-EXAFS spectra (b) for N₃Ni–C, N₃Ni–N, N₃Ni–O, and reference samples (Ni foil, NiPc, and NiO). (c–e) Experimental and fitted FT-EXAFS curves for N₃Ni–C, N₃Ni–N, and N₃Ni–O, with insets showing the local coordination structure of the Ni center. (f)–(h) Charge density difference and Bader charge analysis for N₃Ni–C, N₃Ni–N, and N₃Ni–O. (i) Wavelet transform (WT) EXAFS patterns for N₃Ni–C, N₃Ni–N, N₃Ni–O and references samples (Ni foil, NiPc, and NiO).

To intuitively visualize the coordination characteristics of these samples, we performed wavelet transform (WT) analysis on the k³-weighted EXAFS data of the Ni K-edges. The resulting scattering intensity distribution patterns in K, R-space are displayed in Fig. 2i. Specifically, all three Ni SAC samples display their scattering intensity maxima at coordinates similar to those observed in the intensity distribution pattern of NiPc. This similarity is expected, as Ni–N coordination predominantly contributes to the scattering intensity in the Ni SAC samples. In addition to confirming the presence of the Ni–N bond, this similarity also rules out the existence of Ni–Ni bonds, thereby reaffirming the atomic dispersion of the Ni species in the three Ni SAC samples. Another interesting observation is that the scattering intensity pattern of the N₃Ni–N sample displays similar symmetry to that of NiPc, whereas the N₃Ni–C and N₃Ni–O samples exhibit obvious asymmetries. The differing pattern symmetries among the three Ni SAC samples highlight the role of C/O atoms in disrupting the centrosymmetry of the Ni–N₄ coordination upon substituting one N atom. Collectively, the XAS results demonstrate a bidirectional modulation of the electronic structure of Ni SACs by engineering coordination atoms (i.e., C and O) that have lower and higher electronegativities, respectively, compared to the N atom within the same coordination framework. This strategy provides a versatile platform for exploring optimized single-atom sites for the electrochemical conversion of CO₂ to CO.

2.2. Performance for the eCO₂RR

The electrocatalytic CO₂RR performance for the three Ni SACs was evaluated, in comparison to a Ni-free CN substrate, in both neutral and alkaline electrolytes using a three-electrode H-type electrolysis cell and a flow cell, respectively. Initially, linear sweep voltammetry (LSV) was performed in the H-cell containing a CO₂-saturated 0.5 M KHCO₃ solution (pH = 7.0). The results revealed that the N₃Ni–C catalyst exhibits the lowest onset potential and the highest current responses among the catalysts studied, indicating its superior electrocatalytic activity (Fig. 3a). Further investigation demonstrated that the high activity of N₃Ni–C is directly related to the CO₂RR, as evidenced by significantly lower current responses of the same catalyst in an Ar-saturated KHCO₃ solution (Fig. S8†).

Fig. 3 The eCO₂RR performance of N₃Ni–C/N/O and comparative samples. (a) LSV curves. (b) Faradaic efficiency (FE) for CO and H₂. (c) Comparison of the FEs at specific potentials for N₃Ni–C and other reported Ni SACs (Table S2†). (d) Partial current density of CO. (e) Turnover frequency (TOF). (f) eCO₂RR stability test for N₃Ni–C in an H-cell at −0.7 V_RHE. (g) eCO₂RR performance of N₃Ni–C on a gas diffusion layer electrode in a flow cell configuration.

Building upon these findings, controlled potentials ranging from −0.5 to −1.0 V_RHE were applied to investigate the potential-dependent distribution of CO₂RR products, including both gaseous and liquid species, which were quantitatively analyzed using online gas chromatography and ¹H nuclear magnetic resonance (NMR) spectroscopy, respectively. This potential range was selected because all catalysts showed a surge in cathodic current density starting around −0.5 V_RHE (Fig. 3a). At all applied potentials, only H₂ and CO were detected, with the total Faradaic efficiency (FE) approaching 100% (Fig. 3b and S9†). Remarkably, the N₃Ni–C catalyst achieved exceptional CO selectivity exceeding 96.2% across a broad potential window (−0.6 to −1.0 V_RHE), outperforming N₃Ni–N, N₃Ni–O, and CN, throughout the entire investigated potential range (−0.5 to −1.0 V_RHE). In particular, a near-unity FE_CO of 99.3% was achieved at a low potential of −0.7 V_RHE for N₃Ni–C. This performance not only significantly surpasses the optimal performances of N₃Ni–N (94.5% at −0.7 V_RHE), N₃Ni–O (90.4% at −0.8 V_RHE), and CN (58.5% at −0.7 V_RHE) but also positions N₃Ni–C among the best Ni-based SACs reported to date for the electrochemical CO₂ conversion to CO (Fig. 3c and Table S2†).

Moreover, with the same catalyst loading, the N₃Ni–C catalyst demonstrated significantly higher geometric total current density (j) and CO partial current density (j_CO) compared to the other catalysts at each individual potential (Fig. 3d, and S10†). However, because the catalysts have different Ni loadings, the intrinsic eCO₂RR activity, expressed as the turnover frequency (TOF) for CO, was further calculated by normalizing the number of Ni atoms in each catalyst (see calculation details in the ESI†). As shown in Fig. 3e, the N₃Ni–C catalyst exhibits higher TOF than N₃Ni–N and N₃Ni–O at all tested potentials, reaching up to 5.89 s⁻¹ at −1.0 V_RHE. This performance is comparable to the best-performing Ni-based SACs reported in the literature (Table S2†). The TOF comparison strongly demonstrates the favorable effect of the unique N₃–Ni–C coordination in delivering high intrinsic activity for CO₂-to-CO conversion. Consistently, N₃Ni–C exhibited the lowest Tafel slope among the tested samples (Fig. S11†). Additionally, the double-layer capacitance (C_dl), obtained via cyclic voltammetry in a non-Faradaic region (Fig. S12†), indicates that N₃Ni–C has a slightly larger value (13.0 mF cm⁻²) compared to N₃Ni–N (12.7 mF cm⁻²) and N₃Ni–O (11.0 mF cm⁻²). The overall high C_dl for all three samples is likely attributable to the ribbon-like carbon support, which offers a high surface area for exposing single-atomic active sites (see BET results discussed earlier). Therefore, the superior catalytic activity of N₃Ni–C can be attributed to the greater exposure of active sites with higher intrinsic activity.

Importantly, the N₃Ni–C catalyst retained its outstanding performance around 24 hours of electrolysis at −0.7 V_RHE (Fig. 3f). After the durability test, the current density was largely retained, and the FE_CO changed negligibly. Post-mortem characterization of N₃Ni–C (including XRD, TEM, elemental analysis, and AC-HAADF-STEM images) also revealed trivial changes in phase, composition, morphology, and atom dispersion, demonstrating its excellent structural stability (Fig. S13–S15†). Furthermore, when assembled in a flow electrolyzer equipped with a gas diffusion electrode (GDE), N₃Ni–C achieved a high FE_CO of over 98.6% at various industrially relevant current densities (50–400 mA cm⁻²) and reached a current density of up to 400 mA cm⁻² (equivalent to a CO partial current density of 396.8 mA cm⁻²) at −1.15 V_RHE, surpassing most state-of-the-art CO-selective catalysts (Fig. 3g and Table S3†). These stability-test results and flow-cell performance collectively demonstrate the potential industrial feasibility of the N₃Ni–C catalyst for CO production via the eCO₂RR.

2.3. Mechanistic investigation through operando ATR-SEIRAS measurements and DFT calculations

Based on the above results, it is concluded that, compared to N₃Ni–N, substituting a nitrogen atom with carbon—an element with lower electronegativity than nitrogen—enhances the electrochemical conversion of CO₂ to CO (Fig. 3a, b, d, e and S10–S12†). Conversely, substitution with oxygen, which has higher electronegativity than nitrogen, has an adverse effect. These contrasting impacts, arising from the differing electronegativities of carbon and oxygen relative to nitrogen, motivate us to investigate the underlying mechanism.

We first conducted operando attenuated total reflection surface-enhanced infrared absorption spectroscopy (ATR-SEIRAS) measurements to monitor surface-adsorbed reaction intermediates during the CO₂RR on the most active N₃Ni–C catalyst. These measurements were implemented in both Ar- and CO₂-saturated 0.5 M KHCO₃ solutions, over a potential range from the open circuit potential (OCP) to −1.1 V_RHE (Fig. 4a and b). At the OCP, the spectra were featureless, indicating that no intermediates were adsorbed on the catalyst surface. However, as the potential was decreased to −0.3 V_RHE and further to −1.1 V_RHE, multiple vibrational bands emerged. Two peaks at approximately 1387 cm⁻¹ and 1258 cm⁻¹ were observed, corresponding to carbonate species, CO₃²⁻ and HCO₃⁻, respectively, while a peak at 1647 cm⁻¹ was attributed to adsorbed water (*H₂O).^56,57 Notably, in the CO₂-saturated solution, the intensity of the *H₂O peak gradually decreased with increasingly negative potentials, indicating accelerated consumption of *H₂O. In contrast, the *H₂O peak in the Ar-saturated system remained nearly unchanged. This difference in the behavior of *H₂O suggests that, as the potential becomes more negative, CO₂ reacts more rapidly with the *H₂O. The enhanced CO₂ reduction at more negative potentials is further evidenced by the noticeable weakening of the HCO₃⁻ peak (∼1260 cm⁻¹), as CO₂ consumption depletes locally the HCO₃⁻ concentration (Fig. 4b). Moreover, the reduction of CO₂ is accompanied by the appearance of a new peak at 1443 cm⁻¹ (Fig. 4b), which corresponds to the *COOH intermediate—a well-documented critical precursor for CO formation in the CO₂RR.^58,59 The intensity of this peak increased significantly with more negative potentials, whereas it was absent in the Ar-saturated system irrespective of the potential applied (Fig. 4a). Furthermore, no signals for adsorbed CO (*CO) were detected, which is attributable to the weak adsorption and rapid desorption of CO on the N₃Ni–C surface.^60,61 Overall, the ATR-SEIRAS results indicate that the N₃Ni–C coordination structure facilitates the formation of the *COOH intermediate while promoting the rapid desorption of CO. These findings help explain the high catalytic activity and exceptional CO selectivity observed for the CO₂RR over the N₃Ni–C catalyst.

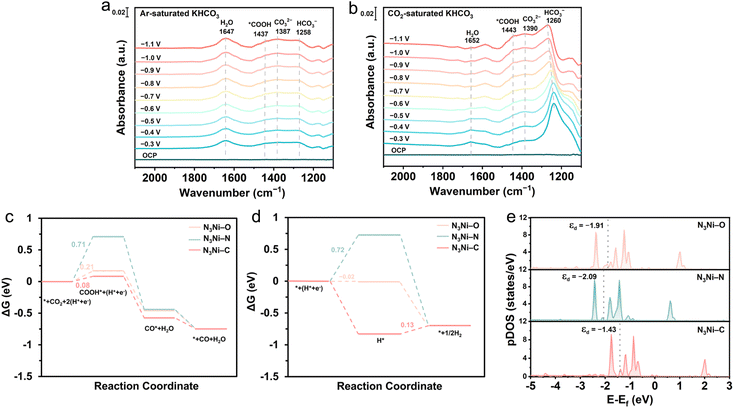

Fig. 4 Investigation of CO₂-to-CO conversion mechanisms. (a) and (b) operando ATR-SEIRAS of N₃Ni–C recorded at various applied potentials in an Ar-saturated (a) and CO₂-saturated (b) 0.5 M KHCO₃ solution. (c) and (d) free energy diagrams for the eCO₂RR to CO (c) and HER (d) on N₃Ni–C, N₃Ni–N, and N₃Ni–O. (e) Projected density of states (pDOS) of the Ni 3d orbital in N₃Ni–C, N₃Ni–N, and N₃Ni–O, with the d band center (ε_d) labeled.

With insights gained from operando ATR-SEIRAS measurements, we conducted DFT computations to examine the CO₂-to-CO conversion via the *COOH intermediate and the parasitic HER across the three Ni SACs. Model optimization results indicate that CO₂ reduction preferentially occurs at the Ni center for all three catalysts (Fig. S18†). By comparison, the HER is favored at the Ni center for N₃Ni–C and N₃Ni–N, but shifts to the neighboring carbon site of the substrate in N₃Ni–O. The free energy profiles (Fig. 4c) reveal that the N₃Ni–N structure exhibits a relatively high energy barrier (0.71 eV) for the CO₂ hydrogenation step (CO₂ → *COOH), the rate-determining step (RDS) in the CO₂-to-CO conversion. This high energy barrier is consistent with previous reports,^38,41 attributed to the high degree of symmetry in N₃Ni–N. In contrast, the N₃Ni–C structure displays a significantly lower energy barrier (0.08 eV) for the CO₂ hydrogenation step, which explains its higher CO₂ conversion activity observed experimentally. When the competitive HER is considered (Fig. 4d), the N₃Ni–C catalyst needs to overcome an energy barrier of 0.13 eV for H₂ production. This value exceeds the energy requirement (0.08 eV) for the CO₂ hydrogenation step, providing a clear account for the exceptional CO selectivity exhibited by the N₃Ni–C catalyst. For N₃Ni–O, the energy barrier for the CO₂ hydrogenation step (0.21 eV) is also remarkably reduced compared to that of N₃Ni–N. Theoretically, this lower energy barrier should translate to higher CO production activity. However, experimental observations contradict this expectation, as N₃Ni–O demonstrates lower activity than N₃Ni–N (Fig. 3a, b, d and e). A deeper analysis, incorporating the HER, reveals that N₃Ni–O favors the HER pathway over CO₂ conversion, with energy barriers of −0.02 eV and 0.21 eV, respectively. By contrast, N₃Ni–N shows a slight preference for CO₂ conversion (0.71 eV) over the HER (0.72 eV). This difference explains why N₃Ni–O underperforms compared to N₃Ni–N in CO formation, despite its reduced energy barrier for the CO₂ hydrogenation step. Further support for the observed catalytic preferences is provided by the calculated differences between the thermodynamic limiting potentials for the CO₂RR and HER, defined as ΔU_L = U_L(CO₂)–U_L(H₂). The ΔU_L values for N₃Ni–C, N₃Ni–N, and N₃Ni–O are −0.05, −0.01, and 0.23 V (Fig. S19†), respectively, which align well with the trends in selectivity discussed above.

Taken together, these results illustrate that substituting the N-coordination with C or O atoms disrupts the symmetry of the Ni–N₄ structure in N₃Ni–N, leading to a significantly reduced energy barrier for the CO₂ hydrogenation step. Projected density of states (pDOS) calculations (Fig. 4e) further attribute this reduction to the elevated d-band center (ε_d) of the Ni sites (N₃Ni–N: −2.09 eV; N₃Ni–O: −1.91 eV; N₃Ni–C: −1.43 eV), which enhances *COOH adsorption, as evidenced by the adsorption energies of the *COOH intermediate on the three catalysts (Fig. S19†) and the corresponding charge density difference (Fig. S20†). Meanwhile, C/O substitution also substantially lowers the energy barrier for the HER. However, the contrasting extents to which C and O substitutions influence CO₂ conversion and the HER ultimately result in C substitution favoring CO₂ conversion over the HER, while O substitution does the opposite.

3 Conclusions

In summary, we have successfully fabricated a series of carbon-nanoribbon-supported Ni SACs (namely, N₃Ni–C, N₃Ni–N, and N₃Ni–O) where one coordinating atom varies across C, N, and O. This series has been designed to investigate how coordination modulation affects the performance of electrochemical CO₂ reduction, with the goal of identifying the optimal coordination environment to enhance the efficiency of Ni sites. Operando characterization and DFT calculations reveal that both C and O coordination beneficially modulate the energy barriers for CO₂ hydrogenation and the HER, albeit to different extents. This modulation disparity results in a preference for CO₂ conversion over the HER on N₃Ni–C, while the HER is favored over CO₂ conversion on N₃Ni–O. Consequently, compared to the N₃Ni–N catalyst with the conventional Ni–N₄ structure, the N₃Ni–C catalyst demonstrates significantly enhanced CO₂ conversion performance, with the FE_CO exceeding 96.2% over a broad potential range (−0.6 to −1.0 V_RHE) and peaking at 99.3% at −0.7 V_RHE in the H-cell. Moreover, the CO partial current density reaches an impressive 396.8 mA cm⁻² at −1.15 V_RHE in the flow cell, establishing N₃Ni–C as a leading contender among state-of-the-art CO₂-to-CO conversion catalysts. This study highlights the potential of tuning the competition between CO₂ conversion and the HER through strategic coordination modulation, providing a novel perspective for designing and developing highly efficient SACs for CO₂ electroreduction to CO.
