Lamine
Saadi
,
Loïc
Valade
and
Clément
Chauvier
*
Sorbonne Université, CNRS, Institut Parisien de Chimie Moléculaire, 4 Place Jussieu, 75005 Paris, France. E-mail: clement.chauvier@sorbonne-universite.fr
First published on 24th April 2025
Organoalkoxysilanes (e.g. R–SiMe3−n(OR′)n, 1 ≤ n ≤ 3 with R = alkyl or aryl) have found various applications in synthetic chemistry and materials science because the silicon-bound alkoxy groups provide unique opportunities for further derivatization and transformations. Among the few catalytic strategies that allow the direct and intermolecular introduction of an alkoxysilyl unit onto an organic substrate, the alkoxysilylation of unactivated C–H bonds has barely been achieved despite its synthetic potential and the atom-economy it conveys. In particular, a catalytic and transition metal-free C–H silylation protocol towards this class of organosilicon compounds has yet to be reported. We herein describe the first general alkoxysilylation of (hetero)arene C(sp2)–H and benzylic C(sp3)–H bonds under ambient, transition metal-free conditions using newly-prepared tert-butyl-substituted alkoxysilyldiazenes (tBu–NN–SiMe3−n(OR′)n, 1 ≤ n ≤ 3 with R′ = Et, iPr or tBu) as silylating reagents and tBuOK as catalytic promoter.
To date, the direct introduction of alkoxysilyl groups onto organic substrates has primarily been achieved through two main strategies: (1) the catalytic hydrosilylation of alkenes or alkynes with alkoxysilanes (e.g., HSi(OEt)3)5 and (2) the stoichiometric coupling of organolithium or Grignard reagents with chloro(alkoxy)silanes or orthosilicates (Si(OR′)4). Because the hydrosilylation approach is effective only for synthesizing alkyl- and vinylsilane derivatives, the stoichiometric route remains indispensable for preparing aryl- and primary benzylalkoxysilanes.6 However, the latter methods suffer from several drawbacks, including low tolerance for electrophilic functional groups and the need for cryogenic temperatures to control reactivity and selectivity. Furthermore, they generate substantial amounts of metallic waste, posing significant challenges for large-scale applications.
In recent years, transition metal-catalyzed C–Si cross-couplings have been reported to introduce mono-,7 bis-8 and trisalkoxy9 as well as siloxy10 units onto aromatic scaffolds directly from aryl halides and the corresponding hydrosilane or disilane derivatives (Scheme 1B). However, not only are those approaches based on expensive noble metals (Pd or Rh), but they also rely on pre-functionalized halide substrates, selective preparation of which can be difficult and reduces the overall atom economy of the silylation process.
For these reasons, the direct intermolecular silylation of C–H bonds has emerged as a privileged strategy to forge C(sp2)– or C(sp3)–Si bonds in a catalytic manner.11 While this field has substantially evolved over the past decade with useful solutions proposed to overcome both reactivity and site-selectivity issues,12 the general introduction of alkoxysilyl units rather than trialkyl or siloxy-based (SiMe(OSiMe3)2) ones onto hydrocarbon substrates has barely been achieved. As far as arylsilanes are concerned, only two such reports have been described with hydrosilanes as silicon sources (Scheme 1B). Lee and coworkers showed that a rhodium-based complex catalyzes the undirected silylation of unactivated (hetero)arenes with HSiMe2OEt as the alkoxysilyl source.13 This catalytic system, however, proved inefficient to promote the transfer of alkoxysilyl groups bearing more than one ethoxy unit and the silylated arenes are mostly produced as mixtures of regioisomers. In 2021, Yorimitsu and Shimokawa showed that Hartwig's catalytic dehydrogenative silylation protocol could be modified to introduce the dioxasilepanyl unit, a hydrolytically-stable 7-membered cyclic bisalkoxysilyl group.14 Nevertheless, this iridium-catalysed transformation, initially cantoned to the exclusive transfer of the bis-siloxy SiMe(OSiMe3)2 unit,15 could not be further extended to acyclic alkoxysilyl groups derived from common alcohols.
Beyond the alkoxysilylated arenes, benzylsilanes bearing alkoxysilyl units are also promising monomers in silicone science,16 which have barely been explored because of the lack of general synthesis. In particular, the catalytic and undirected formation of benzyl(alkoxy)silanes by dehydrogenative silylation of toluene derivatives with HSi(OEt)3 has only been reported to occur with heterogeneous metal-based catalysts at high temperature.17
From these considerations, we have sought to develop a general method towards the formation of aryl- and benzyl(alkoxy)silanes through the silylation of unactivated (hetero)arene C(sp2)–H bonds and benzylic C(sp3)–H bonds. To that end, we have recently reported that potent metalating agents can be generated catalytically when tert-butyl-substituted silyl diazenes (tBu–NN–SiR3) are treated with a catalytic amount of a potassium salt (typically tBuOK). This process has been fruitfully exploited to introduce trialkylsilyl (e.g., SiMe3 and SiEt3) groups through the catalytic silylation of unactivated C(sp2)–H18 and C(sp3)–H bonds19via metalation/silylation sequences. We herein demonstrate that such a reactivity manifold can now be applied to the catalytic introduction of alkoxysilyl units from newly-prepared tert-butyl-substituted alkoxysilyl diazenes under ambient and transition metal-free conditions (Scheme 1C).
![]() | ||
Scheme 2 Synthesis of tert-butyl-substituted alkoxysilyldiazenes. Yields refer to those of isolated products over two steps (1 → 3a–e). |

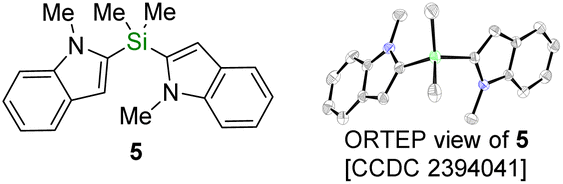

With these new silyldiazenes in hands, we first studied the transfer of the mono-alkoxysilyl units SiMe2OR from diazenes 3a–c to N-methylindole (4) through the catalytic deprotonative silylation of the weakly acidic C(sp2)–H bond at the 2-position (Table 1, entries 1–8). To that end, the reaction parameters were first optimized with the bulkiest congener 3a (see Table S1 in the ESI† for details). Using tBuOK (10 mol%) as an inexpensive catalytic promoter and a slight excess of 3a (1.8 eq.) in THF, 4 was rapidly and cleanly converted to the corresponding silylated indole 4a, which was isolated in 91% yield after 1 h of reaction at room temperature (entry 1, Table 1). Careful analysis by NMR spectroscopy and GC-MS of the crude reaction mixture prior to purification revealed that the remaining mass balance was mainly accounted for by the presence of the chromatography-separable bis-indole product 5 (ca. 7%), formulation of which was eventually confirmed by single-crystal X-ray diffraction (see bottom of Table 1). 5 formally arises from a substitution of the tert-butoxy group in 4a by a second 2-indolyl moiety.
Entry | x | Si(OR)n [y] | ρ [%] | Yield 4a–e [%] | Yield 5 [%] |
---|---|---|---|---|---|
a Conversion (ρ) and yields were determined by 1H NMR on the crude reaction mixture with 1,3,5-trimethoxybenzene as internal standard. Isolated yields in brackets. n.a.: not applicable. b 16 h. c 24 h. | |||||
1 | 10 | 3a SiMe2OtBu [1.8] | >95 | 88 (91) | 7 |
2 | 10 | 3b SiMe2OiPr [1.8] | 70 | 51 | 9 |
3 | 10 | 3c SiMe2OEt [1.8] | 65 | 42 | 10 |
4 | 10 | 3b SiMe2OiPr [3.0] | 86 | 73 (49) | 7 |
5 | 10 | 3c SiMe2OEt [3.0] | 69 | 63 | 4 |
6 | 50 | 3a SiMe2OtBu [2.5] | 91 | 73 | 3 |
7 | 50 | 3b SiMe2OiPr [2.5] | 73 | 7 | 40 |
8 | 50 | 3c SiMe2OEt [2.5] | 73 | 3 | 50 (48) |
9b | 10 | 3d SiMe(OtBu)2 [2.2] | — | (99) | n.a. |
10c | 40 | 3e Si(OtBu)3 [2.2] | 75 | 68 (46) | n.a. |
![]() |
Under otherwise identical conditions, the less bulky isopropoxy and ethoxy diazenes 3b and 3c reacted more sluggishly as the conversion plateaued at 70% and 65% and the corresponding indole products 4b and 4c were produced in 51% and 42% yield along with 9% and 10% of 5, respectively (entries 2–3). In both cases, the diazenes 3b and 3c were fully consumed prior to reaching full conversion of 4, thereby indicating that a non-productive decomposition occurred in the presence of tBuOK. Accordingly, in the absence of 4, 3b and 3c rapidly reacted (<5 min) with tBuOK (10 mol%) to afford a range of silylated products, among which silylated di-tert-butylhydrazines were produced predominantly (see Fig. S5 in the ESI†). In line with these findings, higher yields of 4b and 4c (73% and 63%) were obtained when 4 was treated with increased amounts of 3b and 3c (3 eq.) to compensate for their non-productive self-degradation (entries 4–5). Taken together, these results indicate that the C(sp2)–H silylation reaction benefits from an increased steric bulk of the alkoxide residue, primarily because of the greater stability of the corresponding diazene towards its self-decomposition. In addition, the formation of the doubly-substituted product 5 remains marginal with diazene 3a, while it becomes the major product at higher loading of tBuOK with 3b and 3c (entries 6–8).
In contrast to the mono-alkoxysilyldiazenes 3a–c, the bench-stable bis- and tris-tert-butoxysilyl derivatives 3d and 3e were found highly resistant to base-catalyzed self-decomposition and barely prone to over-substitution. As an illustration, the product 4e was isolated in quantitative yield after 16 h of reaction and even the extremely bulky Si(OtBu)3 unit could be transferred in 68% yield after ca. 24 h of reaction (75% conversion) with 40 mol% tBuOK (entries 9–10). Importantly, the latter result constitutes the first example of a synthesis of an aromatic trialkoxysilane by catalytic silylation of a C(sp2)–H bond.
We next turned our attention to the substrate scope of the silylation reaction (Scheme 3), mostly using diazene 3a as the silicon source not only because it performs better than its less bulky congeners 3b and 3c, but also because the SiMe2OtBu unit is stable towards protonolysis on silica gel, thereby simplifying product purification and isolation. At the outset, various indoles bearing electron-donating (6–8) or withdrawing groups (9–10) on the arene core could be silylated in good to excellent yields under the conditions optimized with 4 (10 mol% tBuOK, 1.8 eq. 3a). In all instances the silylation occurred selectively at the 2-position even when potentially directing methoxy (in 6–7) and chloride (in 10) groups that acidify proximate hydrogen atoms are present. Likewise, the silylation of the azaindole derivative 11 cleanly delivered 11a in 80% isolated yield. Beyond the indole core, other heteroarenes were also efficiently silylated, including furan (12 & 14) or thiophene (13 & 15) derivatives. Importantly, the bis-silylation of thiophene 15 could easily be achieved with diazene 3d (3.2 eq.) to give 15d2 in excellent yield, a bifunctional organosilane that may find applications as monomer in silicone science.
Simple fluoroarenes were also competent substrates (Scheme 3B). As an illustration, one of the ortho C–H bonds in fluorobenzene 16, which displays a similar acidity than the one at the 2-position of N-methylindole 4 (pKa ≈ 37 in DMSO),22 was readily silylated with tBuOK (10 mol%) and 3a (1.2 eq.) to afford the corresponding SiMe2OtBu-substituted arene 16a in 67% yield (not shown). However, under these conditions, the latter was produced along with 24% of the bis-silylated arene 16a2 as judged by 19F NMR spectroscopy, which could be isolated in 87% yield when an excess of 3a (3.5 eq.) was employed. In fact, we had previously shown that the selectivity for mono- vs. bis-silylation pathways with trialkylsilyl-substituted diazenes can be controlled by tuning the steric hindrance of the silyl group (e.g. Me3Si vs. tBuMe2Si).18 A similar dichotomy was observed with alkoxysilyl-substituted diazenes (see Table S6 in the ESI†). For example, using diazene 3e as the silicon source, only one bulky Si(OtBu)3 unit could be selectively introduced in product 16e, which was further isolated in 73% yield. In fact, the present silylation methodology is particularly efficient to assemble polysilylated compounds as witnessed by the per-silylation of 1,3,5-trifluorobenzene (17), which was readily converted into 17a3 (92% yield) with a slight excess of diazene 3a (4 eq.). Interestingly, this type of trifunctional arylsilane product has been employed as precursor of siloxane-based cyclophanes.23 The superb site selectivity for positions ortho to fluorine atom(s) was also retained for substrates bearing potentially competing methoxy (18–19) or phenoxy (20) directing groups as well as aryl (21) or methyl (22) substituents. In all instances, the corresponding mono- or bis-silylated products were isolated in high yields (>80%), though 22a was accompanied by 16% of the bis-silylated product 22a2, in which both the C(sp2)–H bond ortho to fluorine and one benzylic C(sp3)–H bond have been silylated.
Capitalizing on this observation as well as on our previous work that dealt with the undirected silylation of benzylic C(sp3)–H bonds,19b the lateral silylation of various methylarenes was investigated (Scheme 3C). When toluene (23) was reacted with diazene 3a (3.0 eq.) in the presence of tBuOK (10 mol%), the corresponding benzylsilane 23a could be isolated in 51% yield after 4 h of reaction. With the bulkier diazene 3d, however, the SiMe(OtBu)2 unit could be transferred to 23 in an improved 74% yield, thereby suggesting that increased steric hindrance (and Lewis acidity of the silicon center) minimizes pathways that shut down the catalytic activity. Nonetheless, other methylarenes bearing methoxy (24), phenoxy (26), diphenylphosphino (28) or phenyl (29) substituents reacted smoothly with 3a to afford the corresponding silylated products in good to excellent yields. In the cases of 24a and 26a, regioisomers arising from the silylation ortho to the MeO or PhO groups were barely observed, thus confirming that the high lateral selectivity we had previously demonstrated with Et3Si-substituted diazene (tBu–NN–SiEt3) also holds with 3a. However, we have found one major reactivity difference between 3a and tBu–N
N–SiEt3 when substrates bearing (strongly) electron-donating groups at the para position are employed. As an illustration, while the silylation of 4-methylanisole 25 proceeds smoothly with tBu–N
N–SiEt3 (84% isolated yield), only a small amount of 25a was formed with diazene 3a (<10% yield) under otherwise identical or more forcing conditions. A similar outcome was obtained with methylarenes bearing 4-OPh (27) or 4-NMe2 (not shown) substituents. Because meta-substituted isomers 24 and 26 are competent substrates, we ascribe the lack of reactivity of electron rich substrates to the relatively low acidity of the benzylic C(sp3)–H bonds, deprotonation of which would be potentially slower than side reactions, especially diazene self-decomposition. Despite these limitations, less aromatic scaffolds such as the naphthyl or pyridyl derivatives 30 and 31 as well as the secondary benzylic thioether 32 were also tolerated.
Beyond C(sp2)–H or C(sp3)–H bonds, our alkoxysilylation protocol can also be applied to the silylation of more acidic C(sp)–H bonds.24 As an illustration, 1-dodecyne (33) smoothly reacted at room temperature with diazene 3a (1.5 eq.) upon simple treatment with KOH (10 mol%) rather than tBuOK, affording the silylated acetylene 33a in 67% isolated yield (Scheme 4A). Interestingly, 33a can be subjected to a Pd-catalysed Larock heterocyclization with 2-iodo-N-methylaniline according to a protocol developed by Denmark and Baird.25 Such a route gives access to the 3-substituted 2-alkoxysilylated indole product 34 (62% yield), which can be further derivatized by Hiyama–Denmark cross-couplings.25
Overall, the present catalytic methodology exhibits unique generality to assemble a range of structurally-diverse organosilanes bearing different alkoxysilyl groups from readily available hydrocarbon substrates. In particular, it provides a direct entry to (hetero)aryl(tert-butoxy)silanes, a class of compounds that remains largely inaccessible through state-of-the-art C(sp2)–H alkoxysilylation protocols. To illustrate this further, we reacted the model substrates 4 and 21 with HSiMe2OtBu under Rh-13 or Ir-based14a catalytic conditions (Scheme 4B and Section 3 in the ESI† for details), which have been previously developed to introduce alkoxysilyl units by (undirected) C(sp2)–H bond dehydrogenative silylation. Under such conditions, the desired products 4a and 21a were either not formed (Rh) or produced in low yields (Ir), despite the rather forcing conditions (100 °C), long reaction times (20–60 h) and the presence of hydrogen acceptors as additives. In addition, the Ir-based system displayed only moderate site-selectivity, as both 4a and 21a were accompanied by other regioisomers as well as bis-silylated products, as indicated by GC/MS analysis. In stark contrast, the potassium-catalysed silylation of 4 and 21 with 3a proceeds efficiently at room temperature with superb site-selectivity.
The limited availability of catalytic methods to access (hetero)aryl(tert-butoxy)silanes has resulted in a scarcity of data regarding their potential applications.7b This is particularly noteworthy given their bench stability and thus ease of handling compared to the more prevalent methoxy- or ethoxysilyl derivatives.26 We thus embarked into an evaluation of the application potential of the fluorobiphenyl product 21a (Scheme 4C), which was prepared on a 2 mmol scale in 93% isolated yield (564 mg), further demonstrating the scalability of the methodology. Adopting a silicon chemistry point of view, we first demonstrated that despite its bulkiness, the tBuO residue can readily be replaced by other functional groups. For example, 21a smoothly underwent a bismuth-catalyzed cleavage of the O–C(CH3)3 in the presence of chlorotrimethylsilane to afford the heteroleptic disiloxane 35 in 63% yield.27 Alternatively, controlled hydrolysis of the O–Si bond in 21a led to the silanol 36.25 Finally, oxidative cleavage of the C(sp2)–Si bond could be achieved to assemble the functionalized phenol 37 and iodoarene 38 in good to excellent yields.
To end this study, we sought to establish that the potassium-catalyzed C(sp2)–H and C(sp3)–H (alkoxy)silylation reactions proceed according to anionic mechanistic scenarios similar to those previously established with tert-butyl-substituted trialkylsilyldiazenes.18,19,28 To that end, we first verified that under the typical C(sp2)–H silylation conditions, the O-fluoroaryl carbamate 39 undergoes an anionic ortho-Fries (AoF) rearrangement diagnostic of the involvement of aryl potassium intermediates. When 39 was reacted with 3a (1.5 eq.) and a stoichiometric amount of tBuOK (100 mol%), the rearranged potassium phenoxide product 40 was formed in almost quantitative yield (Scheme 5A). Under catalytic conditions, such a rearrangement was also operative as witnessed by the formation of the corresponding O-silylated benzamide (ca. 7% yield after 16 h, see Table S11 in the ESI†), which presumably arises from the silylation of the hydroxide of 40 in the presence of 3a. Importantly, no reaction took place between 39 and tBuOK (1 eq.) in the absence of 3a, thereby indicating that the diazene decomposition is pivotal to induce the metalation and the subsequent rearrangement of 39. In a similar vein, the alkoxysilylation of benzylic C(sp3)–H bonds follows an anionic mechanism as confirmed by the direct observation of the α-silylbenzylpotassium species 41 that acts as a resting state in the tBuOK-promoted reaction between toluene (23) and 3a (Scheme 5B).
From this perspective, the (alkoxy)silylation of both C(sp2)–H and C(sp3)–H bonds proceeds through anionic chain reactions involving organopotassium intermediates as chain carriers (I and II in Scheme 5C). This reactivity manifold, comprising metalation (I → II) and silylation (II → III) events, does not radically differ from the one observed with trialkylsilyl-based diazenes, thereby demonstrating that the diazenyl unit (tBu–NN−) is a better leaving group than an alkoxide (RO− with R = Et, iPr or tBu). In some instances, however, products arising from the nucleophilic displacement of both units have been detected (e.g., the bis-indole 5, see Table 1), especially when the alkoxide residue is sterically unhindered (R = Et or iPr). Although the exact pathway underpinning the formation of doubly-substituted products remains to be studied, the substitution of the alkoxy group in III by II may become kinetically accessible when the concentration of III is greater than that of the corresponding diazene (see Scheme 5C, dashed arrows). In line with this hypothesis, 5 was formed in 62% yield when the silylated indole 4b was introduced from the outset of a reaction between indole 4 and diazene 3b (Scheme 5D).
Footnote |
† Electronic supplementary information (ESI) available. CCDC 2394041 and 2394042. For ESI and crystallographic data in CIF or other electronic format see DOI: https://doi.org/10.1039/d5sc02059j |
This journal is © The Royal Society of Chemistry 2025 |
