New [1]benzothieno[3,2-b]benzothiophene-tetraoxide-based TADF emitters with a D–A–D structure for OLED applications

Abstract

Luminescent organic molecules showing thermally activated delayed fluorescence (TADF) are appealing materials for high-efficiency OLEDs. Here, we report a new class of organic luminescent materials with TADF properties, and a D–A–D electronic structure based on [1]benzothieno[3,2-b]benzothiophene-tetraoxide BTBTOx₄ as the acceptor unit A. Three donor units D were selected and coupled with BTBTOx₄, using a straightforward synthetic protocol based on microwave-assisted Buchwald–Hartwig cross-coupling, to yield three organic luminescent molecules labelled PTz₂-BTBTOx₄, MPA₂-BTBTOx₄ and POCz₂-BTBTOx₄. Chemico-physical and structural properties were investigated by cyclic voltammetry, electrical measurements, crystallographic analysis, theoretical study and photophysical characterization. All three emitters showed high electrochemical stability with reversible oxidation waves. MPA₂-BTBTOx₄ was selected as the reference molecule for X-ray analysis, which revealed torsion angles of −59° and 86° between the donor (MPA) and acceptor (BTBTOx₄) units supporting their appropriate structural configuration to have TADF properties. Photophysical studies highlighted a noteworthy increase in PL efficiency upon deoxygenation for all three compounds. The oxygen-induced quenching of delayed fluorescence and time-resolved photoluminescence studies supported the presence of the TADF properties, further corroborated for PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄ by DFT studies. Preliminary steady-state photophysical studies were also carried out on neat films of all three emitters, revealing a pronounced self-quenching of photoluminescence for PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄ and a minimal self-quenching for POCz₂-BTBTOx₄, which maintains a high Φ_PL (22%) comparable to that in Zeonex and half of that in PMMA. As a proof of concept, the three emitting molecules were tested as neat films in simple-structure OLED devices. In accordance with the photoluminescence data, POCz₂-BTBTOx₄, thanks to its sterically bulky structure, retains a good emission capacity even in a neat film and was also selected as an active matrix to build OLED devices by using two different deposition techniques: inkjet-printing and spin coating.

---

1. Introduction

Organic light emitting diodes (OLEDs) represent a successful technology with applications in flat panel displays and solid-state lighting thanks to their excellent properties including facile fabrication, lightweight construction, low cost, facile colour tunability, low turn-on voltages and high flexibility.^1–3 Commercial products such as smartphones and televisions based on this technology are currently present on the market. However, continuous progress is still necessary and existing open challenges include mainly enhancement of luminescence yields, saving operating energy, cheaper and easier preparation of organic emitting materials, lower costs and simplification of device architecture. First-generation OLEDs based on fluorescent emitters are limited to 25% of internal EL quantum efficiency (IQE), since they are able to harvest only singlet excitons. In phosphorescent materials,^4–6 heavy metal atoms are required to ensure strong spin–orbit coupling (SOC), facilitating efficient intersystem crossing (ISC) between singlet (S₁) and triplet (T₁) electronic states, thereby allowing triplet excitons to become emissive. However, these systems typically rely on the use of precious metals such as Ir and Pt, and hence metal-free alternatives are highly desirable. Moreover, compared with fluorescent materials, the stability of phosphorescent materials^7–9 is often unsatisfactory. On the other hand, TADF materials^10–12 are purely organic compounds, characterized by the presence of efficient reverse intersystem crossing (RISC) between the nearly degenerate S₁ and T₁ excited electronic states. The singlet–triplet energy barrier (ΔE_ST) is comparable with the k_BT at room temperature, allowing the RISC process to occur. A very small ΔE_ST in TADF materials is generally achieved using a twisted donor–acceptor (D–A) architecture, where D is an electron-donor unit and A is an electron-acceptor unit, characterized by the presence of a charge transfer (CT) state where the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) are separated on different moieties of the molecule. Furthermore, in TADF materials, the presence of ¹CT states (vibronically coupled with ³LE states), or in some cases n–p* states, also allows increasing SOC, further facilitating the ISC/RISC process. The strategy to harvest emission from the triplet excitons appears to be the most promising, due to these materials being generally metal-free and usually easy to synthesize and process, as well as relatively low-cost. A common molecular design strategy to obtain TADF materials includes a D–π–A structural architecture, with π being a π-conjugated bridge.^13–19 Other architectures include D–σ–A configurations,^20–22 with σ being a non-conjugated linker or a fused polycyclic heteroaromatic structure.^23–25 Since the pioneering work of Adachi et al.¹⁰ in exploiting the TADF properties in metal-free organic materials for OLEDs, a large number of TADF organic materials have been reported in the literature. These are most often based on D–A,^26–30 D–A–D,^31–34 D–A–D′,^35–39 D–A–A^40–42 and D–A–A′³² architectures. On the other hand, the electronic features affect the twisted D–A framework of TADF materials, hence the amplitude of ΔE_ST and therefore the final efficiency in devices. Chi et al.⁴³ reported interesting results in the study of D–A structures based on dibenzo[a,c]phenazine as an electron acceptor and triphenylamine as an electron donor. To gain insights into the structure–property correlation, they synthesized three molecules with different frameworks of D–A, D–A–D and D–A–A and analysed the effects on photophysical and electroluminescence properties originated from the structural variations of the basic D–A framework. The results show that the introduction of an additional donor or acceptor unit reduces ΔE_ST, promotes RISC and enhances the photoluminescence quantum yield, providing useful insight into the rational molecular design of efficient TADF materials. From a synthetic standpoint TADF emitters with a D–A–D framework are usually easier to design and prepare and the challenge of creating new efficient TADF emitters based on simple molecular structures that are synthesizable by low cost enabling technologies is still open. Furthermore, the chemical structure of organic emitting materials plays a key role in the processing conditions and then in the complexity of the OLED structure. Organic materials processable from solution for neat-film-based OLEDs are highly desirable as they allow fabrication of simplified final devices based on a reduced number of components and simple processing conditions.⁴⁴ Aryl-sulfone-derivatives have been widely investigated as suitable electron-acceptor units in TADF emitters.^15,44–53 They are very attractive in the D–A–D framework and the corresponding TADF emitters also show very good performance in non-doped devices, highlighting the high potential of pristine films for OLED application. Aryl-sulfone planar units based on heteroaryl fused rings have also been investigated as a structural strategy to reduce exciton annihilation by increasing the rigidity of the electron-acceptor unit A.^54–58 [1]Benzothieno[3,2-b]benzothiophene BTBT is a very intriguing polycyclic heteroaromatic planar framework, mainly investigated in field effect transistors^58–61 for its excellent charge mobility and, to a lesser extent, as a π-bridge in DSSC solar cells.⁶² This moiety can be obtained in high yield with a simple synthetic protocol suitable for large-scale production. At the same time, the two thienyl rings can be easily oxidized to yield the S,S-tetraoxide derivative, converting the molecule into an electron-acceptor unit that is potentially useful in D–A–D TADF systems. Herein we report the results of our studies on three new TADF emitters with a D–A–D structure, based on [1]benzothieno[3,2-b]benzothiophene-tetraoxide BTBT-Ox₄ as the electron-acceptor unit A and three different electron-donor units D. Phenothiazine, dimethoxyphenylamine and a carbazole derivative were selected as donor units D to prepare the final materials. New BTBT-Ox₄-based small molecules were prepared following a straightforward synthetic protocol based on the microwave-assisted Buchwald–Hartwig reaction. They were then characterized by cyclic voltammetry, photo-CELIV measurements, crystallographic analysis, and theoretical and photophysical studies. Photophysical studies revealed the TADF properties in this new class of organic emitting materials and as a proof of concept they were tested as neat emissive layers in solution-processed OLED devices.

2. Results and discussion

2.1 Synthetic procedure

Scheme 1 shows the retrosynthetic procedure followed to prepare the final emitting materials (PTz₂-BTBTOx₄, MPA₂-BTBTOx₄, and POCz₂-BTBTOx₄). The synthesis was accomplished by the Hartwig–Buchwald amination of Br₂-BTBTOx₄ with two equivalents of the corresponding donor units, i.e. phenothiazine (PTz) for PTz₂-BTBTOx₄, 4,4′-dimethoxydiphenylamine (MPA) for MPA₂-BTBTOx₄ and a carbazole derivative (POCz) for POCz₂-BTBTOx₄. Pd₂dba₃·CHCl₃ and P(t-Bu)₃ were used as the catalytic system, sodium tert-butylate as the base and toluene as the solvent. The reactions were performed in a microwave reactor at 110 °C for 1 h. Compound Br₂-BTBTOx₄ was synthesized by oxidation of 2,7-dibromo-[1]benzothieno[3,2-b]benzothiophene Br₂-BTBT⁶³ with hydrogen peroxide in chloroform and trifluoroacetic acid.

Scheme 1 Retrosynthetic pathway towards organic emitting materials POCz₂-BTBTOx₄, PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄.

All details about the synthetic procedures and chemico-structural characterization are reported in the ESI.† The synthetic protocol is very straightforward and the final step to obtain the emitting materials can be performed in a short time and with high yield using the microwave-assisted Buchwald–Hartwig reaction. Electronic and chemico-structural characteristics determined the choice of donor units, starting from phenothiazine (PTz) to 4,4′-dimethoxydiphenylamine (MPA), to the carbazole derivative POCz. Phenothiazine is a heterocycle compound with a strong electron-donor behaviour and a non-planar butterfly shaped bent structure.^64–66 4,4′-Dimethoxydiphenylamine is a strong donor unit widely used in D–π–D molecular semiconductors,^67–72 characterized by a non-planar and less rigid structure than the phenothiazine. The carbazole derivative POCz, bis-3,6-(4-octyloxyphenyl)-carbazole, was designed as the donor unit with a more complex molecular structure, combining the carbazole with two octyloxyphenyl units able to enhance the electron donor power of carbazole and at the same time to modulate, by steric effects of aliphatic chains, the aggregation properties in the solid state of the final emitting material.

2.2 Cyclic voltammetry

We investigated the electrochemical properties of the BTBTOx₄-based emitters BTB by cyclic voltammetry (CV) measurements (Fig. 1).

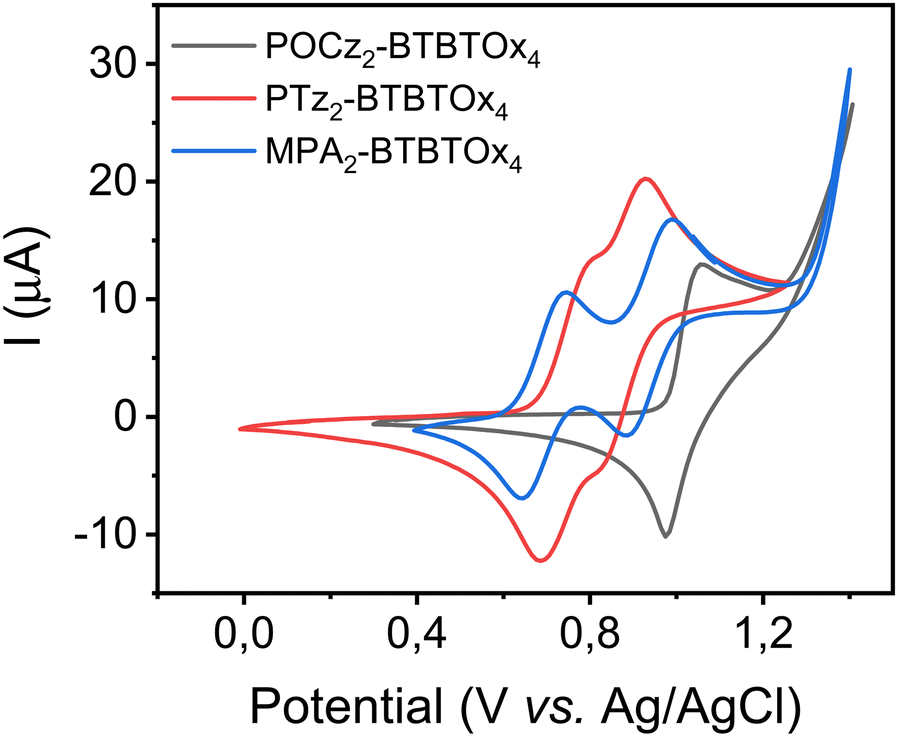

Fig. 1 CV curves of organic emitting materials POCz₂-BTBTOx₄, PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄.

All three compounds show two redox oxidation processes, and the values were found to be 1.00 and 1.06 V for POCz₂-BTBTOx₄, 0.80 and 0.92 V for PTz₂-BTBTOx₄ and 0.73 and 0.97 V for MPA₂-BTBTOx₄vs. Ag/AgCl, respectively. The highest occupied molecular orbital (HOMO) energy levels were estimated to be −5.70, −5.42 and −5.35 eV for POCz₂-BTBTOx₄, PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄, respectively. The lowest unoccupied molecular orbital (LUMO) energy levels were calculated from the HOMO levels and the optical energy gaps, and found to be −3.04, −2.70 and −2.97 eV for POCz₂-BTBTOx₄, PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄, respectively. The data are reported in Table 1.

Table 1 Electrochemical properties and corresponding energy levels^a of POCz₂-BTBTOx₄, PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄

Compound	E 1/2(1) (mV)	E 1/2(2) (mV)	E HOMO (eV)	E LUMO (eV)	E ^optg ^e (eV)
a c = 1 × 10^−3 in CH2Cl2/TBAPF6 (0.1 M), half-wave potentials calculated from the CVs of Fig. 1 and referenced to the Fc^+/Fc couple (E1/2 = 434 mV) at 50 mV s^−1. b The potentials of POCz2-BTBTOx4 were estimated by differential pulse voltammetry (DPV, see Fig. S4.4, ESI). DPV condition: modulation amplitude 5 mV; modulation time 0.05 s; interval time (Δt) 0.5 s; step potential (Estep) 0.005 V; scan rate ν = Estep/Δt 0.01 V s^−1. c E HOMO = −(E^onsetox1 + 516) (eV). d E LUMO = EHOMO − E^optg (eV). e E ^optg was estimated by absorption onset.
POCz2-BTBTOx4	566	627^b	−5.70	−3.04	2.67
PTz2-BTBTOx4	367	487	−5.42	−2.70	2.72
MPA2-BTBTOx4	296	536	−5.35	−2.97	2.39

---

2.3 Charge carrier mobility

In the present work we used the photo-CELIV technique that has been developed and used for measuring the charge mobility of organic layers in the direction perpendicular to the film,⁷³ which is the direction most relevant for photovoltaic applications or light emitting diodes.^74,75 In Fig. 2 the photo-CELIV responses of an ITO/POCz₂-BTBTOx₄ or PTz₂-BTBTOx₄ or MPA₂-BTBTOx₄/Al device are shown. Transients were acquired by optically pumping the sample at a wavelength of 450 nm and detected as a voltage drop by using an external load. A wavelength of 450 nm was chosen to provide a bulk photo-excitation for an accurate measurement of the mobility.⁷⁶ The time delay, maximum ramp voltage, pulse duration, and the external resistor were varied accordingly in order to optimize the signal to noise ratio.⁷⁷ The photo-CELIV response is characterized by a sharp increase, rectangular current transient (J₀), and a slowly growing current (ΔJ) whose maximum depends on the applied ramp voltage. By using peak time (t_max) values we were able to determine the carrier mobility according to the equation below, which is valid in the case of volume photogeneration and a drift current maximum (ΔJ) lower than the displacement current (J₀):⁷⁸
where d is the sample thickness and A is the ramp speed (voltage/ramp duration). In the present case, the PTz₂-BTBTOx₄ compound is characterized by the lower mobility value 5.2 × 10⁻⁸ cm² V⁻¹ s⁻¹, meanwhile both MPA₂-BTBTOx₄ and POCz₂-BTBTOx₄ have similar mobility 1.1 × 10⁻⁶ cm² V⁻¹ s⁻¹, at a speed of around 2 × 10³ (V s⁻¹). Regarding the latter case, we can clearly observe that the higher PLQY correlates with a good charge carrier mobility, making POCz₂-BTBTOx₄ a suitable candidate for OLED applications.

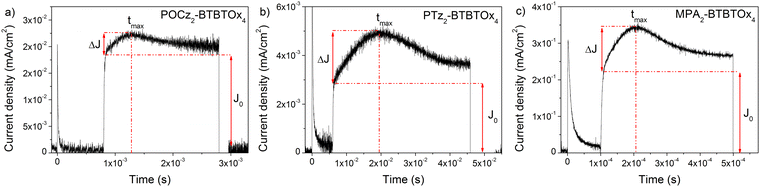

Fig. 2 Photo-CELIV transients on ITO/POCz₂-BTBTOx₄ or PTz₂-BTBTOx₄ or MPA₂-BTBTOx₄/Al devices. Measurements were performed in vacuum, at room temperature, at a ramp speed of around 2 × 10³ (V s⁻¹).

2.4 X-ray powder diffraction (XRPD) analysis

XRPD patterns were collected using a Rigaku RINT2500 rotating anode diffractometer (50 kV, 200 mA) equipped with a silicon strip Rigaku D/teX Ultra detector. An asymmetric Johansson Ge(111) crystal was used to select the monochromatic Cu Kα1 radiation (λ = 1.54056 Å). Measurements were executed in transmission mode by introducing the sample in a Lindemann glass capillary tube with a diameter of 0.5 mm. The XRPD patterns were recorded in the 2θ range of 4–60° for POCz₂-BTBTOx₄ and PTz₂-BTBTOx₄ and of 6–100° for MPA₂-BTBTOx₄, by step scanning, using 2θ increments of 0.02° and a fixed counting time of 2 s per step. The diffraction pattern of POCz₂-BTBTOx₄ revealed the amorphous nature of the material (see Fig. S5.1, ESI†), that, consequently, could not be characterized via an ab initio structure solution process. To check the novelty and phase purity of PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄, a qualitative analysis using the powder diffraction data was carried out via the software QUALX2.0,⁷⁹ aimed at identifying the presence of one (or more) known crystal phase stored in the POW_COD database.⁷⁹ The qualitative analysis revealed that the two compounds were unpublished so far. For both, the structure solution process was attempted by EXPO;⁸⁰ the full pathway (i.e., indexing, space group determination, extraction of the integrated intensities, structure solution and Rietveld refinement) was successful for MPA₂-BTBTOx₄ and did not succeed for PTz₂-BTBTOx₄ due to the lower quality and resolution of the diffraction data in this case. MPA₂-BTBTOx₄ crystallized in the centrosymmetric space group P2₁/c (Table S5.1, ESI†). The asymmetric unit, consisting of 27 non-H atoms (chemical formula C₂₁H₁₇NO₄S), was characterized by a planar core (including the aromatic ring C13–C14–C16–C18–C17–C15 and three additional atoms, i.e., S1, N1 and C21, see Fig. S5.2, ESI†), and two out-of-plane methoxy-phenyl groups (torsion angles C1–C2–N1–C13 and C13–N1–C7–C8 equal to −59° and 86°, respectively, see Fig. S5.2 and Table S5.2, ESI†). A view of the refined crystal structure determined by EXPO is provided in Fig. 3, showing the asymmetric unit (i.e., half a molecule, colour setting by atomic species) and its symmetry equivalent unit (half a molecule, monochromatic blue colour) completing the butterfly-shape molecule. Details on the ab initio structure solution process are accompanied by two tables providing the main crystallographic data (Table S5.1, ESI†), the refined fractional atomic coordinates and isotropic displacement parameter, bond distances and angles and torsion angles (Table S5.2, ESI†), which are all supplied in the ESI.†

Fig. 3 MPA₂-BTBTOx₄: a view of the asymmetric unit (half a molecule, drawn on the left hand side), showing the atom-labelling scheme and the colour setting by atomic species (i.e., yellow – S, red – O, light blue – N, and grey – C); the other half of the molecule is shown in blue and consists of symmetry equivalent atoms, whose labelling is identical to that of the corresponding symmetry independent atoms. H atoms are omitted for clarity. Mercury⁸¹ software was used to generate this graphic.

The crystal architecture was stabilized by a large number and variety of non-covalent intermolecular interactions acting cooperatively^82–87 (see Fig. S5.3 and additional details described in the ESI†).

The weakness of the interactions between non-parallel rings is highlighted by the Hirshfeld surface generated by the software CrystalExporer,⁸⁸ providing a useful tool for a three-dimensional representation of the main intermolecular interactions in the crystal (see Fig. S5.4, i.e., the Hirshfeld surface mapped over d_norm, ESI†).

2.5 DFT results

Density functional theory (DFT) and time-dependent DFT (TD-DFT) can provide useful insights for understanding of photophysical characteristics of luminescent molecules. In this work we study the ground (S₀) as well as the singlet (S₁) excited state geometries of POCz₂-BTBTOx₄, PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄ to shed some light onto the delayed fluorescent properties of these luminophores. The geometry optimisations were performed using the PBE0/def2-svp⁸⁹ level of theory, while single point energy calculations used CAM-B3LYP/ZORA-def2-TZVP⁸⁹ following similar calculations recently performed for Ir(III) complexes.⁹⁰ For this task we used the Orca 5.0.3 software package.^91,92

At first, we study the ground (S₀) and excited state (S₁) geometries of POCz₂-BTBTOx₄, PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄ (Fig. 4). It is immediately apparent that the central acceptor core is flat, with the >SO₂ oxygen atoms being the only moieties out of plane. There are no fundamental structural differences between the S₀ and S₁ geometries, except perhaps for the relative orientation of donors with respect to the acceptor. At S₀ geometries both donors retain generally similar conformations against the acceptor core making them roughly equivalent. This equivalent function of donors is also reflected in the symmetric distribution of HOMOs in the ground state (Fig. 5). This equivalence or symmetry is broken in the S₁ geometry, where the two donors show evidently different conformations from one to another: the first one retaining a relatively similar orientation to that in the ground state and the other being twisted around the C–N axis, or deformed. In POCz₂-BTBTOx₄ and MPA₂-BTBTOx₄ this is expressed by a larger D–A angle, leading to a more orthogonal configuration, and therefore a lower energy CT state (S₁) energy associated with this donor. A CT state associated with the other donor is also present at a higher energy (i.e. S₂). In the ground state geometry, the first singlet excitation (S₀ → S₁) is dominated by the HOMO → LUMO transition and can be assigned a CT (PTz₂-BTBTOx₄) or hybrid CT + LE (POCz₂-BTBTOx₄, MPA₂-BTBTOx₄) character. Interestingly, in PTz₂-BTBTOx₄ the configuration of both phenothiazines in the ground state is equatorial, while in the S₁ state one of the donors rearranges into a planar configuration. The said planar configuration serves as a stronger donor and contributes to the formation of the S₁ state, while the other phenothiazine unit in the equatorial configuration contributes to the S₂. In both configurations however the D–A form a roughly orthogonal arrangement. Donor–acceptor systems featuring phenothiazine are notorious for displaying dual emissive behaviours.^15,93,94 In the case of PTz₂-BTBTOx₄ two conformers of phenothiazine, equatorial and planar, coexist in one S₁ geometry giving rise to distinctive singlet CT excited states associated with either one of the two donors, as mentioned above. We hypothesize that this evident potential to switch between equatorial and planar geometries in the excited state may give rise to dual emissive behaviour in PTz₂-BTBTOx₄. Although the phenothiazine donors in PTz₂-BTBTOx₄ are shown to both be in their quasi-equatorial configuration in the S₀ this does not preclude higher energy conformers from being present, such as the quasi-axial forms.

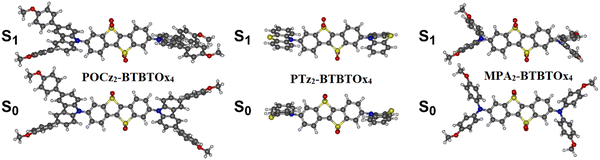

Fig. 4 Comparison between calculated ground (S₀) and excited state (S₁) geometries.

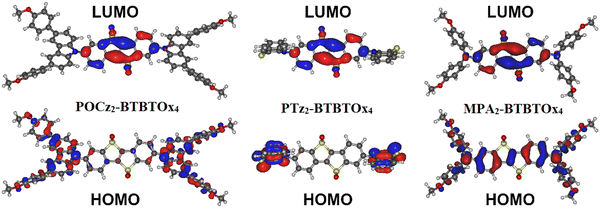

Fig. 5 HOMO and LUMO isosurfaces calculated at the S₀ geometry of POCz₂-BTBTOx₄, PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄.

TD-DFT singlet and triplet excitation energies and the respective orbital pairing calculated at the S₁ geometry are shown in Table S6.1 (ESI†), in Fig. 6 for PTz₂-BTBTOx₄ and in Fig. S6.1 and S6.2 (ESI†). The general picture of the excited states is very similar in all three emitters with the T₁ state being generally of ³LE_A (excited state localised on the acceptor) nature, while the S₁ state is associated with an intramolecular charge transfer (¹CT) character. One may note S₁ and S₂ are associated with distinctive CT transitions involving different donor moieties. The ΔE_ST calculated directly from the S₁ and T₁ energies are: 0.53 eV in POCz₂-BTBTOx₄, 0.07 eV in PTz₂-BTBTOx₄, and 0.59 eV in MPA₂-BTBTOx₄. Given the small ΔE_ST in PTz₂-BTBTOx₄ one may reasonably expect this emitter to display TADF. At first the ΔE_ST for POCz₂-BTBTOx₄ and MPA₂-BTBTOx₄ appear too large to support potential TADF behaviour. However, a closer look at the reasons for the magnitude of ΔE_ST opens an alternative pathway to interpret these results. At the minimal S₁ geometry of PTz₂-BTBTOx₄ the donor and acceptor are nearly completely decoupled, hence the T₁ represents a ‘pure’ ³LE_A state with an energy of 1.75 eV. The optimised S₁ geometry of POCz₂-BTBTOx₄ and MPA₂-BTBTOx₄ however shows a partial conjugation between the donor and acceptor. In this case the T₁ energy drops ever so slightly to 1.74 eV in POCz₂-BTBTOx₄ and more significantly to 1.51 eV in MPA₂-BTBTOx₄. We believe that, however, the influence of the partial donor–acceptor conjugation may be exaggerated in this case with respect to the real system. For example, the donors will be allowed to freely rotate around the C–N bonds due to the small activation energy for this motion. We believe that the contribution of configurations with more decoupled donor and acceptor pairs appearing in real systems may lead to the T₁ energy being closer to that of a fully decoupled system than that determined in this calculation. By using the energy of a ‘pure’ ³LE_A state with an energy of 1.75 eV from PTz₂-BTBTOx₄ we estimate ΔE_ST of 0.51 eV for POCz₂-BTBTOx₄ and 0.35 eV for MPA₂-BTBTOx₄, hence demonstrating that TADF may be possible at least in MPA₂-BTBTOx₄. Spin–orbit coupling matrix elements (SOCME) between the lowest singlet and triplet states are shown in Table S6.2 (ESI†). They clearly demonstrate potential pathways for ISC and RISC within these systems. For example, in PTz₂-BTBTOx₄ the 〈T₁|Ĥ_SO|S₁〉 and 〈T₁|Ĥ_SO|S₂〉 are ∼0.2–0.5 cm⁻¹, one order of magnitude larger than 〈T₂|Ĥ_SO|S₁〉 and 〈T₂|Ĥ_SO|S₂〉. In this case the role of the T₁ (³LE_A) is necessary to promote RISC to the ¹CT state. Somewhat similarly, the 〈T₁|Ĥ_SO|S₁〉 and 〈T₁|Ĥ_SO|S₂〉 in POCz₂-BTBTOx₄ and MPA₂-BTBTOx₄ are larger than other pairings due to the analogous orbital nature of these two states as in PTz₂-BTBTOx₄.

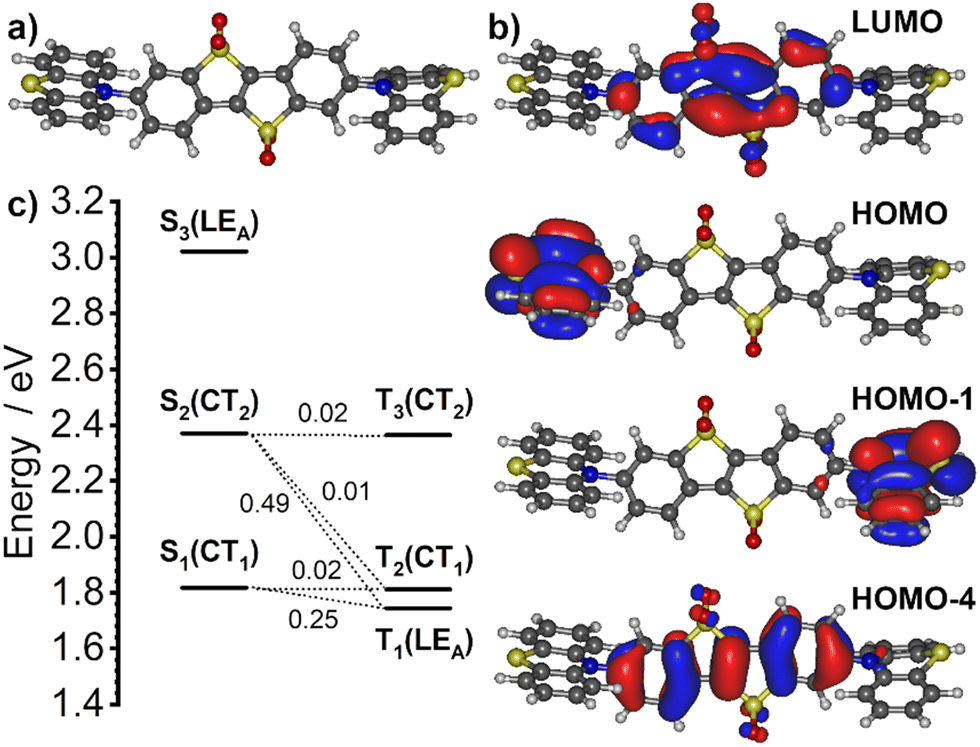

Fig. 6 TD-DFT calculations for PTz₂-BTBTOx₄ at S₁ geometry: (a) structure in the S₁ state; (b) isosurfaces of the relevant molecular orbitals; (c) excited state energy diagram with the orbital character of each of the excited states; the values and dotted lines represent SOCME in cm⁻¹ between the indicated states.

2.6 Photophysical properties

In this section, we explore the photophysical characteristics of PTz₂-BTBTOx₄, MPA₂-BTBTOx₄ and POCz₂-BTBTOx₄, aiming to understand how different donor units influence their optical behaviour and thus their potential as TADF materials in OLEDs. Specifically, the three donor units, phenothiazine (PTz), dimethoxyphenylamine (MPA) and carbazole (Cz) derivative (POCz) exhibit different electron-donating and steric behaviours. We conducted a comprehensive study of these compounds using UV-vis absorption, steady-state and time-resolved fluorescence spectroscopy. The initial investigation involved studying the photophysical properties in diluted solution (10⁻⁵ M) in three solvents with different polarity: cyclohexane (CH), toluene (Tol) and dichloromethane (DCM). Then, we moved to the solid-state (as isolated molecules) by means of two polymer matrices with different polarity, namely zeonex and poly(methyl methacrylate) (PMMA). Finally, the steady-state photophysical properties of the neat films (drop casting) were also explored. A summary of the photophysical results for all three compounds can be found in Tables 3 and 4.

2.6.1 Absorption spectra. The UV-vis absorption spectra of the three compounds PTz₂-BTBTOx₄, MPA₂-BTBTOx₄ and POCz₂-BTBTOx₄ were recorded in diluted solutions (10⁻⁵ M) of three solvents with different polarity: cyclohexane (CH), toluene (Tol) and dichloromethane (DCM) (Fig. 7). In all systems, the lowest energy band is attributed to Intramolecular Charge Transfer (ICT) processes between the donor (D) and the acceptor (A) units. This finding is consistent with the TD-DFT calculations since it is identified as a CT or CT + LE HOMO–LUMO transition between the donor and acceptor units (Table S6.1, ESI†). Specifically, we observed that the CT band appears Gaussian in all cases, except for POCz₂-BTBTOx₄ in CH, where it is well-resolved indicating the presence of a hybrid localized charge transfer (HLCT or CT + LE) state, again in line with calculations. By increasing the solvent polarity, a red-shifted Gaussian emission is observed for all molecules, confirming the CT character of this transition. This shift is attributed to dipolar interactions with the solvent, favouring the stabilization of the CT state. Conversely, the peaks at higher energy remain unaffected by polarity and are associated with locally excited (LE) transitions on the donor or acceptor unit. Specifically, for POCz₂-BTBTOx₄, the absorption band at ∼290 nm is assigned to the π–π* localized absorption of Cz, as well as that at 330 nm.⁹⁵ For PTz₂-BTBTOx₄, the absorption bands at λ_max = 315 and 330 nm, along with the shoulder at 290 nm, are assigned to the localized absorption of phenothiazine.⁹⁶ In the case of MPA₂-BTBTOx₄, at higher energy, two bands are observed at 280 and 375 nm, corresponding to LE transitions of dimethoxyphenylamine. Lastly, in the deep UV region, the transitions between 225 and 260 nm are associated with LE states of the acceptors for all the systems.

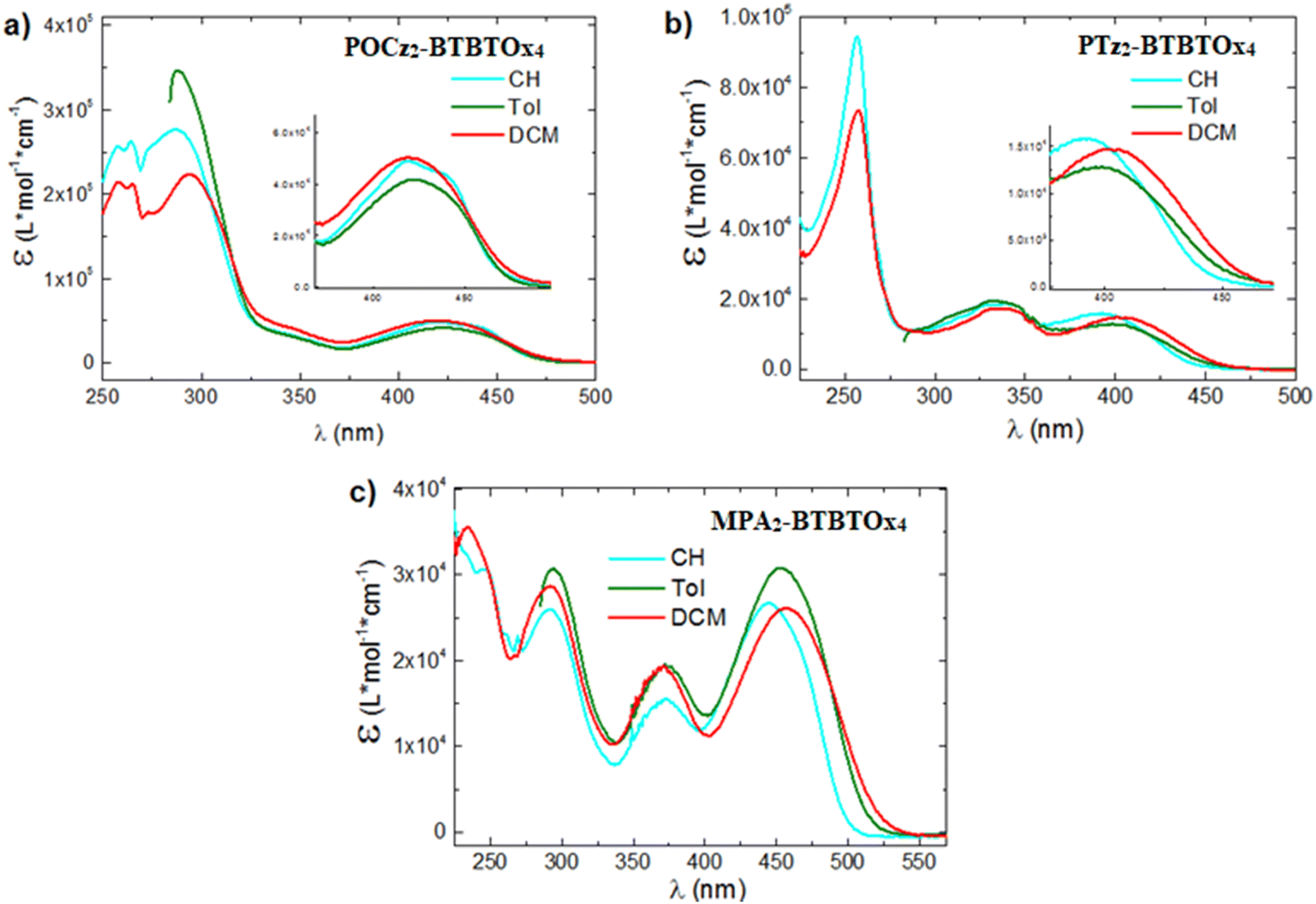

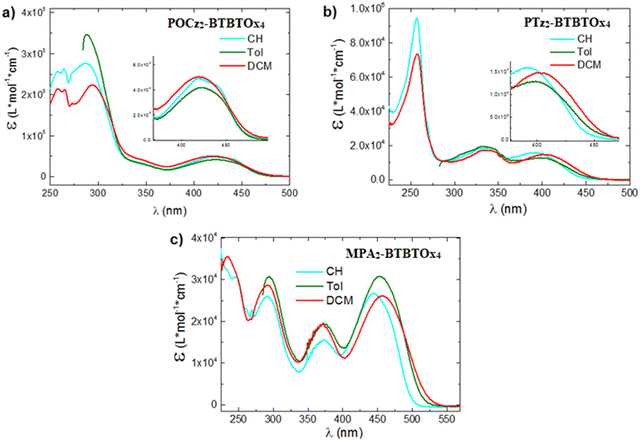

Fig. 7 UV-vis absorption spectra in CH (10⁻⁵ M, cyan), in Tol (10⁻⁵ M, green) and DCM (10⁻⁵ M, red) of (a) POCz₂-BTBTOx₄, (b) PTz₂-BTBTOx₄, and (c) MPA₂-BTBTOx₄. In toluene, the UV-vis absorption below 285 nm is not reported since it is obscured by the solvent UV-vis absorption cut-off wavelength.

2.6.2 Solution PL (steady-state and time-resolved). The photoluminescence (PL) spectra in diluted solutions measured in three solvents with increasing polarity (CH, Tol and DCM), reveal distinct patterns among POCz₂-BTBTOx₄, PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄ (Fig. 8). Notably, POCz₂-BTBTOx₄ and PTz₂-BTBTOx₄ exhibit two distinct bands (except in DCM where PTz₂-BTBTOx₄ displays only one band), while MPA₂-BTBTOx₄ shows a single band in all the three solvents. For all the samples, the low-lying band is the most intense and displays positive solvatochromic behaviour, typical for donor–acceptor (D–A) systems. In CH, its structured profile suggests a hybrid local and charge transfer (HLCT) character, while in toluene, the band becomes Gaussian and is red shifted due to the increased solvent polarity that stabilizes the CT state. Further increasing the polarity in DCM results in a red shift of the CT band for POCz₂-BTBTOx₄ and MPA₂-BTBTOx₄. For PTz₂-BTBTOx₄ a strong stabilization effect is responsible for the extinction of the CT emission. Concerning the higher-energy band, especially in POCz₂-BTBTOx₄ (the inset in Fig. 8a), it remains unperturbed by solvent polarity, indicating locally excited (LE) character.

Fig. 8 Normalized PL spectra in CH (10⁻⁵ M, cyan), Tol (10⁻⁵ M, green) and DCM (10⁻⁵ M, red) of (a) POCz₂-BTBTOx₄, inset: normalized higher energy band, (b) PTz₂-BTBTOx₄, and (c) MPA₂-BTBTOx₄.

For deeper insights into the photophysical mechanism, decay profiles (Fig. S7.1, ESI†) were acquired, and lifetimes were determined (Table 2). We note that, in the cases of POCz₂-BTBTOx₄ in CH and DCM, and MPA₂-BTBTOx₄ in DCM, the decay collected for the lower energy band exhibits a bi-exponential decay, with the longer component assigned to the CT state, while the shorter one can be assigned to a HLCT state. In the other cases, i.e. for all systems in Tol, for PTz₂-BTBTOx₄ in CH and DCM and for MPA₂-BTBTOx₄ in CH, the decay collected for the lower energy band exhibited a mono-exponential course, originating from the CT state. For POCz₂-BTBTOx₄ and PTz₂-BTBTOx₄ we also collected the decay for the LE band (higher energy, Fig. S7.1, ESI†), nevertheless, since the excitation is at 405 nm we acquired the decay at 430–450 nm and thus the double lifetime observed in some depends on the tail of the CT band (Table 2). The photoluminescence quantum yields (Φ_PL) were determined for all three compounds (Table 2). The values reduce upon increasing solvent polarity, which can be assigned to polarity-related stabilization of the excited state. The higher Φ_PL in CH is attributed to the presence of a HLCT transition which, in comparison to the CT transition, displays a larger HOMO–LUMO overlap and hence higher oscillator strength f(S₁ → S₀). Notably, Φ_PL exceeds 50% for POCz₂-BTBTOx₄ and MPA₂-BTBTOx₄, while for PTz₂-BTBTOx₄ it reaches only 3%, indicating a reduction in the donor–acceptor conjugation in the last example and thus of the transition oscillator strength. Furthermore, the effect of oxygen quenching on quantum yields and lifetimes was tested for all three compounds. However, after deoxygenation, none of the compounds showed intensity variation with long-lived emission, ruling out the possibility of TADF activity in solution.

Table 2 Photophysical data of POCz₂-BTBTOx₄, PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄ in CH, Tol and DCM

	CH		Tol		DCM
	Φ PL (%)	τ (ns)	Φ PL (%)	τ (ns)	Φ PL (%)	τ (ns)
POCz2-BTBTOx4	68.8	λ Em = 430 nm	51.2	λ Em = 430 nm	3.8	λ Em = 440 nm
		2.8(25%), 3.8(75%)		1.0(7%), 5.4(93%)		1.8(32%), 5.4(68%)
		λ Em = 500 nm		λ Em = 510 nm		λ Em = 600 nm
		2.7(23%), 4.9(77%)		5.5(100%)		1.4(94%), 5.4(6%)
PTz2-BTBTOx4	2.7	λ Em = 450 nm	1.2	λ Em = 450 nm	0.3	λ Em = 450 nm
		3.2(100%)		2.5(100%)		1.3(60%), 4.2(40%)
		λ Em = 570 nm		λ Em = 600 nm		λ Em = 530 nm
		5.1(100%)		4.1(100%)		4.0(100%)
MPA2-BTBTOx4	59.6	λ Em = 517 nm	55.6	λ Em = 550 nm	11.2	λ Em = 600 nm
		4.1(100%)		4.5(100%)		1.7(95%) 3.9(5%)

---

2.6.3 Steady-state and time-resolved PL emission properties in solid polymer thin film matrices. We also explored the photoluminescence features of POCz₂-BTBTOx₄, PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄ in the solid state by dispersing the samples at a low concentration (0.1% by weight) in two different polarity polymer matrices, namely Zeonex and PMMA. The steady-state emission of all the three compounds reveals distinct behaviours (Fig. 9). In Zeonex, the profile appears resolved with HLCT character while, in PMMA, it becomes Gaussian due to its higher polarity stabilizing the CT state. A noteworthy observation is the bathochromic shift of the PL emission of MPA₂-BTBTOx₄ in both polymers compared to POCz₂-BTBTOx₄ and PTz₂-BTBTOx₄. We can also observe that PTz₂-BTBTOx₄ in Zeonex exhibits a broadened emission compared to PMMA, with the formation of a new shoulder at 550 nm, suggesting the presence of multiple emissive states.

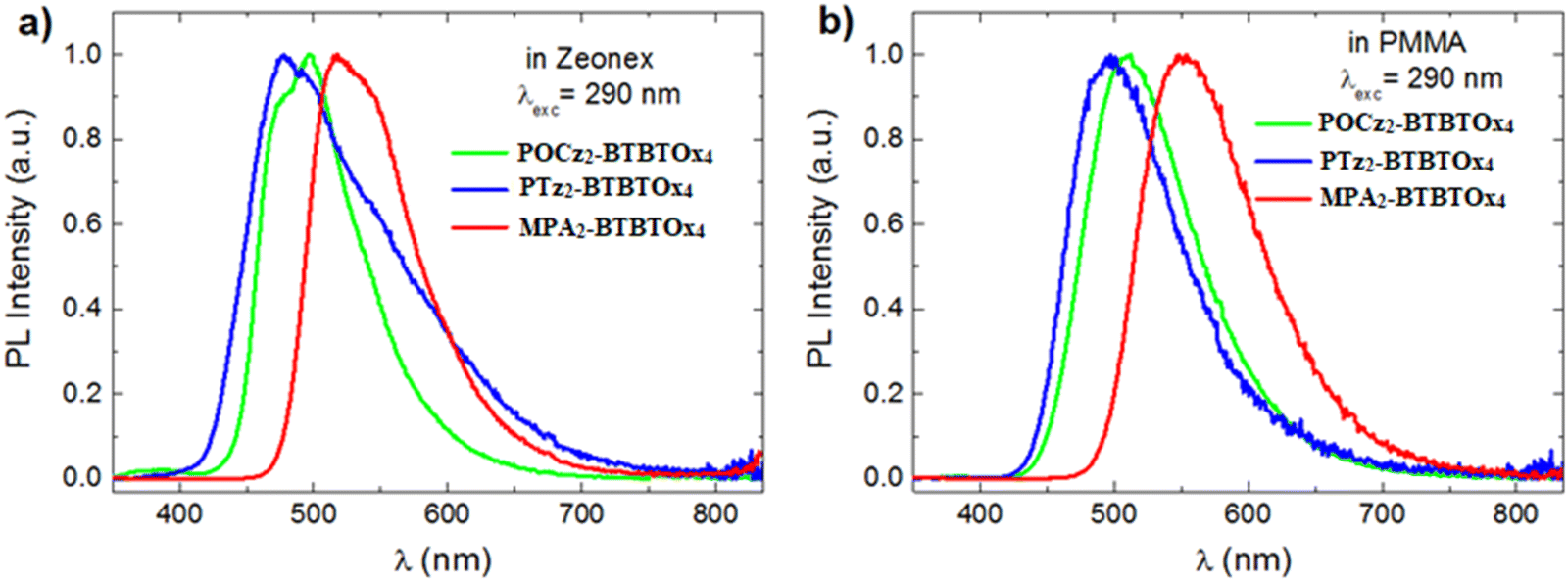

Fig. 9 Normalized PL spectra of POCz₂-BTBTOx₄, PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄ in: (a) Zeonex (0.1 wt%) and (b) PMMA (0.1 wt%).

The photophysical properties of all the three compounds in Zeonex were also investigated under deoxygenated conditions. In Fig. S7.2 (ESI†) we can note that while the emission spectrum of POCz₂-BTBTOx₄ and MPA₂-BTBTOx₄ remains almost unchanged, PTz₂-BTBTOx₄ in Zeonex reveals an additional intense band at lower energy. Further experiments, using various excitation wavelengths and doping concentrations (0.1, 1 and 5 wt%) (Fig. S7.3, ESI†), demonstrate that the lower energy PL band in PTz₂-BTBTOx₄ is affected by these parameters. Notably, the lower energy PL band gradually diminishes as the excitation shifts to longer wavelengths (λ_ex in Fig. S7.3, ESI†), resulting in fully Gaussian emission at λ_ex = 400 nm. This behaviour can be observed at all doping concentrations, with the lower energy band being markedly more pronounced at the highest load. Based on these findings, we can identify two distinct emissive species. Specifically, it exhibits emission varying with excitation wavelength: one PL band evident for λ_exc (below 400 nm) and another for λ_exc = 300–350 nm. According to the DFT calculations, these two species can be potentially attributed to the two different phenothiazine conformers on the same molecule (planar and equatorial), aligning with previous reports on phenothiazine-substituted compounds.^15,93,94 The increased presence of conformers at higher doping concentrations indicates that intermolecular interactions occurring in the condensed phase are crucial for the formation of lower energy emissive conformers. As shown in Table 3, POCz₂-BTBTOx₄ and PTz₂-BTBTOx₄ in PMMA display double the PLQY values in air compared to the same conditions in Zeonex, while that for MPA₂-BTBTOx₄ in air is very similar in both polymers. Furthermore, when comparing the Φ_PL of POCz₂-BTBTOx₄ in polymers with that in dilute solutions, it is evident that the Φ_PL is higher in CH and Tol than in both polymers, particularly in Zeonex. This potentially suggests an aggregation-caused quenching (ACQ) effect, which is more pronounced in Zeonex, probably due to the lower compatibility of this polymer with POCz₂-BTBTOx₄. On the other hand, PTz₂-BTBTOx₄ displays a larger Φ_PL in both polymer matrices, especially in PMMA, than in solution, indicating that rigido-chromic effects dominate. Finally, for MPA₂-BTBTOx₄Φ_PL remains almost unchanged from solution to both polymer matrices, and this effect may be attributed to the presence of bulky dimethoxyphenylamine donors, which likely prevent both π–π stacking and other non-radiative deactivation processes. We also studied photoluminescence quenching in both polymer matrices for all three emitters. Interestingly, after deoxygenation, the PL intensity increases for all three compounds in both polymer matrices (Table 3), thus suggesting that all three materials may present TADF properties. In particular, for PTz₂-BTBTOx₄, the Φ_PL in Zeonex films gradually decreases with increasing doping concentration. Still, the ratio Φ^air_PL/Φ^deox_PL (Table S7.2, ESI†) is higher for 0.1 wt% film upon deoxygenation, suggesting that around a concentration of 0.1 wt% in Zeonex, the formation of species with delayed fluorescence (DF) properties is favoured. We conducted time-resolved PL studies of all three compounds in deoxygenated thin film in Zeonex, where the Φ_PL in deoxygenated conditions is higher, and the resulting decay lifetimes are shown in Table 3. Additionally, we performed time-resolved emission spectroscopy (TRES) mode measurements, allowing the reconstruction of individual spectra at specific time delays (TD) (see the photophysical data in the ESI,† for details), for all three compounds in Zeonex (0.1 wt%). The time-resolved spectra at rt for all three compounds depicted in Fig. 10, display distinct behaviours among the three systems.

Table 3 Photophysical results for POCz₂-BTBTOx₄, PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄ in PMMA and Zeonex

	PMMA			Zeonex
	%ΦPL air/deox.	τ 1/τ2 (ns) deox.	τ 1/τ2 (ms) deox.	Φ PL air/deox.	τ 1/τ2 (ns) deox.	τ 1/τ2 (μs) air/deox.
air = in aerated conditions; deox = deoxygenated conditions; τav = average lifetime.
POCz2-BTBTOx4	44/59	λ em = 500 nm	λ em = 500 nm	25/76	λ em = 500 nm	λ em = 500 nm
		8.3(100%)	0.3(18%), 1.7(82%)		4.1(59%), 6.0(41%)	36.4(36%)
			τ av = 1.7		τ av = 5.4	194.1(64%)
						τ av = 179
PTz2-BTBTOx4	18/30	λ em = 490 nm	λ em = 490 nm	10/30	λ em = 480 nm	λ em = 480 nm
		8.6(100%)	0.5(38%), 3.1(61%)		1.9(20%), 4.2(80%)	NO DF
			τ av = 2.9		τ av = 4.0	λ em = 550 nm
					λ em = 550 nm	87.4(61%), 253.3(39%)
					2.9(44%), 5.8(56%)	τ av = 195
					τ av = 5.0
MPA2-BTBTOx4	58/85	λ em = 560 nm	λ em = 560 nm	60/93	λ em = 530 nm	λ em = 530 nm
		6.2(100%)	0.3(25%), 1.7(75%)		4.9(100%)/5.0(100%)	7.4(71%), 88.5(29%)
			τ av = 1.6		τ av = 5.0	τ av = 74.7

---

Table 4 Photophysical data for POCz₂-BTBTOx₄, PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄ in neat film

Compound	Absorption (λmax, nm)	Emission (λmax, nm)	% ΦPL
POCz2-BTBTOx4	267, 296, 347(s), 439	560	22
PTz2-BTBTOx4	262, 341, 416, 600	516, 630	1.2
MPA2-BTBTOx4	293, 372, 467, 632	593	1.3

---

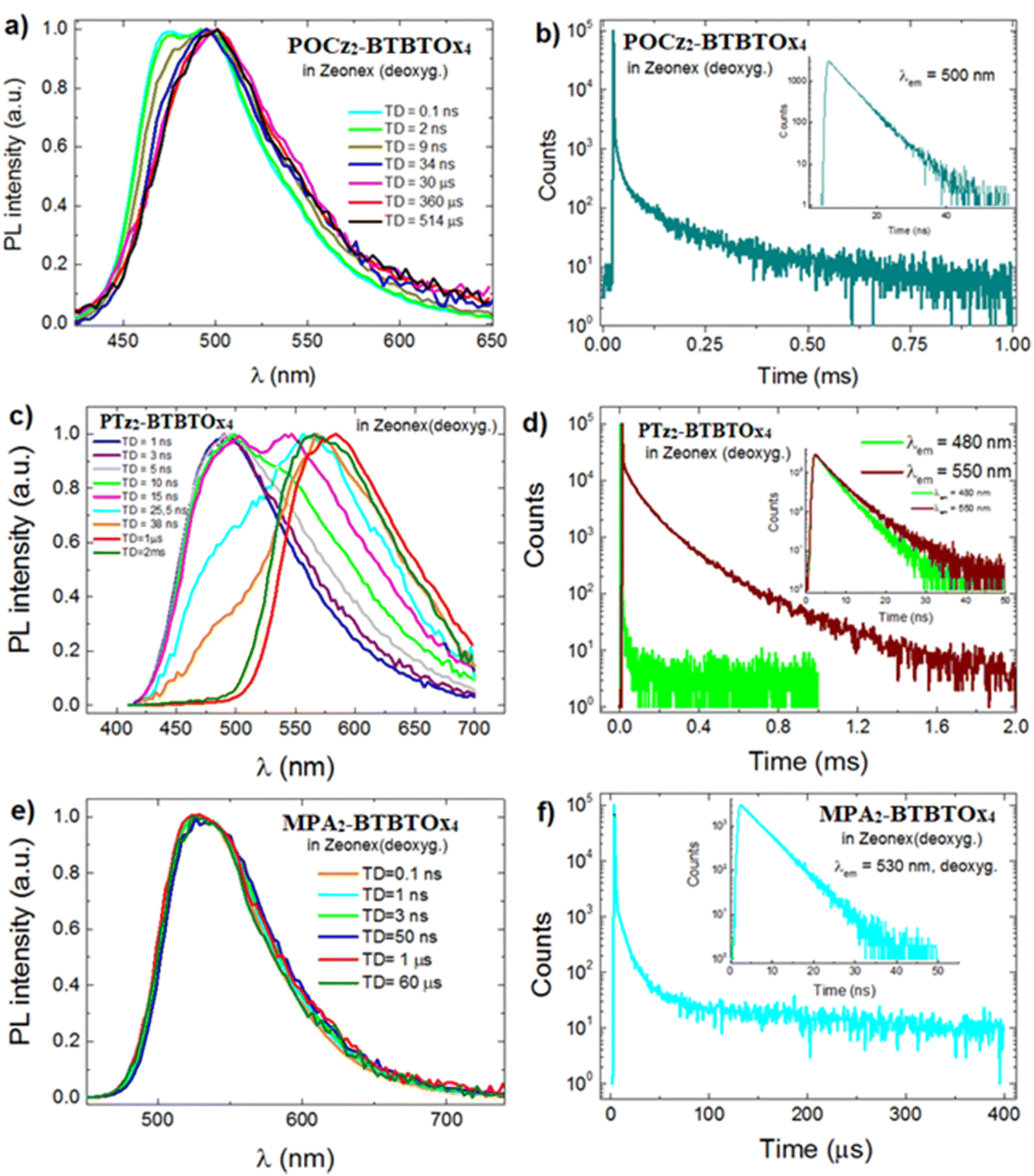

Fig. 10 (a) Time-resolved emission spectra in Zeonex (0.1 wt%) of (a) POCz₂-BTBTOx₄, (c) PTz₂-BTBTOx₄, and (e) MPA₂-BTBTOx₄. PL decay in Zeonex (0.1 wt%) in the microsecond scale (insets: decay in the nanosecond scale) of (b) POCz₂-BTBTOx₄, (d) PTz₂-BTBTOx₄, and (f) MPA₂-BTBTOx₄.

Specifically, for POCz₂-BTBTOx₄ (Fig. 10a), the high-energy emission peak is visible only in the early times, attributed to a locally excited state (¹LE) from direct excitation and emission from the D or A moiety. At longer time delays (TD = 30 ns), the initial ¹LE emission disappears, and only the lower energy band attributed to CT emission remains invariant throughout the decay. This indicates luminescence from the singlet state for both prompt and delayed components, suggesting TADF origin of this emission.^97,98 For MPA₂-BTBTOx₄ (Fig. 10e), the emission spectra appear more Gaussian-shaped, remain invariant throughout the decay, suggesting TADF emission for this molecule in Zeonex at room temperature. For both POCz₂-BTBTOx₄ and MPA₂-BTBTOx₄, PL decays were collected, and lifetimes were measured (Table 3), showing two characteristic average lifetimes (τ_av): one in the nano-second regime attributed to the prompt fluorescence (PF) and the other in the micro-/milli-second one due to TADF. However, as observed in the decay curves (Fig. 10b and f), it is important to note that for both POCz₂-BTBTOx₄ and MPA₂-BTBTOx₄, the contribution of the TADF appears rather insignificant. This is clearly visible through the relative counts of the longer component in the decay, below 10³, more than two orders of magnitude lower than the PF component. Additionally, a higher laser power is required to observe the DF component, especially in POCz₂-BTBTOx₄. These observations are consistent with the singlet–triplet energy gap obtained from the DFT calculations, which is particularly high for POCz₂-BTBTOx₄. Conversely, the analysis of spectra acquired for PTz₂-BTBTOx₄ (Fig. 10c) reveals a different behaviour for different time delays. At early times (0–2 ns), the emission arises entirely from the higher energy emissive state (λ_max = 480 nm), while the emission associated with the low-energy emissive state (570 nm) appears after 5 ns, becoming dominant at TD = 25 ns. Upon increasing delay time (after 1 μs), only the state centred at 570 nm remains invariant, with the spectral shape almost invariant, even with an increased delay time up to a few milliseconds. This behaviour is attributed to the presence of TADF, observed in the low-energy emissive state only,^97,98 which is attributed, according to DFT calculations, to the conformer with phenothiazine in the planar configuration. Additional confirmations come from the decay profiles (Fig. 10d) collected at both emission peaks (λ = 480 nm and 570 nm, respectively), where a strong long-lived DF component (i.e. significantly more intense than in the case of the other two emitters) is present only for collection at 570 nm, while for collection at 480 nm, only a short decay typical of prompt fluorescence is detected. This pattern implies that at 0.1 wt% concentration, the higher energy emissive state (with phenothiazine equatorial) is more abundant, overshadowing the prompt fluorescence of the low-energy emissive state. Nonetheless, with longer TD, the low-energy emissive associated to the planar phenothiazine conformer, becomes discernible since it is the sole emitting state exhibiting delayed fluorescence. We have also carried out time-resolved experiments at 77 K (Fig. S7.5 and S7.6, ESI†), which allow us to gain more insight into the photophysics of these materials. However, we were unable to obtain reliable results for MPA₂-BTBTOx₄ and POCz₂-BTBTOx₄. This is certainly related to the very weak delayed fluorescence in the two molecules and could be due either to an inefficient ISC or to the presence of non-radiative deactivation channels that are also efficient at 77 K. On the other hand, we were able to observe phosphorescence for PTz₂-BTBTOx₄ allowing us to estimate a ΔE_ST of 0.1 eV (Fig. S7.5, ESI†) between the triplet and the singlet resulting from the energetically lower photoluminescence component exhibiting TADF. We have also determined the K_RISC to be on the order of 10⁴ s⁻¹. For the method previously used by some of the current authors⁹⁹K_RISC = 0.6 × 10⁴ s⁻¹, while for a more simplified approach,¹⁰⁰K_RISC = 0.6 × 10⁴ s⁻¹. Due to the overall extremely low TADF intensity in the other two emitters we were unable to determine the K_RISC values. In conclusion, the photophysical study is in agreement with TD-DFT calculations. For example, the best compound in terms of TADF properties is PTz₂-BTBTOx₄, while MPA₂-BTBTOx₄ presents less impressive TADF behaviour. At the same time, POCz₂-BTBTOx₄ shows the worst TADF properties. This ordering agrees with the ΔE_ST values predicted by TD-DFT.

2.6.4 Steady-state photophysical properties in neat films. In this section we present a short study of the photophysical properties of the three emitting materials in neat films to assess their potential as self-hosted emitters in OLED devices. First, their UV-Vis properties were investigated, as shown in Fig. S7.4 (ESI†), in comparison to the isolated molecules in CH solution. While the higher energy transitions associated with the LE states retain their location found in solvents, all pure films show a clear bathochromic shift in the lower energy band associated with the CT transition. This red shift is consistent with the stabilizing effect induced by the dipoles of neighbouring molecules in the neat film. Notably, an additional weak broad band at lower energy is observed, in both POCz₂-BTBTOx₄ and PTz₂-BTBTOx₄ neat films, possibly indicating the formation of new aggregate-induced electronic states.

The PL spectra of the three emitting materials in neat films (Fig. 11) were compared with those of isolated molecules dispersed in polymer matrices (Zeonex and PMMA, Fig. 9). POCz₂-BTBTOx₄ and MPA₂-BTBTOx₄ neat films show Gaussian shaped emissions with a bathochromic shift of about 50 nm compared to PMMA. In addition, POCz₂-BTBTOx₄ shows a tail in the red region of the PL (700–800 nm), possibly associated with emission from aggregates. Conversely, the PTz₂-BTBTOx₄ neat film shows two distinct bands, one less intense at higher energy (525 nm) and another much more intense at 625 nm, probably due to different molecular conformers of the phenothiazine unit. The PL of the lower energy conformer is more intense in the neat film due to favoured Förster energy transfer between neighbouring molecules. We also determined the Φ_PL of compounds in neat films which is summarized in Table 5. Only POCz₂-BTBTOx₄ maintains a good Φ_PL in neat film (22%), compared to that in Zeonex, and half of that in PMMA, indicating minimal self-quenching. On the other hand, self-quenching is pronounced in PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄, with Φ_PL dropping to around 1% in neat film. The bulky POCz moieties linked to the BTBTOx₄ in POCz₂-BTBTOx₄ likely prevent self-quenching in the solid state by hindering close packing of molecules, thereby reducing non-radiative pathways via strong π–π stacking interactions. Based on these observations, POCz₂-BTBTOx₄ is the only emitting molecule suitable for use in neat film form for self-hosted OLED devices. Furthermore, the neat phase can be used to achieve more red-shifted electroluminescence.

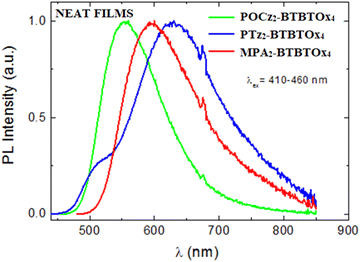

Fig. 11 Normalized PL spectra of POCz₂-BTBTOx₄, PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄ in neat films.

2.7 OLED devices

Proof of concept OLED devices with a simple structure were fabricated using PTz₂-BTBTOx₄, MPA₂-BTBTOx₄ and POCz₂-BTBTOx₄ in the emitting layer. In particular, these materials have been tested as neat emitting layers, avoiding the use of a host material and thus simplifying the device architecture. The OLEDs consist of indium-tin-oxide (ITO) as the anode, poly(3,4-ethylenedioxythiophene) doped with poly(styrene sulfonate) (PEDOT:PSS, 35 nm) as the hole transport layer (HTL), poly(9-vinylcarbazole) (PVK) as the electron blocking layer (EBL, 15 nm), an emitting layer (EML, 35 nm – PTz₂-BTBTOx₄ or MPA₂-BTBTOx₄ or POCz₂-BTBTOx₄), 1,3,5-tris(1-phenyl-1H-benzimidazol-2-yl)benzene (TPBi) as the electron transport layer (ETL, 50 nm), and LiF (1 nm) and Al (100 nm) as the cathode. The device architecture is shown in Fig. 12a. A summary of all OLED characteristics is reported in Table 5.

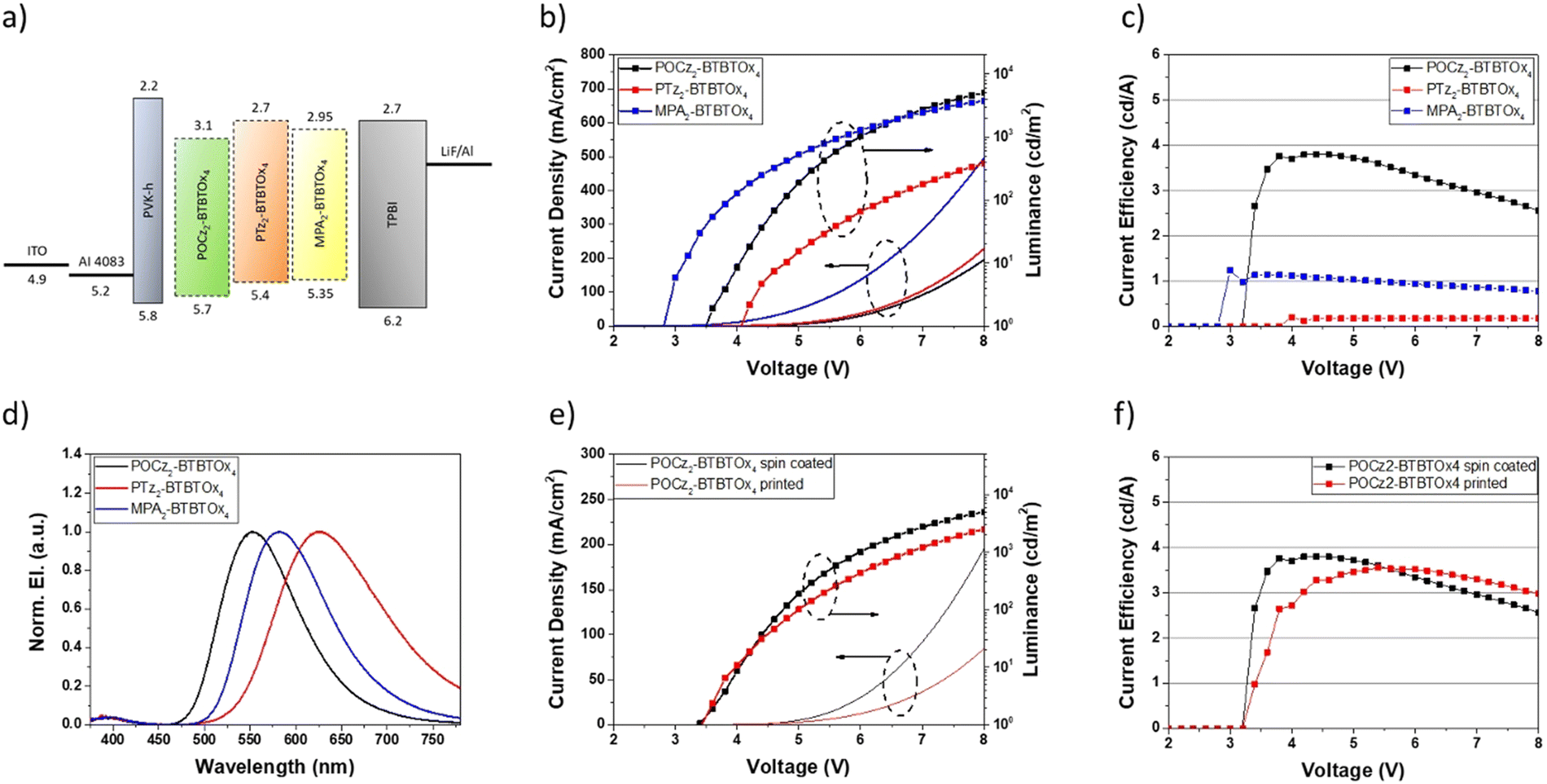

Fig. 12 Device architecture and characterization: (a) energy level diagram for the fabricated OLEDs using POCz₂-BTBTOx₄ or PTz₂-BTBTOx₄ or MPA₂-BTBTOx₄ as the EML; (b) device current density and luminance for the three different emitting layers; (c) the current efficiency of OLEDs; (d) electroluminescence spectra; (e) current density and luminance comparison between the OLEDs with spin coated and printed POCz₂-BTBTOx₄; (f) comparison of current efficiency for spin coated and printed POCz₂-BTBTOx₄-based OLEDs.

Table 5 Summary of the main OLED characteristics, including external quantum efficiency (EQE) and exciton utilization efficiency (EUE)

Emitting layer	Current density (mA cm^−2) at max efficiency	Max luminance (cd m^−2)	Current efficiency (cd A^−1) @ 100 cd m^−2	Current efficiency (cd A^−1) @ 1000 cd m^−2	Turn on voltage (@ 10 cd m^−2)	Peak wavelength (nm)	EML ΦPL (%)	EQE (%)	EUE (%)
POCz2-BTBTOx4 spin coated	0.48@4.2 V	5016@8 V	3.8	3.35	4 V	553	28.9	1.19	20.6
POCz2-BTBTOx4 printed	5.5@5.5 V	2524@10 V	3.46	3.35	4 V	553	25.8	1.01	19.6
PTz2-BTBTOx4 spin coated	1.23@4 V	381@10 V	0.17	n.a.	4.8 V	624	2.1	0.14	33.3
MPA2-BTBTOx4 spin coated	0.47@3 V	3733@7 V	1.13	0.97	3.1 V	583	8.52	0.45	26.7

---

A comparison of the performance of the three OLEDs shows that the MPA₂-BTBTOx₄-based device has a higher current density then that using PTz₂-BTBTOx₄ and POCz₂-BTBTOx₄ in the emitting layer (Fig. 12b). The maximum luminance values are very similar for the devices based on MPA₂-BTBTOx₄ and POCz₂-BTBTOx₄, while they are considerably lower for the device based on PTz₂-BTBTOx₄. This results in higher efficiency for the POCz₂-BTBTOx₄-based device, with a maximum current efficiency of about 4 cd A⁻¹ compared to significantly lower values for PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄, of 0.17 and 1.1 cd A⁻¹, respectively (Fig. 12c). Our results are in line with the photophysical study of PTz₂-BTBTOx₄, MPA₂-BTBTOx₄ and POCz₂-BTBTOx₄ in neat film (Fig. 12 and Table 5). POCz₂-BTBTOx₄ exhibits the highest photoluminescence quantum yield in neat film (around 20%), while PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄ undergo significant self-quenching phenomena, with quantum yields in the order of a few percent. The difference in the turn on voltage values of these devices is probably related to a different charge balance, due to the combined effect of the energy levels and the peculiar charge carrier mobilities of the active materials. These results agree with the charge carrier mobility of our emitters, which is higher for MPA₂-BTBTOx₄ and POCz₂-BTBTOx₄ (1.1 × 10⁻⁶ cm² V⁻¹ s⁻¹) and about two orders of magnitude lower for PTz₂-BTBTOx₄ (5.2 × 10⁻⁸ cm² V⁻¹ s⁻¹). The electroluminescence spectra are also shown in Fig. 12d and the peak emission wavelengths confirm the trend observed in the photoluminescence spectra of the neat film (Fig. 11). Taking into account our results, the best performing material POCz₂-BTBTOx₄ was also tested with an inkjet-printed emissive layer. The ink formulation was selected according to our recent work.¹⁰¹ A comparison between the devices obtained by spin coating and inkjet printing the active layer is shown in Fig. 12e and f. As reported in our previous work, solution processing of EML (spin coating or printing) can cause a slight redissolution of the underlying PVK-based EBL layer, resulting in a blurred/mixed interface between the EBL and the EML. This, therefore, affects the electrical characteristics of the printed device, introducing slight differences between OLEDs with printed and spin coated EML. Indeed, we note that the current density is lower for the printed EML (Fig. 12e), and similarly, the luminance is also lower than that with the spin coated EML. This is probably due to a slight difference in the total thickness of the PVK-EML bilayer, as a consequence of the different deposition technique. As a result, the efficiency of the device with the spin coated active layer is slightly higher than one with the printed film, and the maximum efficiency of the latter is shifted to higher voltages. In any case, the performances of the two devices are comparable, demonstrating the quality of the printing process for the deposition of active layers in non-doped OLED devices. Table 5 also reports the external quantum efficiency (EQE) and exciton utilization efficiency (EUE, η_r) values for each device (calculated as described in the ESI,† Section 8, OLED devices). EQE and EUE values are in line with the photophysical study of PTz₂-BTBTOx₄, MPA₂-BTBTOx₄ and POCz₂-BTBTOx₄. As expected, the photoluminescence quantum yields of EMLs are higher than those measured for neat films, with a particularly strong self-quenching in the case of PTz₂-BTBTOx₄. Although from the EQE point of view PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄ show the lowest performances (0.14% and 0.45%, respectively) compared to POCz₂-BTBTOx₄ (1.19%), the related EUE values exceed the spin-statistic limitation of 25% for fluorescent materials. This suggests the presence of a triplet-harvesting mechanism in line with TADF behavior in these two materials, in agreement with our photophysical study. The electroluminescence spectra are shown in Fig. 12d, and the peak emission wavelengths are in line with the photoluminescence spectra of the neat film (Fig. 11). As already highlighted, the wet deposition process of the EML causes a partial redissolution of the PVK. This is confirmed by the blue shift of the EL peaks with respect to the PL peaks of the neat films, for all materials, due to the presence of PVK, which dilutes the active materials inside the EMLs. All the EL spectra show a weak band at around 400 nm, attributed to PVK or TPBi emission. In our opinion, considering that EMLs are virtually non-doped the presence of such a peak, highlights a slight imbalance in the charge injection, which causes excitonic recombination near one of the interfaces between the EML and the HTL (or ETL).

3. Conclusion

In summary, we designed and synthesized three new organic luminescent molecules with a D–A–D electronic structure and based on the [1]benzothieno[3,2-b]benzothiophene-tetraoxide BTBTOx₄ as the acceptor unit A. Three donor units D with different electron-donating capabilities and structural complexity were selected to be coupled with the acceptor A by the microwave-assisted Buchwald–Hartwig reaction, yielding PTz₂-BTBTOx₄, MPA₂-BTBTOx₄ and POCz₂-BTBTOx₄. Cyclic voltammetry and charge carrier mobility measurements were carried out to investigate the electrical properties of compounds, X-ray analysis was performed for determining the crystal structure. UV-vis absorption, steady-state fluorescence and time resolved fluorescence spectroscopy were used to investigate photophysical properties of the three organic emitters studied in this work. Theoretical studies were carried out to aid the photophysical characterization. OLED devices were fabricated to analyse the luminescence properties of the new organic emitters as self-hosted active matrices. All three organic emitters show high electrochemical stability with reversible oxidation waves. MPA₂-BTBTOx₄, which can be obtained with a suitable degree of crystallinity, was selected as a reference molecule for X-ray analysis. Crystallographic data reveal a butterfly-shape molecule with a planar core (BTBTOx₄) and out-of-plane p-methoxyphenyl groups of the donor unit (DMeOPA), with torsion angles (C1–C2–N1–C13 and C13–N1–C7–C8) of −59° and 86°, respectively. Steady-state and time-resolved photoluminescence studies in polymer matrices (Zeonex and PMMA) revealed a noteworthy increase in PL efficiency upon deoxygenation for all three organic emitters, especially in PMMA. We demonstrate the pronounced TADF properties of the three studied luminescent molecules representing a new class of organic emitting materials. We carried out preliminary studies of photophysical properties in neat films, with the aim of assessing the potential of this class of compounds as emitters in solution-processed self-hosted OLEDs. In PTz₂-BTBTOx₄ and MPA₂-BTBTOx₄ a pronounced self-quenching can be observed with a Φ_PL as low as 1%. In contrast, POCz₂-BTBTOx₄ reveals a minimal self-quenching with a capability to maintain a good Φ_PL (22%), comparable to that in Zeonex and half of that in PMMA. As a proof of concept, we tested the new organic compounds in neat films serving as an active matrix in simple self-hosted OLED devices, evaluating their optoelectronic characteristics and exciton utilization efficiencies. Although the performances of OLEDs are not in line with the state of the art, the purpose of our work was to demonstrate the possibility of employing this new acceptor as a building block in new emitters used in printed devices. Starting from this study, we plan to develop more efficient printable systems, with higher photoluminescence quantum yields and lower self-quenching, to be used as a neat film EML, thereby simplifying the device structure and minimizing the production costs. Indeed, these are key factors in developing fabrication processes towards solution-based techniques.

Author contributions

M. Montrone: synthesis and characterization of organic emitters. A. Maggiore: design of photophysical experiments, supervision of the photophysical study and data analysis, writing the manuscript. A. Moliterni: X-ray data analysis, writing the manuscript. P. Pander: computational analysis, supplementary photophysical studies, writing the manuscript. M. Pugliese: OLED device fabrication and characterization, writing the manuscript. A. L. Capodilupo: CV analysis and chemico-structural characterization. S. Gambino: charge carrier mobility measurements, writing the manuscript. C. T. Prontera: OLED device fabrication. V. Valenzano: photophysical experiments. F. Mariano: OLED device fabrication. G. Accorsi: supervision of the photophysical data. T. Sibillano: X-ray data collection, writing of the manuscript. C. Giannini: supervision of X-ray data analysis and writing of the manuscript. G. Gigli: found acquisition, conceptualization and supervision of physical data. A. Cardone: design of organic emitters, original draft, writing review & editing. V. Maiorano: supervision, review and funding acquisition. All authors participated in the general discussion.

Data availability

The data supporting this article have been included as part of the ESI.† Crystallographic data of BDMeOPA-BTBTOx₄ are deposited at the Cambridge Crystallographic Data Centre, under deposition number CCDC 2362085 and can be obtained free of charge viahttps://www.ccdc.cam.ac.uk/structures/.†

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was financially supported by: (a) MUR, project PON ARS01_00951_V0584, D.D.n. 2051 del 02/08/2018, titled: “ECOTEC – Smart and eco-sustainable fibres and tissues for technical clothing and high fashion”; (b) MUR, under the complementary actions to the NRRP (PNC0000007) “Fit4MedRob-Fit for Medical Robotics” Grant (contract number CUP B53C22006960001); European Union-NextGenerationEU (National Sustainable Mobility Center CN00000023, Italian Ministry of University and Research Decree no. 1033 – 17/06/2022, Spoke 11 – Innovative Materials & Lightweighting); (c) Project “Nano Foundries and Fine Analysis – Digital Infrastructure (NFFA-DI)” (CUPB53C22004310006), supported by the Italian Ministry of Research (MUR) in the framework of the National Recovery and Resilience Plan (NRRP), funded by the European Union – NextGenerationEU; (d) PNRR MUR Project (Integrated Infrastructure Initiative in Photonic and Quantum Sciences)” (I-PHOQS, N. IR0000016). This work made use of the Hamilton High Performance Computing Service of Durham University. A. Moliterni, T. Sibillano and C. Giannini gratefully thank F. Baldassarre for his technical assistance.
