Issue 77, 2016
From the journal:

RSC Advances

Solvothermal synthesis of discrete cages and extended networks comprising {Cr(iii)3O(O2CR)3(oxime)3}2− (R = H, CH3, C(CH3)3, C14H9) building blocks†

Edel Houton,b   Priyanka Comar,c   Mateusz B. Pitak,e   Simon J. Coles, ORCID logo e   Alan. G. Ryder,b   Stergios Piligkos,d   Euan K. Brechinc  and  Leigh F. Jones*ab

* Corresponding authors

a School of Chemistry, Bangor University, Bangor, Wales, UK
E-mail: leigh.jones@bangor.ac.uk
Tel: +44 (0)1248 38 2391

b School of Chemistry, NUI Galway, University Road, Galway, Ireland

c EaStCHEM School of Chemistry, The University of Edinburgh, David Brewster Road, Edinburgh, Scotland, UK

d Department of Chemistry, University of Copenhagen, Universitetsparken 5, Denmark

e UK National Crystallographic Service, Chemistry, Faculty of Natural and Environmental Sciences, University of Southampton, England, UK

Abstract

The synthesis, structural and magnetic characterisation of a family of related Cr(III) cages are reported. Each member comprises {Cr(III)3O(O2CR1)3(R2-sao)3}2− (R1 = H, CH3, C(CH3)3, C14H9; R2 = Me, Ph, tBu, C10H8) triangles linked by Na+ cations, resulting in either the discrete complexes [H3O][NEt4]2[NaCr(III)6O2(O2C-C14H9)6(Naphth-sao)6] (1) and [Na4Cr(III)6O2(O2CC(CH3)3)6(3,5-di-tBu-sao)6(MeCN)6] (3); or the extended networks [H3O]2[Na2Cr(III)6O2(O2CH)6(Ph-sao)6(MeCN)2(H2O)2]n·4MeCN (2); [H3O][Na3Cr(III)6O2(O2CCH3)6(Me-sao)6(MeCN)]n (4) and [Na2Cr(III)3O(O2CCH3)3(Me-sao)3(H2O)6]n·3MeCN (5). Magnetic susceptibility data obtained for 2 and 4 reveal weak antiferromagnetic exchange between the Cr(III) ions in the triangles.

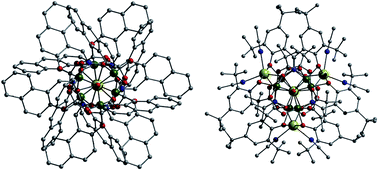

Graphical abstract: Solvothermal synthesis of discrete cages and extended networks comprising {Cr(iii)3O(O2CR)3(oxime)3}2− (R = H, CH3, C(CH3)3, C14H9) building blocks

About
Cited by
Related
Download options Please wait...

Supplementary files

Article information

DOI
https://doi.org/10.1039/C6RA14811E
Article type
Paper
Submitted
07 Jun 2016
Accepted
21 Jul 2016
First published
28 Jul 2016
This article is Open Access
Creative Commons BY-NC license

RSC Adv., 2016,6, 73668-73676

Author version available

Download author version (PDF)

Permissions

Request permissions

Solvothermal synthesis of discrete cages and extended networks comprising {Cr(III)3O(O2CR)3(oxime)3}2− (R = H, CH3, C(CH3)3, C14H9) building blocks

E. Houton, P. Comar, M. B. Pitak, S. J. Coles, Alan. G. Ryder, S. Piligkos, E. K. Brechin and L. F. Jones, RSC Adv., 2016, 6, 73668 DOI: 10.1039/C6RA14811E

This article is licensed under a Creative Commons Attribution-NonCommercial 3.0 Unported Licence. You can use material from this article in other publications, without requesting further permission from the RSC, provided that the correct acknowledgement is given and it is not used for commercial purposes.

To request permission to reproduce material from this article in a commercial publication, please go to the Copyright Clearance Center request page.

If you are an author contributing to an RSC publication, you do not need to request permission provided correct acknowledgement is given.

If you are the author of this article, you do not need to request permission to reproduce figures and diagrams provided correct acknowledgement is given. If you want to reproduce the whole article in a third-party commercial publication (excluding your thesis/dissertation for which permission is not required) please go to the Copyright Clearance Center request page.

Read more about how to correctly acknowledge RSC content.
