MXene-supported NiMn-LDHs as efficient electrocatalysts towards enhanced oxygen evolution reactions†
Received
16th March 2022
, Accepted 11th April 2022
First published on 12th April 2022
Abstract
Layered double hydroxides (LDHs) are recognized as potential electrocatalysts for oxygen evolution reactions (OERs), whereas their poor electrical conductivity restricts their practical application. Herein, two-dimensional (2D) NiMn-LDHs on the surface of 2D Ti3C2 MXene are synthesized via a facile hydrothermal method. It is found that a thin layer of NiMn-LDHs is firstly deposited on the surface of Ti3C2 MXene, and gradually it extends out of the surface for continuous growth, and finally the 2D/2D hybrid structure is constructed. Owing to this unique feature of such a kind of 2D/2D hybrid, the NiMn-LDHs/Ti3C2-MXene hybrids (NT-10) show an overpotential of 294 mV at a current density of 10 mA cm−2 and a Tafel slope of 83.7 mV dec−1 in 1 M KOH solution. The results demonstrate the outstanding electrocatalytic OER performance which surpasses those of pristine NiMn-LDHs and commercial IrO2 catalysts. Theoretical studies reveal that the coupling effect between Ti3C2 MXene and NiMn-LDHs could effectively narrow the bandgap of NiMn-LDHs and modulate their electronic structures, which could greatly boost the oxygen-evolving performances and reaction kinetics. In principle, this work provides a facile and effective strategy to boost the electrocatalytic OER performance of NiMn-LDHs.
1. Introduction
Electrochemical water splitting is becoming increasingly crucial in the development of green energy and environmental protection.1,2 However, the kinetics of the water splitting reaction is sluggish, particularly for the OER that undergoes a four-electron (4e−) transfer process.3,4 Therefore, excellent electrocatalysts are usually required to accelerate the reactions, lower the overpotential, and improve the energy conversion efficiency.5–7 At present, noble-metal oxides (such as RuO2 and IrO2) show a good OER performance, yet their significant cost, supply shortage, and poor electrochemical stability impede their large-scale applications.8 Besides, these precious metal-based catalysts lack good conductivity and may likely suffer from oxidation in the process of electrolyzing water in alkaline electrolytes, forming high valence oxides (e.g. RuO4 and IrO3).1 Therefore, exploring high activity, powerful stability, and noble-metal-free electrocatalysts has drawn great attention in recent years.
So far, plenty of non-noble metal catalysts, such as perovskites,9–11 spinels,12–14 layer structure oxides,15–17 and other metal oxides,18,19 have been developed. Among these electrocatalysts, layered double hydroxides (LDHs) are typical non-noble-metal-based hydrotalcite-like clay materials and a class of layered bimetallic compounds with similar structures,20 which is deemed to be a prospective non-noble-metal OER electrocatalyst candidate because of its compositional and structural flexibilities,21 simple preparation methods,22 and unique physicochemical properties.23–25 In particular, Ni-based LDHs, for instance NiFe-LDHs, NiCo-LDHs, and NiMn-LDHs, have been extensively investigated.26,27 However, their poor conductivity, insufficient exposure of active sites, and limited electrochemical active surface areas (ECSA) severely hinder their further enhancement of electrocatalytic OER performance as well as practical application.28,29 Element doping is an effective strategy to boost OER performance, for example, doping some metal elements with variable valence (such as V,30 Co,31,32 and Mn33) can modulate the electronic structures of active sites, lower the potential barrier (adsorption of *OH, *O, and *OOH) and narrow the bandgap, enhancing the electrocatalytic OER performance to a certain extent.
Compounding with conductive substances can be another tactic to improve the electrocatalytic performance of LDHs. Take NiMn-LDHs for instance, in our previous work,34,35 the as-prepared NiMn-LDHs/CNTs demonstrated that involving nanotubes can significantly improve the electrocatalytic performance of NiMn-LDHs. In fact, as well as compounding with carbon nanotubes, carbon fiber cloth,36 Ni foam,37 (reduced) graphene oxide,38 and silver nanowires39 were all utilized to advance the OER performance of NiMn-LDHs. The interactions between NiMn-LDHs and other conductive materials are the main reason for the performance improvement of electrocatalysts, which can promote electron transfer in a redox process and accelerate the kinetic process of chemical reactions.
Recently, MXene as one type of two-dimensional (2D) material has attracted extensive attention owing to the excellent electrical conductivity, rich surface chemistry, strong hydrophilicity, and structural variability,40 rendering them ideal alterative candidates for electrocatalysis applications.41,42 Considering that LDHs are also 2D materials, the construction of LDHs and MXene into the formation of 2D/2D hybrids is expected to enhance the OER performance. Recently, FeNi-LDHs/Ti3C2-MXene nanohybrids were prepared via an ionic hetero-assembly method: in situ growth of FeNi-LDHs nanoplates on the Ti3C2 MXene nanosheets.43 The robust interfacial effect and quick electrical conductance between the FeNi-LDHs as well as Ti3C2 MXene are confirmed, which not only boost the structural stability and electrical conductivity of the hybrids, but considerably accelerate the redox process toward electrochemical water splitting. However, the underlying mechanism of the growth of LDHs on the MXene surface and the improved OER performance of hybrid systems requires to be further investigated.
Therefore, based on our previous work, NiMn-LDHs/Ti3C2-MXene hybrids were prepared via a hydrothermal method. The microstructure of hybrids (NT-10) was characterized in detail via aberration-corrected scanning transmission electron microscopy (Ac-STEM). The OER performance of NiMn-LDHs/Ti3C2-MXene hybrids as well as NiMn-LDHs and Ti3C2 MXene was investigated. Furthermore, first principle calculations were also conducted to reveal the effect of MXene coupling of LDHs toward the OER at the electronic level.
2. Experimental section
2.1. Preparation of Ti3C2 MXene
Primarily, 0.5 g of Ti3AlC2 powder was added to the mixed solution that contained LiF (0.5 g) and HCl (6M, 10 mL) to etch the Al layer. The solution was then magnetically stirred for 24 hours at 35 °C. The deionized (DI) H2O was utilized to wash the obtained products until the pH reached about 6. And 0.418 g of etched Ti3AlC2 was obtained. The powders then dispersed into 10 mL of 25% hexamethylene tetramine (HMT) aqueous solution to exfoliate MXene. The mixed solution was agitated for 24 hours at room temperature (RT, 25 °C), then centrifuged (washed twice with DI H2O), finally diluted with DI H2O and centrifuged at 5000 rpm for 3 minutes. And the collected sediment was injected with 100 mL of DI H2O and stirred powerfully to obtain a homogeneous Ti3C2 MXene dispersion. The bottle filled with N2 was utilized to collect the supernatant after centrifugation (3000 rpm for 1 hour) and stored at 4 °C before use. Ultimately, Ti3C2 MXene colloidal solution within a concentration of 0.976 mg mL−1 was successfully obtained.
2.2. Preparation of NiMn-LDHs and NiMn-LDHs/Ti3C2-MXene hybrids
NiMn-LDHs.
Pure NiMn-LDHs were synthesized following a previous method35 with some modification. Briefly, 6 mmol of NiCl2·6H2O and 2 mmol of MnCl2·4H2O were firstly dissolved into 60 mL of DI H2O. After stirring the mixed solution, 5 mmol of C6H12N4 was added into the aforesaid solution and agitated for 35 minutes. Then the mixed solution was heated to 120 °C in a sealed autoclave and maintained for 12 hours. The obtained products were washed 3 times within DI H2O as well as C2H5OH, and then dried vacuously for 12 hours at 60 °C to obtain NiMn-LDHs.
NiMn-LDHs/Ti3C2-MXene hybrids.
Firstly, 10 mL of Ti3C2 MXene solution was added to 20 mL of N-methyl-pyrrolidone (NMP) to form suspension 1. The different proportions of NiCl2·6H2O, MnCl2·4H2O, and C6H12N4 were dissolved in 5 mL of DI H2O to form suspension 2. The two suspensions were then transferred to a 100 mL of PTFE-lined stainless-steel autoclave for hydrothermal reaction (120 °C for 12 hours). The ultimate products were gained by centrifugation-rinsing within DI H2O followed via freeze-drying to obtain NiMn-LDHs/Ti3C2-MXene hybrids. According to the different contents of NiMn-LDHs, the samples are marked as NT-5, NT-10, NT-15, and NT-20 as shown in Table 1. A schematic illustration of the preparation of NiMn-LDHs/Ti3C2-MXene hybrids is shown in Fig. 1.
Table 1 Molar and mass ratio of different groups of catalysts
Electrocatalysts |
NiCl2·6H2O (mmol) |
MnCl2·4H2O (mmol) |
C6H12N4 (mmol) |
NiMn-LDHs (mg) |
MXene (mg) |
NiMn-LDHs |
6.00 |
2.00 |
5.00 |
303.33 |
9.76 |
NiMn-LDHs/Ti3C2-MXene (NT-5) |
1.20 |
0.40 |
1.00 |
60.67 |
9.76 |
NiMn-LDHs/Ti3C2-MXene (NT-10) |
0.60 |
0.20 |
0.50 |
30.33 |
9.76 |
NiMn-LDHs/Ti3C2-MXene (NT-15) |
0.40 |
0.13 |
0.33 |
20.22 |
9.76 |
NiMn-LDHs/Ti3C2-MXene (NT-20) |
0.30 |
0.10 |
0.25 |
15.17 |
9.76 |
 |

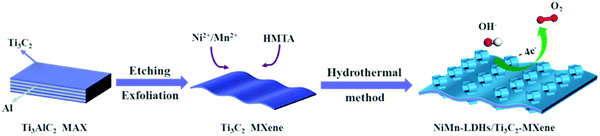

| Fig. 1 Schematic illustration of NiMn-LDHs/Ti3C2-MXene hybrids. | |
3. Results and discussion
3.1 Phase analysis and microstructure characterization
To examine the crystallography characteristics, the X-ray diffraction (XRD) patterns of Ti3AlC2 as well as Ti3C2 MXene were obtained via an etching and exfoliating process, and are displayed in Fig. S1, (ESI†) confirming the synthesis of Ti3C2 MXene. Furthermore, the phase of NiMn-LDHs/Ti3C2-MXene hybrids as well as the corresponding independent samples were analyzed as shown in Fig. 2. The peaks at 6.4°, 19.3°, 38.7°, and 60.3° of Ti3C2 MXene are indexed to the (002), (004), (104), and (110) crystal planes, respectively. And the peaks located around 11.3°, 22.7°, 34.4°, 38.8°, and 60.0° are indexed as the (003), (006), (012), (015), and (110) planes of the NiMn-LDHs, which is in agreement within the standard JCPDS card file (No. 38-0715). Obviously, all the diffraction peaks of the obtained NiMn-LDHs/Ti3C2-MXene hybrids can well coincide with the corresponding peaks of Ti3C2 MXene and NiMn-LDHs, indicating that the as-prepared products are very pure and no other oxides or hydroxides of Mn, Ti, and Ni are produced during the preparation process. The (002) diffraction peak of Ti3C2 MXene is weak because the growth of NiMn-LDHs on the surface of Ti3C2 MXene suppresses the re-stacking of MXene sheets.44–46 It should be noted that the diffraction peaks of the (003), (006), and (012) planes of NT-5, NT-10, NT-15, and NT-20 shift toward the higher 2θ degree which means that with the decrease of the relative contents of NiMn-LDHs in the hybrids, the lattice size shrinkage (layer spacing) is more obvious, which will be analyzed later.
 |

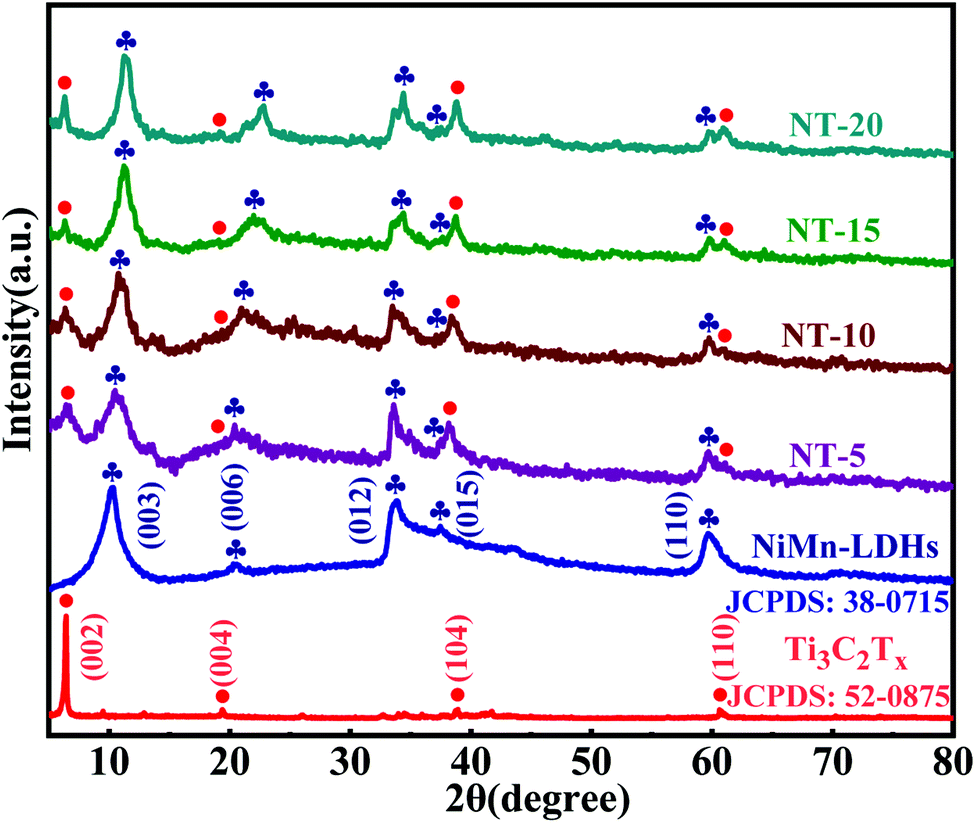

| Fig. 2 XRD patterns of Ti3C2 MXene, NiMn-LDHs, and NiMn-LDHs/Ti3C2- MXene hybrids. | |
The microstructure of Ti3C2 MXene, NiMn-LDHs, and NiMn-LDHs/Ti3C2-MXene hybrids is displayed in Fig. 3. As can be observed from Fig. 3a–c, the Ti3C2 MXene nanosheets were successfully obtained after selective etching of Ti3AlC2 by LiF/HCl solution and exfoliated via HMT. Without Ti3C2 MXene, the pure NiMn-LDHs exhibit a flower-like microstructure (Fig. 3d). However, when NiMn-LDHs in situ grow on the surface of Ti3C2 MXene to form hybrids, the morphology of NiMn-LDHs has been changed and a stacked sheet structure is formed on the surface of Ti3C2 MXene, as shown in Fig. 3e–h. Obviously, the NiMn-LDHs severely stack on the surface of Ti3C2 MXene in NT-5, and the contents of NiMn-LDHs on the surfaces of Ti3C2 MXene in NT-10, NT-15, and NT-20 decrease gradually, which is consistent with the ratio of raw materials. To further confirm the composition of the hybrids, the element distribution of NT-10 is analyzed as displayed in Fig. 3i and the elemental energy dispersive X-ray spectra (EDS) mappings confirm the homogeneous distribution of Ni, Mn, O, Ti, and C elements in the NT-10, indicating that the obtained products are NiMn-LDHs/Ti3C2-MXene hybrids.
 |
| Fig. 3 The scanning electron microscopy (SEM) images of (a) the Ti3AlC2 MAX phase, (b) Ti3AlC2 after etching, (c) Ti3C2 MXene after exfoliating, and (d) NiMn-LDHs. The SEM images of NiMn-LDHs/Ti3C2-MXene hybrids at different ratios: (e) NT-5, (f) NT-10, (g) NT-15, and (h) NT-20. (i) The elemental EDS mapping images showing a homogeneous distribution of Ni, Mn, O, Ti, and C elements in the NT-10. | |
The NT-10 as a representative sample was further characterized by Ac-STEM as well as the results shown in Fig. 4. It can be shown in Fig. 4a–d that the 2D thin NiMn-LDHs nanosheets are formed on the surface of Ti3C2 MXene and the identification of the two components has been distinguished by the HAADF-STEM images. Simultaneously, the HAADF-STEM images with different magnifications displayed in Fig. 4e and f and the corresponding elemental EDS mapping results show that Ni, Mn, and O elements exist on the surface of Ti3C2 MXene, indicating that a thin layer of NiMn-LDHs was firstly deposited on the surface of Ti3C2 MXene and it extended out of the surface during the growth process. In addition, it is also found that the NiMn-LDHs nanosheets are certainly not growing directly and vertically on the surface of Ti3C2 MXene.43 Besides, multiple local locations of NT-10 were characterized via EDS mapping as displayed in Fig. S2, (ESI†) further verifying the composite structure of NiMn-LDHs/Ti3C2-MXene hybrids.
 |
| Fig. 4 (a–d) HAADF-STEM images of NT-10 within different magnifications, and the elemental EDS mappings of NT-10: (e and f) ADF images, followed by the individual mapping of Ni, Mn, O, Ti, and C, respectively. | |
3.2. XPS spectral analysis
X-ray photoelectron spectroscopy (XPS) characterization was conducted to analyze the elemental composition and valence state of a representative sample (NT-10) and NiMn-LDHs, as shown in Fig. 5 and Fig. S3, (ESI†) respectively. The XPS survey spectrum of NT-10 includes the peaks corresponding to Ni 2p, Mn 2p, Ti 2p, C 1s, and O 1s (Fig. 5a), demonstrating the co-existence of two phases (NiMn-LDHs and Ti3C2 MXene), which is coincident with the above morphology characterization results. In the Ni 2p XPS spectrum (Fig. 5b), the Ni (2p3/2 at 855.83 eV; 2p1/2 at 873.22 eV) peaks in NT-10 with two shakeup satellites indicate the existence of bivalent Ni (Ni2+). In addition, the peak at 653.95 and 642.56 eV is attributed to the characteristics of Mn 2p1/2 and Mn 2p3/2, demonstrating the valence state of trivalent Mn (Mn3+) (Fig. 5c). Compared with pristine NiMn-LDHs (Ni: 2p3/2 at 855.39 eV, 2p1/2 at 873.20 eV; Mn: 2p3/2 at 642.26 eV, 2p1/2 at 653.09 eV), Ni and Mn 2p peaks in NT-10 shift by a tiny angle toward a higher binding energy direction. This shift (low binding energy to high binding energy) manifests that MXene coupling causes the partial electron transfer from Ni and Mn to the heterointerface and indicates that new chemical bonds are formed between LDHs and MXene, as discussed later. This result makes it easier for anionic intermediates to aggregate in Ni and Mn centers with more positive charges, resulting in a faster redox reaction. The same phenomena have been reported in previous FeNi-LDH/MXene studies43 and precious metal supported CoO (OH), which evidently improves the intrinsic catalytic activity of electrocatalysts.47 The Ti 2p spectrum can be deconvoluted into four pairs of 2p3/2/2p1/2 doublets for Ti–C (455.17/460.84 eV), Ti2+ (456.30/461.84 eV), Ti3+ (457.93/463.14 eV), and Ti–O (458.45/464.35 eV), as shown in Fig. 5d.48,49 The rise of Ti3+ (at 457.93/463.14 eV) and Ti–O signals (at 458.45/464.35 eV) shows the partial oxidation of Ti3C2 MXene likely via oxidative Mn3+ and oxygen dissolved in mixed solution.
 |

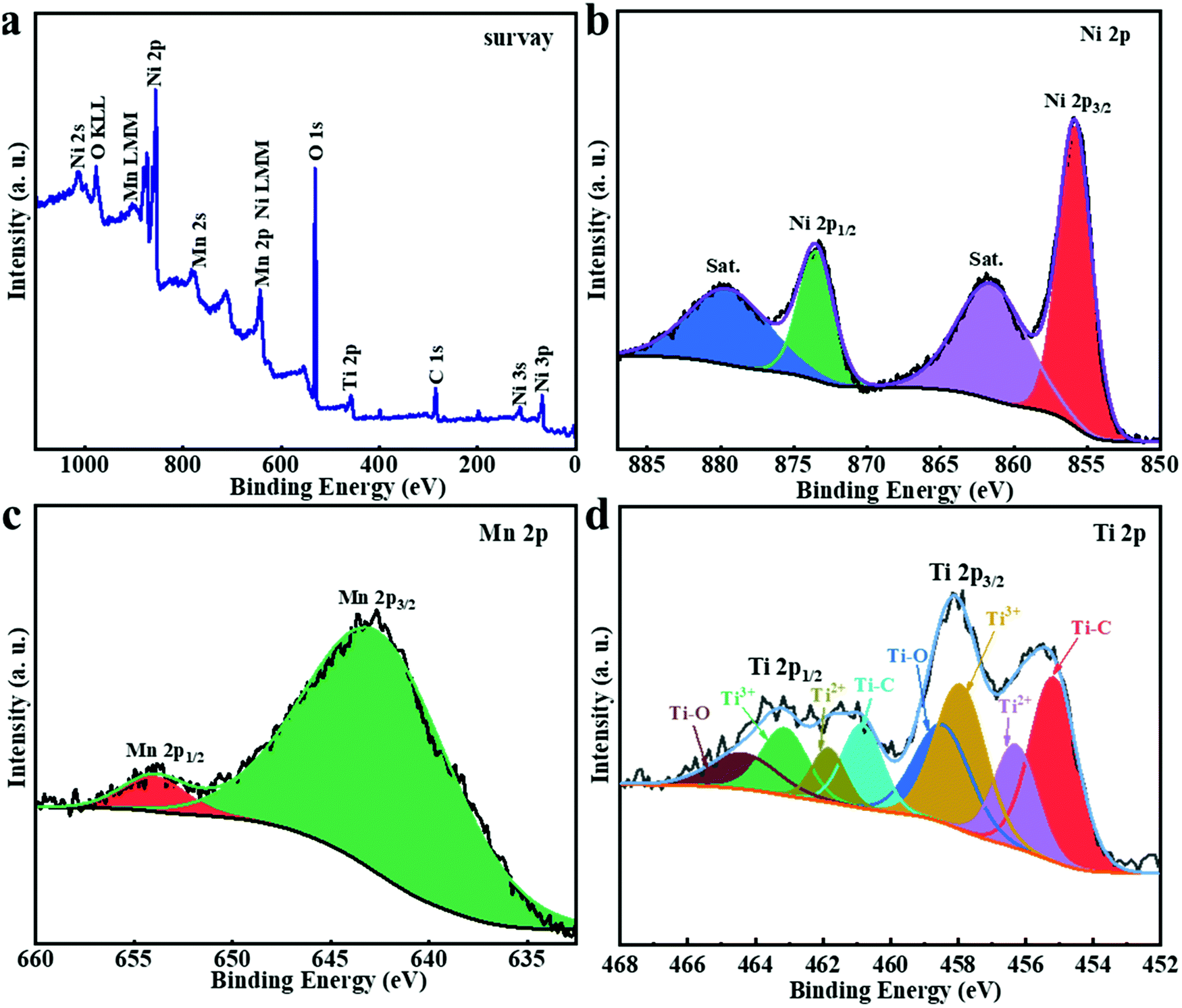

| Fig. 5 XPS spectra of the NT-10. (a) XPS survey spectrum; (b) Ni 2P; (c) Mn 2P; (d) Ti 2p. | |
3.3. Electrocatalytic properties toward the OER
The oxygen-evolving electrocatalytic activity of Ti3C2 MXene, NiMn-LDHs, and NiMn-LDHs/Ti3C2-MXene hybrids was assessed in 1 M KOH solution (pH = 13.8) within three-electrode systems. Fig. 6a displays the linear sweep voltammetry (LSV) polarization curves of Ti3C2 MXene, NiMn-LDHs, and NiMn-LDHs/Ti3C2-MXene hybrids, respectively. Obviously, the pristine Ti3C2 MXene has no electrocatalytic OER activity, revealing that LDHs is the active phase in the electrocatalytic OER process. Moreover, the strongest redox peak is observed at η = 1.30 V for the NT-10 catalyst, which shows the evidently accelerated Ni2+/Ni3+ redox process.50,51 The overpotential of the NT-10 is 294 mV, which is smaller than NT-5 (309 mV), NT-15 (338 mV), NT-20 (404 mV), NiMn-LDHs (356 mV), and IrO2 (331 mV), respectively, as shown in Fig. 6d. Meanwhile, the mass activity is also analyzed in Fig. 6a. It can be observed that NT-10 has a comparatively high value (112.99 mA mg−1) relative to NT-5 (85.31 mA mg−1), NT-15 (51.94 mA mg−1), NT-20 (7.17 mA mg−1), NiMn-LDHs (32.98 mA mg−1), as well as IrO2 (70.55 mA mg−1) at a specific overpotential of 1.56 V vs. RHE, showing the substantive activity of the electrocatalyst. NT-10 reveals a small Tafel slope of 83.7 mV dec−1 compared with those of NT-5 (107.1 mV dec−1), NT-15 (113.3 mV dec−1), NT-20 (127.5 mV dec−1), and IrO2 (110.5 mV dec−1) (Fig. 6b), indicating that the coupling effect of MXene boosts the reaction kinetics in the OER process. Compared with the pure LDH counterparts and IrO2 catalyst, the excellent OER performance of the representative sample (NT-10) can be attributed to the optimal 2D/2D hybrid structure that can facilitate the charge transportation across the interface between NiMn-LDHs and Ti3C2 MXene. In order to prove the superiority of the NiMn-LDHs/Ti3C2-MXene hybrids, a comparison of its overpotential and Tafel slop value with the materials reported up to now are listed in Table S1 (ESI†). Notably, the NT-10 shows an overall better overpotential and exhibits the most prominent activity.
 |

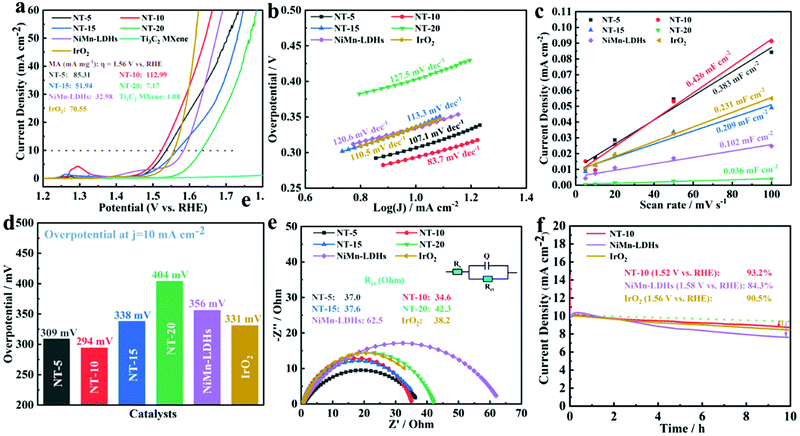

| Fig. 6 Oxygen-evolving performance display of NiMn-LDHs, NiMn-LDHs/Ti3C2-MXene hybrids, and IrO2. (a) The LSV curves and mass activity of the prepared catalysts. (b) Tafel slope of all samples. (c) Cdl plots. (d) overpotential at j = 10 mA cm−2. (e) EIS nyquist plots. (f) Long-term stability estimation of NT-10, NiMn-LDHs, and IrO2 at 1.52, 1.58, and 1.56 V vs. RHE, respectively. | |
The electrochemical surface area (ECSA) of NiMn-LDHs/Ti3C2-MXene hybrids and NiMn-LDHs were utilized to assess the intrinsic catalytic properties via testing the electrochemical double-layer capacitance (Cdl) via a cyclic voltammetry (CV) method (Fig. S4, ESI†). The Cdl for NT-10 is computed to be 0.426 mF cm−2, which is greater than those of the other electrodes (NT-5
:
0.383 mF cm−2; NT-15
:
0.209 mF cm−2; NT-20
:
0.036 mF cm−2; NiMn-LDHs: 0.102 mF cm−2; IrO2
:
0.231 mF cm−2), as displayed in Fig. 6c. The larger Cdl value of the NT-10 demonstrates that its larger effective electrochemical surface and more numerous active sites for catalysis can be exposed to electrolyte in OER processes, which is consistent with the aforementioned structural characterization and LSV measurement results. The electrochemical impedance spectroscopy (EIS) analysis results in Fig. 6e show that NT-10 has a smaller charge transfer resistance (ca. 34.6 Ohm), yet NT-5, NT-15, NT-20, NiMn-LDHs, and IrO2 show rather slow electron transfer (ca. 37.0, 37.6, 42.3, 62.5, and 38.2 Ohm), respectively. So, the NT-10 has a faster electron transportation efficiency and lower potential barrier for driving the current in the OER process. More importantly, the stability of NT-10 electrodes is better than benchmark catalysts (NiMn-LDHs) and the commercial IrO2 catalyst (Fig. 6f), and furthermore the microstructure of NT-10 is also preserved well after the stability test (Fig. S5, ESI†).
3.4. Theoretical calculation analysis
Density functional theory (DFT) computations based on the Vienna Ab Initio Simulation Package (VASP) were implemented to investigate the effect of MXene coupling LDHs on electronic structure as well as the OER mechanism (the theoretical models are shown in Fig. S6, ESI†). It can be seen in Fig. 7a and b that the layer distance between Ni–O and Mn–O in NiMn-LDHs/Ti3C2-MXene hybrids was computed to be 8.608 Å and 8.645 Å, which is smaller than pristine NiMn-LDHs (8.942 Å and 8.845 Å), indicating the lattice shrinkage of NiMn-LDHs. For NiMn-LDHs/Ti3C2-MXene hybrids, the strain effect caused by lattice shrinkage is very favorable for the optimization of electronic structure and surface adsorption energy during the OER process.52 These results are consistent with the peak shifts of the (003), (006), and (012) planes of NiMn-LDHs in the XRD patterns. Furthermore, the changes in charge transfers between NiMn-LDHs and NiMn-LDHs/Ti3C2-MXene hybrids are estimated via the charge density difference analysis (Fig. 7c). An apparent charge accumulation exists in the interface between NiMn-LDHs and Ti3C2 MXene, while the electron depletion appears on atoms adjacent to the interface (mainly for Ni and Mn), which is consistent within the XPS analysis results. To further assess the stability of the NiMn-LDHs/Ti3C2-MXene hybrids, the binding energy between NiMn-LDHs and Ti3C2 MXene was calculated. The ultimate computed Eb value is −0.36 eV which is a suitable value that can show a good bonding strength for the interface between NiMn-LDHs and Ti3C2 MXene, enhancing the stability of NiMn-LDHs/Ti3C2-MXene hybrids, accelerating electron transport between the interfaces as well as promoting electrocatalyst activity during the OER process.43,53 Hence, strong interfacial interaction between Ti3C2 MXene and NiMn-LDHs can assure fast electrical conductivity and a stable structure and accelerate the redox process of NiMn-LDHs in driving water oxidation.
 |

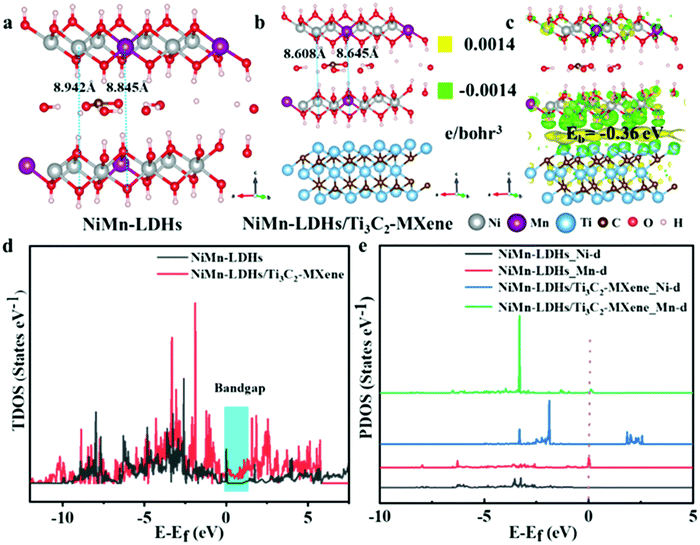

| Fig. 7 The changes in layer spacing of NiMn-LDHs: (a) NiMn-LDHs and (b) NiMn-LDHs/Ti3C2-MXene. The grey, purple, blue, brown, red, and white spheres represent Ni, Mn, Ti, C, O, and H atoms, respectively. (c) The charge density difference after Ti3C2 MXene coupling of NiMn-LDHs. Electron accumulation is in yellow and depletion in green, respectively. The isosurfaces are all set to 0.0014 eV Å−3. (d and e) Total density of states (TDOS) as well as partial DOS (PDOS) curves of NiMn-LDHs and NiMn-LDHs/Ti3C2-MXene hybrids, respectively. | |
Fig. 7d shows that the coupling of Ti3C2 MXene and NiMn-LDHs can narrow the bandgap of NiMn-LDHs, indicating a more conductive catalyst, which is well consistent with the EIS results. The partial density of the states of Ni and Mn in NiMn-LDHs or NiMn-LDHs/Ti3C2-MXene hybrids shows that the d orbital of Mn can enhance the electron mobility and modulate the electronic structure near the Fermi level, as shown in Fig. 7e. Moreover, the calculation results of the d-band center demonstrate that it shifts from −3.91 eV for pristine NiMn-LDHs to −1.10 eV for NiMn-LDHs/Ti3C2-MXene hybrids, which is closer to the Fermi level. This further proves that the coupling effect of MXene resulted in the antibonding states between NiMn-LDHs in hybrid systems and adsorbed oxygen species are less occupied, thereby increasing the bond strength.54 Accordingly, the theoretical analysis and experimental results are consistent with the fact that the OER kinetics can be enhanced via MXene coupling of NiMn-LDHs to promote the electric conductivity and the advanced intrinsic electrocatalytic activity.
4. Conclusions
In summary, we utilized a straightforward hydrothermal way to rationally design the in situ growth of NiMn-LDHs nanosheets on the surface of Ti3C2 MXene nanosheets. The Ac-STEM characterization confirmed the construction of 2D NiMn-LDHs and 2D Ti3C2 MXene hybrids. It is found that NiMn-LDHs/Ti3C2-MXene hybrids (NT-10) show excellent electrocatalytic capacities in alkaline medium, whose overpotential vs. RHE is merely 294 mV at the current density of 10 mA cm−2 and the Tafel slope is 83.7 mV dec−1. Theoretical calculation reveals that the coupling of MXene can effectively promote the electron mobility, modulate the electronic structure, and narrow the bandgap of NiMn-LDHs, which together dramatically improve the OER performance and structural stability. Besides, the electron extraction from NiMn-LDHs in hybrid systems may improve the bond strength via shifting the d-band center of NiMn-LDHs/Ti3C2-MXene hybrids to higher energy as well as making the antibonding states between LDHs and the adsorbed oxygen species less occupied. It is believed that the hybrid process strategy developed in this research may offer a novel perspective for designing other non-noble transition metal-based electrocatalysts for electrochemical water splitting.
Conflicts of interest
The authors declare no competing financial interest.
Acknowledgements
This work was supported by the National Natural Science Foundation of China (Grant no. 51602184; Grant no. 21902096), the Natural Science Foundation of Shaanxi Province (Grant no. 2020JM-505; Grant no. 2020JM-502) and the Academic Talent Introduction Program of SUST (134080056).
